TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

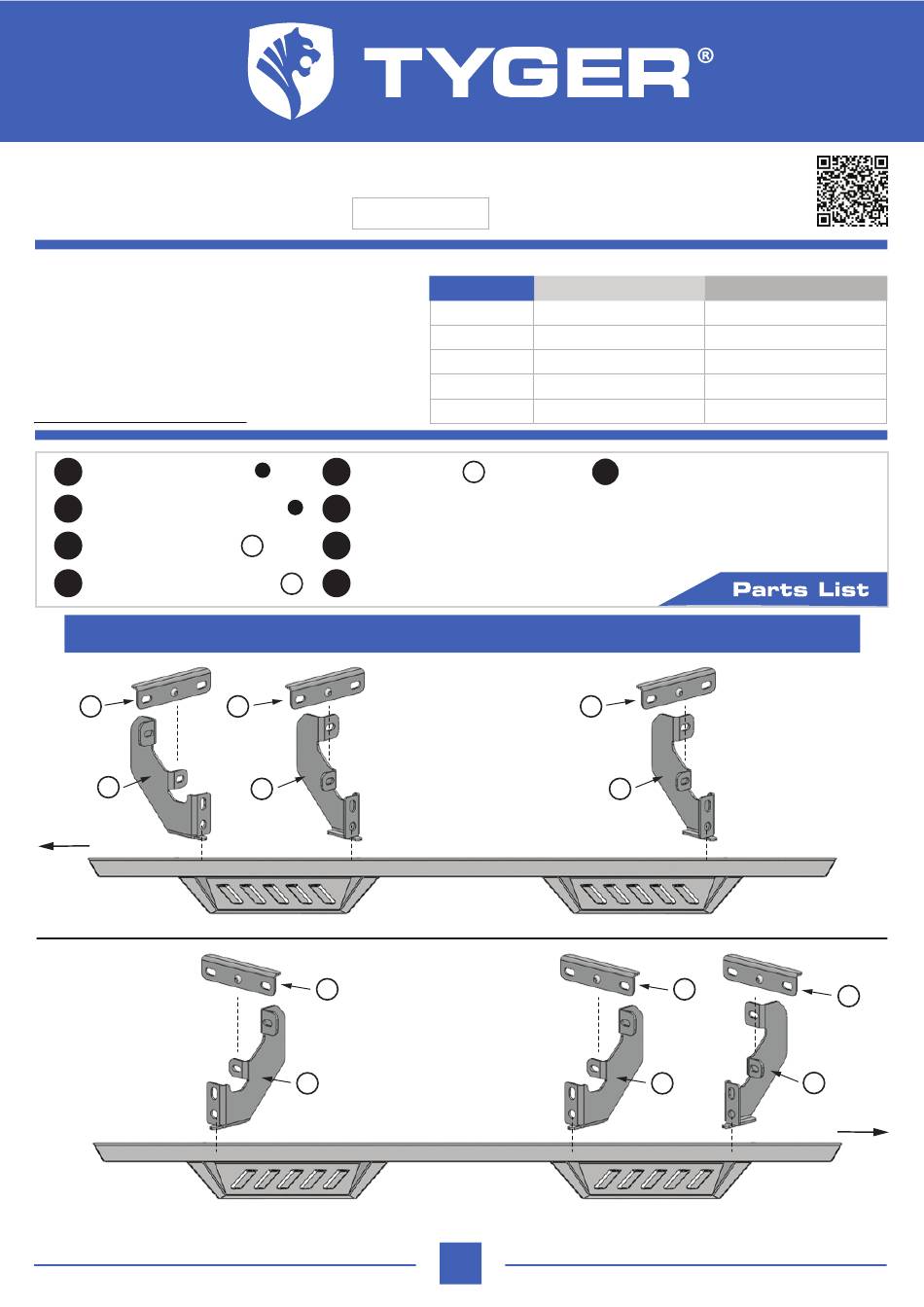

Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Front Mounting Brackets
x2
Center/Rear Mounting Brackets
x4
Reference the letters printed on the brackets to determine mounting locations
D
A
Front
Customer Support: www.tygerauto.com/contact
TG-LX3F82368
D
Support Brackets
x6
P 8mm x 24mm OD x 2mm Flat Washers
x24
A
8mm Lock Nuts
x24
B
8mm Plastic Retainers
x18
D
B
Driver/Left TYGER LanderX
D
B
Passenger/Right TYGER LanderX
TORQUE VALUES
Fastener Size Class 8.8 Torque (ft-lbs)
6mm
8mm 15-16
10mm 31-32
12mm 54-55
14mm 87-88
D
x12
D
1/3
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
8mm x 1.25mm x 25mm Combo Hex Bolts
B
D
B
6-7
D
A
Front
V240621
