TYGER LanderX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

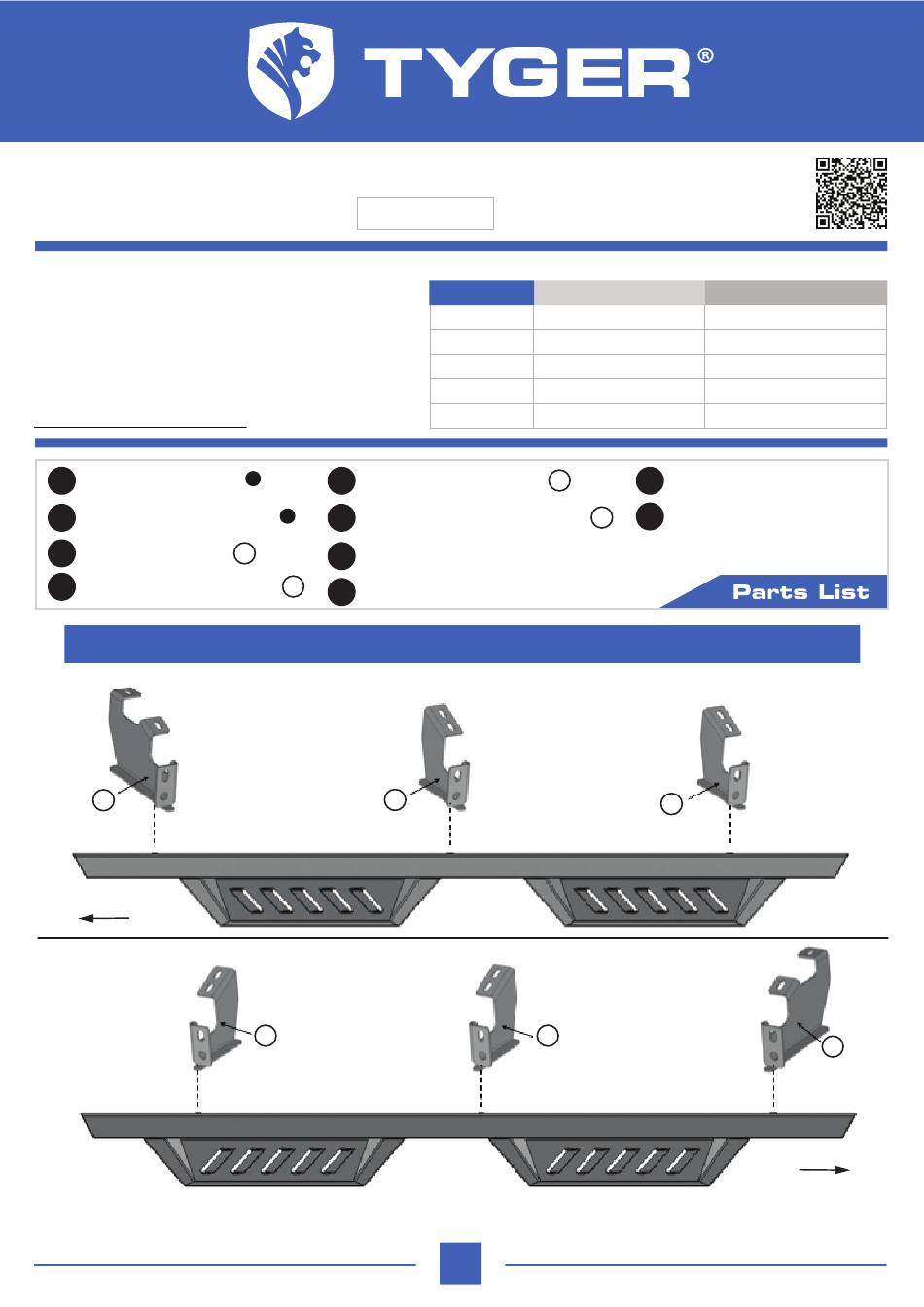

Driver/Left TYGER LanderX
x1
Passenger/Right TYGER LanderX
x1
Driver/left Front Bracket
x1
Driver/Left Center/Rear Brackets
x2
Reference the letters printed on the brackets to determine mounting locations
A
Front
Customer Support: www.tygerauto.com/contact
TG-LX3T82428
D
Passenger/Right Front Bracket
x1
P
Passenger/right Center/Rear Brackets
x2
A
8-1.25mm x 30mm Hex Bolts
x12
B
8mm x 24mm x 2mm Flat Washers
x12
B
D
Passenger/Left TYGER LanderX
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
C
D
Driver/Left TYGER LanderX
D
1/4
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
8mm Lock Washers
x12
8-1.25mm x 25mm Combo Bolts
x12
B
6-7
C
Front
V240621
Advertisement
Related Manuals for Tyger LanderX TG-LX3T82428
Summary of Contents for Tyger LanderX TG-LX3T82428
- Page 1 54-55 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left TYGER LanderX Passenger/Right Front Bracket 8mm Lock Washers 8-1.25mm x 25mm Combo Bolts Passenger/Right TYGER LanderX Passenger/right Center/Rear Brackets Driver/left Front Bracket 8-1.25mm x 30mm Hex Bolts...
- Page 2 TYGER LanderX Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. Driver Side XX-D Front Passenger Side XX-P Front PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 3 Side Step up to the (3) Brackets. IMPORTANT: DO NOT slide, (front to back or rotate), the TYGER LanderX against the Brackets or damage to the finish may result. Attach the TYGER LanderX to the Brackets with (6) 8mm x 25mm Combo Hex Bolt assemblies (Figs 9-12).
- Page 4 TYGER LanderX (2) 8mm Combo Bolts STEP 6 Level and adjust the TYGER LanderX and tighten all hardware. STEP 7 Repeat STEPS 1-6 to install the passenger/right TYGER LanderX. (Fig 9) Attach driver/left TYGER LanderX to Front Bracket . Note “D” on back of TYGER LanderX...
