TYGER LANDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
®
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
Customer Support: www.TygerAuto.com/Contact
TG-LD2T60208
6-7
22-23
44-45
78-79
1/5

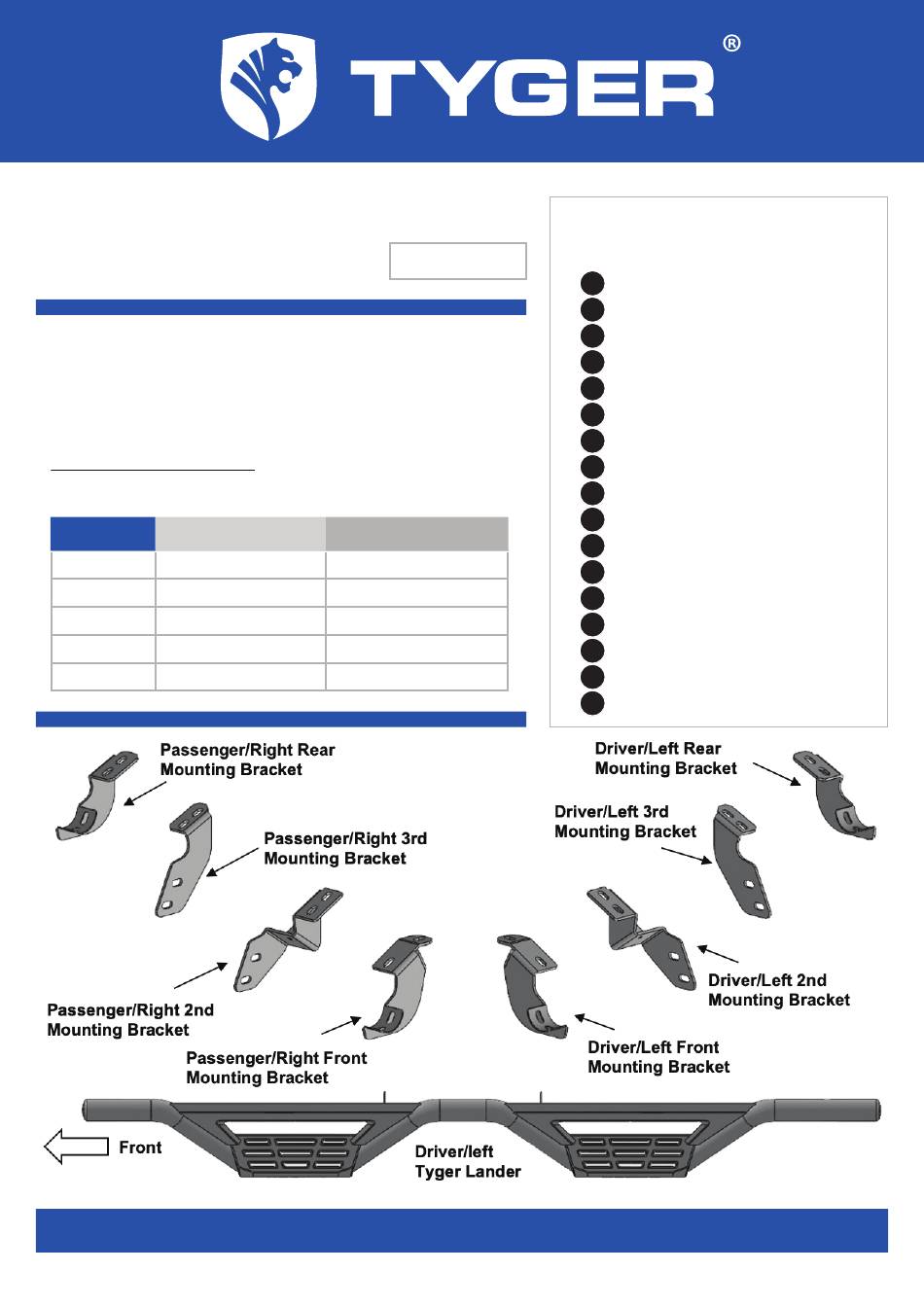

Parts List
Driver/Left Tyger Lander
x1
Passenger/Right Tyger Lander
x1
Driver/Left Front Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Driver/Left 2nd Mounting Bracket
x1
Passenger/Right 2nd Mounting Bracket
x1
Driver/Left 3rd Mounting Bracket
x1
Passenger/Right 3rd Mounting Bracket
x1
Driver/Left Rear Mounting Bracket
x1
Passenger/Right Rear Mounting Bracket
x1
10-1.5mm x 35mm Hex Bolts
x8
10mm x 27mm OD x 3mm Flat Washers
x16
10mm Nylon Lock Nuts
x8
8-1.25mm x 30mm Hex Bolts
x16
8-1.25mm x 25mm Combo Bolts
x8
8mm Lock Washers
x16
8mm x 24mm OD x 2mm Flat Washers
x16
V200315
Advertisement
Related Manuals for Tyger LANDER TG-LD2T60208
Summary of Contents for Tyger LANDER TG-LD2T60208
- Page 1 TYGER LANDER ® Parts List TG-LD2T60208 Driver/Left Tyger Lander Passenger/Right Tyger Lander Driver/Left Front Mounting Bracket BEFORE INSTALLATION Passenger/Right Front Mounting Bracket READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO...
- Page 2 STEP 1 Driver/left Side Installation Pictured REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE Remove plastic plugs or PRESENT. READ INSTRUCTIONS CAREFULLY. factory hex bolts (if equipped) ILLUSTRATION TO IDENTIFY BRACKETS AND RUNNING BOARDS. STEP 2 Open the box containing the Brackets. Separate and carefully identify all Brackets before starting installation (Fig 1).
- Page 3 (2) 8mm x 30mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers (Fig 4) Driver/left front Bracket installed (Fig 6) Attach driver/left #2 Bracket to #2 mounting location STEP 4 Next, move to the next (#2) mounting location (Fig 5). Select the Driver/Left #2 Mounting Bracket (Figs 1 &...
- Page 4 STEP 8 to the #3 and rear Mounting Brackets Attach the Tyger Lander to the back of the center #2 and #3 Mounting Brackets with (4) 10mm Hex Bolts, (8) 10mm Flat Washers and (4) 10mm Nylon Lock Nuts (Figs 9-12). Attach the Tyger Lander to the rear Bracket with (2) 8mm Combo Bolts (Fig 13).
- Page 5 #3 and rear Mounting Brackets (Fig 11) Attach the Driver/Left Tyger Lander to the #2 Mounting Bracket STEP 9 Level and adjust the Tyger Lander as desired and tighten all hardware. STEP 10 Repeat STEPS 2-9 to attach the Passenger/Right Tyger Lander side step.
