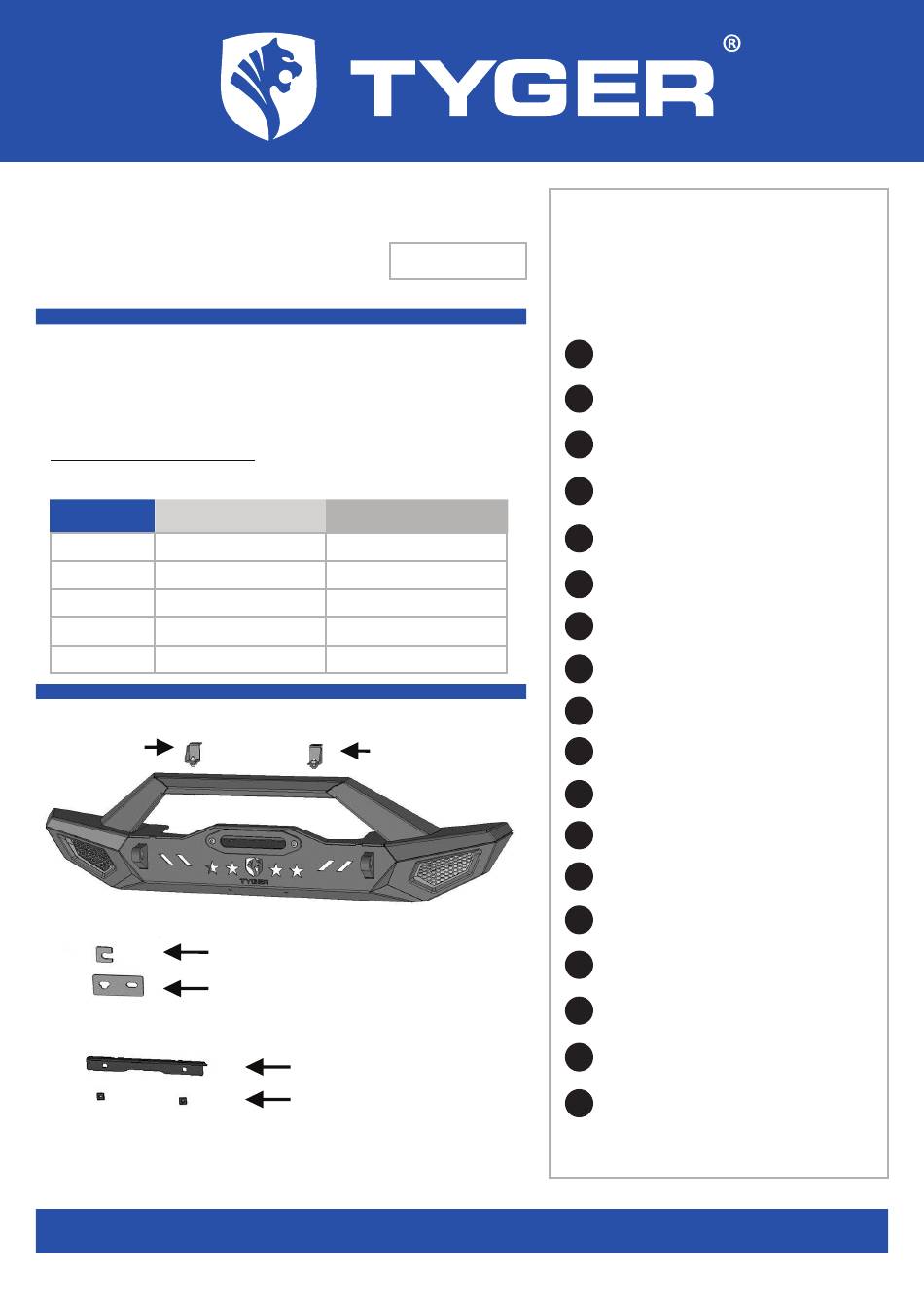

FRONT BUMPER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT.
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM
WWW.TYGERAUTO.COM/
C
ONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger/right
Light Bracket
U P
RP
O
SE.
O T
FILE
O Y
UR
CLAIM,
Class 10.9 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Driver/left
Light Bracket
(2) Slotted Spacers (YJ only)
(2) 2-hole Support Plates (YJ only)
License Plate Bracket
(2) Plastic Plugs
Customer Support: www.TygerAuto.com/Contact
TG-BP6J85368
FAILURE TO
PLAESE
VISIT:
6-7
22-23
44-45
78-79
125-126
1/6
Parts List

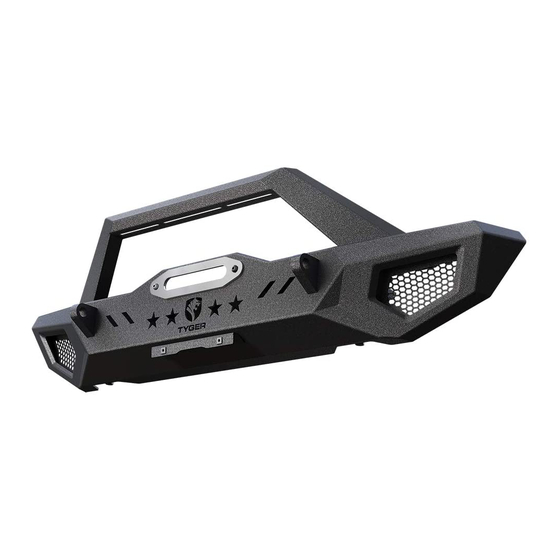

TYGER Front Bumper w-cable guide
x1
2-Hole Support Plate
x2
Slotted Spacers
x2
Driver/left Light Bracket
x1
Passenger/right Light Bracket
x1
License Plate Bracket
x1
Plastic Plugs for License Plate
x2
1/2'' x1.25"-13 Hex Bolts
x6
1/2" Flat Washers
x6
x6
1/2" Lock Washers
8-1.25mm x 25mm Button Head Bolts
x2
8mm x 24mm x 2mm Flat Washers
x2
8mm Lock Washers
x2
6-1.0mm x 20mm Button Head Bolts
x2
6mm x 18mm x 1.6mm Flat Washers
x4
6mm Nylon Lock Nuts
x2
S=5mm Wrench (for 8mm Button Head Bolts)
x1
S=4mm Wrench (for 6mm Button Head Bolts)
x1
Advertisement
Table of Contents
Related Manuals for Tyger TG-BP6J85368
Summary of Contents for Tyger TG-BP6J85368
- Page 1 FRONT BUMPER Parts List TG-BP6J85368 BEFORE INSTALLATION TYGER Front Bumper w-cable guide READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF 2-Hole Support Plate ANY CLAIM.
- Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRE SENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. CUTTING MAY BE REQUIRED. Front STEP 1 Start under the front bumper of the vehicle and remove the (2) button head T-55 torx bolts attaching the bumper to the bottom of the frame, (Figure 1).
- Page 3 (2) 1/2 ” Hex Bolts c.Place the small Slotted Spacer over top inner mounting hole, (2) 1/2” Lock Washers (Figures 3 & 4). (2) 1/2 ” Flat Washers 2-hole Support Plate d.Place the long 2-hole Support Plate over the forward hole in the bumper, the slotted Spacer and (2) threaded holes in the frame, (Figure 4).
- Page 4 c.Attach the top mounting plate on the bumper to the frame with the included (2) 1/2” Hex Bolts, (2) 1/2” Lock Washers and (2) 1/2” Flat Washers, (Figures 7 & 8). Leave loose at this time. d.Insert (1) 1/2” Hex Bolt, (1) 1/2” Lock Washer and (1) 1/2” Flat Washer up through the bottom mounting hole in the bumper and into the frame, (Figures 7 &...
- Page 5 (2) 8mm x 25mm Button Head Bolts (2) 8mm Lock Washers STEP 4 (2) 8mm Flat Washers Front Light brack et installation, (LED light not included ). a. Select the left and right Light Brackets. Attach the Brackets to the slots in the back of the hoop on the Bumper with the included (2) 8mm x 25mm Button Head Bolts, (2) 8mm Lock Washers and (2) 8mm Flat Washers, (Figure 10).
- Page 6 (2) 6mm Button Bolts (4) 6mm Flat Washers STEP 7 (2) 6mm Nylon Lock Nuts Select the License Plate Bracket. Attach the Bracket to the bottom of the bumper using (2) 6mm Button Head Bolts, (4) 6mm Flat Washers and (2) 6mm Nylon Lock Nuts, (Figure 12). Use the provided (2) Plastic Plugs to attach the License Plate to the front of the Bracket.
