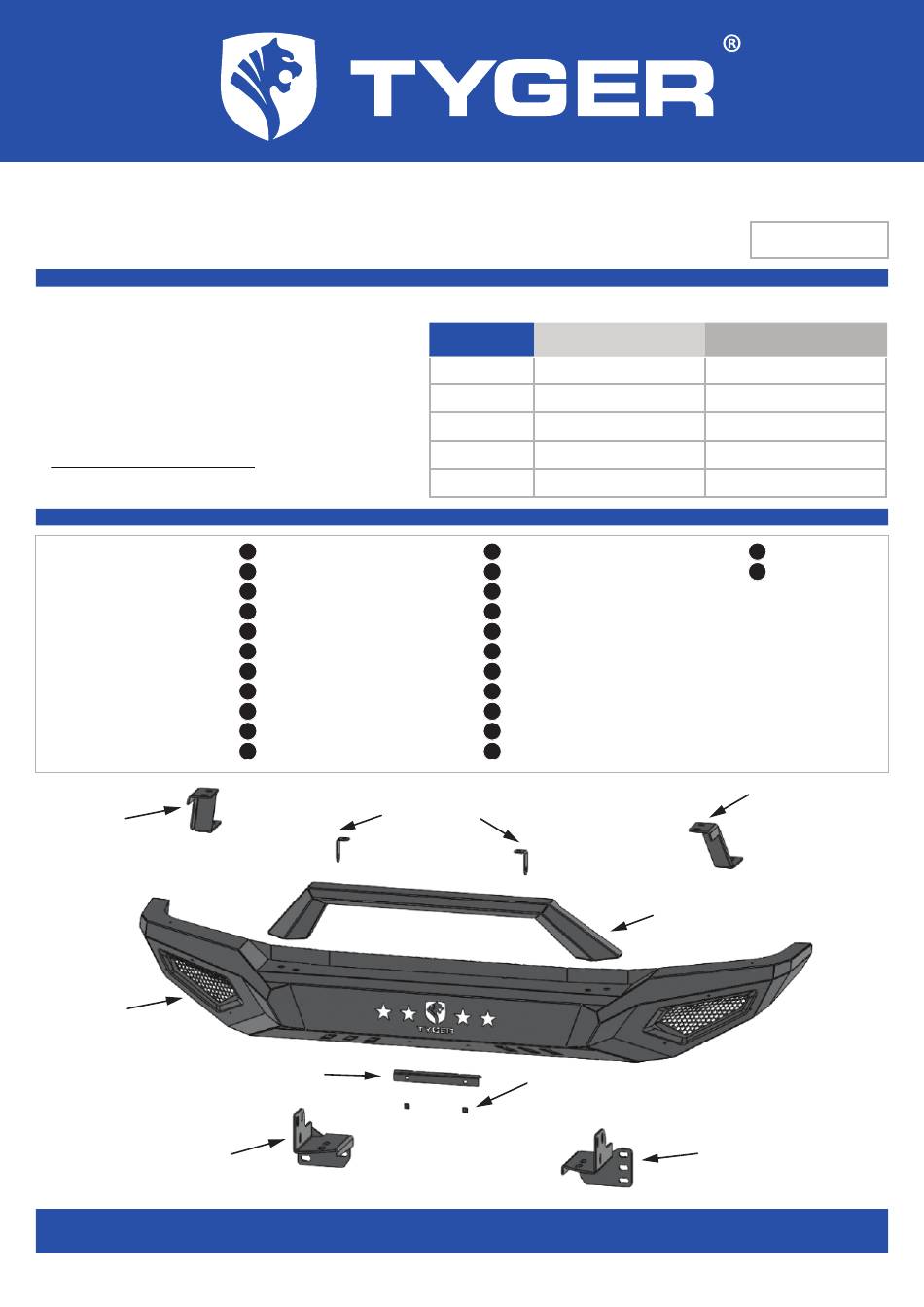

FRONT BUMPER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI-
FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Parts List
Passenger/Right
Support Bracket

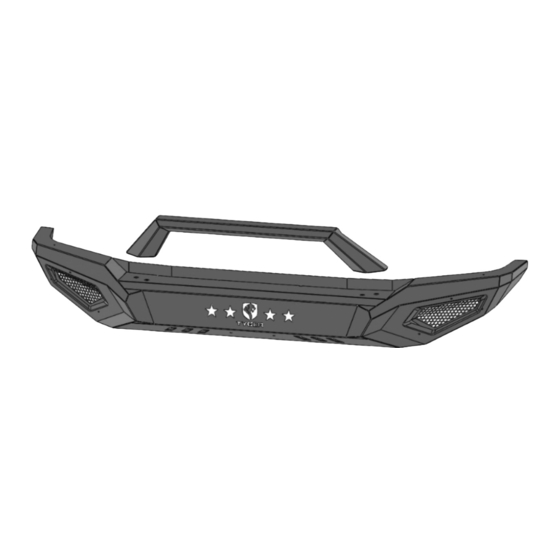

Front Bumper
License Plate Bracket
Passenger/Right
Mounting Bracket
x1
Front Bumper
x1
Light Hoop
x1
Driver/Left Mounting Bracket
x1
Passenger/Right Mounting Bracket
x1
Driver/Left Support Bracket
x1
Passenger/Right Support Bracket
x2
L-Brackets
x1
License Plate Bracket
x2
License Plate Plugs
x10
10-1.5mm x 35mm Hex Bolts
x20
10mm x 34mm x 3mm Flat Washers
(2) L-Brackets
Customer Support: www.TygerAuto.com/Contact
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
x1
10mm Lock Washers
x1
10mm Hex Nuts
x1
8mm-1.25mm x 25mm Button Head Bolts
x1
8-1.25mm x 16mm Hex Bolts
x1
8mm x 28mm x 3mm Large Flat Washers
x1
8mm x 24mm x 2mm Small Flat Washers
x2
8mm Lock Washers
x1
8mm Hex Nuts
x2
6-1.0mm x 20mm Button Head Bolts
x10
6mm x 18mm x 1.6mm Flat Washers
x20
6mm Nylon Lock Nuts
(2) License Plate Plugs
1/7
TG-BP6T80568
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
x1
5mm Hex Wrench
x1
4mm Hex Wrench
Driver/Left
Mounting Bracket
Light Hoop
Driver/Left
Support Bracket
6-7
V200914
Advertisement
Related Manuals for Tyger TG-BP6TTG-BP6T80568
Summary of Contents for Tyger TG-BP6TTG-BP6T80568
- Page 1 FRONT BUMPER TG-BP6T80568 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI- FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A 15-16 22-23 REJECTION OF ANY CLAIM.
- Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. INSTALLATION IS NOT COMPATIBLE WITH LASER CONTROLLED CRUISE CONTROL SYSTEMS. STEP 1 Move to the Passenger/Right wheel opening.
- Page 3 Front STEP 4 Remove the license plate. Remove hardware attaching the plastic cover on bottom of bumper, (Fig 5). Next, temporarily remove both tow hooks, (if equipped). Remove both tow hooks (Fig 6) Remove hex nuts attaching bumper brackets to end of frame. Passenger side bumper bracket pictured from below STEP 6 With assistance, remove the bumper and move to a flat stable...
- Page 4 STEP 7 STEP 8 Select Driver/Left Mounting Bracket. Slide the Bracket onto the Next, select the Driver/Left Support Bracket. Attach the Support (4) factory studs on the mounting plate at the end of the frame. Bracket to the bottom of the Mounting Bracket with (2) 10mm Attach the Mounting Bracket with (4) factory hex nuts and (4) Hex Bolts, (4) 10mm Flat Washers, (2) 10mm Lock Washers and 8mm x 28mm x 3mm Large Flat Washers, (Figs 8 &...
- Page 5 Hoop mounted bar style light, (light not included). STEP 9 a. Select the (1) L-Bracket. Attach the Bracket to the bottom of the Hoop with (1) 8mm x 25mm Button Head Bolt, (2) 8mm Flat Washers, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Fig 13). DO NOT tighten hardware at this time.
- Page 6 Outer light installation (light not included). (3) 10mm Hex Bolts (6) 10mm Flat Washers a. Remove mesh panel in outer light location. (3) 10mm Lock Washers b. Attach lights (not included) to mounting tabs on back of the (3) 10mm Hex Nuts Bumper, (Fig 15).
- Page 7 (2) 6mm Button Head Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Front (Fig 18) Attach License Plate Bracket to Front Bumper (2) Plastic Plugs (Fig 19) Insert License Plate Plugs into the License Plate Bracket STEP 15 Level and adjust the Bumper and fully tighten all hardware.
