GalvinCare
PRODUCT CODES:
- 50140US
SPECIFICATIONS
−
This products unique design concept eliminates the institutional look and provides anti-ligature features and
vandal resistant compliance while withstanding heavy knocks
−
The paddle design handle allows the diverter to be activated with minimal effort
−
The 170mm round faceplate has a polished stainless steel finish for a homely look
−
This item is designed for wall installation with bevelled edges to provide tight fixing.
IMPORTANT: All GalvinCare
premises in good working order. The following instructions must be followed in all respects and read in
conjunction with CliniMix
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice
PRE-INSTALLATION

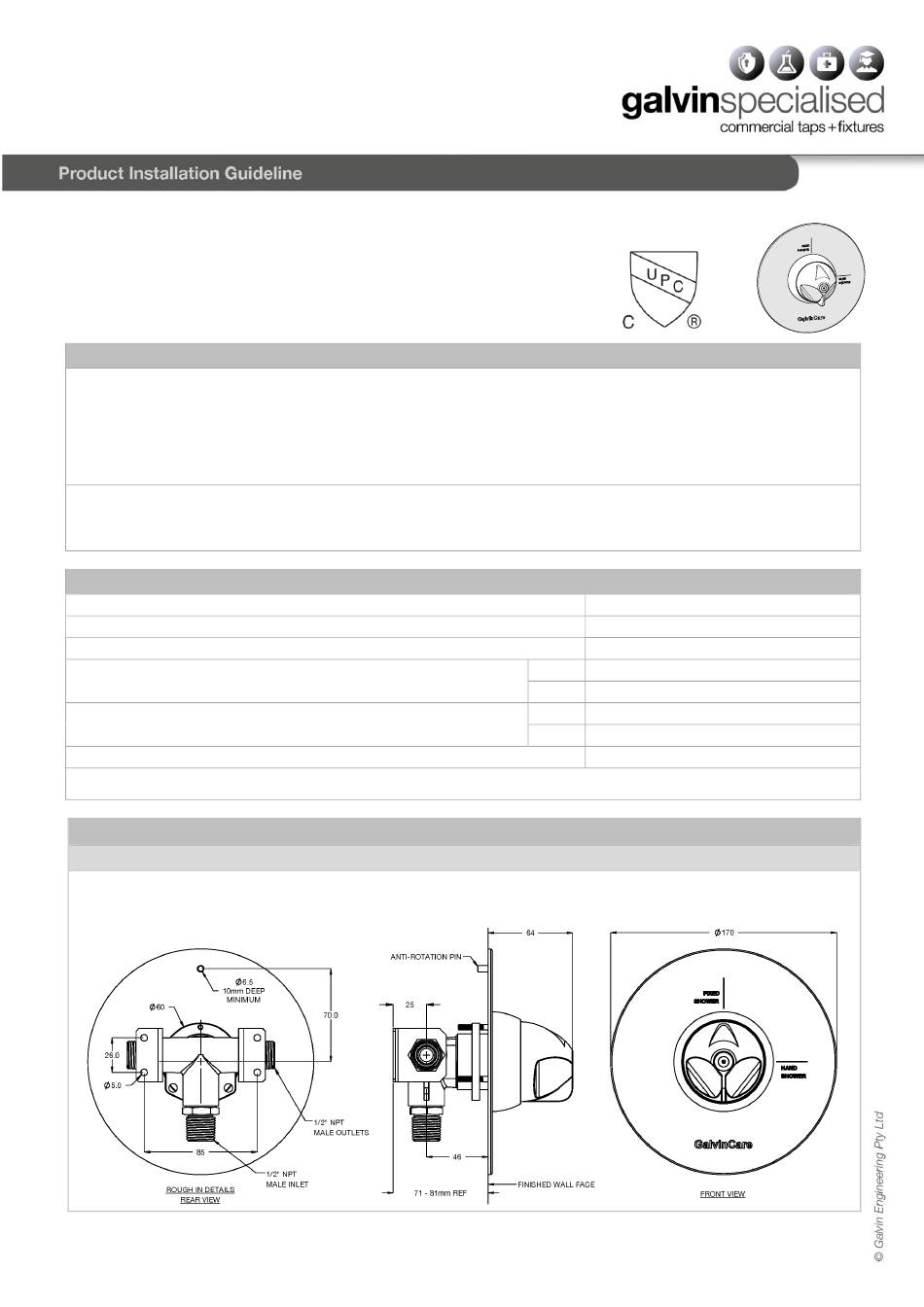

MOUNTING DETAILS – ROUGH IN & OVERALL DIMENSIONS
−
Suitable for in-wall mounting
Drill 6.5mm hole as shown for anti-rotation pin.
−
Mental Health Tapware
®
mental health taps are tested in accordance with AS/NZS 3718 and leave our
®
Progressive Thermostatic Mixing Valve Manual.
nd
Version 2, 22
June 2021, Page
½" NPT – Male
½" NPT – Male
Diverter Cartridge
Min
50
Max
500
Min
5
Max
90
Chrome / Polished St/St
1 of 4
.
Advertisement
Related Manuals for Galvin Specialised GalvinCare 50140US
Summary of Contents for Galvin Specialised GalvinCare 50140US
- Page 1 Working Pressure Range (kPa) Working Temperature Range (°C) Finish Chrome / Polished St/St NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice PRE-INSTALLATION MOUNTING DETAILS – ROUGH IN & OVERALL DIMENSIONS − Suitable for in-wall mounting Drill 6.5mm hole as shown for anti-rotation pin.
- Page 2 2 of 4 INSTALLATION INSTALLATION COMPLIANCE: Galvin Specialised products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards.
- Page 3 Version 2, 22 June 2021, Page 3 of 4 5. Fit the handle 6. Testing − Once fitted turn on water and check for leaks − Fit the nylon insert and handle, ensuring the arrow on the handle matches the lines on the faceplate when and correct operation.
- Page 4 Version 2, 18 June 2021, Page 4 of 4 5. Remove cartridge nut and check cartridge 6. Re-assemble − − Unscrew cartridge nut and remove cartridge. Re-assemble, by reversing steps 5 to 1. − − Check the cartridge for wear and damage. Turn on water and check for correct operation Replace if required with cartridge replacement available through your supplier...
