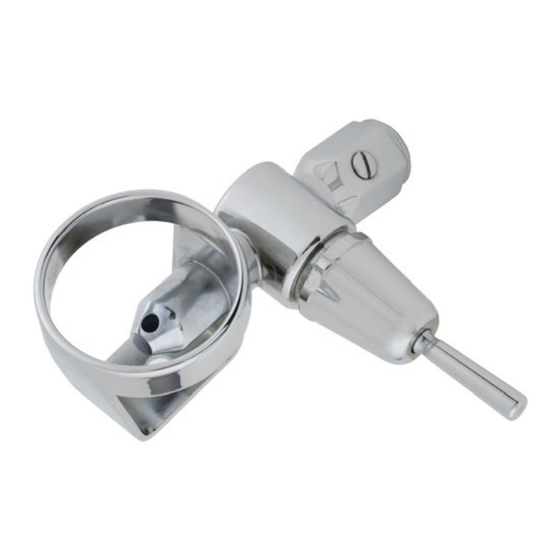

Ezy-Drink
Lever Bubbler Tapware
PRODUCT CODES:
- TD45L
- TD90L
SPECIFICATIONS
−
Drinking taps are designed to operate at full mains pressure.
−
Rubber and metal mouthguards are designed to help protect teeth when drinking.
−
Rubber mouthguard is resistant to fungal and bacterial attack and has a high resistance to sunlight.
−
Vandal resistant handle.
−
Adjustable built-in flow restrictor.
IMPORTANT:
All Ezy-Drink
our premises in good working order .
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
−
Power drill
−
Spanner or adjustable crescent
−
Screw driver
®
Lever Bubbler taps are tested in accordance with AS/NZS 3718 and leave
Version 2, 8 June 2017, Page 1 of 4
½" BSP - Female
Rubber / metal mouthguard
Lever action
Min
50
Max
500
Min
5
Max
60
2
Chrome
