Galvin Specialised CliniLever Lead Safe TM-SHWX Product Installation Manualline

®
CliniLever Lead Safe
PRODUCT CODES:
 TM-SHWX

SPECIFICATIONS


™
Lead Safe stainless steel construction

Easy temperature blending and operation to ensure comfort and safety for the user

Low maintenance

Clean hygienic design
IMPORTANT: All CliniLever
premises in good working order.
As 'lead free' is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA's Safe Drinking Water Act (SDWA)
and the relevant US standards NSF61 / NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of pipes, pipe fittings,
plumbing fittings and fixtures".

TECHNICAL DATA

Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Construction
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without notice.
™

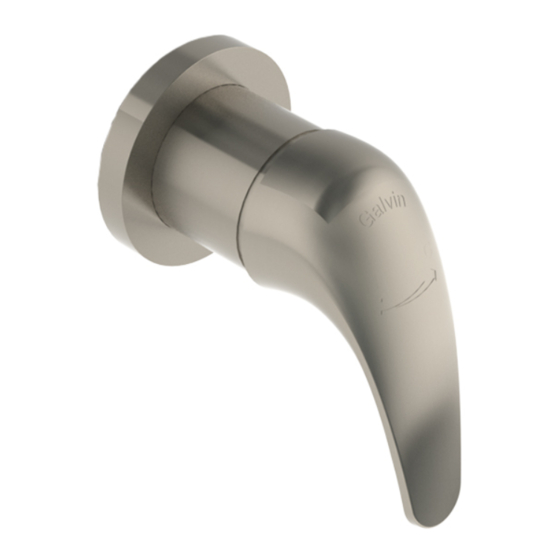

Stainless Steel Shower Mixer
®
Shower Mixers are tested in accordance with AS/NZS 3718 and leave our
th
Version 1,14 April 2020, 1 of 4
½" BSP - Female
½" BSP - Female
Ceramic Disc
Min 50
Max 500
Min 5
Max 80
N/A
Stainless Steel
Stainless Steel
