CliniLever
Lead Safe
PRODUCT CODES:
TM-BASX
TM-BASXD
SPECIFICATIONS
™
Lead Safe
stainless steel construction
Clean hygienic design
Low maintenance and easy to operate
Smooth round designs to facilitate easy cleaning and help reduce dirt and bacteria growth.
IMPORTANT: All CliniLever
good working order.
As 'lead free' is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA's Safe Drinking Water Act (SDWA)
and the relevant US standards NSF61 / NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of pipes, pipe
fittings, plumbing fittings and fixtures".
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Construction
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without
notice.

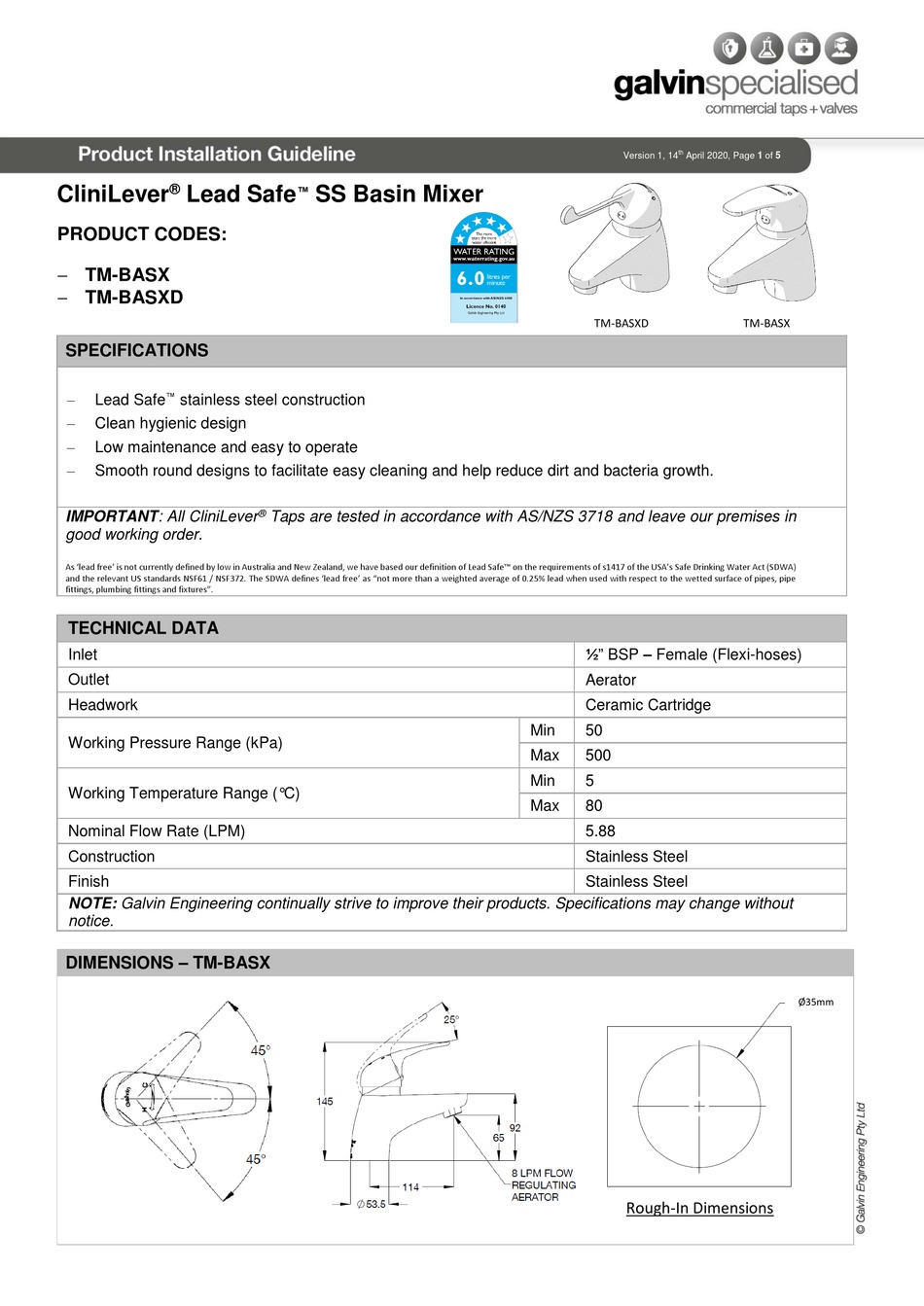

DIMENSIONS – TM-BASX
™

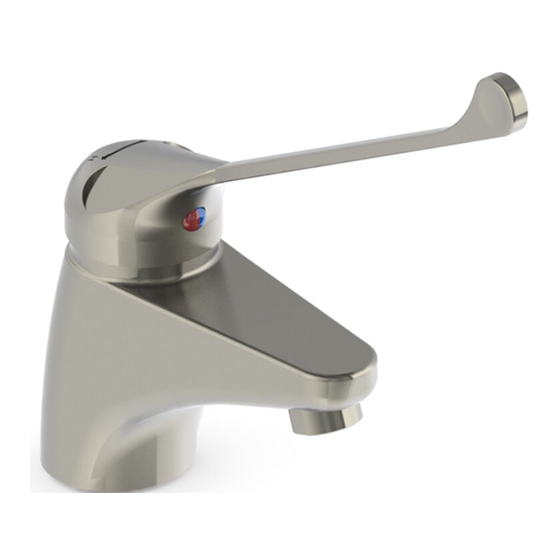

SS Basin Mixer
®
Taps are tested in accordance with AS/NZS 3718 and leave our premises in
th
Version 1, 14
April 2020, Page 1 of 5
TM-BASXD
½" BSP – Female (Flexi-hoses)
Aerator
Ceramic Cartridge
Min
50
Max
500
Min
5
Max
80
5.88
Stainless Steel
Stainless Steel
Rough-In Dimensions
TM-BASX
Ø35mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Galvin Specialised CliniLever Lead Safe TM-BASX
Summary of Contents for Galvin Specialised CliniLever Lead Safe TM-BASX
- Page 1 Version 1, 14 April 2020, Page 1 of 5 ® CliniLever Lead Safe ™ SS Basin Mixer PRODUCT CODES: TM-BASX TM-BASXD TM-BASXD TM-BASX SPECIFICATIONS ™ Lead Safe stainless steel construction Clean hygienic design Low maintenance and easy to operate ...
-
Page 2: Installation
Version 1, 14 April 2020, Page 2 of 5 DIMENSIONS – TM-BASXD Ø35mm Rough-In Dimensions INSTALLATION INSTALLATION COMPLIANCE: Galvin Engineering products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards. - Page 3 Version 1, 14 April 2020, Page 3 of 5 3. Secure Tap 4. Tighten Installation Fit the mounting gasket and bracket as Tighten the hex nuts using the provided tool shown. as shown. Screw hex nuts on threaded rods finger Ensure the tap body doesn’t move on the ...
-
Page 4: Troubleshooting
Version 1, 14 April 2020, Page 4 of 5 REMOVE & INSPECT FLOW REGULATING AERATOR Flow Regulating Aerator Supplied Tool 2. Remove & Inspect 1. Remove Flow Regulating Aerator Housing Remove the housing and flow regulating Using the supplied tool (pictured) remove the aerator. -
Page 5: Warranty
Version 1, 14 April 2020, Page 5 of 5 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
