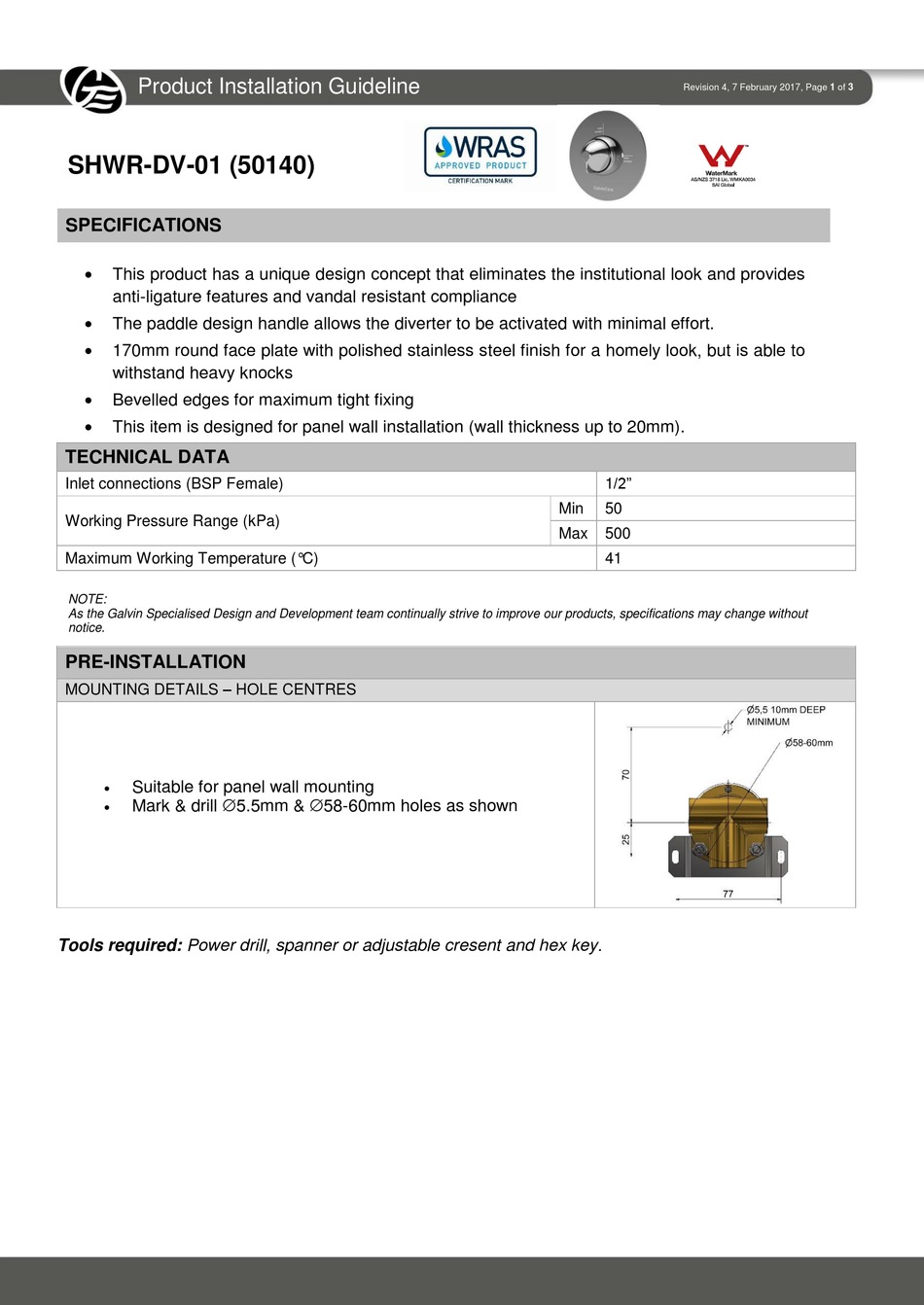

Product Installation Guideline
SHWR-DV-01 (50140)
SPECIFICATIONS
This product has a unique design concept that eliminates the institutional look and provides
anti-ligature features and vandal resistant compliance
The paddle design handle allows the diverter to be activated with minimal effort.
170mm round face plate with polished stainless steel finish for a homely look, but is able to
withstand heavy knocks
Bevelled edges for maximum tight fixing
This item is designed for panel wall installation (wall thickness up to 20mm).
TECHNICAL DATA
Inlet connections (BSP Female)
Working Pressure Range (kPa)
Maximum Working Temperature (°C)
NOTE:
As the Galvin Specialised Design and Development team continually strive to improve our products, specifications may change without
notice.
PRE-INSTALLATION
MOUNTING DETAILS – HOLE CENTRES
Suitable for panel wall mounting
Mark & drill 5.5mm & 58-60mm holes as shown
Tools required: Power drill, spanner or adjustable cresent and hex key.
Revision 4, 7 February 2017, Page 1 of 3
1/2"
Min
50
Max
500
41
Advertisement
Related Manuals for Galvin Specialised SHWR-DV-01
Summary of Contents for Galvin Specialised SHWR-DV-01
- Page 1 Inlet connections (BSP Female) 1/2” Working Pressure Range (kPa) Maximum Working Temperature (°C) NOTE: As the Galvin Specialised Design and Development team continually strive to improve our products, specifications may change without notice. PRE-INSTALLATION MOUNTING DETAILS – HOLE CENTRES ...
-
Page 2: Installation
Version 17 February 2017 Page 2 of 3 INSTALLATION IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable National and/or State standards. -
Page 3: Service And Maintenance
Product Installation Guideline Version 17 February 2017 Page 3 of 3 SERVICE AND MAINTENANCE 1. Turn off water 2. Remove control knob 3. Remove grub screw Turn off the water supply. Unscrew tamper proof screw from control Unscrew grub screw to remove facplate ...
