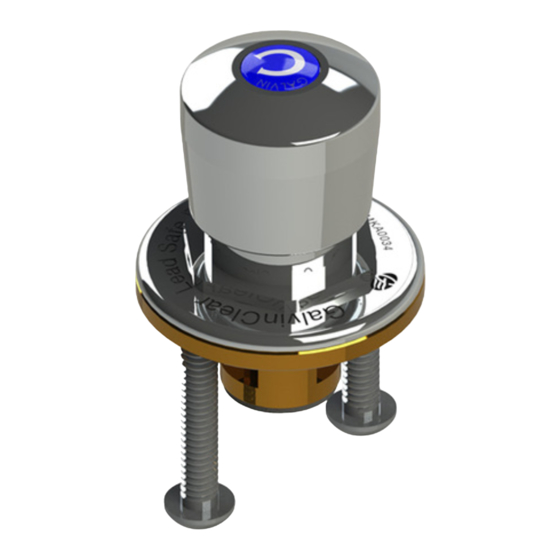

CP-BS Lead Safe™ Remote Push
®
Ezy-Drink
Button Top Assembly
PRODUCT CODES:
- 170.93.43.00
SPECIFICATIONS
−
Self-closing push button valve
−
Chrome plate finish for easy cleaning and added durability
−
Made from Lead Safe
IMPORTANT: The push button has only two modes. Fully open or closed. Therefore, flow restriction
must be fitted preceding the valve bodies to adjust the flow rate to the desired level.
IMPORTANT: All Ezy-Drink
our premises in good working order.
As 'lead free' is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA's Safe Drinking Water Act
(SDWA) and the relevant US standards NSF61 / NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of
pipes, pipe fittings, plumbing fittings and fixtures".
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
−
Spanner or adjustable crescent
−
Screwdriver
−
Hex key (supplied)
™
brass
®
remote top assemblies are tested in accordance with AS/NZS 3718 and leave
th
Version 1, 27
October 2020 Page 1 of 4
G 5/8" BSP - Male
N/A
Push Button
Min
50
Max
500
Min
5
Max
60
N/A
Chrome
Advertisement
Related Manuals for Galvin Specialised Ezy-Drink Lead Safe CP-BS
Summary of Contents for Galvin Specialised Ezy-Drink Lead Safe CP-BS
- Page 1 Headwork Push Button Working Pressure Range (kPa) Working Temperature Range (°C) Nominal Flow Rate (LPM) Finish Chrome NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice. TOOLS REQUIRED − Spanner or adjustable crescent − Screwdriver −...
- Page 2 INSTALLATION IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards. Failing to comply with these provisions shall void the product warranty and may affect the performance of the product.
- Page 3 Version 1, 27 October 2020 Page 3 of 4 Not Supplied 3. Secure Inlet Body − Tighten the screws on the inlet body as shown. Do not overtighten. − Once fitted, check installation for leaks and correct operation. TROUBLESHOOTING PROBLEM CAUSE RECTIFICATION Inconsistent flow...
- Page 4 Version 1, 27 October 2020 Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
