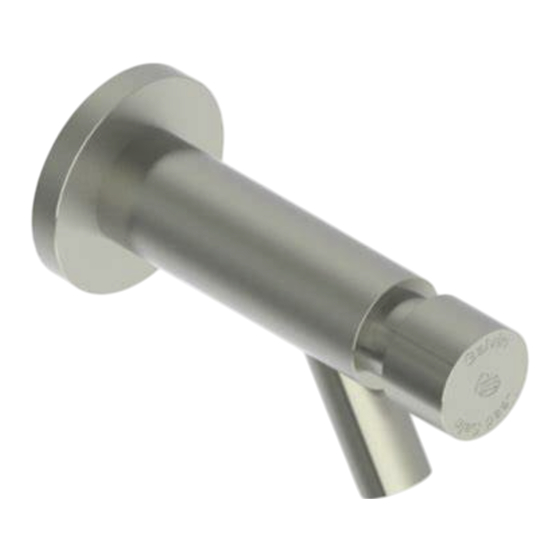

Ezy-Push
SS316 Lead Safe Timeflow Push Button
Bib Tap – 6 Sec
PRODUCT CODES:
- 368667X
SPECIFICATIONS
Time flow taps are designed to operate at full mains pressure.
The valve has a unique self-closing operation.
The taps are made of lead free stainless steel.
Clean hygienic design.
Water saving.
Low maintenance and easy to operate.
Supplied with hot (red), warm (yellow) and cold (blue) buttons depending on the requirement.
Smooth round designs to facilitate easy cleaning and help reduce dirt and bacteria growth.
Note:
Time is based on 500kPa, @ 22 degrees Celsius. Time will vary plus or minus 30% based on water
temperatures, pressures, flow rates and water quality.
IMPORTANT: All Ezy-Push
premises in good working order. Time may vary due to changes in temperature, pressure, flow rate and water
quantity.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Maximum Working Temperature (°C)
Nominal Flow Rate (LPM)
Construction
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
Power drill
Spanner or adjustable crescent
Screw driver
®
Time Flow Bib Taps are tested in accordance with AS/NZS 3718 and leave our
th
Version 3,15
July 2020,
½" BSP - Male
Aerator
Time Flow Cartridge
Min
200
Max
500
Min
5
Max
65
4.4
Stainless Steel
Stainless Steel
Page 1 of 4
Advertisement
Related Manuals for Galvin Specialised Ezy-Push SS316
Summary of Contents for Galvin Specialised Ezy-Push SS316

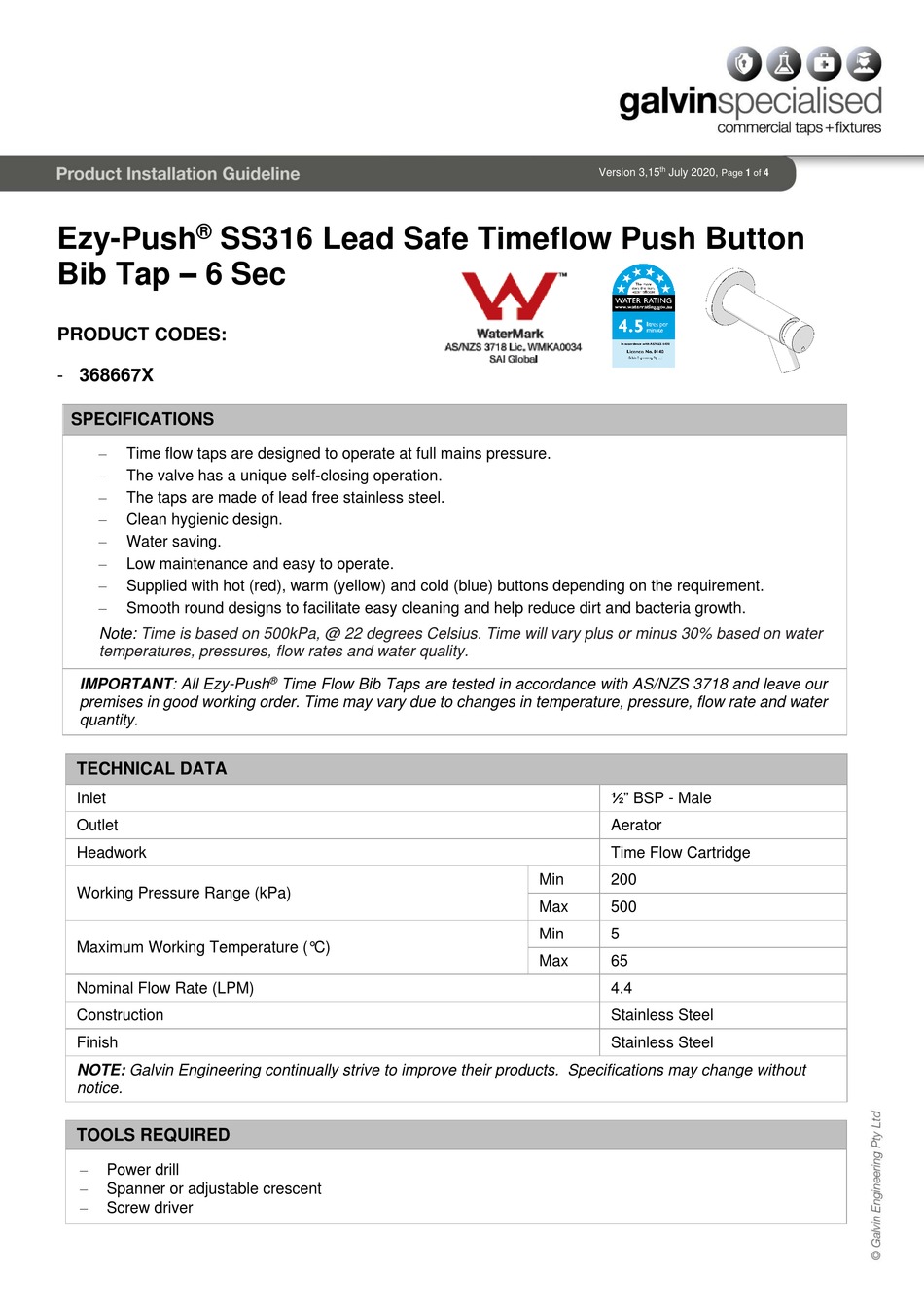

- Page 1 Version 3,15 July 2020, Page 1 of 4 ® Ezy-Push SS316 Lead Safe Timeflow Push Button Bib Tap – 6 Sec PRODUCT CODES: - 368667X SPECIFICATIONS Time flow taps are designed to operate at full mains pressure. The valve has a unique self-closing operation. ...
- Page 2 Version 3,15 July 2020, Page 2 of 4 PRE-INSTALLATION MOUNTING DETAILS Note: Before installation, all lines must be flushed. We recommend that a line strainer be installed prior to Ezy-Push Time Flow Bib taps to eliminate any foreign material INSTALLATION IMPORTANT: Galvin Engineering products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements.
- Page 3 Version 3,15 July 2020, Page 3 of 4 3. Testing Once fitted, connect the water lines & turn on water. Check for leaks and correct operation. TROUBLESHOOTING PROBLEM CAUSE RECTIFICATION Water is not flowing or Blocked flow restrictor / dirt in the Remove flow regulator from outlet and inconsistent flow.
- Page 4 Version 3,15 July 2020, Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
