Smartgen HGM1770 User Manual

Automatic genset controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HGM1770
Automatic Genset Controller
USER MANUAL
Smartgen Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HGM1770 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartgen HGM1770

Summary of Contents for Smartgen HGM1770

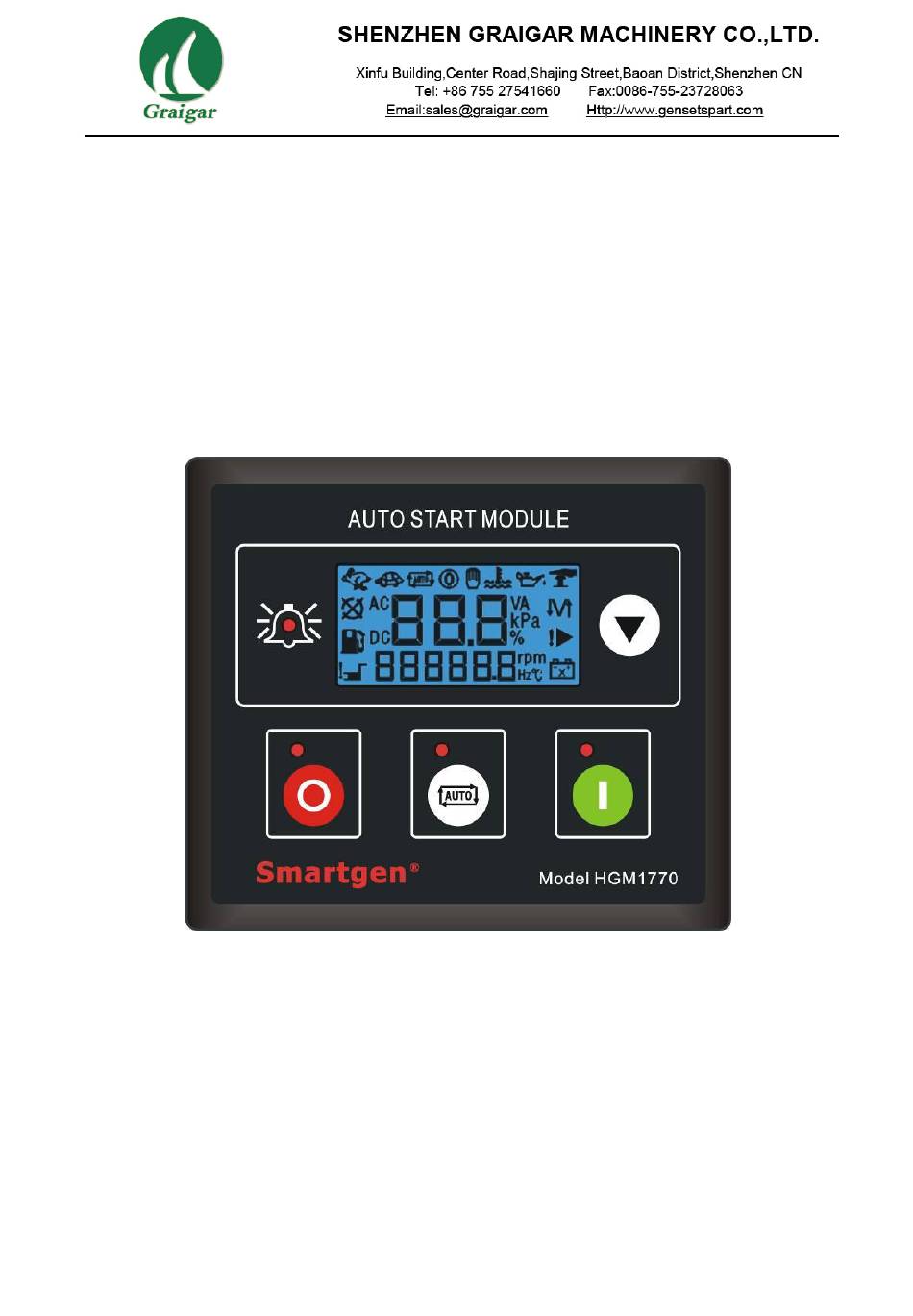

  • Page 1 HGM1770 Automatic Genset Controller USER MANUAL Smartgen Technology...

  • Page 2: Table Of Contents

    CONTENT 1. OVERVIEW ....................4 2. PERFORMANCE AND CHARACTERISTICS ..........5 3. SPECIFICATION .................... 7 4. OPERATION ....................8 4.1. PANEL KEYS ..................... 8 4.2. LCD ICONS ....................8 4.3. DISPLAY DESCRIPTION ................9 4.4. OPERATION INSTRUCTION ..............10 5. PROTECTION ....................12 6.

  • Page 3: Overview

    1. OVERVIEW HGM1770 is a genset automatic start module with 3 working modes that can be selected from the front panel. It can be started and stopped manually or via a remote start/stop signals. In case of faults (such as low oil pressure, high water/cylinder temperature, emergency stop alarm, over speed), HGM1770 can automatically disconnect fuel relay and close ETS electromagnet to stop the generator.

  • Page 4: Performance And Characteristics

    2. PERFORMANCE AND CHARACTERISTICS ◆ Based on microprocessor, fitted with LCD screen with graphic icons and touch-buttons; ◆ Power supply range (8~35)VDC，compatibility with 12V or 24V starter batteries; ◆ Generator input port; speed, temperature, pressure, liquid level sensor input ports; digitalized electric quantity display. Measured and displayed electric quantity: Generator voltage Generator frequency...
  • Page 5 PC USB port. ◆ HGM1770 combines modular design, anti-flaming ABS plastic case, embedded installation, compact structure, small size, SCM control, stable performance and...

  • Page 6: Specification

    3. SPECIFICATION Item Content Working Voltage DC8. 0V to 35. 0V, Continuous Power Supply Standby mode: 12V: 0.3W, 24V: 0.4W Power Consumption Working mode: 12V: 1W, 24V: 1.1W Alternator voltage 1P2W 15V AC ~ 360 V AC (ph-N) Input Alternator Frequency 50/60Hz Magnetic Pickup...

  • Page 7: Operation

    4. OPERATION 4.1. PANEL KEYS Definition Description Pressing this button will start the generator manually and place it into its manual mode; in Manual/Decrease settings menu moves cursor down and decreases the set value. Pressing this button will place the module into its Auto/Increase auto mode;...

  • Page 8: Display Description

    4.3. DISPLAY DESCRIPTION Generator: phase voltage Ua, frequency F Battery voltage, engine speed Oil pressure, water temperature Liquid level %, accumulated run time Parameters setting...

  • Page 9: Operation Instruction

    4.4. OPERATION INSTRUCTION The module has three working modes: stop mode ( ), manual mode ( ) and auto mode ( ● Manual Start ( After pressing Manual Start button ( ) and holding it for at least one second, the indicator next to the button will be illuminated.
  • Page 10 ETS relay deactivates. ● Stop (  After pressing and holding for at least one second during normal operation of the genset (in manual or auto modes), the light indicator near the button will be illuminated and idle operation will begin. When idle relay deactivates and after idle delay, fuel relay is deactivated and ETS output is energized.

  • Page 11: Protection

    5. PROTECTION 1) Low Oil Pressure: detection begins after safety delay; if low oil pressure lasts for 2s, shutdown is initiated. 2) High Temperature: detection begins after safety delay; if high temperature lasts for 3s, shutdown is initiated. 3) Low Fuel Level: if fuel level stays below the pre-set level for 10 seconds, low fuel level warning signal is sent.

  • Page 12: Parameter Range And Definition

    6. PARAMETER RANGE AND DEFINITION 6.1 PARAMETERS CONFIGURATION (TABLE 1) Default Parameter Range Description value Time from mains abnormal or Start Delay (0-3600)s remote start signal is active to start genset. Time from mains normal or remote Stop Delay (0-3600)s start signal is deactivated to genset stop.
  • Page 13 Default Parameter Range Description value Tooth number of the engine, for judging crank disconnect Flywheel (10-300) conditions and inspecting of engine Teeth speed. installation instructions. Power-on (0-2) Default: Stop Mode. Mode Generator Alarm delay for generator over and Abnormal (0-20.0)s 10.0 under voltage states.
  • Page 14 Default Parameter Range Description value Frequency exceeds this value and stays so for 2 seconds, it is regarded as an over frequency and over frequency alarm shutdown is initiated. When the temperature value of the external temperature sensor exceeds this threshold, high temperature...
  • Page 15 Default Parameter Range Description value seconds, Battery Under Volts signal is send and warning without shutdown is initiated. Relay Output (0-6) Default: Common Alarm Default: Auxiliary shutdown; if the Digital Input (0-6) set value is 0, fuel level sensor type can be selected.

  • Page 16: Definition Of Relay Outputs (Table 2)

    6.2 DEFINITION OF RELAY OUTPUTS (TABLE 2) Items Description Not used Output is not active. Includes all shutdown alarms and warning alarms. Warning Common alarms are not self-latching, while shutdown alarms are and will Alarm not disappear until they are reset. Suitable for the genset with stop electromagnet.

  • Page 17: Definition Of Digital Inputs (Active When Connect To Gnd (B-))

    6.3 DEFINITION OF DIGITAL INPUTS (ACTIVE WHEN CONNECT TO GND (B-)) (TABLE 3) Description Notes Not Used High Temperature If these signals are activated after crank Input disconnect, shutdown alarm will Warning immediately initiated. Input Only warning and not stops if this input is Reserved active.

  • Page 18: Sensor Selection (Table 4)

    6.4 SENSOR SELECTION (TABLE 4) Items Content Remark 0 Not used Digital closed and Digital open 1 Digital closed both are digital signal; low or high 2 Digital open electrical level can be selected to 3 User defined resistor type be active, connecting to earth 4 VDO point will mean that low electrical...

  • Page 19: Conditions Of Crank Disconnect (Table 5)

    6.5 CONDITIONS OF CRANK DISCONNECT (TABLE 5) Content Magnetic Pickup Generator Frequency Magnetic Pickup + Generator Frequency Magnetic Pickup + Oil pressure Generator Frequency + Oil pressure Generator Frequency + Magnetic Pickup+ Oil pressure 1. There are 3 conditions to make starter separate with engine; magnetic pickup, generator frequency can be used separately while oil pressure must be used together with magnetic pickup and generator frequency.

  • Page 20: Parameter Setting

    7. PARAMETER SETTING 1) Pressing simultaneously in generator standby mode will lead to the password interface (as shown below); when the first digit is blinking, enter the password 0318; 2) Press button to increase the value of the blinking digit and to decrease the value;...
  • Page 21 ﹡Remark 1: Pressing button during parameter setting will immediately exit the set parameter. ﹡Remark 2: If the generator is in manual mode and crank disconnect condition is set as 2 (magnetic pickup + generator frequency) or 5 (generator frequency + magnetic pickup + oil pressure) and generator frequency and speed are NOT equal to zero, pressing and holding for 0.5 seconds will lead to the...

  • Page 22: Connections

    8. CONNECTIONS ◆ Terminal 1 (B-): Connect to the negative of the start battery. ◆ Terminal 2 (B+): Connect to the positive of the start battery. ◆ Terminal 3 (Em. stop input)：Emergency stop input (active when connect to B+)， external connect to emergency shutdown normally closed button. ◆...

  • Page 23: Overall Dimensions (Panel Cutout 78Mmx66Mm)

    9. OVERALL DIMENSIONS (PANEL CUTOUT 78MMX66MM)

  • Page 24: Typical Application

    10. TYPICAL APPLICATION...
