Quick Links
`
Fits
2014+ City Express, 2015+ Ram Promaster City, 2016-2019 Metris
:
2010+ NV200, 2012+ NV, 2002+ TRANSIT Connect, 2013+ TRANSIT
VANS WITHOUT GUTTER
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
2
Cross Members
1
Wind Deflector
2
Ladder Brackets
4
Roof Brackets
4
Tube Spacers
4
120mm x 33mm x 6mm Rubber Spacers
4
128mm x 51mm x 5mm Plates
4
125mm x 51mm x 3mm Rubber Pads
4
8mm x 45mm x 3mm Rubber Washers
4
10mm x 70mm Hex Bolts
5
10mm x 25mm Hex Bolts
18
10mm x 20mm x 2mm Flat Washers
(4) Tube
Spacers
(4) Roof
Brackets
Page 1 of 6
LADDER
Part No. FCLR005W
Part Description
(2) Ladder
Brackets
(4) Rubber
Washers
(8) 8mm
U-Clips
Wind
Deflector
RACK

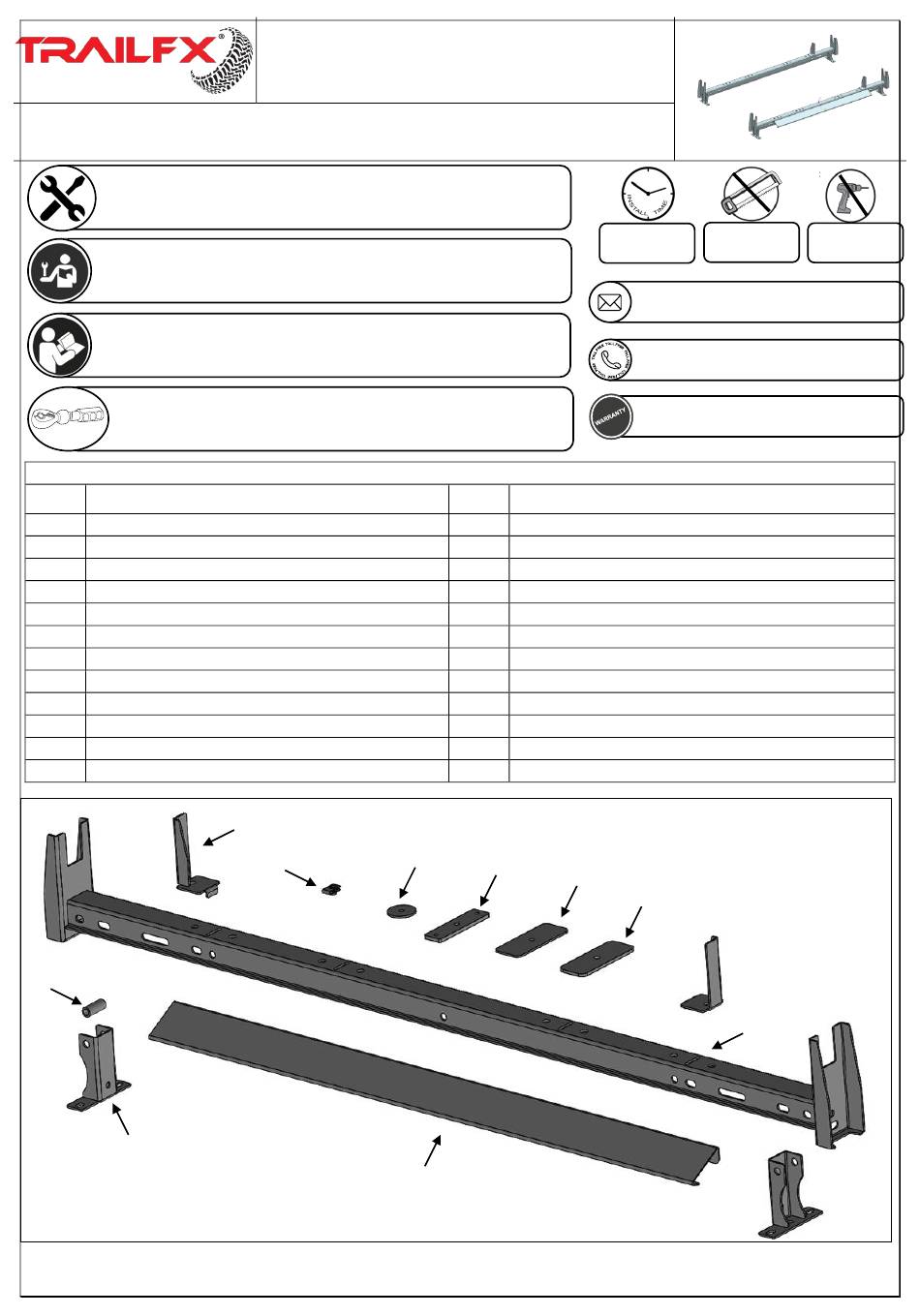

PARTS LIST:
Qty
9
10mm Nylon Lock Nuts
8
8mm U-Clips
4
8mm x 30mm Hex Bolts
8
8mm x 20mm Hex Bolts
4
8mm x 24mm x 2mm Flat Washers
8
8mm x 16mm x 1.6mm Flat Washers
8
8mm Lock Washers
4
8mm Nylon Lock Nuts
8
6mm x 20mm Hex Bolts
8
6mm x 12mm x 1.6mm Flat Washers
8
6mm Lock Washers
(4) Rubber
Spacers
(4) Rubber
Pads
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
(4) 5mm Thick
Plates
(2) Cross
Members
Rev R00; 080119
Drilling Not
Required
