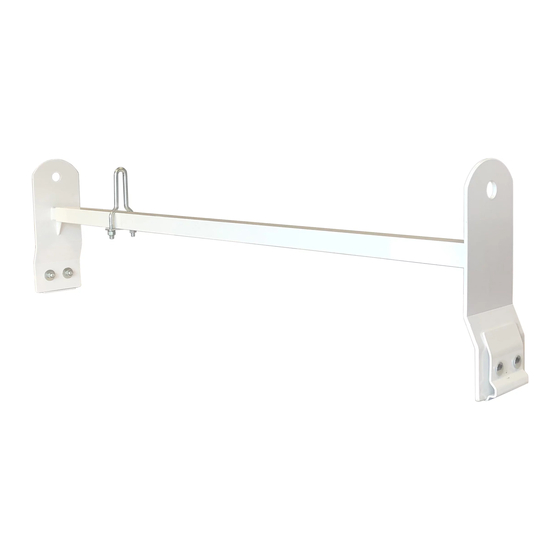

Universal Crossbar Ladder Rack
Clamp-On For Models With Rain Gutter
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
First of all, please check what model you have bought. Part lists for 1 bar model are different. Please
find the related part list from below:
Qty
1
Main Cross Bar (female)
1
Slide In Adjustable Cross Bar (male)
2
Clamping Plates
1
U-Bolt Ladder Positioner
1
2-hole Clamp Plates
(2) Slide-in Cross Bars
(male)
Page 1 of 4

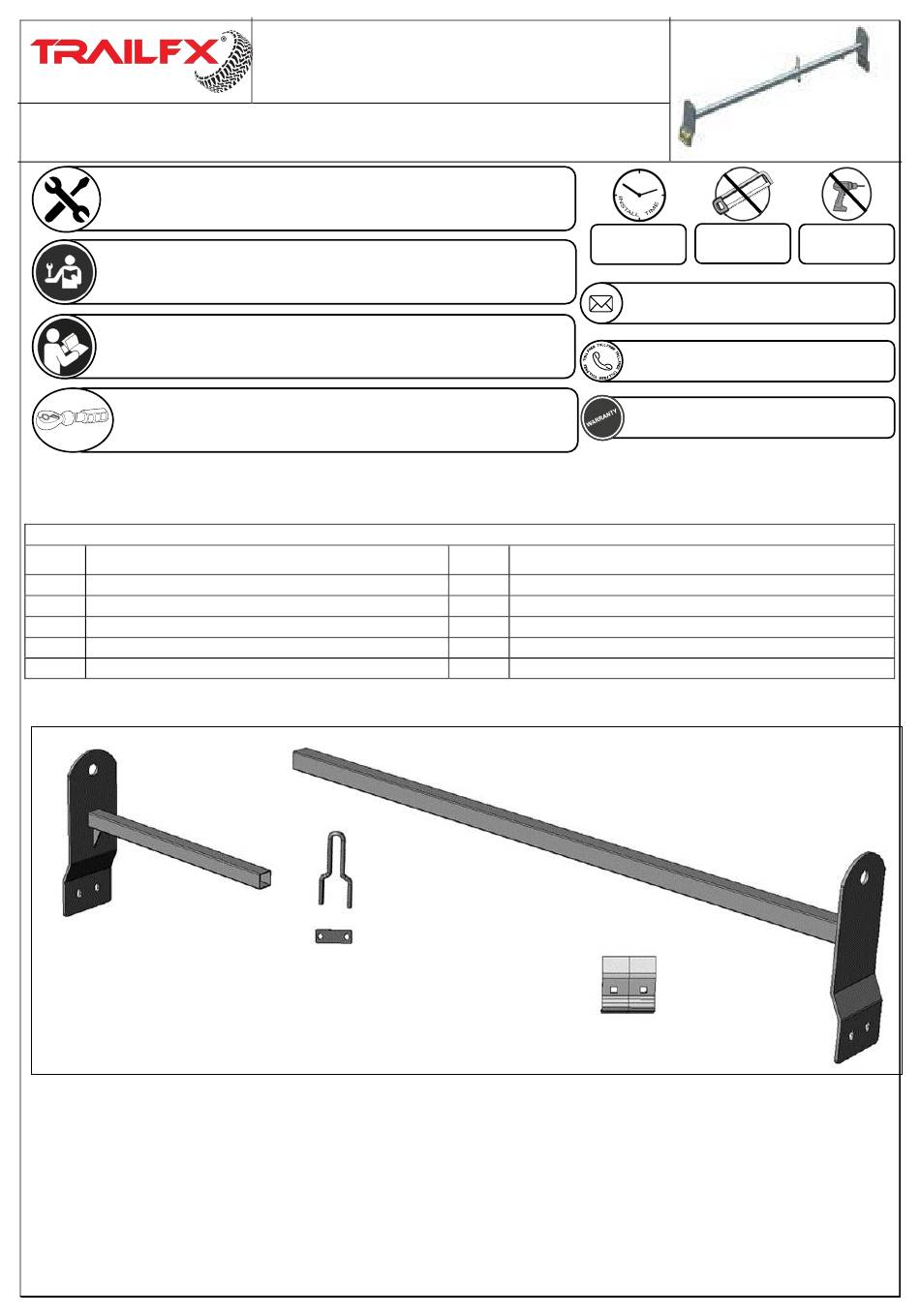

LADDER
Part No. FCLR006W
PARTS LIST for 1 Bars Model:
Part Description
(2) U-Bolt
Positioners
(2) 2-hole Clamp
Plates
RACK
60-180 min
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Qty
4
10-1.5mm x 35mm Carriage Bolts
1
10-1.5mm x 20mm Hex Locking Bolts
4
10mm x 30mm OD x 2.5mm Flat Washers
6
10mm Lock Washers
6
10mm Hex Nuts
(2) Main Cross Bars (female)
www.TrailFX.com
Cutting Not
Required
Part Description
Drilling Not
Required
Rev 112718
