Quick Links
2010 - Current
Fits:
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
HD Front Bumper Assembly
1
Driver/left side Frame Mounting Bracket
1
Passenger/right side Frame Mounting Bracket
1
License Plate Bracket
2
License Plastic Plugs
Driver/left side LED Light "L" Bracket
1
Passenger/right side LED Light "L" Bracket
1
8
12-1.75mm x 50mm Hex Bolts
6
12-1.75mm x 40mm Hex Bolts
12
12mm x 37mm x 3mm Flat Washers
16
12mm x 32mm x 3mm Flat Washers
8
12mm Lock Washers
8
12-1.75mm Hex Nuts
6
12mm Nylon Lock Nuts
6
Sensor Hole Plugs
1
Sensor Cover Kit
License Plate
Bracket
Right LED Light "L"
Bracket
Passenger/Right
Frame Bracket
Page 1 of 6
HD Front Bumper Without Winch
Part No. FHDNW002TI
Dodge Ram 2500/3500
Part Description
(3) Dodge Wiring Harnesses
(2) Plastic Plugs
PARTS LIST:
Qty
10
200mm Nylon Wire Ties
6
Retaining Ring
6
Centering Foam Washers
3
Dodge Wiring Harnesses
2
8-1.25mm x 25mm Hex Bolts
2
8-1.25mm x 16mm Hex Bolts
6
8mm x 24mm x 2mm Flat Washers
4
8mm Lock Washers
2
8-1.25mm Hex Nuts
2
6-1.0mm x 20mm Button Head Bolts
4
6mm x 18mm x 1.6mm Flat Washers
2
6mm Nylon Lock Nuts
1
4mm Allen Wrench
12
4-0.75mm x 10mm Button Head Bolts
1
2.5mm Allen Wrench
(6) Retaining Ring
(6) Centering
Foam Washers
Left LED Light
"L" Bracket
Cutting
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
(6) Sensor
Hole Plugs
Driver/left side
Frame Bracket
www.TrailFX.com
Drilling Not
Required
Rev 032618
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX FHDNW002TI
Summary of Contents for TrailFX FHDNW002TI

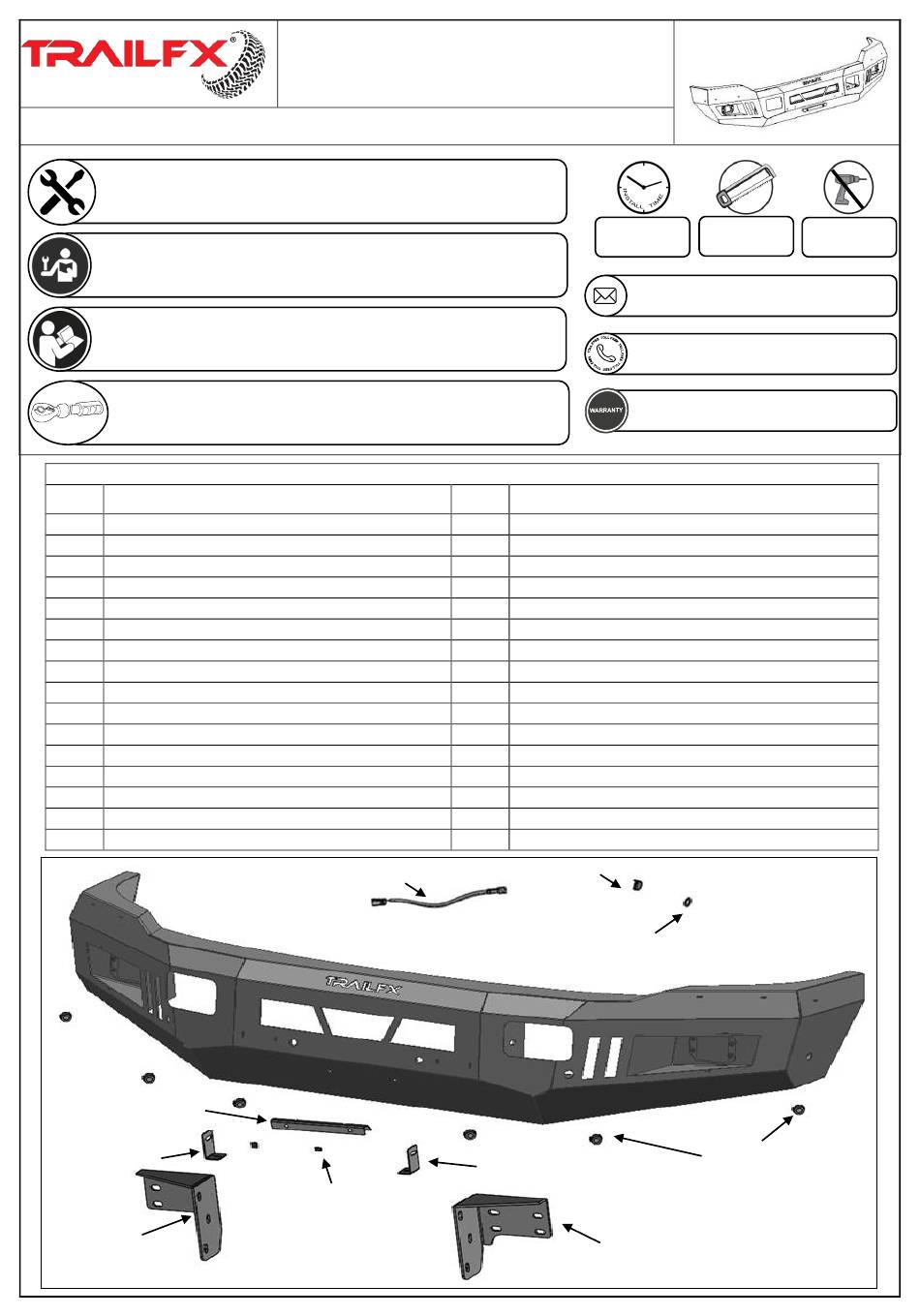

- Page 1 HD Front Bumper Without Winch Part No. FHDNW002TI 2010 - Current Dodge Ram 2500/3500 Fits: ASSISTANCE IS RECOMMENDED. Cutting Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
