Fits: 2009 - 2014
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Replacement Rear Bumper
1
10×27×3mm Flat Washers
12
10×30mm Hex Bolts
6
Plastic Plug
4
5×15×1.2mm Flat Washers
8
5mm Hex Nuts
4
Allen Wrench
1

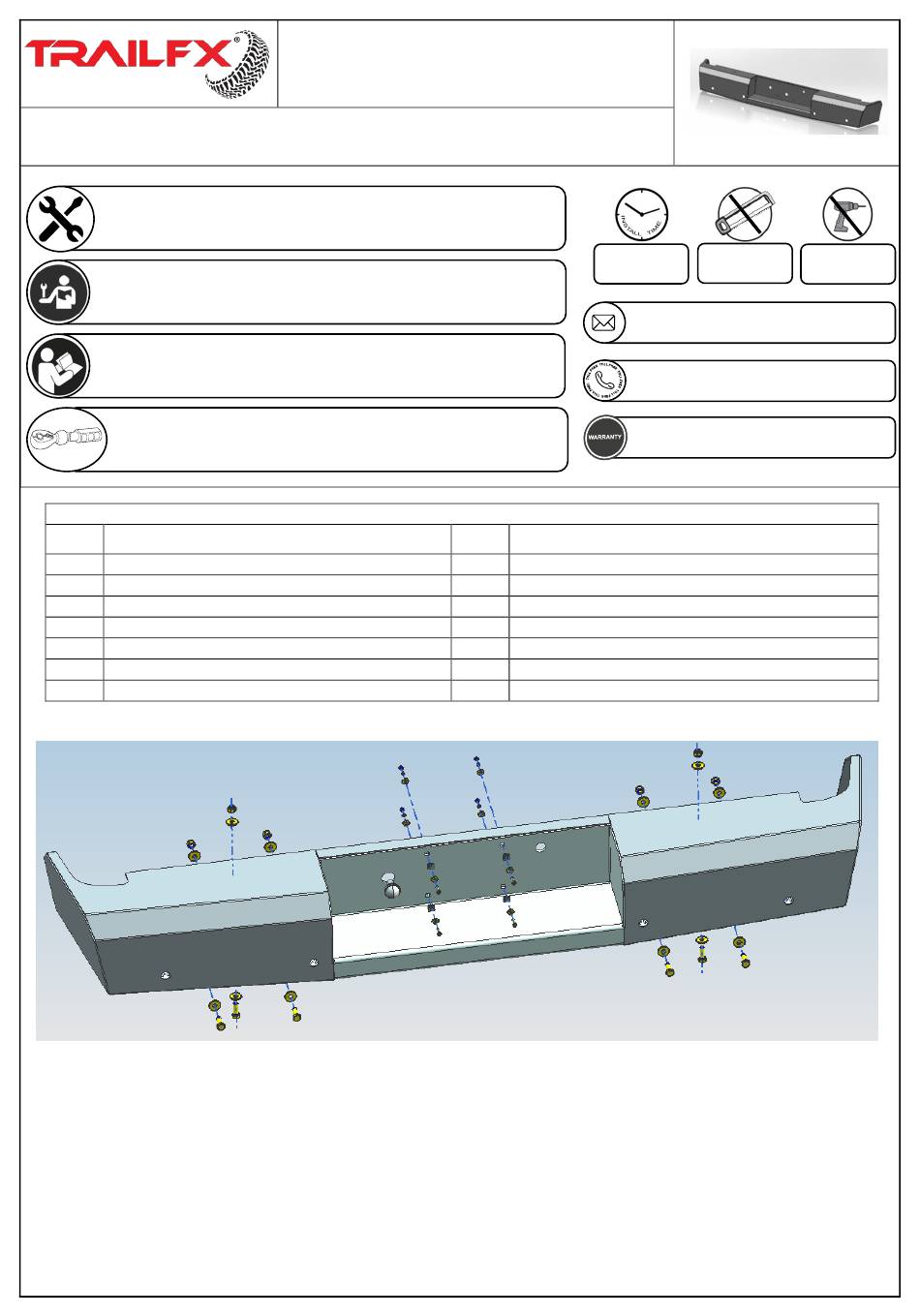

Page 1 of 5

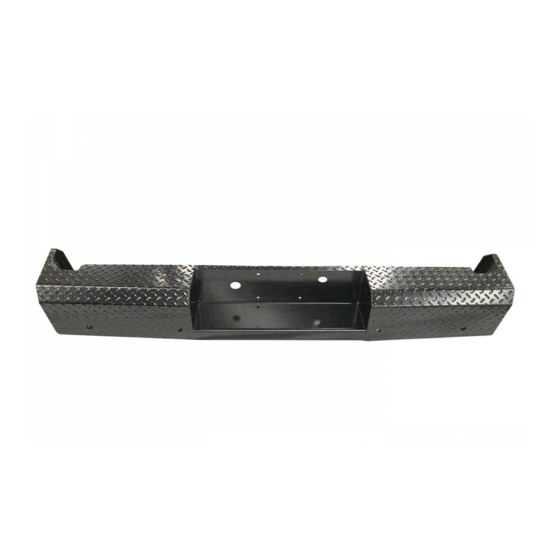

Replacement Rear Bumper
Ford F150
Part Description
Part No. FX1009
PARTS LIST:
Qty
License Plate Light
1
10mm Nylon Lock Nuts
6
License Plate Light Wiring
2
5mm Lock Nuts
4
5×20mm Phillips Screws
4
4×10mm Button Head Allen Bolts
8
Rubber Sensor Plug
4
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 040418
Advertisement
Table of Contents
Related Manuals for TrailFX FX1009
Summary of Contents for TrailFX FX1009
- Page 1 Replacement Rear Bumper Part No. FX1009 Fits: 2009 - 2014 Ford F150 ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE: BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Drop the spare tire. Unplug the factory license plate lights from the backside of the light housing from the bottom of the truck. Turn counter clockwise until loose.
- Page 3 Bumper Installation Attach the license plate to the Replacement Rear Bumper (Fig 2). Fasten the license plate with the hardware. (2)5×15×1.2mm Flat Washers (1)5mm Hex Nut (1)5mm Lock Washer (2)5×15×1.2mm Flat Washers (1)5×20mm Phillips Screw (1)Plastic Plug Fig 2 Select the license plate light and push the light into the hole in the Bumper (Fig 3).
- Page 4 Install the Bumper to the hitch (Fig 5). Fasten the Bumper with the hardware. (6)10×27×3mm Flat Washers (3)10mm Nylon Lock Nuts (3)10×30mm Hex Bolts Fig 5 Level and adjust the bumper, make sure that all hardware is secure and tight.
- Page 5 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
