Fits: 2007-2010
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Replacement Bumper
1
Tow Hooks
2
5×20mm Phillips Screws
4
5x15x1.2mm Flat Washers
8
5mm Lock Washers
4
5mm Hex Nuts
4
Page 1 of 5

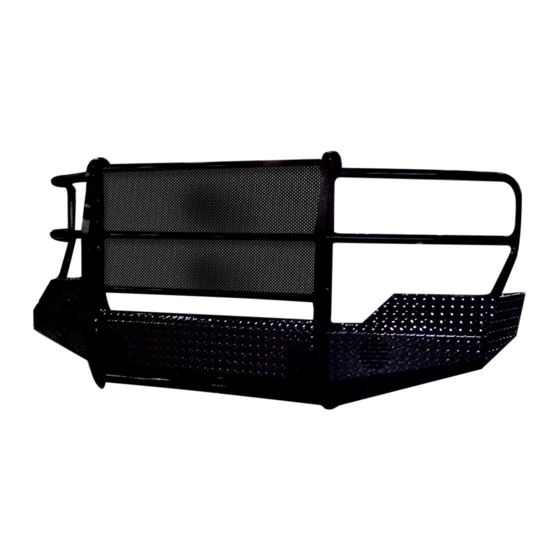

Replacement Front Bumper
Part No. FX3017
GMC Sierra 2500/3500 HD
Part Description
PARTS LIST:
Qty
12×60mm Hex Bolts
4
12×150mm Half Thread Hex Botls
6
12×24×2.5mm Flat Washers
8
12×37×3mm Flat Washers
12
12mm Lock Washers
10
12mm Hex Nuts
10
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 020218
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX FX3017
Summary of Contents for TrailFX FX3017

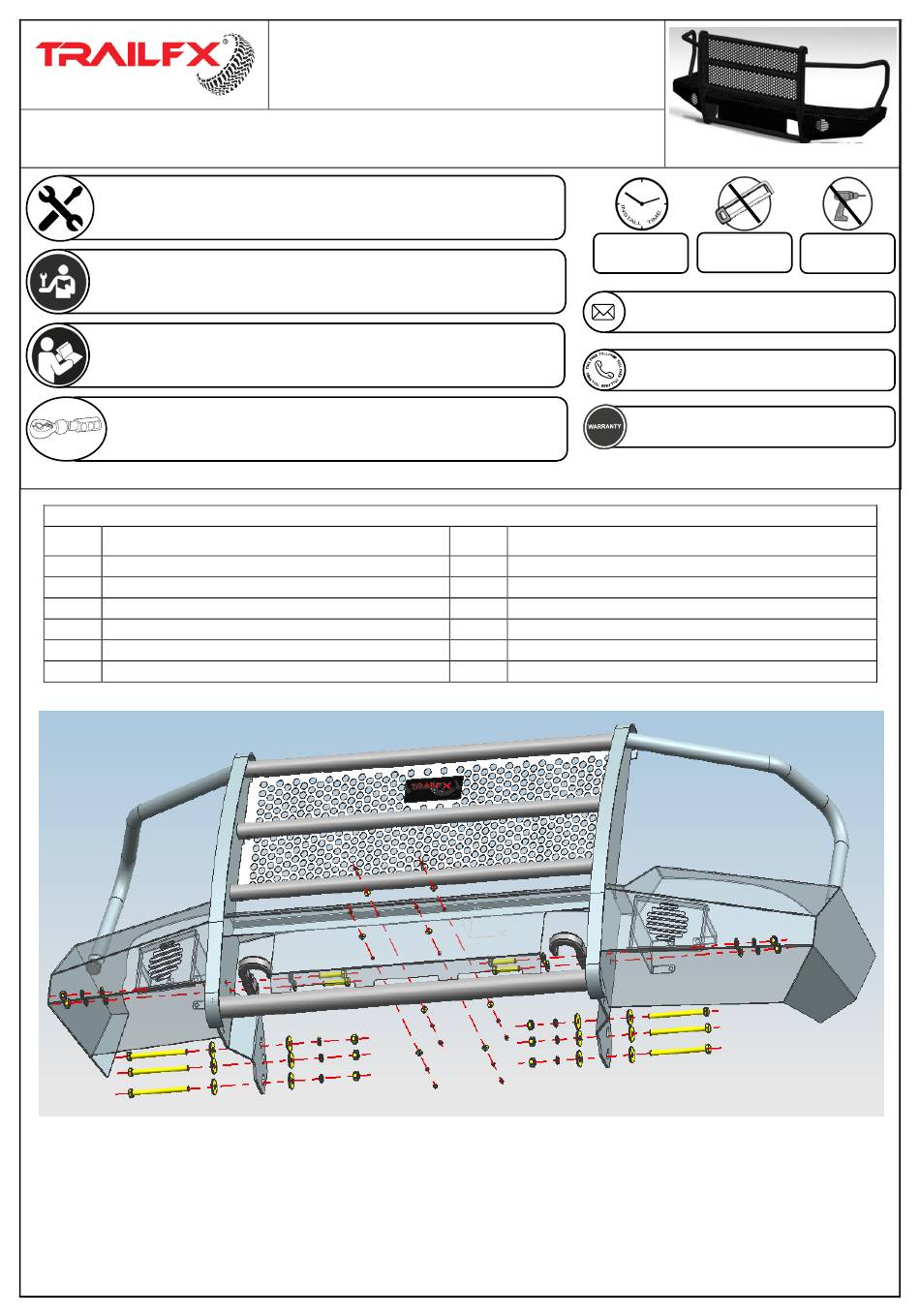

- Page 1 Replacement Front Bumper Part No. FX3017 Fits: 2007-2010 GMC Sierra 2500/3500 HD ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Disconnect the factory fog lamp connectors (If Applicable), zip tie harness to frame. Open the Hood and remove the 8 dart clips holding the plastic radiator valance (Fig 1).
- Page 3 Remove bolts and swing outer bumper support tubes down and out of the way, using a 15mm socket. Two Bolts per side. (Fig 4). Fig 4 Remove the dart clips holding the rubber valance between the frame and the bumper.
- Page 4 Attach the license plate to the Replacement Bumper (Fig 7). Fasten the license plate with the hardware. (4)5mm Lock Washers (4)5×15×1.2mm Flat Washers (4)5mm Hex Nuts (4)5×15×1.2mm Flat Washers (4)5×20 Phillips Screws Fig 7 Fasten the provided Tow Hooks to thg Bumper with the hardware (Fig 8).
- Page 5 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
