Fits: 2008-2010
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
5×20mm Phillips Screws
4
5x15x1.2mm Flat Washers
8
4
4
Page 1 of 4

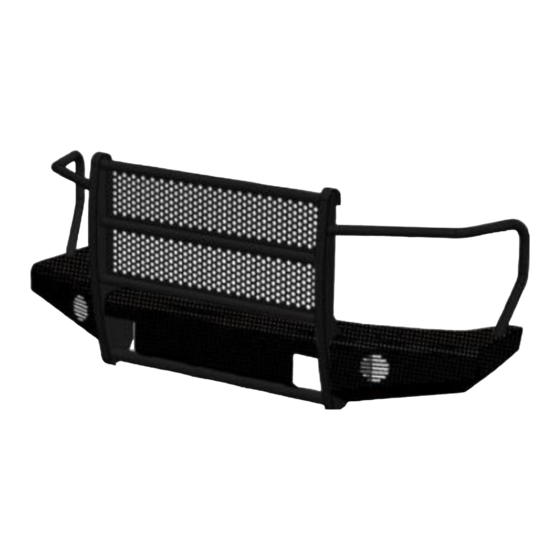

Replacement Front Bumper
Part No. FX3001
Ford Superduty
Part Description
Replacement Bumper
5mm Lock Washers
5mm Hex Nuts
PARTS LIST:
Qty
8
4
4
4
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
12×37×3mm Flat Washers
12mm Lock Washers
12mm Hex Nuts
12×50mm Hex Bolts
Drilling Not
Required
Rev 031618
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX FX3001
Summary of Contents for TrailFX FX3001
- Page 1 Replacement Front Bumper Part No. FX3001 Fits: 2008-2010 Ford Superduty ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 1 866 638 4870 DO NOT OVER TORQUE.
- Page 2 INSTALLATION PROCEDURE BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Disconnect the factory fog lamp connectors, zip tie harness to frame. Remove fasteners holding OEM bumper to chassis. Remove fastener holding hood release lever to OEM bumper.
- Page 3 Attach the license plate to the Replacement Bumper (Fig 2). Fasten the license plate with the hardware. (4)5mm Lock Washers (4)5×15×1.2mm Flat Washers (4)5mm Hex Nuts (4)5×15×1.2mm Flat Washers (4)5×20 Phillips Screws Fig 2 Attach the Bumper to the frame. Fasten the Bumper with the hardware (Fig 3).
- Page 4 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
