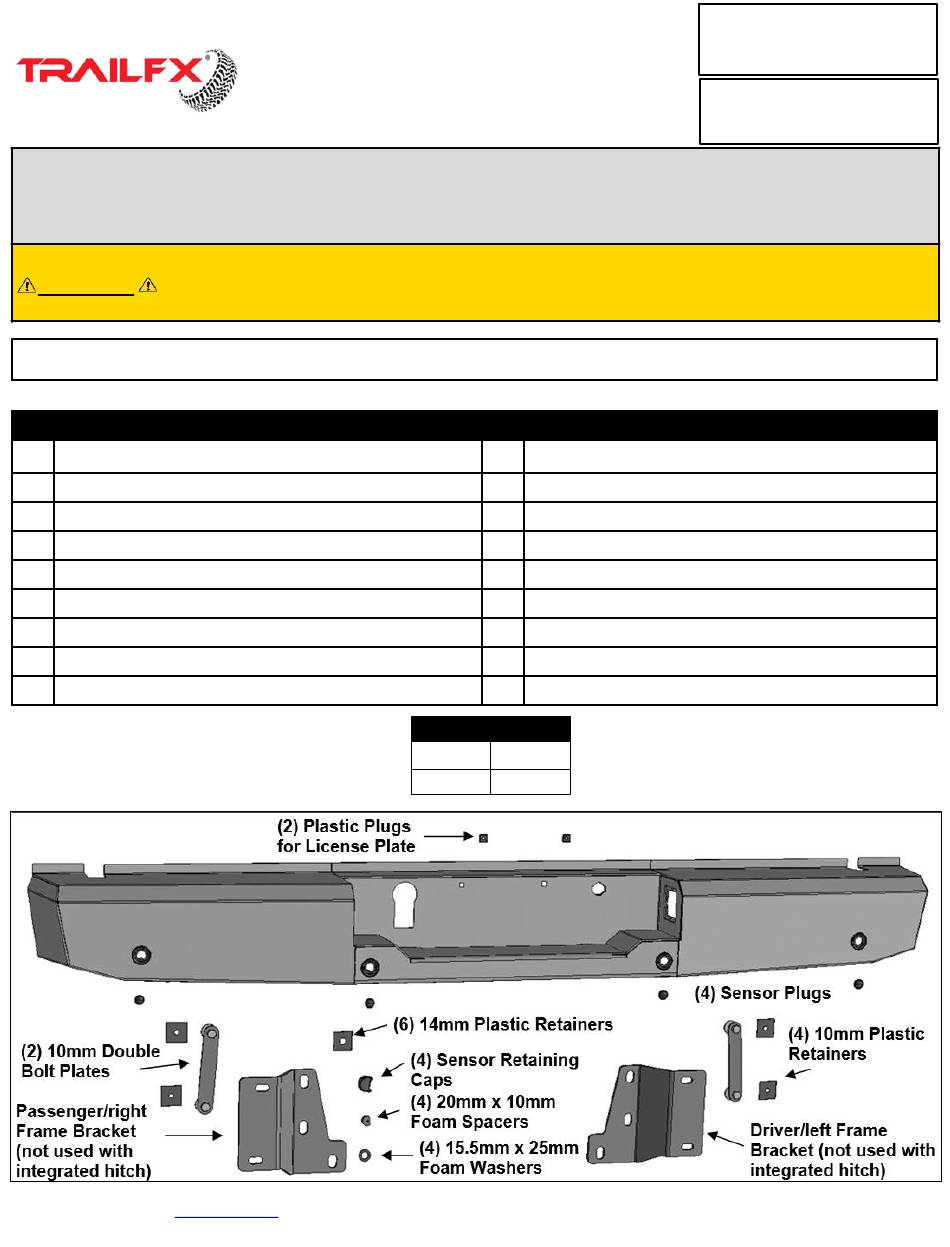

TrailFX FX1021 Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer: Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
End User: Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
WARNING
decals from the product. Failure to follow these instructions can result in injury or death.
APPLICATION: 2015 – 2021 Ford F150
Qty
1 Rear Bumper Assembly
1 Driver/left Mounting Bracket
1 Passenger/right Mounting Bracket
2 Plastic Plugs for license plate mount
4 Sensor Hole Plugs
4 Sensor Retaining Caps
4 20mm x 10mm Foam Spacers
4 15.5mm x 25mm x 2mm Foam Washers
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
Full Replacement Rear Bumper
Part Description
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 12/08/2021-R01
PARTS LIST:
Qty
1 Sensor Cover Kit
6 14mm Plastic Retainers
4 10mm Plastic Retainers
2 10mm x 35mm Double Bolt Plates
4 10mm x 30mm x 2.5mm Flat Washers
4 10mm Nylon Lock Nuts
8 4mm Self Tapping Screws
10 Nylon Wire Ties
Torque Specs
10mm 40 ft/lbs
4mm 27 in/lbs
Part Number:
FX1021
240 minutes
Part Description
Page-1 - 9
