Fits: 2011-2014
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Replacement Bumper
1
5×20mm Phillips Screws
4
5mm Lock Washers
4
12×120mm Hex Bolts
6
12mm Lock Washers
6

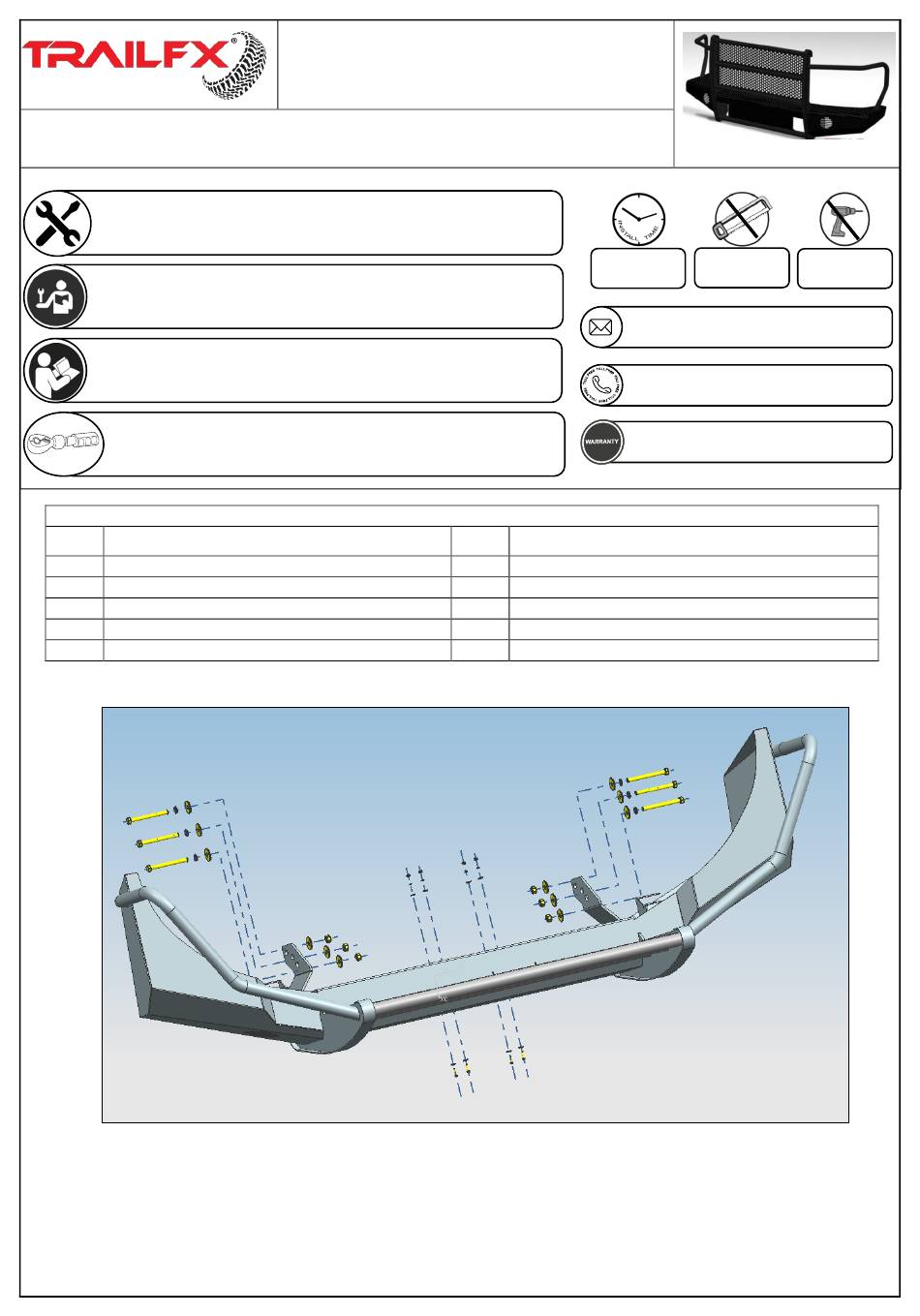

Page 1 of 5

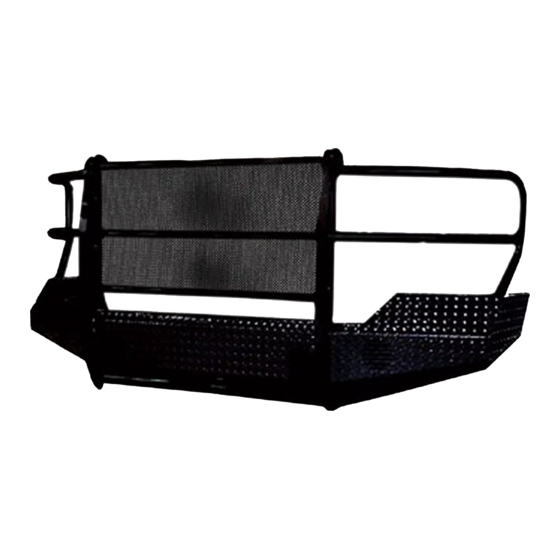

Replacement Front Bumper
Part No. FX3004
Chevrolet Silverado 2500/3500 HD
Part Description
PARTS LIST:
Qty
5×15×1.2mm Flat Washers
8
5mm Hex Nuts
4
12×37×3mm Flat Washers
12
12mm Hex Nuts
6
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 031518
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX FX3004
Summary of Contents for TrailFX FX3004
- Page 1 Replacement Front Bumper Part No. FX3004 Fits: 2011-2014 Chevrolet Silverado 2500/3500 HD ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Detach the splash mat from the body by removing the 3 plastic push clips from the center splash guard and outer cooling supports.
- Page 3 Bumper Installation Remove the fog light from the vehicle. Use the OEM screws and nut plates to fasten the fog light to the bumper (Fig 5A & 5B). Fig 5B Fig 5A Attach the license plate to the Replacement Bumper (Fig 6). Fasten the license plate with the hardware.
- Page 4 (3)12×120mm Hex Bolts (6)12×37×3mm Flat Washers (3)12mm Lock Washers (3)12mm Hex Nuts Fig 7A Fig 7B Reinstall the factory wiring harness to the fog light. Level and adjust the bumper, make sure that all hardware is secure and tight.
-
Page 5: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
