Fits: 2003-2007
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Replacement Bumper
1
5x20mm Phillips Screws
4
5mm Lock Washers
4
12x37x3mm Flat Washers
8
12mm Hex Nuts
8
12x24x2.5mm Flat Washers
8
12x60mm Hex Bolts
4
Page 1 of 5

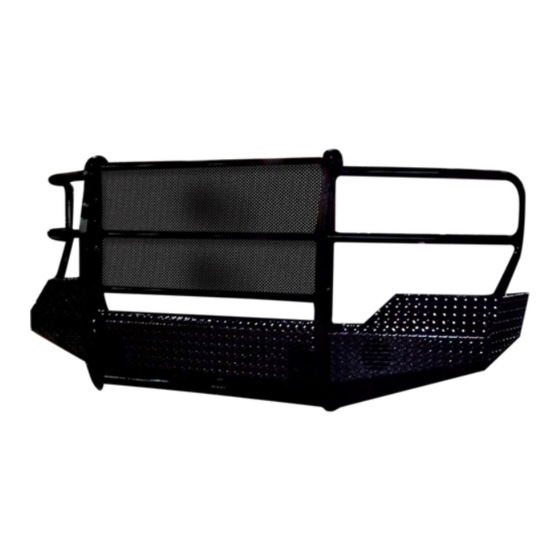

Replacement Front Bumper
Part No. FX3006
Chevrolet Silverado 1500HD/2500LD
Part Description
PARTS LIST:
Qty
Towing Hooks
2
5x15x1.2mm Flat Washers
8
5mm Hex Nuts
4
12x40mm Hex Bolts
2
12mm Lock Washers
8
12x130mm Half Thread Hex Bolts
2
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 012219
Advertisement
Related Manuals for TrailFX FX3006
Summary of Contents for TrailFX FX3006

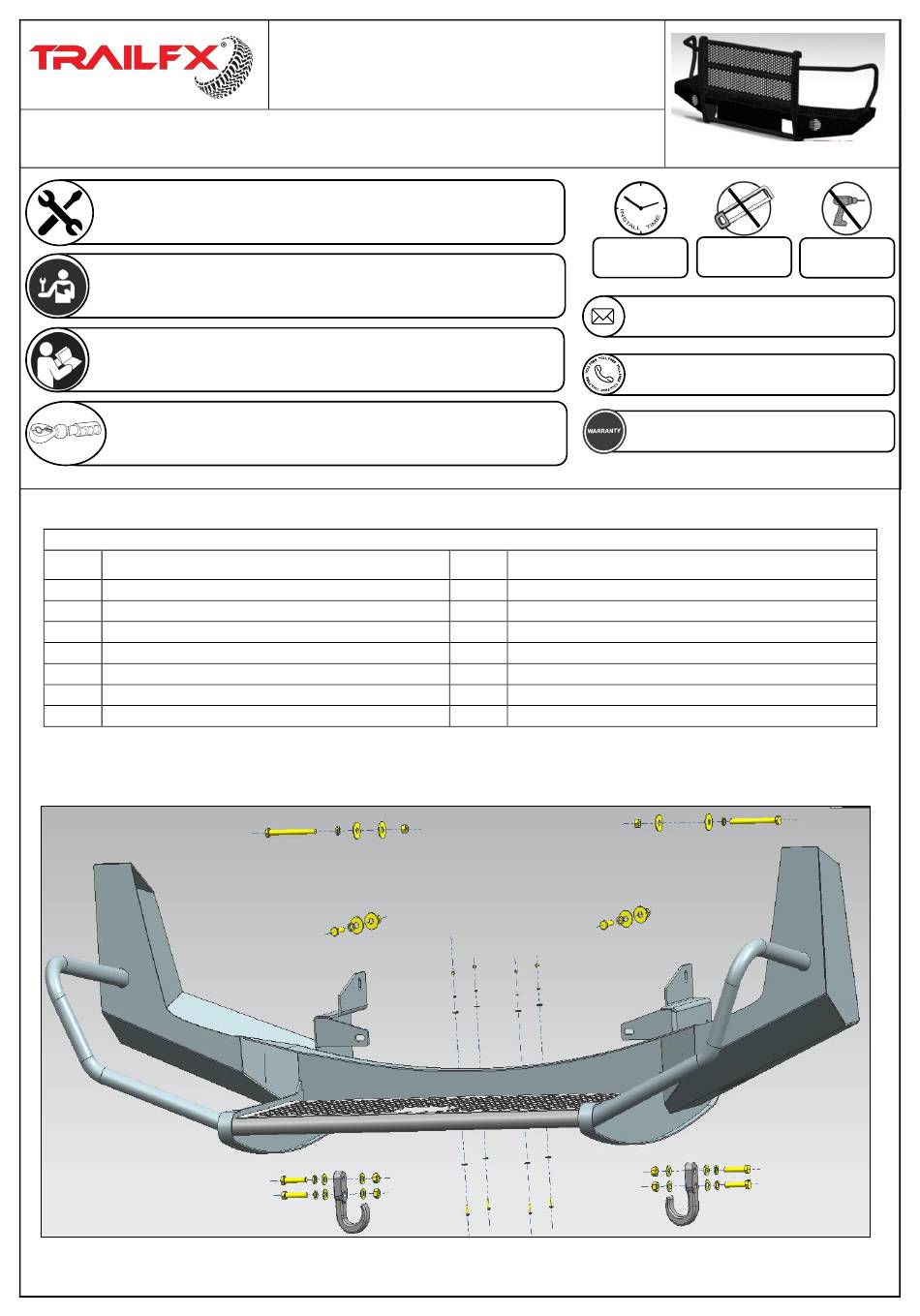

- Page 1 Replacement Front Bumper Part No. FX3006 Fits: 2003-2007 Chevrolet Silverado 1500HD/2500LD ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 1 866 638 4870 DO NOT OVER TORQUE.
- Page 2 INSTALLATION PROCEDURE BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Disconnect factory fog lamp connectors (if applicable), zip tie harness to frame. Remove fasteners holding OEM bumper to chassis using a 15mm wrench. Fasteners may be accessed from the sides underneath and through the slots in the OEM bumper (Fig 1A &...
- Page 3 Bumper Installation Remove the fog light from the vehicle. Use the OEM screws and nut plates to fasten the fog light to the bumper (Fig 3). Fig 3 Attach the license plate to the Replacement Bumper (Fig 4). Fasten the license plate with the hardware.
- Page 4 Fig 5C Fig 5B Attach the Bumper to the frame. Fasten the Bumper with the hardware (Fig 6A & 6B). (1)12×40mm Hex Bolt (2)12×37×3mm Flat Washers (1)12mm Lock Washer (1)12mm Hex Nut Fig 6B (1)12×130mm Hex Bolt Fig 6 A (2)12×37×3mm Flat Washers...
-
Page 5: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
