Fits: 2007-2013
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Replacement Bumper
1
5×20mm Phillips Screws
4
5mm Lock Washers
4
12×130mm Hex Bolts
6
12mm Lock Washers
6

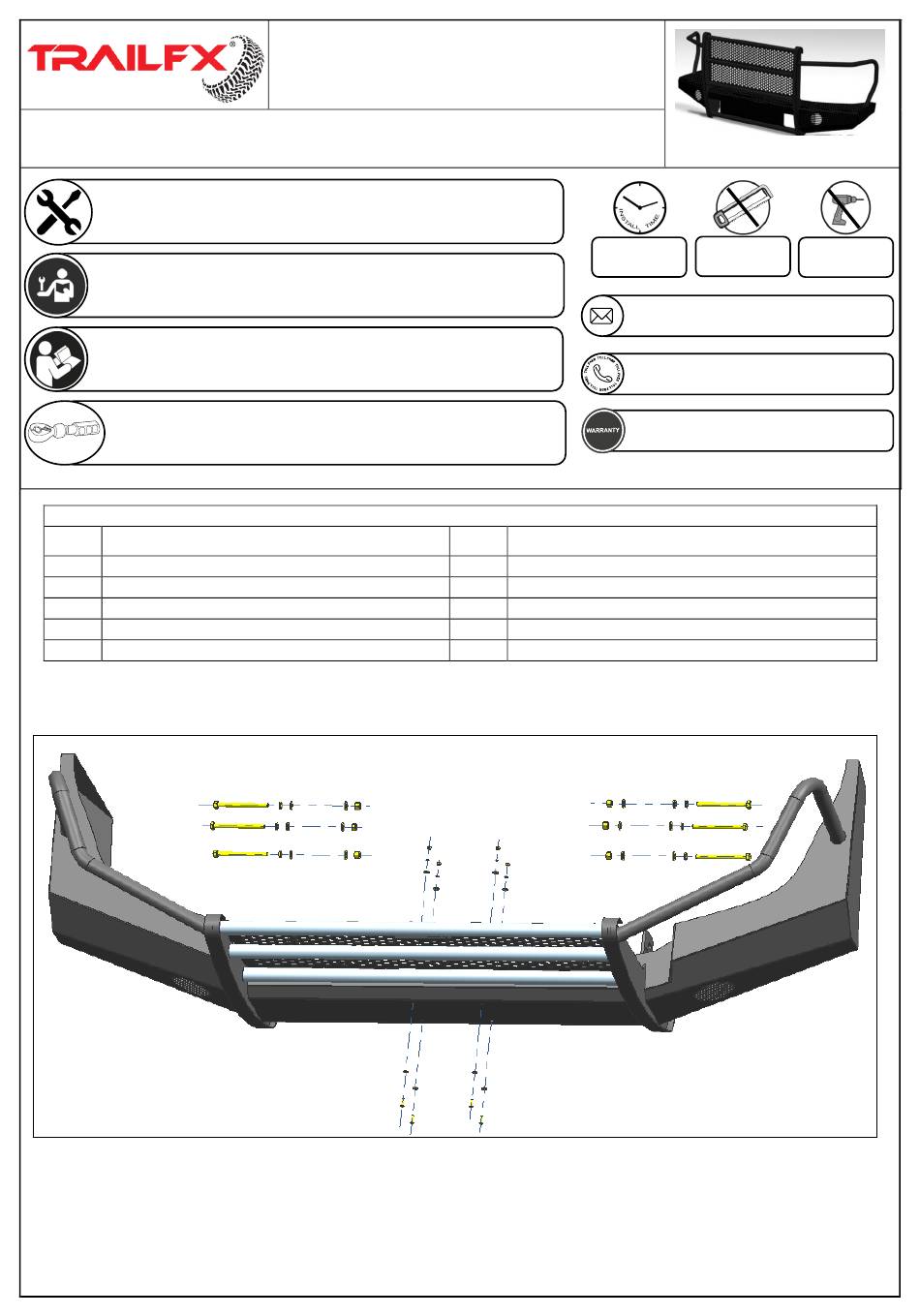

Page 1 of 6

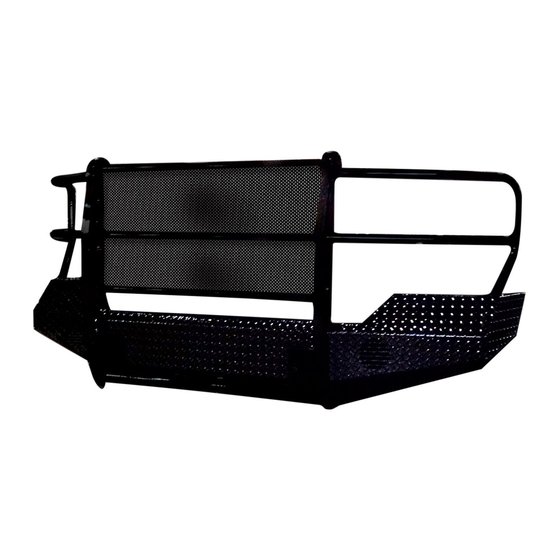

Replacement Front Bumper
Part No. FX3018
GMC Sierra 1500
Part Description
PARTS LIST:
Qty
5×15×1.2mm Flat Washers
8
5mm Hex Nuts
4
12×24×2.5mm Flat Washers
12
12mm Hex Nuts
6
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 020218
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX FX3018
Summary of Contents for TrailFX FX3018
- Page 1 Replacement Front Bumper Part No. FX3018 Fits: 2007-2013 GMC Sierra 1500 ASSISTANCE IS RECOMMENDED. Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 1 866 638 4870 DO NOT OVER TORQUE.
- Page 2 INSTALLATION PROCEDURE BUMPER IS HEAVY, ASSISTANCE IS HIGHLY RECOMMENDED TO AVOID POSSIBLE INJURY OR DAMAGE TO THE VEHICLE. Vehicle Preparation Disconnect the factory fog lamp connectors (If Applicable), zip tie harness to frame. Open the Hood and remove the 8 dart clips holding the plastic radiator valance( Fig 1).
- Page 3 Remove bolts and swing outer bumper support tubes down and out of the way, using a 15mm socket. Two Bolts per side (Fig 4). Fig 4 Remove the dart clips holding the rubber valance between the frame and the bumper.
- Page 4 Attach the license plate to the Replacement Bumper (Fig 8). Fasten the license plate with the hardware. (1)5mm Lock Washers (1)5×15×1.2mm Flat Washer (1)5mm Hex Nut (1)5×15×1.2mm Flat Washer (1) 5×20 Phillips Screw Fig 8 Remove the Towing Hook from the frame, fasten the bumper to the frame with the hardware (Fig 9A).Do not reinstall the Towing Hook at this time (Fig 9B).
- Page 5 Attach the Towing Hook to the Frame Brackets and the frame. Fasten the hook with the hardware (Fig 10A & 10B). (1)12×130mm Hex Bolts (2)12×24×2.5mm Flat Washers (1)12mm Lock Washers (1)12mm Hex Nuts Fig 10A Fig 10B Reinstall the factory wiring harness to the fog light.
-
Page 6: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
