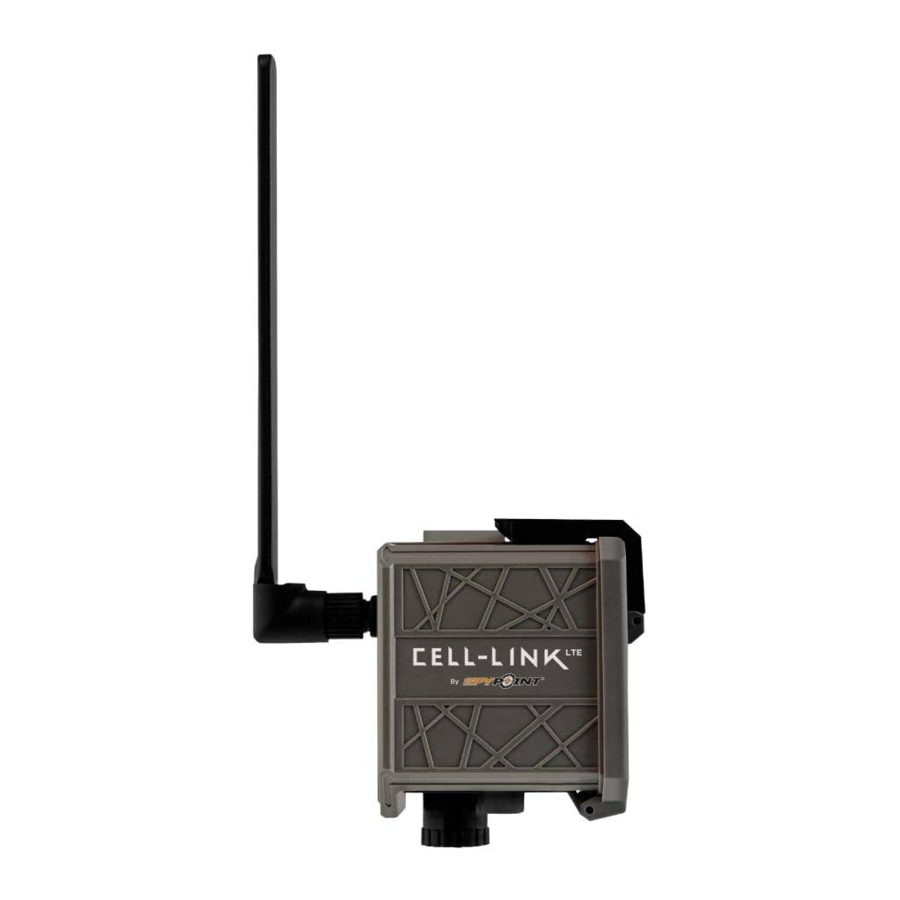

Spypoint CELL-LINK Series Manual

In the box

1x CELL-LINK cellular module
1x Memory card adapter cable
1x Mounting strap
1x Quickstart guide
1x MicroSIM card (preactivated and inserted into the CELL-LINK)
NOTE: Memory card and batteries are sold separately.
User manual, latest firmware, and FAQ available at: support.spypoint.com

Components

1. Memory card adapter cable
2. Slot for mounting strap
3. Cable lock hole
4. 5 signal strength LEDs
5. SIM card slot
6. Battery ''PUSH'' eject button
7. Battery compartment
8. AA battery holder

9. STATUS LED
10. ON/OFF switch

11. Micro SD card slot
12. ¼" 20 tripod mount
13. Antenna
14. Memory card adapter cable port
15. 12V jack
16. Locking latch

PREPARATION

SELECT A POWER SOURCE

• Lithium or alkaline AA batteries (follow order/polarity indications)
• 12V rechargeable battery (#KIT-12V)
• 2V rechargeable battery pack (#LIT-10)
  NOTE: We recommend using the SPYPOINT #LIT-10 rechargeable lithium battery pack, sold separately.

FOR BEST RESULTS AND NO LEAKAGE:

• Use only new lithium or alkaline batteries.
• Do not mix old and new batteries.
• Do not use rechargeable batteries (their lower voltage can generate operational issues).

HOW TO INSTALL AA BATTERIES PROPERLY

• Unlock and open the CELL-LINK door.
• Take the battery holder out.
• Insert the AA batteries into the battery holder following polarity (+) and (-) indications.
• Place the battery holder back into the battery compartment.
• Make sure you hear a click when inserting the battery holder into the compartment.

FORMATTING YOUR MicroSD CARD
Before inserting the MicroSD card into your CELL-LINK, it must be reformatted via a computer to ensure proper functionality.
Memory card is sold separately. Whether you choose to use a MicroSD card you previously used in another device or a brand new one you've just bought, its capacity must not exceed 32 GB and it must be reformatted. Do no use the "Quick format" option.

INSERTING A MicroSD CARD

• Ensure the CELL-LINK is turned off and open its door.
• Insert a MicroSD memory card (up to 32 GB capacity) into the MicroSD card slot with the label facing up.
• The card is inserted correctly when a click is heard.

ACTIVATING YOUR CELL-LINK

You must activate your CELL-LINK via the free "SPYPOINT app" or SPYPOINT website under the MY ACCOUNT section.

SPYPOINT APP

Follow these steps:

1. On Google Play^TM or the App Store^TM, search for "SPYPOINT app."
2. Download and install the app on your smartphone or tablet.
3. Start the app. Select "ACTIVATE A DEVICE." In the list, select "CELL-LINK" then follow the steps.
4. When complete, a confirmation email will be sent to you with a generated password.
5. Log in to the SPYPOINT app using your email and password.

ACTIVATING YOUR CELL-LINK
SPYPOINT website

Follow these steps:

1. On the SPYPOINT website, select "MY ACCOUNT" in the top navigation menu. On the displayed page, select "Register," fill out the required fields, then log in.
2. Select the + sign on the far right of the page; in the list, select "CELL-LINK" then follow the steps.
3. When complete, a confirmation email will be sent to you with a generated password.
4. On the website, log in to your account using your email and password.
   NOTE: You can activate additional CELL-LINK's for other cameras and switch between them in the SPYPOINT app or the "MY ACCOUNT" section of the SPYPOINT website.

CHOOSING A PHOTO TRANSMISSION PLAN FOR YOUR CELL-LINK
Select a photo transmission plan via the SPYPOINT app or website

1. Upon activating your CELL-LINK, you will automatically benefit from our FREE monthly plan.
2. After your 30 days are up, you can select a new plan better suited to your needs among the ones we offer or;
3. Keep your FREE monthly plan and continue receiving up to 100 photo transfers per month.

CONFIGURING YOUR CELL-LINK

New settings take effect every time the CELL-LINK connects with the SPYPOINT app or website. Below are the most basic settings you will configure.
First transfer time: Allows you to choose the time when the CELL-LINK makes its first transfer of the day.
Transfer frequency: Allows you to choose the number of daily transfers.
NOTE: Photo transfers are set by default to every 4 hours from midnight.

STARTING YOUR CELL-LINK

1. Open the CELL-LINK door
2. Turn the CELL-LINK ON (ON/OFF switch)
3. All lights flashing – Searching for signal
   The signal search can take a few minutes to process. If only 1 bar is flashing, the network test is unsuccessful. Try moving the CELL-LINK (along with your camera) to another spot in order to maximize signal strength, then restart the cellular module. This operation might need to be repeated as the SPYPOINT SIM card and services are powered by multiple providers. The network modem will maneuver to ensure the strongest signal strength by searching for the best tower available (cellular network).
4. Solid bars – Signal strength
   Once the network test is completed, bars will stabilize showing the signal strength. Note that signal bars displayed on the CELL-LINK can differ from those shown on other cellular devices as there is no industry standard or practice to label DBM values to a specific number of bars.
5. All lights OFF – CELL-LINK ready
   Shut the CELL-LINK door. The CELL-LINK has updated its status in the SPYPOINT app and website with its latest information. The CELL-LINK is now ready to grab the pictures taken by your trail camera and transmit them to you via the SPYPOINT app or website upon its next transmission.
   NOTE:
   Before starting the CELL-LINK, ensure you have successfully configured your trail camera according to your preferences and that you have done this by following your camera's user manual.

HERE ARE THE RECOMMENDED CAMERA SETTINGS FOR ENSURING OPTIMAL PERFORMANCE OF YOUR CELL-LINK:

• A low-resolution photo format.
• A delay no shorter than 1 minute between each detection.
• In time lapse mode, a delay no shorter than 1 minute.

INSTALLING AND CONNECTING THE CELL-LINK

To connect the SPYPOINT CELL-LINK to your trail camera from any brand, follow these steps (or view our video in the Help section):

1. Open your camera door.
2. Take the CELL-LINK memory card adapter cable and insert the end with the SD card into your camera's SD card slot.
3. Keeping the SD memory card adapter cable held tightly against the case, direct the adapter cable so that it exits from the bottom of the camera case. The cable should hang loosely below the camera. (Avoid bringing the cable over any critical components).
4. Shut the camera door and lock the latch.
5. Flip the SD cable upward, sliding it up behind the camera, so that the CELL-LINK connector sticks out from behind the top of your camera.
6. Mount your camera to the tree. (The CELL-LINK SD adapter cable should now be found between the tree and camera)
7. Mount the CELL-LINK cellular module as close to your camera as possible.*
8. Connect the SD card cable connector to the CELL-LINK.
   You can now access CELL-LINK photos, configurations, and statuses either via the SPYPOINT app or your account on the SPYPOINT website.

FREQUENCY

FREQUENCY RANGE:
800/ 850/ 900/ 1900/ 2100MHz

MAXIMUM TRANSMISSION POWER:
