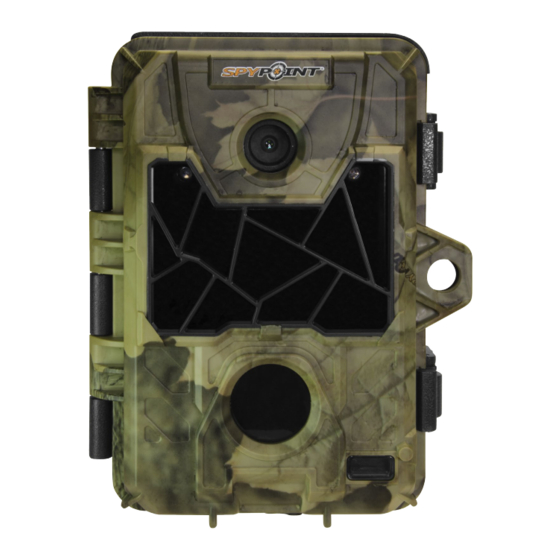

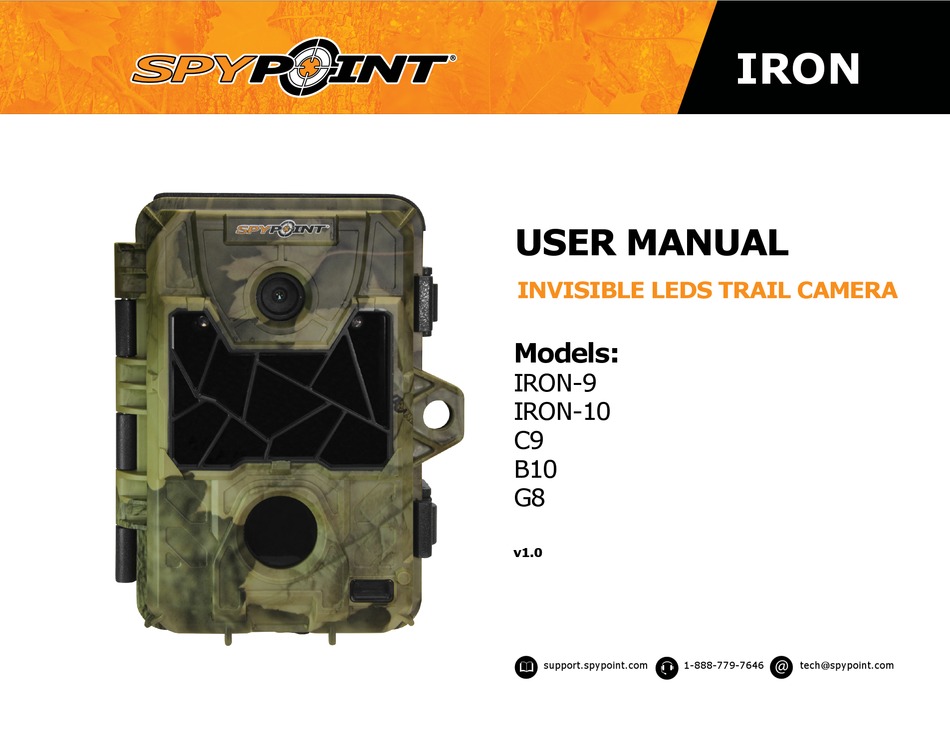

- Page 1 IRON USER MANUAL INVISIBLE LEDS TRAIL CAMERA Models: IRON-9 IRON-10 v1.0 support.spypoint.com 1-888-779-7646 tech@spypoint.com ...
- Page 2 This manual will guide you through all the features of your device GG Telecom’s mission is to offer products that are easy so that you will get optimal use out of your SPYPOINT product. to use, innovative, affordable and of exceptional quality.
-
Page 3: Table Of Contents
Settings ..................9 Distance ..................11 Sound recording ................13 File transfer to a computer ............14 Troubleshooting ................15 Error messages................15 Available accessories ..............16 Specifications IRON-9 ..................18 IRON-10 ..................19 C9 ....................20 B10 ....................21 G8 ....................22 Regulation ...................23 Limited warranty .................24 Repair service ................24... -
Page 4: Package Contents
Rechargeable AA batte- RECOMMENDATIONS: PRACTICAL TIP : ries are not recommended. Models: Note: Memory card and batteries are sold separately. IRON-9 INSERT THE MEMORY CARD IRON-10 Components Insert an SD/SDHC memory card (up to 32 GB C9 / B10 / G8 capacity) in the card slot. -
Page 5: Components
IRON Components Slot for installation strap Photo lens TV OUT Configuration screen Tripod mount Invisibles LEDs USB port BUSY LED 12V jack Test light SD card slot Switch panel Microphone Light sensor DISTANCE dial ON/OFF Fresnel lens Battery case Cable lock hole... - Page 6 IRON Components Photo lens Image sensor and infrared filter. Tripod mount Standard ¼-20" tripod mount. Invisible LEDs Night lighting to obtain black and white photos 12V power jack This camera can be powered from an and videos. external 12-volt DC input such as a 12V Test light Flashes in TEST mode when there is detec- battery...
-
Page 7: Power
4. Replace the battery, the polarity must be respected (side + facing up). LITHIUM BATTERY PACK This SPYPOINT camera can be powered by a rechargeable lithium battery pack LIT-09/LIT-C-8 (sold separately). This type of battery is less affected by cold temperatures and lasts up to 3 times longer than an alkaline batteries. -
Page 8: Memory Card
Lightly press the memory card into the camera once to pop it out of the slot video resolutions are noted, see those corresponding to the camera. and remove it. Note: This SPYPOINT camera is equiped with continuous file recording. When the memory card is full, the camera will continue to record photos or "BUSY" DEL videos by deleting the first recorded files. -
Page 9: Settings
IRON Settings This table shows the photo and video resolution depending on the photo quality setting (High/Low). IRON-9 IRON-10 (Non-HD videos) (HD Videos) Video 320 x 240 640 x 480 High 640 x 480 1280 x 720 To configure the general settings, set the camera to SET/TEST mode. Press Photo OK to enter the menu. - Page 10 IRON Settings INSTALLATION WITH THE SUPPLIED STRAP Here are the options available by pressing MENU/OK: The dimensions of the strap (included) is 1" X 60". Allows the user to view the date and time printed on View Date/Time: the photo. Allows the user to protect a photo or video to prevent it Protect: from being deleted by selecting "Erase All".
-
Page 11: Distance
IRON Settings MULTI-SHOT DELAY (IN PHOTO MODE) Takes up to 4 consecutive shots at each detection, with a 10 second delay Allows the user to choose the time interval between each detection before between each photo. For the cameras with a Flash unit, the delay between the camera records the next photo or video*. - Page 12 IRON Settings Here is a table of approximate detection distances and width of the detection area according to the DISTANCE dial setting. The data can be affected by the size of the subject and the outside temperature. Note that this data is for illustrative purposes only. Detection Value on Width of the...
-
Page 13: Sound Recording
Sound recording IRON The SPYPOINT camera offers the possibility to record sound in VIDEO mode. When the VIDEO mode is selected, the camera automatically re- cords the sound. Under the camera, you will find a rubber cap with the inscription MIC. If the user does not want to record the sound, the rubber cap needs to stay in place. -
Page 14: File Transfer To A Computer
File transfer to a computer IRON To transfer photos/videos to a computer: 1. Turn OFF the camera. 2. Connect the USB cable (supplied) from the camera to a computer. 3. The computer will detect the camera and install the driver automatically. 4. -
Page 15: Troubleshooting
• Verify if the memory card contains photos/videos. • Install the latest update (available on television www.spypoint.com under SUPPORT section). • Replace alkaline batteries or recharge the lithium The computer • Verify if the camera is properly connected to the battery pack. -
Page 16: Available Accessories
Available accessories IRON obtain more information available accessories, www.spypoint.com. Here are the main accessories available: POWER Spare power cable Rechargeable 12V battery, #PW-12FT, Spare 12 ft power charger & housing kit cable, to connect the camera to #KIT-12V, 12-volt 7.0Ah rechar- the KIT-12V. - Page 17 #TP-CAM, SPYPOINT Lightweight tripod, in black aluminum, with a unique anchor system and a remo- vable quick release plate. Max. height: 4.9 ft (1.5 m), min. height: 1.7 ft (0.5 m), max. load weight: 11 lbs (5 kg). Fits most SPYPOINT products.
-
Page 18: Specifications Iron-9
Specifications (IRON-9) Photo recording Detection system Motion sensor Photo resolution 3 MP, 9 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time, and temperature (°C/°F) -
Page 19: Iron-10
Specifications (IRON-10) Photo recording Detection system Motion sensor Photo resolution 3 MP, 10 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 1 min to 15 Delay between each detection Adjustable from 1 to 15 min *Additional 10 s setting Multi-shot mode... - Page 20 Specifications (C9) Photo recording Detection system Motion sensor Photo resolution 3 MP, 9 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time, temperature (°C/°F) and *Additional 10 s setting...
-
Page 21: B10
Specifications (B10) Photo recording Detection system Motion sensor Photo resolution 3 MP, 10 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time and temperature (°C/°F) *Additional 10 s setting... - Page 22 Specifications (G8) Photo recording Detection system Motion sensor Photo resolution 3 MP, 8 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time and temperature (°C/°F) *Additional 10 s setting...
-
Page 23: Regulation
Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com. -
Page 24: Limited Warranty
Limited warranty and repair This SPYPOINT product designed by GG Telecom, is covered by a one (1) INSTRUCTIONS FOR REPAIR SERVICE year warranty on material and workmanship starting from the original date GG Telecom will repair the product without charge or replace it at its discre- of purchase.
