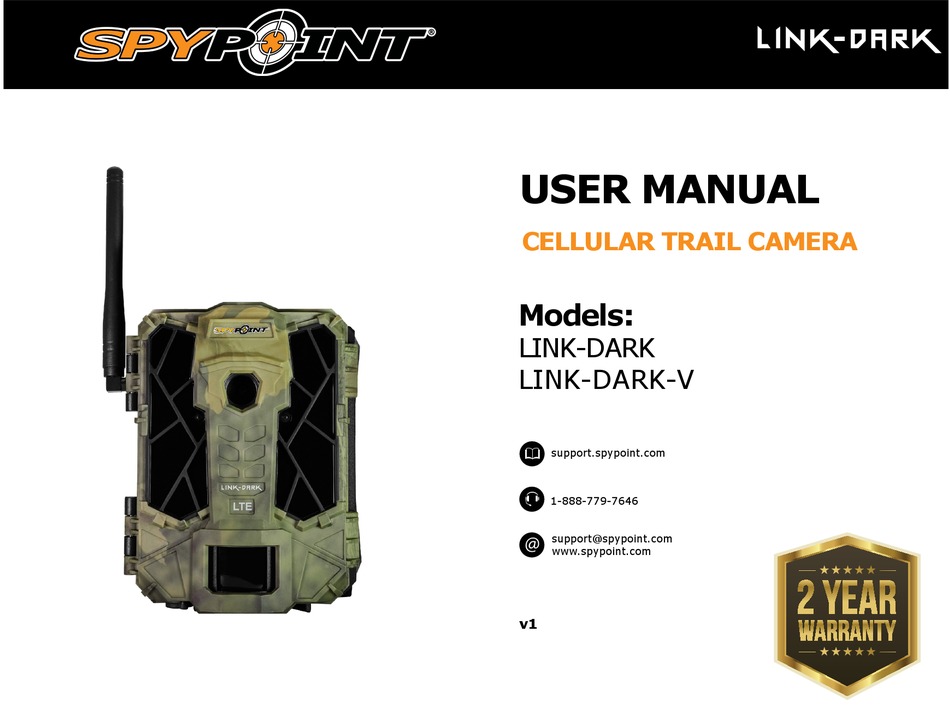

- Page 1 USER MANUAL CELLULAR TRAIL CAMERA Models: LINK-DARK LINK-DARK-V support.spypoint.com 1-888-779-7646 support@spypoint.com www.spypoint.com...
- Page 2 Team work is the main focus at SPYPOINT and is also the key to our innovations and constant progress. A company is only as success- ful as its communication and team efforts.
-
Page 3: Table Of Contents
Table of contents Components ................. 4 Specifications LINK-DARK & LINK-DARK-V ............... 6 Power ................... 7 Memory/SD card & Busy LED ............8 Settings ..................9 SPYPOINT LINK App ..............13 Installation & Mounting bracket ..........14 File transfer to a computer ............15 Available accessories ..............16... -
Page 4: Components

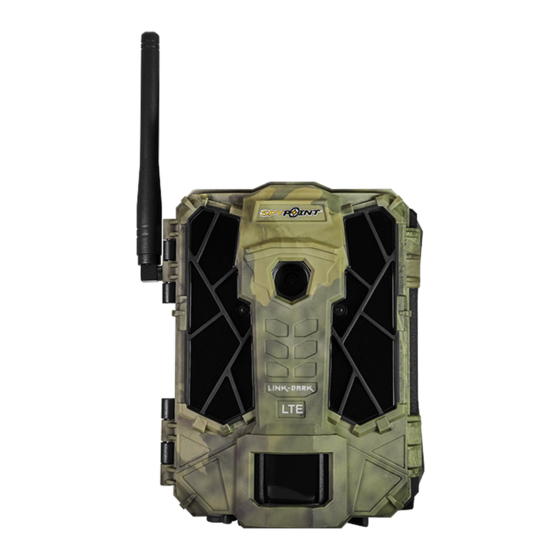

Components Antenna LEDs Photo lens Day and night sensor Viewing screen Detection lens Test light Navigation buttons ON / OFF Switch SD card inserts Battery compartment & Micro SIM card inserts Strap installation grooves Locking latch Cable lock holes 12V jack Microphone Tripod mount Battery door push button... - Page 5 (included) The camera will not photos and videos. 42 invisible LEDs work with a different SIM card then the one provided by Spypoint. Photo lens Image sensor and infrared filter. Strap installation grooves Allows you to install the camera using the installation strap included.
-
Page 6: Specifications
(automatically recorded in video Cellular transmission mode) Frequency LINK-DARK: 4G LTE Memory storage LINK-DARK-V: 4G LTE (Verizon network) Capacity •Internal memory: none Photo transmission Wireless photo transmission via the free, •External memory : standard full size SPYPOINT LINK App with a SPYPOINT SD/SDHC (up to 32 GB) (Not include) plan. -
Page 7: Power
Power POWER SOURCES AA BATTERIES EXTERNAL (12V) This camera can be powered by 8 AA batteries This camera also powered (1.5V). The use of alkaline or lithium batteries is external 12-volt DC input such as a 12-volt recommended. battery (KIT-12V, BATT-12V or KIT6V/12V) or a 12- DC 12V volt adapter (AD-12V), sold separately. -
Page 8: Memory/Sd Card & Busy Led
Refer to those corres- ponding to the camera model accordingly. Note: This SPYPOINT camera is equipped with continuous file recording. When the memory card capacity is full, the camera will continue to record photos or videos by deleting the first recorded files. -
Page 9: Settings
Main Menu Use the and buttons to navigate in the interface and modify the selec- Viewing on the camera screen: tion, the OK button to select and the button to return to the previous When the VIEW mode is selected, the latest photos or videos recorded menu. - Page 10 Settings TIME LAPSE SETTINGS PHOTO SETTINGS Sets the options of the TIME LAPSE mode. Sets the options of the PHOTO mode. Interval: Recommended settings (From 3m to 24h) The camera can be configured for in trail usage.. This situation usually Allows the camera to take photos at regular preset intervals.
- Page 11 Settings WIRELESS SETTINGS GENERAL SETTINGS Sets the wireless options of the camera. Sets the general options of the camera. Cellular: Language: (On/Off) (English/Français/Deutsch) Allows to turn ON or OFF the transmission of pictures Allows to select a language for the camera menus. Frequency: Date format: Allows you to choose the number of transfers that the camera performs in a...
- Page 12 Settings illumination modes comparison* (Night modes) Quality: Night mode: (Normal/High) Allows to set the best option for night mode photos. Allow to set the photo quality. (2MP/12MP) optimal IR-boost blur reduction MODE MODE MODE Schedule Battery life Allows you to set the working period of the camera for each day of the week.
-
Page 13: Spypoint Link App
SPYPOINT LINK app LEVELS Login in the SPYPOINT LINK app, gets you directly on the Photos tab. From Consult camera signal strengh, battery level, SD card used space & more. there, you'll see the latest photos received, sorted by date & time. -
Page 14: Installation & Mounting Bracket
Installation & Mounting bracket INSTALLATION MOUNTING BRACKET Recommended installation height: To remove the camera from the mounting bracket: Camera should be installed to aim the animal’s mid-body. 1. Push the tab to release the camera from the mounting bracket. Ideal installation for quality pictures & videos: 2. -
Page 15: File Transfer To A Computer
File transfer to a computer To transfer photos/videos to a computer: • Turn OFF the camera. • Remove the SD card from the camera. • Insert the SD card into the computer reader, or use a memory card adaptor. • The computer will detect the card and install the driver automatically. For a PC For a Mac Click on "My Computer"... -
Page 16: Available Accessories
#CL-6FT, 6 ft cable lock fits all #SD-16GB, SDHC UHS-1 memory camera against theft. It also protects arm, fits all cameras that have a SPYPOINT cameras. card 16 GB, ultra high speed Class it from breakage caused by bears or standard ¼-20" tripod mount. It other animals. -
Page 17: Troubleshooting
Troubleshooting Issue Possible solutions • Verify if there are batteries in the camera. • Verify the battery level to see if battery power is full • Verify if the batteries are correctly installed. as the flash will stop operating near the end of the Impossible to turn •... - Page 18 • Contact the SPYPOINT customer service. • Format the memory card. Slow format the memory/SD (PUK) card in a computer. • The camera must use the SPYPOINT SIM card Error: SIM card provided with the camera. Appears on the screen just before the camera turns not supported off.
-
Page 19: Warranty & Repair
GG Telecom before proceeding to a return. 1. Before sending a product for repairs, please contact GG Telecom This SPYPOINT product designed by GG Telecom, is covered by a two (2) year limited warranty on material and workmanship starting from the technical support team by phone at : 1-888-779-7646, by email at original date of purchase. -
Page 20: Regulation
Regulations FCC REGULATIONS FCC Part l5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
