SPYPOINT CELL-LINK - Universal Cellular Adapter Manual

INTRODUCTION

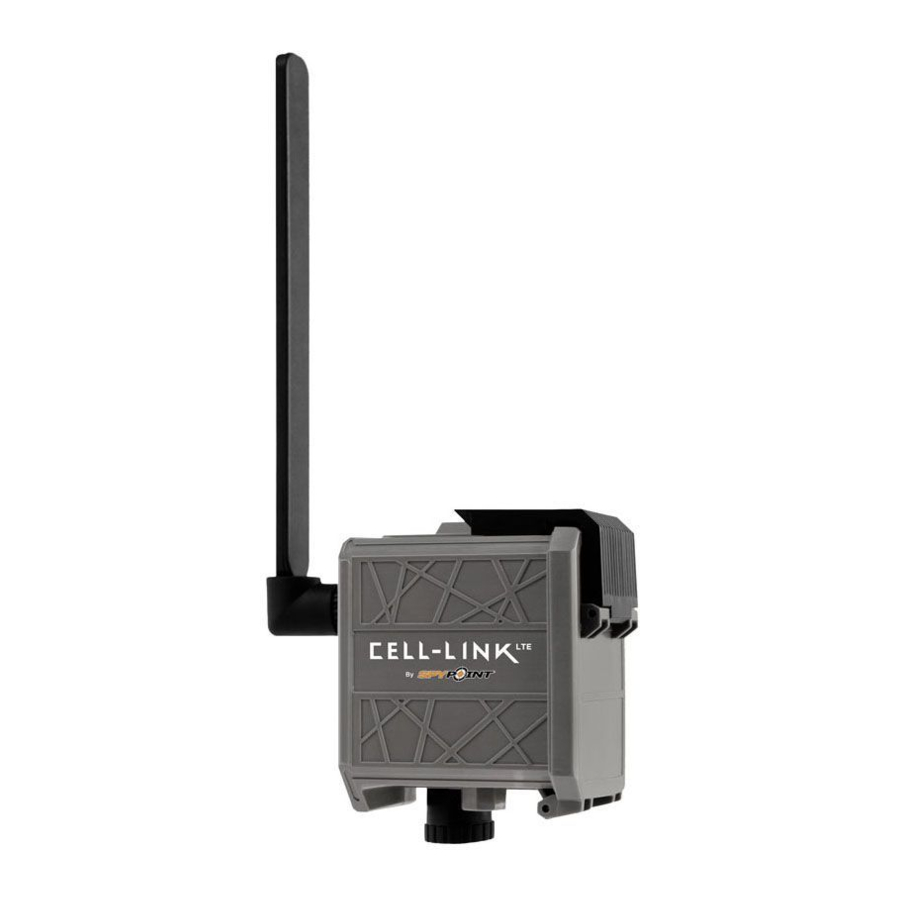

CELL-LINK PRESENTATION
The CELL-LINK allows you to connect all your trail cameras (all brands, cellular and non-cellular, with a standard SD card reader) to SPYPOINT's servers.
It is a cellular module whose extension (cable) connects to the camera through the SD card slot. It receives the photos saved by the camera and then processes and transfers them via the cellular network to the SPYPOINT's servers.
Thanks to the CELL-LINK and the free SPYPOINT app (for Android and iOS), you will be able to:

• Remotely view photos taken by your device. You don't have to visit your hunting grounds;
• Program your CELL-LINK and check its status on your smartphone, tablet, or computer;
• Benefit from many of the advantages of the SPYPOINT experience (described below this document).

COMPONENTS

1. CABLE WITH SD ADAPTER (#CL-CBL)
   Links the CELL-LINK to your camera to allow file transfer from one to the other.
2. SLOT FOR MOUNTING STRAP
   Allows the device to be installed using the included installation strap.
3. CABLE LOCK HOLE
   Allows you to install a #CLM-6FT padlock cable to secure the unit (sold separately).
4. SIGNAL LIGHTS (5)
   During the installation, these 5 lights indicate to the user the strength of the cellular signal.
5. SIM CARD SLOT
   Space to insert a SIM card. It is necessary to activate cellular functions. The SIM card, pre-installed and pre-activated, is included with the device. It is important to use a SPYPOINT SIM card (supplied by SPYPOINT), otherwise the cellular functions of the device will be inoperative.
6. LATCH TO HOLD/RELEASE THE BATTERY COMPARTMENT
   Holds the battery compartment in place when inserted. Slide the latch and hold it in the open position to remove the battery compartment.
7. BATTERY COMPARTMENT
   Space to insert the battery holder.
8. AA BATTERY HOLDER
   Removable device in which the 8 AA batteries are inserted (not included with the device).
9. STATUT LIGHT
   During installation, it flashes to indicate to the user the strength of the cellular signal. During regular operation, it indicates that the device is recording or transferring files.
10. ON/OFF SWITCH
    Allows the user to turn the device
11. ON/OFF. MICROSD CARD SLOT
    Space to insert the microSD card (not included) needed to save photos.
12. SCREW-THREAD FOR STANDARD ¼''-20 TRIPOD MOUNT
    Allows you to attach a standard tripod from ¼''-20.
13. ANTENNA
    Captures the cellular signal.
14. PORT FOR CABLE WITH SD ADAPTER
    Allows you to connect and secure the cable with SD adapter (the end of the cable ends in a mini USB port).
15. 12 V JACK
    Allows you to insert a power cord connected to an external 12 V source.
16. LOCKING LATCH
    Allows you to lock and open the door.

FEATURES

CELLULAR TRANSMISSION
Frequency	LTE
Photo transmission	Transmission of your photos to your SPYPOINT application by cellular network. Visit www.spypoint.com/plans to choose a plan that suits you.
PHOTO RECORDING
Photo resolution	Refer to the camera. Note : The photo is kept in its original size on the microSD card of the CELL-LINK.
Photo file format	JPG
Added information (only on the picture)	CELL-LINK by SPYPOINT
VIDEO RECORDING
Video file format	Does not transfer video.
Added information to the video	None
Sending a photo preview of the video	The camera must be set up to take and transfer a photo of the video to the CELL-LINK.
MEMORY
Internal memory	None
External memory	MicroSD card up to 32 GB (not included)
VIEWING
On the SPYPOINT app or on the website www.spypoint.com/en/manage
POWER SOURCES
Alkaline or lithium AA batteries	8 x AA (not included)
Lithium battery pack	Lithium battery pack #LIT-10 (not included)
External 12 V battery	12 V battery (optional accessories available at SPYPOINT: #KIT6V-12V, #KIT-12V, #BATT-12V)
PHYSICAL DIMENSIONS OF THE DEVICE
8.34 cm (H) x 7.29 cm (W) x 7.35 cm (D) 3.15 " (H) x 2.76 " (W) x 2.76 " (D)
RECOMMANDATIONS
Operating temperature	-30°C to 50°C (-22°F to 122°F)
Storage temperature	-40°C to 60°C (-40°F to 140°F)

POWER SUPPLY

SELECT A POWER SOURCE

3 options are available to you:

• 8 lithium or alkaline AA batteries
• 12 V rechargeable battery (#KIT-12V, sold separately)
• 3.7 V rechargeable battery pack (#LIT-10, sold separately)

NOTE
We recommend using the SPYPOINT #LIT-10 rechargeable lithium battery pack, sold separately. It provides a long charge time, more than double that of AA batteries.

FOR BEST RESULTS AND NO LEAKAGE

• Use only new alkaline or lithium batteries.
• Do not mix new and old batteries.
• Do not use rechargeable AA batteries (their lower voltage can generate operational issues).

HOW TO INSTALL AA BATTERIES PROPERLY

• Unlock and open the CELL-LINK door.
• Eject the battery holder by pushing the latch (1) forward and pressing down on the battery holder (2). The battery holder will be unlocked and you will be able to remove it.

• Insert 8 AA batteries following the (+) and (-) polarity indicators.
• Place the battery holder back into the battery compartment, an audible click should be heard.

AN EXTERNAL 12 V BATTERY

• The device was designed to recognize and use an optional power source other than the 8 AA batteries.
• You can purchase a 12 V cable and battery kit (like the #KIT12V, sold separately). Simply plug the 12 V cable into the 12 V jack of the device and connect the other cable end to the 12 V battery.


MANAGING VARIOUS DEVICE POWER SUPPLY

If you choose to plug an external 12 V battery (#KIT-12V, sold separately) into your device, it becomes your device's new primary power source. The AA batteries will only be used once the 12 V battery is depleted.

You can check the battery level of your device:

• In the application: on the home page, you will see the battery charge level for each of your devices. You can access more details on the STATUS of your battery by going to the STATUS page. When the battery logo turns red, we suggest that you change the batteries before it is completely drained.
• On the device: as soon as the device is switched on, when the STATUS light flashes orange, it indicates that the battery level is low.

MEMORY CARD

INSTALLING A MICROSD CARD

NOT INCLUDED

A memory card is necessary to save the photos and videos that the camera transmits to the CELL-LINK. When your camera is connected to the CELL-LINK, the photos and videos taken by the camera will be saved in their original format (defined by your camera) on the microSD card of the CELL-LINK. Your precious files are therefore stored on the CELL-LINK's microSD card. At any time, you can directly retrieve them by removing the SD card and transferring the content to another device.

Your device requires a memory card type microSD, with a maximum capacity of 32 GB, sold separately. Here is a table showing the approximate quantity of photos that can be recorded on the card, according to different memory card capacities.

MEMORY	4 GB	8 GB	16 GB	32 GB
PHOTOS 10 MPX	1 600	3 200	6 300	12 600

INSERTING YOUR MICROSD CARD

Before inserting the microSD card into your device, it must be formatted via a computer to ensure proper operations. Visit www.spypoint.com/en/support if you need help formatting your microSD card.

• Open the CELL-LINK battery compartment door.
• Make sure the device is turned OFF.
• Insert the microSD card in the slot for microSD cards, the metal contacts facing the bottom (as shown).
• The card is inserted correctly when a click is heard.

REMOVING YOUR MICROSD CARD

• Before removing a memory card, always turn your device OFF to prevent files from on the card from being deleted or damaged.
• To remove the card, push it lightly into the device until you hear a click. Then take it out of the device.


NOTE
The CELL-LINK is equipped with continuous file recording. This means that when the memory card is full, the device continues to save your pictures by erasing the first recorded files.

PREPARATION

ATTACH THE ANTENNA

When buying the CELL-LINK, the antenna comes in the box and is detached from the device. To attach it, follow the next steps:

1. Remove the cap which covers the antenna connector of the CELL-LINK.

2. Screw the antenna in the connector by turning it clockwise.


ACTIVATING YOUR DEVICE

You have to activate your CELL-LINK before you can use it. To do so, you will need the activation code.

FINDING THE ACTIVATION CODE
The activation code is located inside the CELL-LINK's battery compartment door.

ACTIVATION

To activate your device, you have two choices: you can either do it via the SPYPOINT app or via our website www.spypoint.com.

SPYPOINT APPLICATION

If you choose to use the SPYPOINT app to activate your device, follow these steps:

1. On Google Play or the App Store, search for "SPYPOINT app".

2. Download and install the app on your smartphone or tablet.
3. Start the app. Select "ACTIVATE A DEVICE". In the list, select "CELL-LINK" then follow the steps to create an account.
4. Once completed, a confirmation email with instructions on how to finalize the creation of your account will be sent to you.
5. Log in to the SPYPOINT app using your email address and password.

SPYPOINT WEBSITE

If you choose to use the SPYPOINT website to activate your device, follow these steps:

1. On the www.spypoint.com, select "LOGIN" in the top navigation menu. On the displayed "SPYPOINT" page, select "REGISTER", fill out the required fields, then log in.
2. Select the + sign on the far right of the page; in the list, select "CELL-LINK" then follow the steps.
3. When complete, a confirmation email with instructions on how to finalize the creation of your account will be sent to you.
4. On the SPYPOINT website, log in to your account using your email address and password.

CHOOSING A PHOTO TRANSMISSION PLAN FOR YOUR DEVICE

Go to www.spypoint.com/en/spypoint-experience/plans to read the latest offers and choose the plan that suits you.

STARTING YOUR DEVICE

CONFIGURING YOUR UNIT

The CELL-LINK is designed to add cellular functionality to a camera (all brands). Therefore, it can't be used on its own. It must be connected to a camera with a standard SD card slot, using the cable with SD adapter, included with the CELL-LINK.

NOTE
Before starting the CELL-LINK, make sure you have successfully configured your trail camera according to your preferences and that you have done this by following your camera's User Manual.

CONFIGURATION: MAIN SETTINGS
Here are the recommended camera settings to ensure the optimal performance of your CELL-LINK:

• A low-resolution photo format.
• Precisely adjust the date and time.
• A delay no shorter than 1 minute between each detection.
• In Time-lapse mode, a delay no shorter than 1 minute.

NOTE
The CELL-LINK supports photos up to 25 Mpx resolution. However, be aware that "higher megapixels" imply larger file formats and therefore:

• More power consumption of your batteries;
• Less camera speed;
• More recovery time between shots;
• More used memory space on your SD card.

Therefore, we recommend that you choose a low-resolution operating mode for your camera.
Cellular transfer functionality of videos is not supported by the CELL-LINK. However, if you configure your camera to take a picture before each of your videos, this picture will be transmitted to you via the CELL-LINK.

STARTING YOUR UNIT

BEFORE TURNING YOUR DEVICE ON
Refer to the image below to familiarize yourself with the meaning of the STATUS and SIGNAL LEDS. These light indicators will guide you along the startup process.

1. Make sure that your device is powered by new batteries and that a microSD card has been inserted.
2. Open the battery door of the CELL-LINK.
3. Turn the power ON by sliding the power switch to the ON position.
4. Follow the table below to fully understand the meaning of these light indicators.

NOTE
Inside your device's door is a small checklist to guide you through the different steps to start your device.

STARTING THE CELL-LINK		(CONTINUATION)		CELL-LINK IN FONCTION
1	2	3		4	5
All the lights turn on for 3 seconds.	2 possibilities: The 1 st red signal LED flashes = low batteries. The STATUS light stays on + 5 LED flashing = searching for cellular signal. This can take a few minutes.	2 possibilities after the cellular signal search: Only the red LED is flashing = network issue. The STATUS light is flashing and X LED are fixed = indicates the strength of the signal.		All lights turn off.	While the CELL-LINK is in function, the STATUS light is turned on and fixed.
			Good to excellent signal
			Weak signal
			Insufficient signal
		The process lasts 30 s, after which the CELL-LINK is operational.

INSTALLATION

INSTALLING AND CONNECTING THE DEVICE

To connect the SPYPOINT CELL-LINK to your trail camera from any brand, follow these steps.
We recommend that you watch our video which will guide you through the different installation steps. Go to www.spypoint.com/en/support.

1. Open your camera door.
2. Take the cable with SD adapter and insert the SD card extremity (#CL-CBL) in the corresponding slot.

3. Pull the cable with SD adapter down and hold it against the camera. We suggest that you make at least one loop with the cable and place it inside the camera housing. This way, the SD card will not be disconnected if the cable is pulled (when you close the camera door, for example). The cable should therefore hang freely on the outside of the camera.

   Avoid running the cable in front of the lenses or other essential components.

4. Shut the camera door and lock the latch.
5. Run the cable behind the camera and upwards so that the end of the cable sticks out of the top of the camera, so that you can connect it to the CELL-LINK.

6. Mount your camera to the tree (the cable with SD adapter should now be placed between the tree and the camera.)

7. Mount the CELL-LINK above the camera so that it sits closely to the extemity of the cable with SD adapter.

8. Plug the extremity of the cable with SD adapter to the CELL-LINK and screw it on tightly.


You can now access CELL-LINK photos, configurations, and statuses either via the SPYPOINT app or the SPYPOINT website.

NOTE
We strongly recommend that you mount your CELL-LINK directly above your camera leaving as little space as possible between the two. Doing so will reduce the risk of having animals damage the cable.
If your cable with SD adapter (#CL-CBL) is damaged, you can order a replacement directly via our website www.spypoint.com.

OPERATING VALIDATION TEST

Run a test to make sure everything works properly.

• Make a movement in front of your camera so that it takes a photo.
• The STATUS LED should turn green, indicating that the CELL-LINK is communicating with the cellular network.
• Wait 15 minutes at most and you should then be able to view the photo in the SPYPOINT app.

CONFIGURATION

Use the SPYPOINT app to configure your device.

FIRST TRANSFER TIME All possible combinations	Allows you to choose the time when the device makes its first transfer of the day. Note: the device transfers are configured by default with 4-hour intervals, determined from the time you activated your device. For example, if your device was activated at 1:42 p.m., the next transfer will be at 5:42 p.m.
TRANSFER FREQUENCY 1; 2; 6; 12; each detection	Allows you to choose the number of transfers the device performs each day.
DEVICE NAME All possible values	Allows you to name the device for easy identification. This function is very useful for users with more than one device.
DATE FORMAT MM/DD/YYYY or DD/MM/YYYY	Allows you to choose the date format displayed.
TIME FORMAT 12 h or 24 h	Allows you to choose the time format displayed.
TEMPERATURE UNIT °C/°F	Allows you to choose the temperature unit format displayed.
REPORTED STOLEN ON / OFF	Report the device as stolen.
BUCK TRACKER ON / OFF	Activate the BUCK TRACKER.
BATTERY TYPE AA / AA-LIT / 12 V / LIT-10	Allows you to select the correct type of battery used to ensure a more accurate reading of the battery charge level.
RESET TO DEFAULT SETTINGS Activated/not activated	Allows you to reset the device to its original state.

VERIFICATION

VERIFYING DEVICE STATUS

Different tools are available to help you check the status of your CELL-LINK and to inform you of any problems that may occur during its operation. In this section, we will see 3 tools:

NOTIFICATIONS

The device was designed to send notifications to your SPYPOINT app. This is to help you stay informed of the status of your device.
You will receive a notification on your smartphone for the next transfer when:

• You forget to insert a microSD card in your device.
• The inserted microSD card is not compatible with your device.
• The batterie charge is too low.

APPLICATION STATUS PAGE

Here are the different indicators of the CELL-LINK status you have access to. They are accessible on your app or on the SPYPOINT website.

SIGNAL Strength of the cellular signal	1 - 5 bars
BATTERY Charge level	0 - 100% (LIT-10/12 V)
SD CARD Used space	0 - 100%
POSITION GPS	GPS coordinates
MODEL	CELL-LINK
VERSION Displays the software version	VX.XX.XX
LAST COMMUNICATION The date and time of the last device transfer	Date and time
NUMBER OF PHOTOS TAKEN THIS MONTH	XXXX
TEMPERATURE	°C or °F
LAST INSTALLATION Last time your device was turned ON	Date and time
SIM Number on your SIM card	89..
ACTIVATION CODE	XXXX-XXX-XXXX

TOOL - ACCESSORIES - OPTIONS

SPYPOINT MOBILE APPLICATION

The SPYPOINT app is your hub for managing your devices and photos. You can download it for free from iTunes and Google Play. The app requires no subscription or monthly payment.

From the SPYPOINT app, you can:

• Configure your device.
• Manage your settings and account preferences.
• Verify your data usage and adjust your plans.
• Configure your transmission settings.
• View and sort your photos. For more information, visit www.spypoint.com/en/experiencespypoint/application-spypoint.

PHOTO TRANSMISSION PLANS

1. When activating your device, you will immediately take advantage of our FREE 30-day package.
2. You can keep the FREE monthly plan for life and keep receiving up to 100 photo transfers per month.
3. At any time, you can choose a plan that best suits your needs from those we offer.

For more information or to choose one of our plans, visit www.spypoint.com/en/spypoint-experience/plans.

ONLINE DEVICE AND PHOTO MANAGER

As well as with the SPYPOINT app, you can manage your device and photos using the online manager.
Create your user account for FREE!
Go to www.spypoint.com to discover a complete range of complementary features for your device.

THE SPYPOINT EXPERIENCE

(Online scouting tools)

To make sure you use your trail device in an optimal way, that it precisely meets your needs, and that you have better success as a hunter, SPYPOINT offers you a range of very useful additional digital features.

For more details on the SPYPOINT EXPERIENCE, see the following website: www.spypoint.com/en/experience-spypoint.

TRANSFERRING FILES TO A COMPUTER

TRANSFERRING FILES TO A COMPUTER

• Turn the device OFF.
• Remove the microSD card from the device.
• Insert the microSD card in the microSD computer slot, or use a USB adapter for microSD cards.
• The computer will recognize the microSD card.

ON A PC

On your desktop, click on "My Computer" or "This PC".

Locate your device under "Removable Disk" and click to access it. Then, click on "DCIM" and "100DSCIM" to find all saved photos.

Select the photos you want to copy. With some Windows versions, the simplest way is to select them by clicking on the "Home" tab and choosing "Select all" on the right side. With some Windows versions, you can press on "Ctrl" and "A" or click on the "Edit" menu and choose "Select all".

Click on the "Copy" icon on the left of the ribbon (or hold the "Ctrl" and "C" keys).

NOTE
If you do not want to select all photos, hold down the "Ctrl" key and click on the photos you want to select before clicking on the "Copy" icon.
Access the folder where you want to save your photos or create a new folder by clicking on the "New folder" button. (You can also click on "Ctrl", "Maj", and "N" to create a new folder, or right-click in a blank space in the "Pictures" folder and choose "New", then, in the following menu, click on "Folder".)
Enter a name for your new folder, click on "Enter", then double-click on the folder to open it. In the "Home" tab, choose "Paste" (or click simultaneously on the "Ctrl" and "V" keys). The photos will be copied in the new folder.

ON A MAC

Click on the search tool in the "Toolbar". Locate your device under the "Devices" tab and click to access it. Then click on "DCIM" and "100DSCIM" to find all saved photos.

Click on "Modify" in the toolbar at the top of the screen, then click on "Select All" to highlight all individual images on the device. You can also access the "Select All" option by simultaneously clicking "Cmd" and "A".

If you don't want to import everything, you can highlight the desired pictures individually. Transfer pictures by clicking on "Cmd" and on the file name. Click on "Edit again" and then "Copy" (or "Cmd" and "C") to copy the highlighted pictures.

Access the folder where you want to save your pictures, or create a new folder by right-clicking and pressing "Cmd" at the same time, then select "New Folder" from the menu.

Click on "Modify", then on "Copy" (or "Cmd" and "V") to copy your chosen pictures in the selected folder. The pictures can take a few minutes to download, depending on the size of the file and the number of pictures you are importing.

Once your pictures are transferred, click on the "Eject" icon beside the name of your device, than unplug the device from your MAC.

OFFERED ACCESSORIES

12 V BATTERY, CHARGER & HOUSING KIT
Compatible with all SPYPOINT devices with a 12 V socket. Case, AC charger, 12 ft (3.6 meters) power cable (#PW-12FT) and strap included.
#KIT-12V

RECHARGEABLE LITHIUM BATTERY PACK
Rechargeable lithium battery pack and charging cable included. 3.7 voltage.
#LIT-10

12 V POWER CABLE
12 feet (3.6 meters) cable with alligator clips to connect to a 12 V device battery.
#CB-12FT

LONG RANGE CELLULAR ANTENNA
Boosts the cellular signal. 15 feet (4.57 meters) cable. No external power source necessary.
#CA-01

CABLE LOCK
6 feet (4.57 meters) cable lock compatible with all devices and security boxes from SPYPOINT.
#CLM-6FT

16 GB MICROSD CARD
Package including a 16 GB microSD card and an adapter. High speed, class 10. 10-year warranty.
#MICRO-SD-16GB

For more information about other available accessories, got to www.spypoint.com.

TROUBLESHOOTING

ISSUES	POSSIBLE SOLUTIONS
IMPOSSIBLE TO TURN THE DEVICE ON	Check if there are batteries in the device. Check if the batteries are installed in the correct orientation at the + and - polarity. Make sure the charge level of the batteries or the lithium battery pack is enough. NOTE: to verify the charge level, go to the STATUS section of your app and verify the battery % displayed. Don't forget that the indicated status is from the last transfer. Also, when turning on the device, if the status light flashes red quickly, it indicates that the battery's charge is low.
THE DEVICE IS NO LONGER RESPONDING	Try the following solutions in order: Turn the device OFF and ON again. Remove and reinsert the battery pack in the device. From the app, reset the device to its original state. Perform the latest update (available on www.spypoint.com under the SUPPORT section).
THE DEVICE DOESN'T TAKE PICTURES Issue with taking photos	Check if your camera is working properly and whether it has taken any photos or videos. Most cameras have a photo-taking indicator. Make sure the CELL-LINK is turned ON. Format the microSD card. Do not choose the "Quick format" option. Check the strength of the cellular signal received by your device. Make sure you haven't reached the photo-taking limit included in your cellular plan. Check if there is a message in your app, in the Photos section. You will receive a notification if your CELL-LINK is active, but has not received photos from the camera. Under these conditions, it is normal that your application does not contain new photos. Perform the following test: Turn OFF your CELL-LINK. Make a movement in front of your camera so that it takes a photo. Turn your CELL-LINK back ON. This will allow you to check the strength of the cellular signal. The CELL-LINK should normally connect to the cellular network and transmit its status and at least one photo within 15 minutes. This should appear on your application.
THE DEVICE IS NOT RECEIVING A CELLULAR SIGNAL	Verify the coverage area of the cellular network to make sure it reaches your area. Move your device to other locations to search for a stronger signal. Turn the device OFF and ON between the attempts. Make sure the antenna is installed properly (securely screwed down). Use the long range cellular antenna #CA-01 (sold separately).
THE BATTERIES ARE DRAINING FAST	The following configurations of your device affect power consumption: Transfer frequency – photo quality. If possible, choose the less power-consuming options.
THE DEVICE DID NOT TRANSFER ALL THE PHOTOS TAKEN BY THE DEVICE	Photos older than 7 days are not transferred.

WARRANTY AND PREPARATION

This SPYPOINT product is covered by a 2-year warranty that also covers parts and workmanship from the purchase date. The electronic cash register receipt is a proof of purchase and must be presented to confirm that the warranty is applicable.

SPYPOINT will repair the product, free of charge, or replace it at its discretion by an equivalent product, if it has a manufacturing defect covered by the warranty described above.

1. Before sending a product for repairs, you can get help in many ways. Most problems can be solved over the phone or online:

• Contact the chat service, Monday to Friday, from 8:30 a.m. to 4:30 p.m., directly on the SPYPOINT website (www.spypoint.com).
• Contact us by email at the following address: service@spypoint.com
• Go to www.spypoint.com/en/support for more information about your devices.

2. The RMA number should be written on the outside of the package and it should be sent to:
   CANADA
   SPYPOINT
   330 Jacques-Cartier Street
   Victoriaville, QC, G6T 1Y3

UNITED STATES
DISTRIBUTION CENTER
3000 Gannett Avenue
Des Moines, Iowa, 50321

DISPOSAL

ONLY USE ORIGINAL SPARE PARTS AND ACCESSORIES.

If, one day, your device has been used so intensively that it has to be replaced, or if you no longer have any use for it, you are obliged to dispose of it at a recycling center.
Information on return points for your electrical appliance can be obtained from your local waste disposal company or from your local administrative offices.
Electrical appliances not only contain valuable recyclable raw materials, but also substances which, if disposed of improperly, can affect public health and the environment. Help ensure that valuable raw materials are recycled by returning your old appliance to a central collection point.
The WEEE (Waste Electrical and Electronic Equipment Directive) symbol represents the obligation for the labeled device to be sent to a separate center for the proper recycling of electrical and electronic equipment.

FREQUENCY

FREQUENCY RANGE:
800/850/900/1900/2100 MHz

MAXIMUM TRANSMISSION POWER:
FREQUENCY	MAX.
GSM850	33 DBM ± 2 DB
EGSM900	33 DBM ± 2 DB
DCS1800	30 DBM ± 2 DB
PCS1900	30 DBM ± 2 DB
GSM850 (8-PSK)	27 DBM ± 3 DB
EGSM900 (8-PSK)	27 DBM ± 3 DB
DCS1800 (8-PSK)	26 DBM ± 3 DB
PCS1900 (8-PSK)	26 DBM ± 3 DB
UMTS 2100	24 DBM + 1,7/-3,7 DB
UMTS 1900	24 DBM + 1,7/-3,7 DB
UMTS 900	24 DBM + 1,7/-3,7 DB
UMTS 850	24 DBM + 1,7/-3,7 DB
UMTS 800	24 DBM + 1,7/-3,7 DB

ABOUT US

SPYPOINT's mission is to offer you products that are easy to use, innovative, affordable, and of exceptional quality. Our products are mainly used in the hunting field and residential and commercial safety fields. They are distributed and appreciated on all continents and are continuously growing. Prosperous and respected, SPYPOINT is a company that is constantly developing new technologies and that remains attentive to its customer's needs to offer cutting-edge products with concrete solutions to improve hunting and outdoor activities.

Our priority is to offer an outstanding service to our customers. If you need technical support for your device here is how to contact us:
Contact our chat service Monday to Friday, from 8:30 a.m. to 4:30 p.m., directly on the SPYPOINT site (in the lower right-hand corner of the Support section, by clicking on the "Chat with an expert" window, www.spypoint.com).
Go to www.spypoint.com/en/support for more information about our devices.

JOIN THE SPYPOINT COMMUNITY
www.facebook.com/SPYPOINT
www.twitter.com/SPYPOINTcamera
www.youtube.com/SPYPOINTtrailcam
www.instagram.com/spypointcamera

Documents / Resources

References

• Photo transmission plans
• Welcome to Spypoint Support
• SPYPOINT
• Photo transmission plans
• Login
• App Store - Apple
• Google Play
• Facebook
• http://www.twitter.com/SPYPOINTcamera
• SPYPOINT TRAIL CAMERAS - YouTube
• Instagram

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download SPYPOINT CELL-LINK - Universal Cellular Adapter Manual
