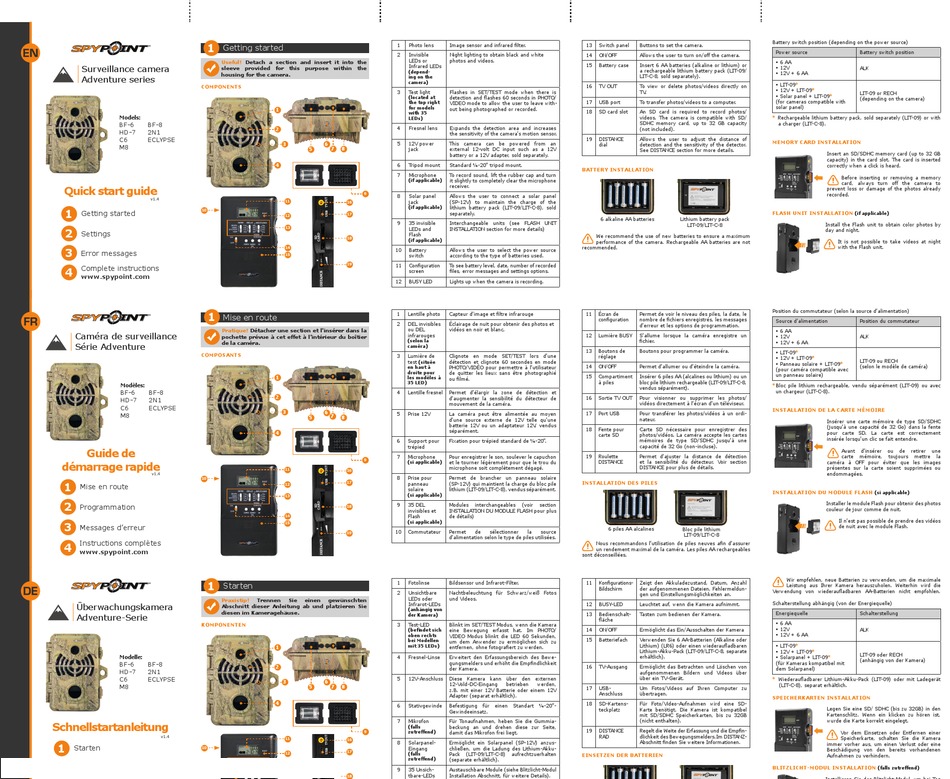

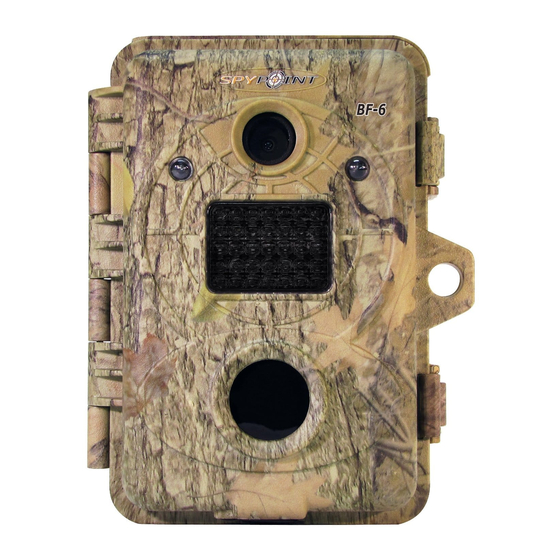

Spypoint Adventure series BF-6 Quick Start Manual

1
SPY SPY P P INT INT
Surveillance camera

Adventure series
COMPONENTS
Adventure series Expedition series
Série aventure Série Expédition
Abenteuer-Serie Expedition Serie
serie de aventura Models: Series expedición
BF-6 BF-8
serie di avventura Serie spedizione
HD-7 2N1
C6 ECLYPSE
M8

Quick start guide

v1.4
1
10
Getting started
2
Settings
3
Error messages
Complete instructions
4
www.spypoint.com
Getting started 1
2
Useful! Detach a section and insert it into the
sleeve provided for this purpose within the
housing for the camera.
Pro series Smart series Tiny series
3
Série pro Série Smart Série Tiny
Pro-Serie Smart serie Tiny-Serie
1
Serie pro Smart serie Serie Tiny
Serie pro Smart serie Serie Tiny
4
2
5
3 6
7 8
5
4 6
7
9
8
11
16
17
12
9
13
18
14
10
15
19
11
12
Photo lens Image sensor and infrared filter. 13
Invisible Night lighting to obtain black and white 14
LEDs or photos and videos.
15
Infrared LEDs
(depend-
ing on the
camera)
16
Live series
Test light Flashes in SET/TEST mode when there is
(located at detection and flashes 60 seconds in PHOTO/
Série Live
17
the top right VIDEO mode to allow the user to leave with-
Live-Serie
for models
out being photographed or recorded.
18
with 35
Series Live
LEDs)
Serie Live
Fresnel lens Expands the detection area and increases
the sensitivity of the camera's motion sensor.
19
12V power This camera can be powered from an
jack external 12-volt DC input such as a 12V
battery or a 12V adapter, sold separately.
Tripod mount Standard ¼-20" tripod mount.
BATTERY INSTALLATION
Microphone To record sound, lift the rubber cap and turn
(if applicable) it slightly to completely clear the microphone
receiver.
Solar panel Allows the user to connect a solar panel
jack (SP-12V) to maintain the charge of the
(if applicable) lithium battery pack (LIT-09/LIT-C-8), sold
separately.
35 invisible Interchangeable units (see FLASH UNIT
LEDs and INSTALLATION section for more details)
Flash
(if applicable)
recommended.
Battery Allows the user to select the power source
switch according to the type of batteries used.
Configuration To see battery level, date, number of recorded
screen files, error messages and settings options.
BUSY LED Lights up when the camera is recording.
Battery switch position (depending on the power source)
Switch panel Buttons to set the camera.
Power source
ON/OFF Allows the user to turn on/off the camera.
• 6 AA
Battery case Insert 6 AA batteries (alkaline or lithium) or
• 12V
a rechargeable lithium battery pack (LIT-09/
• 12V + 6 AA
LIT-C-8, sold separately).
•
TV OUT To view or delete photos/videos directly on
• 12V +
TV.
• Solar panel +
USB port To transfer photos/videos to a computer. (for cameras compatible with
solar panel)
SD card slot An SD card is required to record photos/
videos. The camera is compatible with SD/ *
SDHC memory card, up to 32 GB capacity
(not included).
DISTANCE Allows the user to adjust the distance of
MEMORY CARD INSTALLATION
dial detection and the sensitivity of the detector.
See DISTANCE section for more details.
FLASH UNIT INSTALLATION
6 alkaline AA batteries Lithium battery pack
LIT-09/LIT-C-8
We recommend the use of new batteries to ensure a maximum
performance of the camera. Rechargeable AA batteries are not
Battery switch position
ALK
LIT-09*
LIT-09*
LIT-09 or RECH
LIT-09*
(depending on the camera)
Rechargeable lithium battery pack, sold separately (LIT-09) or with
a charger (LIT-C-8).
Insert an SD/SDHC memory card (up to 32 GB
capacity) in the card slot. The card is inserted
correctly when a click is heard.
Before inserting or removing a memory
card, always turn off the camera to
prevent loss or damage of the photos already
recorded.
(if applicable)
Install the Flash unit to obtain color photos by
day and night.
It is not possible to take videos at night
with the Flash unit.
