Summary of Contents for Spypoint LINK-EVO? LINK-EVO-V

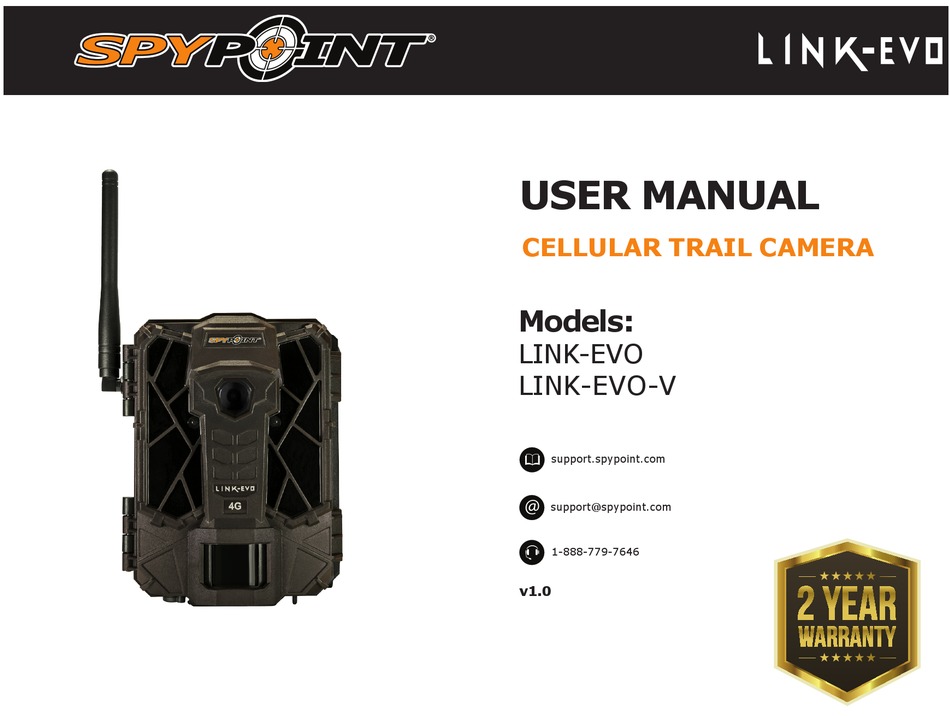

- Page 1 USER MANUAL CELLULAR TRAIL CAMERA Models: LINK-EVO LINK-EVO-V support.spypoint.com support@spypoint.com 1-888-779-7646 v1.0...
- Page 2 THANK YOU FOR CHOOSING A SPYPOINT PRODUCT. This manual will guide you through all the features of your device so that you will get optimal use out of your SPYPOINT product. We strive on offering all customers a positive, user friendly experience that will have a lasting impression.
-
Page 3: Table Of Contents
Power ................... 7 Memory card & Busy LED .............. 8 Getting started ................9 EVO software: Configuration & diagnosis tool ......10 SPYPOINT LINK App ..............11 Installation & Mounting bracket ..........14 File transfer to a computer ............15 Available accessories ..............16 Troubleshooting ................17 Warranty &... -
Page 4: Components
Components Antenna LEDs Photo lens Light sensor Test light Signal meter ON / OFF Switch SD card slot Fresnel lens Battery case & Micro SIM card reader Slot for installation strap Locking latch Cable lock hole 12V jack Tripod mount Battery door push button... - Page 5 Components Antenna Allows cellular wireless communication. Battery case Case for AA batteries or a rechargeable lithium battery pack. LEDs Night lighting to obtain black and white photos and videos. Micro SIM card slot A micro SIM card is required for cellular func- tions.
-
Page 6: Specifications Link-Evo & Link-Evo-V
LINK-EVO-V: 4G (Verizon network) (up to 32 GB) Photo transmission Wireless photo transmission via the free, Power sources SPYPOINT LINK App with a SPYPOINT plan. For more information, please vi- Alkaline or lithium batteries 8 x AA sit the link below. -
Page 7: Power
Power POWER SOURCES AA BATTERIES EXTERNAL (12V) This camera can be powered by 8 AA batteries This camera also powered (1.5V). The use of alkaline or lithium batteries is external 12-volt DC input such as a 12-volt recommended. battery (KIT-12V, BATT-12V or KIT6V/12V) or a 12- DC 12V volt adapter (AD-12V), sold separately. -
Page 8: Memory Card & Busy Led
Many photo and video resolutions are noted, see those corresponding to the camera. Note: This SPYPOINT camera is equiped with continuous file recording. When the memory card is full, the camera will continue to record photos or videos by deleting the first recorded files. -
Page 9: Getting Started
START THE CAMERA We suggest to format your SD card if it’s been in another electronic device to The SPYPOINT LINK App lets you connect and control your camera remotely make sure you will have the maximum capacity of your memory card. -
Page 10: Evo Software: Configuration & Diagnosis Tool
4. You can change the desired settings using the different tabs selection. Note that all these settings can be set via the SPYPOINT LINK app. If you'd like to use your camera in stand alone mode, just turn Off the A diagnosis message cellular to use it as a regular trail cam. -
Page 11: Spypoint Link App
SPYPOINT LINK app When you login in the SPYPOINT LINK app, it will bring you directly to MODIFY YOUR PROFILE INFORMATION the "Photos" tab. From there, you will be able to see right away the latest Modify your profile like Password, Name, Address, Phone number & more. - Page 12 SPYPOINT LINK app BASIC SETTINGS PHOTO MODE VIDEO MODE Delay: Delay: (Instant/10s/1m/3m/5m/10m/15m/30m) (Instant/10s/1m/3m/5m/10m/15m/30m) Allows the user to choose the time interval between each detection Allows the user to choose the time interval between each detection before before the camera records the next photo. A longer delay minimizes the the camera records the next video.
- Page 13 SPYPOINT LINK app SYNCHRONISATION SETTINGS First sync time: Schedule: Allows the user to choose at what time of the day the camera Allows the user to set the period of operation of the camera for each communicates for the first time.
-
Page 14: Installation & Mounting Bracket
Installation & Mounting bracket INSTALLATION MOUNTING BRACKET Recommended installation height: To remove the camera from the mounting bracket: The camera should be installed at the same height as the animal’s mid-body. 1. Push the tab to release the camera from the mounting bracket. Ideal installation for quality pictures &... -
Page 15: File Transfer To A Computer
File transfer to a computer To transfer photos/videos to a computer: • Turn OFF the camera. • Remove the SD card from the camera. • Insert the SD card into the computer slot, or use a memory card adaptor. • The computer will detect the card and install the driver automatically. For a PC For a Mac Click on "My Computer"... -
Page 16: Available Accessories
#CL-6FT, 6 ft cable lock fits all #SD-16GB, SDHC UHS-1 memory camera against theft. It also protects arm, fits all cameras that have a SPYPOINT cameras. card 16 GB, ultra high speed Class it from breakage caused by bears or standard ¼-20" tripod mount. It other animals. -
Page 17: Troubleshooting
The use of a memory card is required to record photos Your SIM card is locked. and videos. Error: SIM locked • Contact the SPYPOINT customer service. Insert memory • If you forget to insert a SD card and tun on the card camera, you will receive an SMS alert. - Page 18 • Install the latest update (available on greater distances. Impossible to turn night www.spypoint.com under SUPPORT section). on the camera • Replace alkaline batteries or recharge the lithium • Sunrise or sunset can trigger the sensor. Camera battery pack.
-
Page 19: Warranty & Repair
GG Telecom before making a return. 1. Before sending a product for repair, please contact GG Telecom This SPYPOINT product designed by GG Telecom, is covered by a two (2) year limited warranty on material and workmanship starting from the technical support team at 1-888-779-7646 or support@spypoint.com... -
Page 20: Regulation
Regulations FCC REGULATIONS FCC Part l5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
