Summary of Contents for Spypoint LINK-S

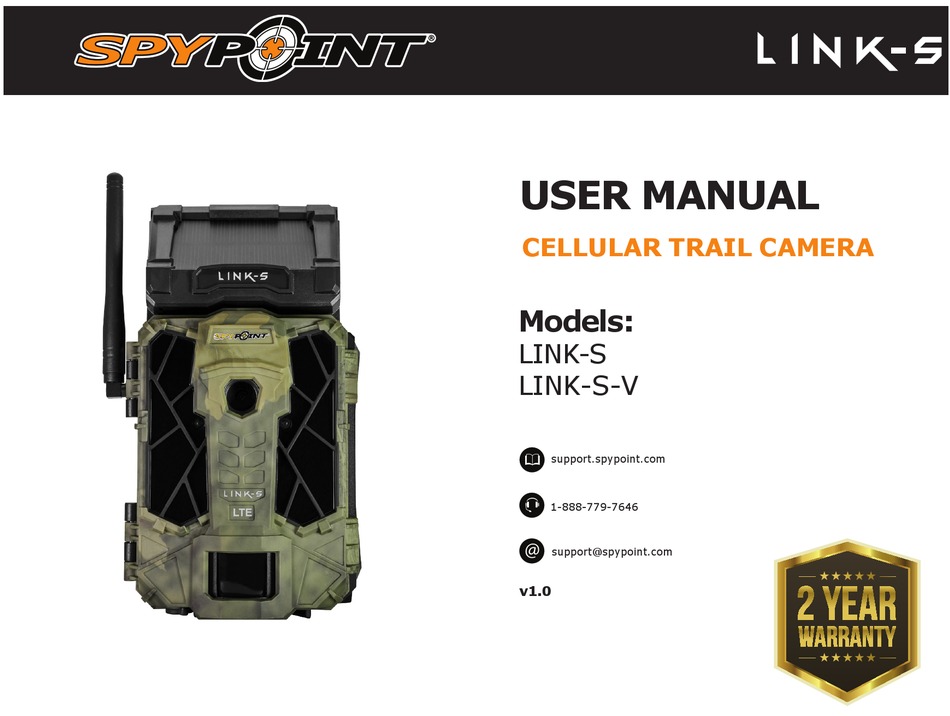

- Page 1 USER MANUAL CELLULAR TRAIL CAMERA Models: LINK-S LINK-S-V support.spypoint.com 1-888-779-7646 support@spypoint.com v1.0...
- Page 2 THANK YOU FOR CHOOSING A SPYPOINT PRODUCT. This manual will guide you through all the features of your device so that you will get optimal use out of your SPYPOINT product. We strive on offering all customers a positive, user friendly experience that will have a lasting impression.
-
Page 3: Table Of Contents
Table of contents Components ................. 4 Specifications LINK-S & LINK-S-V ................6 Power ................... 7 Memory card & Busy LED .............. 8 Settings ..................9 SPYPOINT LINK App ..............13 Installation & Mounting bracket ..........14 File transfer to a computer ............15 Available accessories ..............16... -
Page 4: Components
Components Antenna Solar pannel LEDs Photo lens Light sensor Viewing screen Detection lens Test light Navigation buttons ON / OFF Switch SD card slot Battery case & Micro SIM card slot Slot for installation strap Locking latch Cable lock hole 12V jack Microphone Tripod mount... - Page 5 Components Antenna Allows cellular wireless communication. SD card slot An SD card is required to record photos/ videos Solar Panel Allows to charge the internal battery. Battery case Case for AA batteries or a rechargeable lithium battery pack. LEDs Night lighting to obtain black and white photos and videos.
-
Page 6: Specifications
LINK-S & LINK-S-V Cellular transmission Viewing Built-in screen ACL 2.0’’ Frequency LINK-S: 4G LTE LINK-S-V: 4G LTE (Verizon network) Power source Photo transmission Wireless photo transmission via the free, Internal rechargeable battery SPYPOINT LINK App with a SPYPOINT Optional power sources plan. -
Page 7: Power
Power INTERNAL RECHARGEABLE BATTERY & SOLAR PANEL OPTIONAL POWER SOURCES AA BATTERIES First, look at the internal battery percentage in the DETECTION TEST menu. If the percentage is low and the battery logo is not green, you will need to This camera can be powered by 8 AA batteries charge the camera for 24-48 hours before use. -
Page 8: Memory Card & Busy Led
Many photo and video resolutions are noted, see those corresponding to the camera. Note: This SPYPOINT camera is equiped with continuous file recording. When the memory card is full, the camera will continue to record photos or videos by deleting the first recorded files. -
Page 9: Settings
Settings Use the and buttons to navigate in the interface and modify the selection, Viewing with the screen of the camera: the OK button to select and the button to return to the previous menu. When the VIEW mode is selected, the latest photos or videos recorded appear as thumbnails on the screen. - Page 10 Settings TIME LAPSE SETTINGS PHOTO SETTINGS Sets the options of the TIME LAPSE mode. Sets the options of the PHOTO mode. Interval: Recommended settings (3m/5m/15m/30m/1h) The camera can be configured for usage in trails. This situation usually Allows the camera to take photos at regular preset intervals. For example, presents low activity level, fast subjects and a small number of photos is if the option "5m"...
- Page 11 Allows the user to set to standard time or millitary time. Sim options: Date: If needed, allows the user to unlock the SIM card with a PUK number provided by the SPYPOINT customer service. Allows the user to set the date GPS: Time:...
- Page 12 Settings illumination modes comparison* (Night modes) Quality: Night mode: (Normal/High) Allows the user to set the best option for photos. Allow the user to set the photo quality. (5MP/12MP) optimal IR-boost blur reduction MODE MODE MODE Schedule Battery life ...
-
Page 13: Spypoint Link App
SPYPOINT LINK app When you login in the SPYPOINT LINK app, it will bring you directly to the MODIFY YOUR PROFILE INFORMATION Photos tab. From there, you will be able to see right away the latest photos Modify your profile like Password, Name, Address, Phone number & more. -
Page 14: Installation & Mounting Bracket
Installation & Mounting bracket INSTALLATION MOUNTING BRACKET Recommended installation height: To remove the camera from the mounting bracket: The camera should be installed at the same height as the animal’s mid-body. 1. Push the tab to release the camera from the mounting bracket. Ideal installation for quality pictures &... -
Page 15: File Transfer To A Computer
File transfer to a computer To transfer photos/videos to a computer: • Turn OFF the camera. • Remove the SD card from the camera. • Insert the SD card into the computer slot, or use a memory card adaptor. • The computer will detect the card and install the driver automatically. For a PC For a Mac Click on "My Computer"... -
Page 16: Available Accessories
#CL-6FT, 6 ft cable lock fits all #SD-16GB, SDHC UHS-1 memory camera against theft. It also protects arm, fits all cameras that have a SPYPOINT cameras. card 16 GB, ultra high speed Class it from breakage caused by bears or standard ¼-20" tripod mount. It other animals. -
Page 17: Troubleshooting
Troubleshooting Issue Possible solutions • Recharge the internal battery for 24h-48h. While • Verify the battery level to see if battery power is full charging, make sure the camera is turned off and as the flash will stop operating near the end of the the solar panel is facing down so it does not interfere battery life specialy if you're doing a video. - Page 18 Your SIM card is locked. Card error click is heard. Error: SIM locked • Contact the SPYPOINT customer service. • Verify if the gold contacts are clean. • Format the memory card. Your SIM card is locked and requires a PUK.
-
Page 19: Warranty & Repair
GG Telecom before making a return. 1. Before sending a product for repair, please contact GG Telecom This SPYPOINT product designed by GG Telecom, is covered by a two (2) year limited warranty on material and workmanship starting from the technical support team at 1-888-779-7646 or support@spypoint.com... -
Page 20: Regulation
Regulations FCC REGULATIONS FCC Part l5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
