Torque XCREATE-HTWM Assembly Instructions Manual

4 ft (1.2 m) hip thrust wall mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

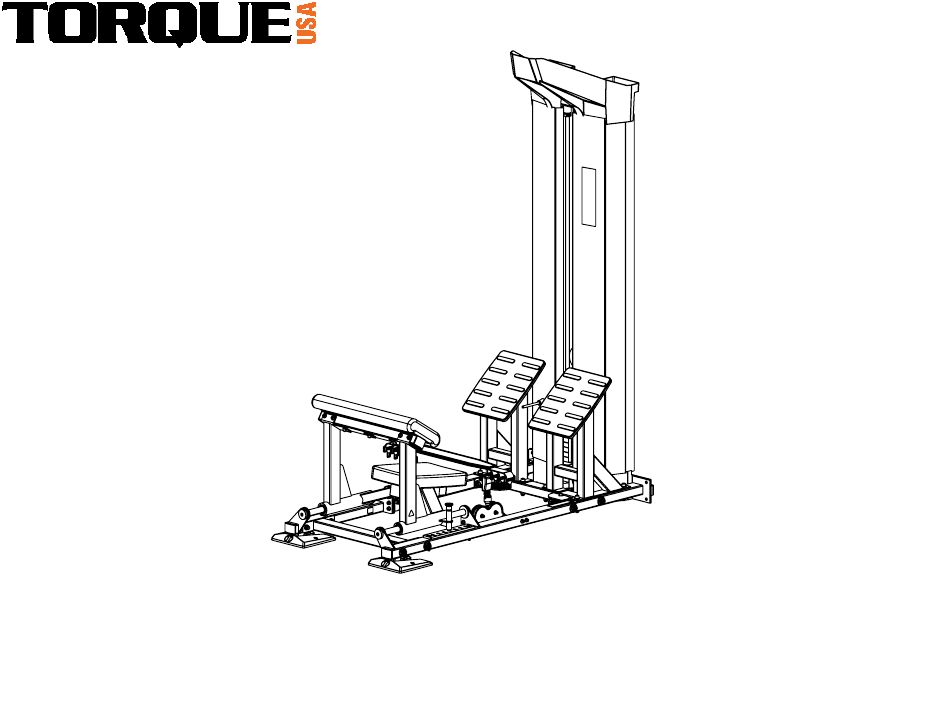

ASSEMBLY INSTRUCTIONS
4 FT (1.2 M) HIP THRUST WALL MOUNT
VERSION: XCREATE-HTWM
PART # 6019901-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-HTWM and is the answer not in the manual?

Questions and answers

Related Manuals for Torque XCREATE-HTWM

Summary of Contents for Torque XCREATE-HTWM

  • Page 1 ASSEMBLY INSTRUCTIONS 4 FT (1.2 M) HIP THRUST WALL MOUNT VERSION: XCREATE-HTWM PART # 6019901-E...
  • Page 2 Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 3: General Notes

    If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 or • Insert all bolts in the direction indicated in service@torquefitness.com...
  • Page 4 DECALS AND WARNINGS...

  • Page 5: Exercise Instructions

    EXERCISE INSTRUCTIONS...
  • Page 6 ITEM NO. PART NUMBER DESCRIPTION ITEM NO. PART NUMBER DESCRIPTION 60058PA PTD ASSY, HIP THRUST LOWER WALL MOUNT 59889PA PTD ASSY, HIP THRUST TOP BOOM 6005701 WLDMT, HIP THRUST UPPER WALL MOUNT 59892PA PTD ASSY, HIP THRUST BASE CONNECTOR 2001301 WASHER, FLAT 1/2 SAE ST ZN 5643201 GUIDE ROD, 19 DIA X 1912...
  • Page 7 STEP 1 1/2" FLAT WASHER (4) LOWER WALL MOUNT 1/2 X 1" BOLT (4) NOTE 3: BEFORE TIGHTENING BOLTS, MAKE SURE THAT THESE TWO SURFACES ARE FLUSH NOTES: HIP THRUST BASE LEGS LOOSELY tighten bolt connections in this step.
  • Page 8 STEP 2 WALL NOTE: BEFORE ANCHORING LOWER WALL MOUNT TO THE WALL, ADJUST BASE PLATE LEVELERS (2) SO THAT THE BASE PLATE IS LEVEL WITH THE FLOOR. LOWER WALL MOUNT 3/8" FLAT WASHER (4) 3/8" LAG BOLT (4) (TYPICAL FOR NOTE: WOOD STUDS) MAKE SURE THE LOWER...
  • Page 9 STEP 3 CENTER CROSSMEMBER NYLON WASHER BOLT COVER (8) 1/2" LOCK NUT (8) 1/2 X 4" BOLT (8) CROSS SUPPORT 1/2" FLAT WASHER (8) NOTES: SECURELY tighten bolt connections in this step.
  • Page 10 STEP 4 BASE CONNECTOR LOWER WALL MOUNT 1/2 X 1" BOLT (2) 1/2" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 11 STEP 5a 3/8" FLAT WASHER (2) 3/8 X 1-3/4" BOLT (2) NOTE: REMOVE THESE PULLEYS AND SET TO THE SIDE...
  • Page 12 STEP 5b 3/8 X 1-3/4" BOLT (2) NOTE: REMOVE THESE PULLEYS AND SET TO THE SIDE 3/8" LOCK NUT (2) 3/8" FLAT WASHER (4)

  • Page 13: Left Side

    STEP 6 CABLE NOTE: START BY GOING DOWN BETWEEN THESE 2 SWIVEL PULLEYS AND OUT LEFT SIDE THE LEFT SIDE THROUGH THE BEARING HOLE...
  • Page 14 STEP 7 NOTE 3: ROUTE THE CABLE AROUND THE PULLEY AND UNDERNEATH THE CABLE RETAINER BRACKET TOP BOOM NOTE 2: ROUTE THE CABLE THROUGH THE NOTE 4: SLOT IN THE UPPER WALL MOUNT ROUTE THE CABLE THROUGH THE HOLE IN THE TOP BOOM UPPER WALL MOUNT CABLE BASE CONNECTOR...
  • Page 15 STEP 8 TOP BOOM NOTE: PULL THE CABLE DOWN THROUGH THE HOLE IN THE TOP BOOM AND LEAVE A LOOP. TURN THE CABLE BACK UP AND ROUTE TROUGH THE OPPOSITE HOLE IN THE TOP BOOM CABLE LOOP NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed.
  • Page 16 STEP 9 NOTE 2: ROUTE THE CABLE AROUND THE PULLEY AND UNDERNEATH TOP BOOM THE CABLE RETAINER BRACKET UPPER WALL MOUNT NOTE 3: NOTE 1: ROUTE THE CABLE THROUGH THE ROUTE THE CABLE UP THROUGH THE SLOT IN THE UPPER WALL MOUNT HOLE IN THE TOP BOOM CABLE BASE CONNECTOR...

  • Page 17: Right Side

    STEP 10 CABLE NOTE: FINISH BY ROUTING THE CABLE THROUGH THE BEARING HOLE AND UP BETWEEN THESE SWIVEL PULLEYS RIGHT SIDE NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed.
  • Page 18 STEP 11 SEAT BELT BUCKLE 3/8" FLAT WASHER (4) 3/8" LOCK NUT (2) 3/8 X 1" BOLT (2) M5 X 6MM SOCKET HEAD SCREW (4) CORE HOUSING NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed. SECURELY tighten bolt connections in this step.
  • Page 19 STEP 12 NOTE: REPLACE ALL PULLEYS FROM STEP 5a AND 5b BACK INTO CABLE RETAINING BRACKETS. MAKE SURE THE CABLE IS IN THE GROOVE OF THE PULLEY BEFORE SECURELY TIGHTENING BOLT. NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed. SECURELY tighten bolt connections in this step.
  • Page 20 STEP 13 BASE CONNECTOR 3/8" FLAT WASHER (2) 3/8 X 4-3/4" BOLT (2) NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed. SECURELY tighten bolt connections in this step.
  • Page 21 STEP 14a LOWER WALL MOUNT 3/8" FLAT WASHER (4) 3/8 X 3/4" BOLT (4) LEFT SHROUD BASE RIGHT SHROUD BASE NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed. SECURELY tighten bolt connections in this step.
  • Page 22 STEP 14b LOWER WALL MOUNT RIGHT SHROUD BASE HOLE CAP (2) LEFT SHROUD BASE NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed. Some parts have been hidden for illustration clarity.
  • Page 23 STEP 15 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) HEAD PLATE 15 LB WEIGHT PLATE (10) 20 LB WEIGHT PLATE (5) GUIDE ROD (2) NOTE: INSERT THE GUIDE RODS THROUGH THE WEIGHT STACK CUSHION (2) BASE CONNECTOR AND DOWN TO TOP OF BOLTS NOTES: TOP BOOM, UPPER WALL MOUNT, AND CABLE LOOP will be left on the ground until the weight stack and head plate are installed.
  • Page 24 STEP 16 TOP BOOM NOTE: BEFORE TIGHTENING BOLTS, MAKE SURE THAT THESE TWO SURFACES 1/2 X 1" BOLT (2) ARE PARALLEL 1/2" FLAT WASHER (2) UPPER WALL MOUNT NOTE: MAKE SURE THE CABLE IS ROUTED THROUGH THE SLOT IN THE UPPER WALL MOUNT AND UNDERNEATH THE CABLE RETAINERS IN THE TOP BOOM CABLE...
  • Page 25 STEP 17 UPPER WALL MOUNT NOTE: 16" MAKE SURE THE UPPER (40.6 CM) WALL MOUNT IS LEVEL 3/8" FLAT WASHER (4) WARNING: 2-1/2" THE UPPER WALL MOUNT MUST BE 3/8" LAG BOLT (4) (6.4 CM) ANCHORED TO THE WALL USING FOUR (TYPICAL FOR WALL ANCHORS SUITABLE FOR THAT WOOD STUDS)
  • Page 26 STEP 18 TOP BOOM NOTE: SLIDE GUIDE ROD RETAINERS UP INSIDE TOP BOOM. SLIDE SHAFT COLLARS UP AGAINST GUIDE ROD RETAINERS AND SECURELY TIGHTEN BOTH SCREWS OF SHAFT COLLARS. GUIDE ROD RETAINER (2) SHAFT COLLAR (2) GUIDE ROD (2) NOTE: ATTACH THE WEIGHT STACK LABELS TO THE WEIGHT STACK STARTING WITH THE HEAD PLATE NOTES:...

  • Page 27: Head Plate

    STEP 19 CABLE 3/8 X 3/4" BOLT (2) WEIGHT SELECTOR STORAGE PLATE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step.

  • Page 28: Assembled View

    STEP 20 1-1/2" NOTE: LEAVE THE CABLE HANGING FOR THIS STEP NOTE: SECURELY TIGHTEN JAM NUT ASSEMBLED VIEW HEAD PLATE PULLEY JAM NUT NOTES: SECURELY tighten connections in this step.
  • Page 29 STEP 21 NOTE: REMOVE PULLEY AND LOOP THE CABLE UNDERNEATH THE PULLEY AND CONTAIN IT INSIDE THE HOUSING NOTE: NOTE: If there is a gap between the head plate and If further cable adjustment is needed, the first plate, loosen jam nut and turn the remove the pulley again as shown above.
  • Page 30 STEP 22 SEAT PAD 3/8" FLAT WASHER (2) 3/8 X 4" BOLT (2) SEAT PAD SUPPORT TUBE NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 31 STEP 23 RIGHT PAD SUPPORT LINEAR ADJUSTMENT GUIDE ROD ADJUSTMENT BUMPER (2) END CAP (2) 3/8 X 3/4" BOLT (2) RIGHT BASE LEG NOTES: SECURELY tighten bolt connections in this step.
  • Page 32 STEP 24 LINEAR ADJUSTMENT GUIDE ROD LEFT PAD SUPPORT ADJUSTMENT BUMPER (2) END CAP (2) 3/8 X 3/4" BOLT (2) LEFT BASE LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 33 STEP 25 3/8" FLAT WASHER (8) 3/8 X 3-3/4" BOLT (4) SHOULDER PAD SUPPORT LINEAR PAD SUPPORTS 3/8" LOCK NUT (4) NOTES: SECURELY tighten bolt connections in this step.

  • Page 34: Shoulder Pad

    STEP 26 SHOULDER PAD SHOULDER PAD SUPPORT 3/8" FLAT WASHER (3) 3/8" X 3" BOLT (3) NOTES: SECURELY tighten bolt connections in this step.
  • Page 35 STEP 27 SEAT PAD ASSEMBLY FROM STEP 22 LINEAR PAD SUPPORTS NOTES: 1/2 X 1" BOLT (2) SECURELY tighten bolt connections in this step. 1/2" FLAT WASHER (2) Some parts have been hidden for illustration clarity.
  • Page 36 STEP 28 NOTE: NOTE: MAKE SURE SHROUD IS SEATED FRONT SHROUD (2) MAKE SURE SHROUD IS SEATED BETWEEN THE SHROUD BETWEEN THE SHROUD SUPPORT AND THE FOUR TABS SUPPORT AND THE FOUR TABS AS SHOWN AS SHOWN TOP VIEW RIGHT TOP VIEW LEFT LEFT SHROUD BASE RIGHT SHROUD BASE...
  • Page 37 STEP 29 TOP CAP 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) NOTE: MAKE SURE INTERNAL GROOVES OF THE TOP CAP FIT DOWN OVER THE TOP EDGES OF BOTH FRONT SHROUDS UPPER WALL MOUNT FRONT SHROUD (RIGHT SIDE) FRONT SHROUD (LEFT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
  • Page 38 STEP 30 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP CAP UPPER WALL MOUNT NOTES: SECURELY tighten bolt connections in this step, and previous step.
  • Page 39 STEP 31 NOTE: CENTER PLACARD ON PLACARD SHROUD SURFACE FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-3/16" (5.5 CM)
  • Page 40 STEP 32 LEFT FOOT PLATE RIGHT FOOT PLATE 1/2 X 3" BOLT (6) RIGHT BASE LEG 1/2" FLAT WASHER (12) 1/2" LOCK NUT (6) LEFT BASE LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.

  • Page 41: Front Base Cover

    STEP 33 1/4 X 3/8" BOLT (4) 1/4" FLAT WASHER (4) FRONT BASE COVER BASE FRAME NOTES: SECURELY tighten bolt connections in this step.
  • Page 42 STEP 34 BELT BELT BUCKLE...

  • Page 43: Top View

    LIVE AREA TOP VIEW 84.0in 213cm LIVE AREA 45.0in 114cm...
  • Page 44 DIMENSIONS 93.7in 238cm 36.6in 73.8in 93cm 187cm TOTAL UNIT WEIGHT : 630 LBS [286 KG]...

  • Page 45: Maintenance

    MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.
