Torque XCREATE-SHAWM-101 Assembly Instructions Manual

4 ft (1.2 m) standing hip abductor wall mount
Hide thumbs

Advertisement

Table of Contents

ASSEMBLY INSTRUCTIONS
4 FT (1.2 M) STANDING HIP ABDUCTOR WALL MOUNT
VERSION: XCREATE-SHAWM-101
PART # 6019201-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-SHAWM-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XCREATE-SHAWM-101

Summary of Contents for Torque XCREATE-SHAWM-101

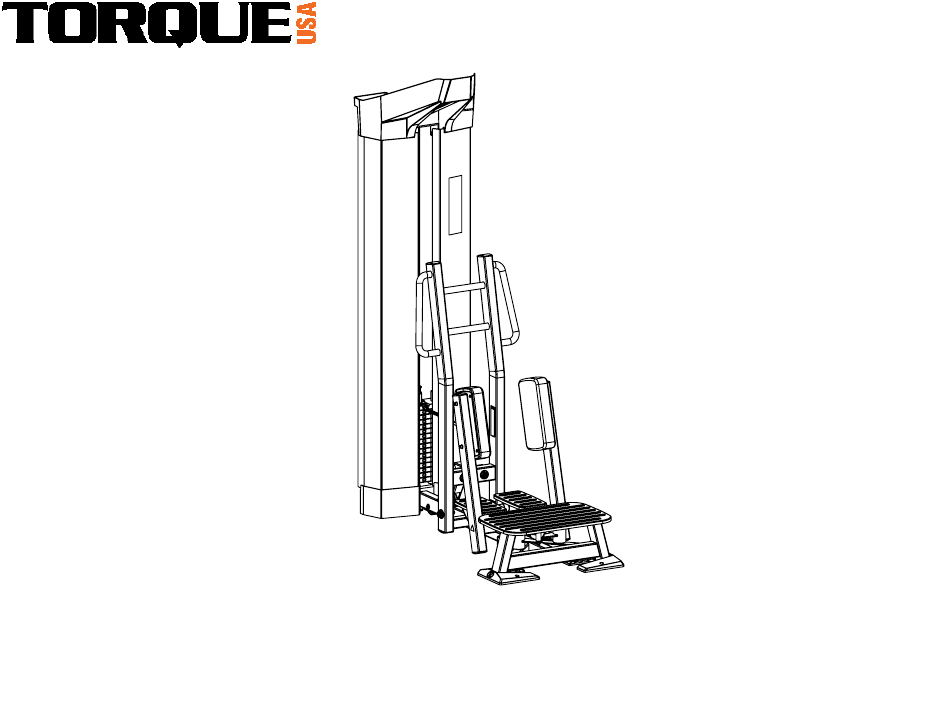

  • Page 1 ASSEMBLY INSTRUCTIONS 4 FT (1.2 M) STANDING HIP ABDUCTOR WALL MOUNT VERSION: XCREATE-SHAWM-101 PART # 6019201-D...
  • Page 2 Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 3: General Notes

    If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 or • Insert all bolts in the direction indicated in service@torquefitness.com...
  • Page 4 DECALS AND WARNINGS...

  • Page 5: Exercise Instructions

    EXERCISE INSTRUCTIONS...
  • Page 6 ITEM NO. PART NUMBER DESCRIPTION ITEM NO. PART NUMBER DESCRIPTION 59135PA PTD ASSY, LOWER WALL MOUNT 60197PA PTD ASSY, LARGE FOOT PLATE 5581301 COVER, FRONT BASE 5914601 WLDMT, UPPER WALL MOUNT 2001301 WASHER, FLAT 1/2 SAE ST ZN 2006509 BOLT, 1/4-20 X 3/8" (9mm) SOCKET HEAD W/NP 2006803 SHCS, 1/2-13 X 1, CZ PATCH 56349PA...
  • Page 7 STEP 1a NOTE 2: ROUTE THE THREADED END OF THE CABLE CABLE THROUGH THE SLOT AND UP BEHIND THE LOWER WALL MOUNT LOWER WALL MOUNT NOTE 1: PLACE THE ABDUCTOR BASE NEAR THE LOWER WALL MOUNT AS SHOWN. THE CABLE WILL BE ROUTED BEFORE CONNECTING THE ABDUCTOR BASE TO THE LOWER WALL MOUNT.
  • Page 8 STEP 1b NOTE 2: CONTINUE TO FOLLOW THE CABLE PATH SHOWN BELOW UNTIL THE CABLE END CAN BE GRABBED IN THIS SLOT SECTION VIEW NOTE 1: LOWER WALL MOUNT ABDUCTOR BASE TAKE THE NON-THREADED END OF THE CABLE AND BEGIN CABLE ROUTING UNDER THIS FIRST PULLEY.
  • Page 9 TOP VIEW STEP 1c LOWER WALL MOUNT NOTE 2: PULL THE CABLE THROUGH THIS SIDE AND SECURE IT. THE CABLE ROUTING WILL BE CABLE COMPLETED IN A LATER STEP. NOTE 1: USE THE OPEN SLOT IN THE ABDUCTOR BASE TO TURN THE CABLE AROUND, AND REAR PULLEY ROUTE IT THROUGH THE REAR PULLEY.
  • Page 10 STEP 1d CABLE 1/2 X 1" BOLT (2) 1/2" FLAT WASHER (2) LOWER WALL MOUNT CABLE NOTE: BEFORE TIGHTENING BOLTS, MAKE SURE THAT THESE TWO SURFACES ARE FLUSH ABDUCTOR BASE NOTES: SECURELY tighten bolt connections in this step.
  • Page 11 STEP 2 LOWER WALL MOUNT 3/8" FLAT WASHER (4) 3/8" LAG BOLT (4) WALL NOTE: BASE PLATE (TYPICAL FOR BEFORE ANCHORING LOWER WALL WOOD STUDS) MOUNT TO THE WALL, ADJUST LEVELERS (2) SO THAT THE BASE PLATE IS LEVEL WITH THE FLOOR. NOTE: MAKE SURE THE LOWER WALL MOUNT IS LEVEL...
  • Page 12 STEP 3 3/8" FLAT WASHER (2) 3/8 X 4-3/4" BOLT (2) ABDUCTOR BASE NOTES: SECURELY tighten bolt connections in this step.
  • Page 13 STEP 4 LOWER WALL MOUNT LEFT SHROUD BASE 3/8 X 3/4" BOLT (2) 3/8" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 14 STEP 5 LOWER WALL MOUNT 3/8 X 3/4" BOLT (2) RIGHT SHROUD BASE 3/8" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 15 STEP 6 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) GUIDE ROD (2) HEAD PLATE 10 LB WEIGHT PLATE (10) 15 LB WEIGHT PLATE (5) CABLE NOTE: WEIGHT STACK CUSHION (2) INSERT THE GUIDE RODS THROUGH THE ROW BASE AND DOWN TO TOP OF BOLTS ABDUCTOR BASE...
  • Page 16 STEP 7 3/8 X 3/4" BOLT (2) CABLE WEIGHT SELECTOR STORAGE PLATE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step.
  • Page 17 STEP 8 NOTE 2: ROUTE THE CABLE AROUND 4-1/2" PULLEY THE PULLEY BEFORE ASSEMBLING IT TO THE ROW TOP BOOM 3/8" FLAT WASHER (2) 3/8" LOCK NUT (2) TOP BOOM NOTE 1: ROUTE THE CABLE NOTE 3: THROUGH THE ROUTE THE CABLE THROUGH THE SLOT IN THE UPPER HOLE IN THE ROW TOP BOOM NOTE 4:...
  • Page 18 STEP 9 NOTE: MAKE SURE THE CABLE IS ROUTED AROUND THE PULLEY OF THE ROW TOP BOOM TOP BOOM NOTE: BEFORE TIGHTENING BOLTS, MAKE SURE THAT THESE TWO SURFACES ARE PARALLEL 1/2 X 1" BOLT (2) 1/2" FLAT WASHER (2) NOTE: MAKE SURE THE CABLE NOTE:...
  • Page 19 STEP 10 NOTE: 16" UPPER WALL MOUNT MAKE SURE THE UPPER (40.6 CM) WALL MOUNT IS LEVEL 3/8" FLAT WASHER (4) WARNING: 2-1/2" THE UPPER WALL MOUNT MUST BE (6.4 CM) ANCHORED TO THE WALL USING FOUR WALL ANCHORS SUITABLE FOR THAT PATICULAR WALL CONSTRUCTION 3/8"...
  • Page 20 STEP 11 TOP BOOM GUIDE ROD RETAINER (2) SHAFT COLLAR (2) NOTE: SLIDE GUIDE ROD RETAINERS UP INSIDE TOP BOOM. SLIDE SHAFT COLLARS UP AGAINST GUIDE ROD RETAINERS AND SECURELY TIGHTEN BOTH SCREWS OF SHAFT COLLARS NOTE: ATTACH THE WEIGHT STACK GUIDE ROD (2) LABELS TO THE WEIGHT STACK STARTING WITH THE...
  • Page 21 STEP 12 NOTE: NOTE: MAKE SURE THE SHROUD MAKE SURE THE SHROUD IS SEATED BETWEEN THE IS SEATED BETWEEN THE SHROUD SUPPORT AND SHROUD SUPPORT AND THE FOUR TABS AS SHOWN. THE FOUR TABS AS SHOWN. TOP VIEW LEFT TOP VIEW RIGHT RIGHT SHROUD BASE FRONT SHROUD (2) LEFT SHROUD BASE...
  • Page 22 STEP 13a 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) NOTE: TOP CAP MAKE SURE INTERNAL GROOVES OF THE TOP CAP FIT DOWN OVER THE TOP EDGES OF BOTH FRONT SHROUDS. UPPER WALL MOUNT FRONT SHROUD (LEFT SIDE) FRONT SHROUD (RIGHT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
  • Page 23 STEP 13b 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP BOOM TOP CAP NOTES: SECURELY tighten bolt connections in this step, and previous step.
  • Page 24 STEP 14 PLACARD NOTE CENTER PLACARD ON SHROUD SURFACE. FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-1/4" (5.7 CM)
  • Page 25 STEP 15 3/8" FLAT WASHER (2) ABDUCTOR LEG PAD 3/8" X 3" BOLT (2) ABDUCTOR RIGHT LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 26 STEP 16 3/8" FLAT WASHER (2) 3/8" X 3" BOLT (2) ABDUCTOR LEG PAD ABDUCTOR LEFT LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 27 STEP 17 ABDUCTOR RIGHT LEG ABDUCTOR LEFT LEG ABDUCTOR BASE...
  • Page 28 STEP 18 1/2 X 2-3/4" SHOULDER BOLT (2) ABDUCTOR LEFT LEG ABDUCTOR RIGHT LEG 3/8" LOCK NUT (2) CENTER SWIVEL NOTES: SECURELY tighten bolt connections in this step.
  • Page 29 STEP 19 NOTE: THREAD THE CABLE THROUGH THE PULLEY OF THE ABDUCTOR RIGHT LEG. REMOVE THE CORE FROM THE BASE AND REMOVE THE STORAGE FOR WEIGHT SPACER. PLACE THE CABLE END INSIDE THE STACK SELECTOR PIN CORE. PLACE THE SPACER BACK INTO THE CORE AND REPLACE THE BOLT CONNECTING IT TO THE BASE.
  • Page 30 STEP 20 ABDUCTOR HANDLE MOUNT NYLON WASHER, NUT COVER (4) 1/2" LOCK NUT (4) 1/2 X 3" BOLT (4) ABDUCTOR BASE NOTES: NYLON WASHER, BOLT COVER (4) SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 31 STEP 21 3/8 X 1" BOLT (4) SUPPORT PLATE ABDUCTOR BASE ABDUCTOR LEGS NOTES: SECURELY tighten bolt connections in this step.
  • Page 32 STEP 22 FOOT PLATE SUPPORT PLATE 5/16" FLAT WASHER (4) 5/16" LOCK NUT (4) NOTE: ALLOW THE PEM STUDS ON THE BOTTOM OF THE FOOT PLATE TO GO THROUGH THE SUPPORT PLATE. SECURELY TIGHTEN NUT. NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 33 STEP 23 1/4 X 3/8" BOLT (4) 1/4" FLAT WASHER (4) FOOT COVER NOTES: ABDUCTOR BASE SECURELY tighten bolt connections in this step.

  • Page 34: Maintenance

    MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.

  • Page 35: Top View

    LIVE AREA TOP VIEW 84.0in 213cm LIVE AREA 54.0in 137cm...
  • Page 36 DIMENSIONS 93.7in 238cm 28.7in 62.8in 73cm 160cm TOTAL UNIT WEIGHT : 576 LBS [261 KG]...
