Torque XCREATE-BEWM Assembly Instructions Manual

Back extension wall mount
Hide thumbs

Advertisement

Table of Contents

ASSEMBLY INSTRUCTIONS
BACK EXTENSION WALL MOUNT
VERSION: XCREATE-BEWM
PART # 6039901-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-BEWM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XCREATE-BEWM

Summary of Contents for Torque XCREATE-BEWM

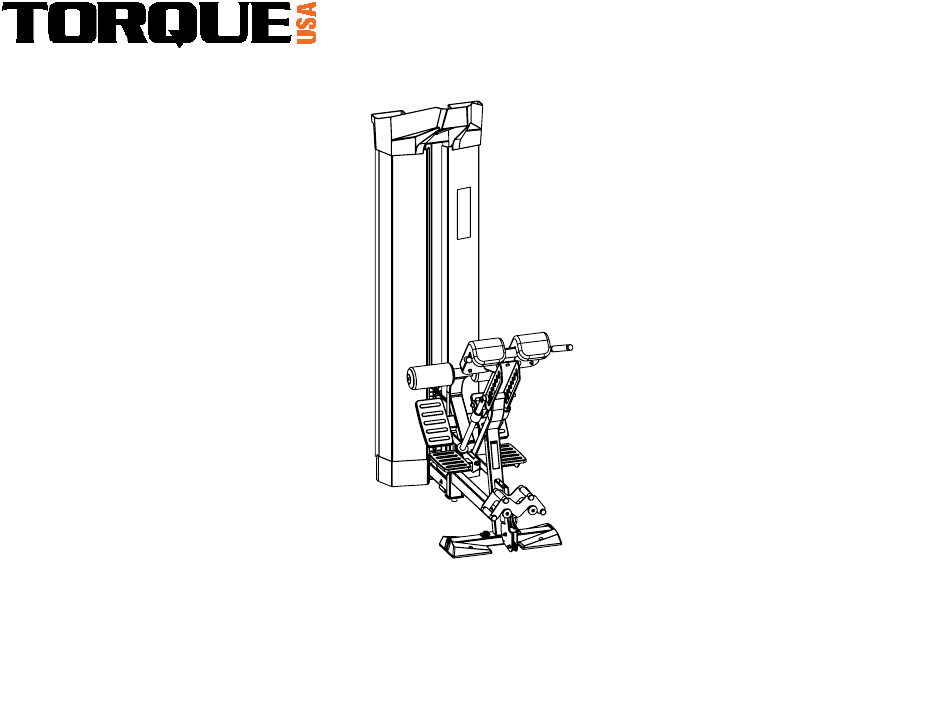

  • Page 1 ASSEMBLY INSTRUCTIONS BACK EXTENSION WALL MOUNT VERSION: XCREATE-BEWM PART # 6039901-C...
  • Page 2 ITEM NO. PART NUMBER DESCRIPTION ITEM NO. PART NUMBER DESCRIPTION 2001301 WASHER, FLAT 1/2 SAE ST ZN 60248PA PTD ASSY, BACK EXTENSION FRAME 2001401 NUT, 1/2-13 LK ST ZN 60254PA PTD ASSY, ANGLED FOOTPLATE 2006811 BOLT, 1/2-13 X 3" (76mm) SOCKET HEAD W/NP 60256PA PTD ASSY, FLAT FOOTPLATE 2009403...
  • Page 3 Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 4: General Notes

    • In a continual effort to improve our correct. products, specifications are subject to page. If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 or change. • Insert all bolts in the direction indicated in service@torquefitness.com...
  • Page 5 STEP 1 BACK EXTENSION FRAME 1/2 X 1-1/4" BOLT (2) 1/2" BOLT COVER (2) BACK EXTENSION BASE NOTES: SECURELY tighten bolt connections in this step.
  • Page 6 STEP 2 BACK EXTENSION FRAME 1/2 X 4-1/4" BOLT (2) 1/2" FLAT WASHER (4) FLAT FOOTPLATE SHOWN IN ASSEMBLED POSITION 1/2" LOCK NUT (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 7 STEP 3 CORE 2) SLIDE OVER TO START: ROUTE CABLE END CABLE IN THE DIRECTION OF THE ARROWS 3) ASSEMBLE HOUSING TO CORE BACK EXTENSION FRAME M5 CAP SCREW 1) SLIDE OVER HOUSING CABLE END TO END: ASSEMBLE CABLE END AS SHOWN. NOTE: ROUTE CABLE BETWEEN PULLEY AND RETAINING PIN...
  • Page 8 STEP 4 NOTE: BEFORE ASSEMBLING BASE, ROUTE CABLE THROUGH THE SLOT IN THE LOWER WALL LOWER WALL MOUNT MOUNT. CABLE BACK EXTENSION FRAME 1/2 X 1" BOLT (2) 1/2" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step and previous step, except as noted.
  • Page 9 STEP 5 CABLE LOWER WALL MOUNT 3/8" FLAT WASHER (4) 3/8" LAG BOLT (4) (TYPICAL FOR WOOD STUDS) WALL BASE PLATE BACK EXTENSION FRAME NOTE: BEFORE ANCHORING LOWER WALL MOUNT TO THE WALL, ADJUST LEVELERS (3) SO THAT THE BASE PLATE IS LEVEL WITH THE FLOOR.
  • Page 10 STEP 6 BACK EXTENSION FRAME 3/8 X 4-3/4" BOLT (2) 3/8" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 11 STEP 7 LOWER WALL MOUNT LEFT SHROUD BASE 3/8" FLAT WASHER (2) 3/8 X 3/4" BOLT (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 12 STEP 8 3/8" FLAT WASHER (2) LOWER WALL MOUNT 3/8 X 3/4" BOLT (2) RIGHT SHROUD BASE NOTES: SECURELY tighten bolt connections in this step.
  • Page 13 STEP 9 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) GUIDE ROD (2) HEAD PLATE 10 LB WEIGHT PLATE (10) 15 LB WEIGHT PLATE (5) CABLE WEIGHT STACK CUSHION (2) NOTE: INSERT THE GUIDE RODS THROUGH THE ROW BASE AND DOWN TO TOP OF BOLTS BACK EXTENSION FRAME NOTES: TOP BOOM SUPPORT has been hidden for illustration clarity.
  • Page 14 STEP 10 3/8 X 3/4" BOLT (2) WEIGHT SELECTOR STORAGE PLATE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step.
  • Page 15 STEP 11 3/8 X 2" BOLT NOTE 3: WRAP CABLE OVER THE TOP OF A 4-1/2" PULLEY AND ASSEMBLE THE PULLEY TO THE TOP BOOM AS SHOWN. 3/8" FLAT WASHER (2) 3/8"LOCK NUT UPPER WALL MOUNT NOTE 2: ROUTE THE CABLE THROUGH THE HOLE IN THE TOP BOOM.
  • Page 16 STEP 12 TOP BOOM NOTE: BEFORE TIGHTENING, MAKE SURE THESE 2 SURFACES ARE PARALLEL NOTE: MAKE SURE THE CABLE IS ROUTED AROUND THE PULLEY IN THE TOP BOOM. 3/8" FLAT WASHER (2) 1/2 X 1" BOLT NOTE: LOOSELY THREAD CABLE END INTO THE STEM OF THE HEADPLATE.
  • Page 17 STEP 13 16" (40.6 CM) UPPER WALL MOUNT NOTE: 2-1/2" 3/8" FLAT WASHER (4) MAKE SURE THE UPPER (6.4 CM) WALL MOUNT IS LEVEL 3/8" LAG BOLT (2) BEFORE ANCHORING (TYPICAL FOR WOOD STUDS) 80" (203.2 CM) NOTES: The images shown above is the anchoring hardware used for attaching to typical walls with wood studs spaced 16"...
  • Page 18 STEP 14 TOP BOOM GUIDE ROD RETAINER (2) SHAFT COLLAR (2) GUIDE ROD (2) NOTE: SLIDE GUIDE ROD RETAINERS UP INSIDE TOP BOOM. SLIDE SHAFT COLLARS UP AGAINST GUIDE ROD RETAINERS AND SECURELY TIGHTEN BOTH SCREWS OF SHAFT COLLARS...
  • Page 19 STEP 15 NOTE 2: THE HOUSING ON THE CABLE SHOULD BE AT LEAST 1/4" AWAY FROM THE SWIVEL PULLEY. IF THE HOUSING IS TOUCHING THE SWIVEL PULLEY, THEN THE CABLE NEEDS TO BE ADJUSTED. LOOSEN JAM NUT AND TURN THE THREADED END OF THE CABLE COUNTER CLOCKWISE UNTIL THE HOUSING IS 1/4"...
  • Page 20 STEP 16 NOTE: NOTE: MAKE SURE SHROUD IS MAKE SURE SHROUD IS SEATED BETWEEN THE SEATED BETWEEN THE SHROUD SUPPORT AND 4 SHROUD SUPPORT AND 4 TABS AS SHOWN. TABS AS SHOWN. TOP VIEW RIGHT TOP VIEW LEFT RIGHT SHROUD BASE FRONT SHROUD (2) LEFT SHROUD BASE NOTES:...
  • Page 21 STEP 17 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) TOP CAP NOTE: MAKE SURE INTERNAL GROOVES OF THE TOP CAP FIT DOWN OVER THE TOP EDGES OF BOTH FRONT SHROUDS. TOP BOOM SUPPORT FRONT SHROUD (LEFT SIDE) FRONT SHROUD (RIGHT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
  • Page 22 STEP 18 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP CAP TOP BOOM NOTES: SECURELY tighten bolt connections in this step, and previous step. BACK EXTENSION BASE and CABLE have been hidden for illustration clarity.
  • Page 23 STEP 19 NOTE CENTER PLACARD ON PLACARD SHROUD SURFACE. FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-1/4" (5.7 CM)
  • Page 24 STEP 20 ANGLED FOOTPLATE (SHOWN IN ASSEMBLED POSITION) BACK EXTENSION FRAME 1/2" FLAT WASHER (4) 1/2" X 3" BOLT (4) NOTES: SECURELY tighten bolt connections in this step.
  • Page 25 STEP 21A & 21B 3/8" X 1" BOLT (4) 3/8" FLAT WASHER (4) 3/8" X 1" BOLT (4) 3/8" FLAT WASHER (4) BACK EXTENSION PAD SUPPORT BACK EXTENSION PAD SUPPORT BACK EXTENSION PAD (2) BACK EXTENSION PAD (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 26 STEP 22 2) ONCE BOLT IS REMOVED LOWER GUIDE RODS UNTIL THEY ARE RESTING ON THE FOOTPLATE 3) REMOVE BOLT SPACER AND NYLON GUIDES. SET ASIDE GUIDE ROD FOR NEXT STEPS. 1) LOOSEN AND REMOVE BOLT, WASHERS, AND NUT. SET ASIDE FOR NEXT STEPS. BACK EXTENSION FRAME NOTES: SECURELY tighten bolt connections in this step.
  • Page 27 STEP 23 1) LOOSELY POSITION THE NYLON GUIDES IN ADJUSTMENT RACK OF THE PAD PAD SUPPORT SUPPORT. NOTE THAT THE THICKER SIDE OF THE NYLON GUIDE GOES ON THE OUTSIDE OF THE BRACKET. 2) WHILE HOLDING THE GUIDES IN PLACE, SLIDE ASSEMBLY ONTO THE BACK EXTENSION FRAME BETWEEN THE TWO GUIDE RODS.
  • Page 28 STEP 24 1/2" LOCKNUT 1/2 X 7-1/4" BOLT 1/2" FLAT WASHER REPOSITION GUIDE RODS AND SECURELY TIGHTEN HARDWARE AS SHOWN. NOTES: SECURELY tighten bolt connections in this step. Reuse hardware from previous steps.
  • Page 29 STEP 25 PAD SUPPORT 1/2" FLAT WASHER (2) PIVOT SHAFT 1/2 X 7-1/4" BOLT (2) LINEAR GUIDE ASSEMBLY NOTE: MAKE SURE THE PIVOT SHAFT IS CENTERED IN THE PAD SUPPORT BEFORE INSTALLING HARDWARE. PAD SUPPORT 1/2" LOCKNUT NOTES: SECURELY tighten bolt connections in this step. Parts are hidden for assembly clarity.
  • Page 30 STEP 26 ROLLER PAD END CAP (2) NOTE: ALIGN TAB FEATURE WITH THE NOTCH IN TUBE BEFORE TIGHTENING. ROLLER PAD (2) 3/8 X 1" BOLT (2) ROLLER PAD TUBE NOTE: LOOSEN SET SCREWS NOTES: LOOSELY tighten bolt connections in this step. Parts are hidden for assembly clarity.
  • Page 31 STEP 27 BACK EXTENSION FRAME 1/4-20 X 1/4" SET SCREW (2) NOTE: CENTER ROLLER PADS AND SECURELY TIGHTEN SET SCREWS NOTES: SECURELY tighten bolt connections in this step and previous steps. Parts are hidden for assembly clarity.
  • Page 32 STEP 28 HANDLE STORAGE ASSEMBLY BACK EXTENSION FRAME 3/8 X 1" FLAT HEAD SCREW (2) 3/8" FLAT WASHER (2) NOTES: 3/8" LOCK NUT (2) SECURELY tighten bolt connections in this step and previous steps. Parts are hidden for assembly clarity.
  • Page 33 STEP 29 BACK EXTENSION HANDLE QUICK LINK CABLE END NOTE: ONCE CONNECTED, SECURELY TIGHTEN QUICK LINK NUT USING A WRENCH.

  • Page 34: Floor Anchoring

    FLOOR ANCHORING NOTE: TEMPORARILY REMOVE BOLTS, WASHERS, AND BOOTS. ONCE ANCHORED REINSALL AND SECURELY TIGHTEN ANCHOR HOLES. BACK EXTENSION FRAME REQUIRES ANCHORING THE BASE TO THE FLOOR. MINIMUM TWO ANCHORS PER PLATE. NOTES: NOTE: REPEAT FOR BOTH BASE PLATES Anchor system to the floor referencing X-CREATE ANCHORING INSTRUCTIONS which can be downloaded at www.torquefitness.com/assembly-manuals WARNING!
  • Page 35 ADJUSTMENT NOTE: IF THE ADJUSTMENT DOES NOT FEEL SMOOTH, THE LINEAR GUIDE MAY BE ADJUSTED. TO ADJUST LOOSEN THE 4 BOLTS SHOWN UNTIL THE GUIDE SLIDES FREELY ON THE GUIDE RODS AND SECURELY RETIGHTEN. NOTE: FRAME TUBE IS HIDDEN FOR ASSEMBLY CLARITY.

  • Page 36: Maintenance

    MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.

  • Page 37: Top View

    LIVE AREA TOP VIEW 243.8cm 96.0in LIVE AREA 114.3cm 45.0in...
  • Page 38 DIMENSIONS 238cm 93.7in 149.5cm 65.4cm 58.9in 25.7in TOTAL UNIT WEIGHT : 492 LBS [223 KG]...

  • Page 39: Exercise Instructions

    EXERCISE INSTRUCTIONS...
