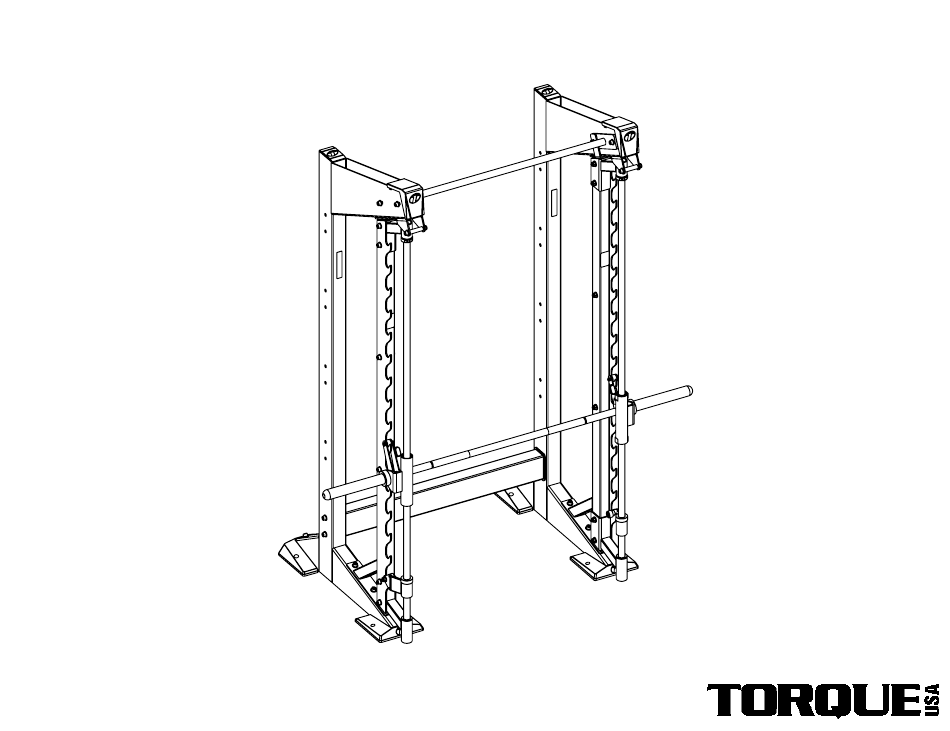

SMITH MODULE ASSEMBLY GUIDE
VERSION: XCREATE-SM-101
PART #: 5816401-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-SM-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XCREATE-SM-101

Summary of Contents for Torque XCREATE-SM-101

  • Page 1 SMITH MODULE ASSEMBLY GUIDE VERSION: XCREATE-SM-101 PART #: 5816401-A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important safety instructions: • Important safety instructions for using equipment: Page 3 • Important safety instructions for assembling equipment: Page 3 • Obtaining service: Page 3 General Notes: • Unpacking equipment: Page 4 • Tools Required: Page 4 •...

  • Page 3: Important Safety Instructions For Using Equipment

    Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST) or www.service@torquefitness.com Important Safety Instructions for Assembling Equipment Assistance is required.

  • Page 4: General Notes

    • A 6" scale is provided at the bottom of page. If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm every page. To correctly measure the •...

  • Page 5: Parts List

    ITEM PART NUMBER DESCRIPTION 2001301 WASHER, FLAT 1/2 SAE ST ZN 2001401 NUT, 1/2-13 LK ST ZN 57681PA PTD ASSY, SMITH UPRIGHT LEFT 57689PA PTD ASSY, SMITH UPRIGHT RIGHT 2005819 BOLT, 1/2-13 X 5" (127mm) SOCKET HEAD 5767801 WLDMT, UPRIGHT CONNECTOR 2006815 BOLT, 1/2-13 X 4"...

  • Page 6: Assembly Instructions: Pages

    STEP 1 Loosen bolts Loosen bolts XCREATE-8U (SHOWN) XCREATE-2S8U NOTE: NOTE: Remove Rear Base Caps Remove Front Base Caps and loosen Anchor Bolts (2X) and loosen Anchor Bolts (2X) Anchor holes...
  • Page 7 STEP 2 Spacer Loosen and remove Bolt, Washers, Nut and Spacer. NOTE: Discard Bolt Spacer Loosen and remove Bolt, Washers, Nut and Spacer. NOTE: Discard Bolt XCREATE-8U (SHOWN) XCREATE-2S8U Loosen and remove two Bolts and Washers Loosen and remove two Bolts and Washers...
  • Page 8 STEP 3a (LEFT SMITH UPRIGHT) STEP 3b (RIGHT SMITH UPRIGHT) Reuse Washers, Reuse Washers, Spacer and nut Spacer and nut from previous step from previous step Spacer Spacer XCREATE-8U (SHOWN) XCREATE-8U (SHOWN) XCREATE-2S8U XCREATE-2S8U Reuse Bolt and Washer Reuse Bolt and Washer from previous step from previous step NOTE:...
  • Page 9 STEP 4 XCREATE-8U (SHOWN) XCREATE-2S8U NOTE: LOOSELY assemble bolt connections in this step.
  • Page 10 STEP 5 NOTE: LOOSELY assemble bolt connections in this step.
  • Page 11 STEP 6 Insert Guide Rod into Right Support Insert Guide Rod into Left Support NOTE: Complete this step on the floor.
  • Page 12 STEP 7a NOTE: Remove tape and Caution Label from both ends of Smith Bar Slide before installation in next step. NOTE: leave plug in NOTE: Remove tape and Caution Label from both ends of Smith Bar Slide before installation in next step. NOTE: leave plug in...
  • Page 13 STEP 7b 1) Slide Right Bar Stop over Guide Rod 3) CAREFULLY Slide Smith Bar Slide over Guide Rod. Allow Guide Rod to push out plug 2) Slide Smith Bar Bumper over Guide Rod (2X) Note direction 1) Slide Left Bar Stop of warning label 5) Slide Right Upper Guide Rod over Guide Rod...
  • Page 14 STEP 8 Note direction of assembly of Smith Bar CAREFULLY Slide Smith Bar Slide all the way into Smith Bar CAREFULLY Slide Smith Bar Slide all the way into Smith Bar...
  • Page 15 STEP 9 NOTE: Hang Roller on Hook NOTE: Hang Roller on Hook NOTE: This step requires two people to assemble. Please get help. If previous step was assembled on the floor, then CAREFULLY stand assembly up and assemble to Smith Module as shown.
  • Page 16 STEP 10 Slide Upper Guide Rod Slide Upper Guide Rod Support up Guide Rod and Support up Guide Rod and assemble to upper set of assemble to upper set of holes as shown in inset holes as shown in inset NOTE: LOOSELY assemble bolt connections in this step.
  • Page 17 STEP 11 (BOLT TIGHTENING SEQUENCE) 4) SECURELY tighten this bolt on both sides XCREATE-8U (SHOWN) XCREATE-2S8U 2) SECURELY tighten NOTE: these bolts on both sides Before completing this step, slide Smith Bar up and down the guide rods, several times 6) SECURELY tighten these bolt on both sides 3) SECURELY tighten...
  • Page 18 STEP 12 Slide Clamping Shaft Collar up Guide rod to Upper Guide Rod Support and tighten Set Screw Set Screw Slide Clamping Shaft Collar up Guide rod to Upper Guide Rod Support and tighten Set Screw NOTE: SECURELY tighten bolt connections in this step.
  • Page 19 STEP 13 XCREATE-8U (SHOWN) XCREATE-2S8U SECURELY assemble Rear Base Caps SECURELY reassemble Front Base Caps NOTE: SECURELY tighten all bolt connections in this step.

  • Page 20: Adjustments: Pages 20

    STEP 14 (SMITH BAR OPERATION)
  • Page 21 STEP 14 (BAR STOP OPERATION)

  • Page 22: Warnings

    STEP 14 (PRODUCT WARNINGS)

  • Page 23: Maintenance

    GUIDE RODS: Clean and lubricate with a silicone or teflon base lubricant. NUTS/BOLTS: Tighten and/or adjust as needed. FRAME: Wipe down and damp cloth. For customer service contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). or www.service@torquefitness.com...
