Torque XCREATE-4SHAM-101 Assembly Instructions Manual

4 ft (1.2 m) standing hip abductor module
Hide thumbs

Advertisement

Table of Contents

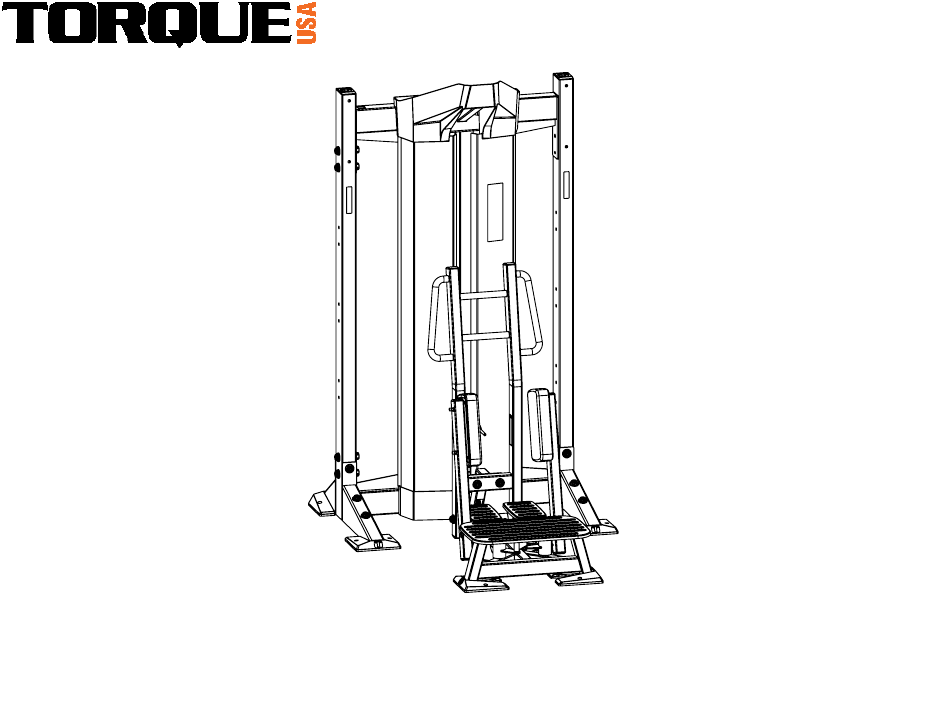

ASSEMBLY INSTRUCTIONS
4 FT (1.2 M) STANDING HIP ABDUCTOR MODULE
VERSION: XCREATE-4SHAM-101
PART # 6019101-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-4SHAM-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XCREATE-4SHAM-101

Summary of Contents for Torque XCREATE-4SHAM-101

  • Page 1 ASSEMBLY INSTRUCTIONS 4 FT (1.2 M) STANDING HIP ABDUCTOR MODULE VERSION: XCREATE-4SHAM-101 PART # 6019101-D...
  • Page 2 Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 3: General Notes

    If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 or • Insert all bolts in the direction indicated in service@torquefitness.com...
  • Page 4 DECALS AND WARNINGS...

  • Page 5: Exercise Instructions

    EXERCISE INSTRUCTIONS...
  • Page 6 5643201 GUIDE ROD, 19 DIA X 1912 If you worked with Torque X-Team Design during the purchasing process, 56345PA PTD ASSY, HEAD PLATE please request a Bill of Material Drawing to reference your exact set-up.
  • Page 7 STEP 1 TOP BOOM SUPPORT NYLON WASHER, NUT COVER (8) NYLON WASHER, BOLT COVER (8) XCREATE UPRIGHT (2) (SEE NOTE) 1/2" LOCK NUT (8) 1/2 X 4-1/4" BOLT (8) BASE SUPPORT NOTES: LOOSELY tighten bolt connections in this step. The XCREATE-SHA is shown assembled to the XCREATE-7U. However, the XCREATE-SHA can also be assembled to the XCREATE-8U and XCREATE-2S8U the same way.
  • Page 8 STEP 2a NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME NOTE 2: NOTE: ROUTE THE THREADED END OF THE CABLE DO NOT TIGHTEN THROUGH THE FRONT SLOT AND OUT THE THESE BOLTS AT THIS TIME TOP SLOT OF THE BASE SUPPORT AS SHOWN CABLE BASE SUPPORT NOTE 1:...

  • Page 9: Section View

    STEP 2b NOTE 2: CONTINUE TO FOLLOW THE CABLE PATH SHOWN BELOW UNTIL THE CABLE END CAN BE GRABBED IN THIS SLOT. SECTION VIEW BASE SUPPORT ABDUCTOR BASE NOTE 1: TAKE THE NON-THREADED END OF THE CABLE CABLE AND BEGIN ROUTING UNDER THIS FIRST PULLEY.

  • Page 10: Top View

    STEP 2c TOP VIEW BASE SUPPORT NOTE 2: PULL THE CABLE OUT THROUGH CABLE THIS SIDE AND SECURE IT. THE CABLE ROUTING WILL BE COMPLETED IN A LATER STEP. NOTE 1: USE THE OPEN SLOT IN THE ABDUCTOR BASE TO TURN THE CABLE AROUND, AND ROUTE IT THROUGH THE REAR PULLEY REAR PULLEY ABDUCTOR BASE...
  • Page 11 STEP 2d NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME 1/2" LOCK NUT (2) CABLE BASE SUPPORT 1/2" FLAT WASHER (4) NOTE: 1/2 X 4-1/4" BOLT (2) IF ASSEMBLING CABLE STATIONS BACK TO BACK, PLEASE ABDUCTOR BASE NOTE THAT THEY SHARE THE SAME BASE SUPPORT AND HARDWARE AS SHOWN.
  • Page 12 STEP 3 3/8" FLAT WASHER (2) 3/8 X 4-3/4" BOLT (2) ABDUCTOR BASE NOTES: SECURELY tighten bolt connections in this step.
  • Page 13 STEP 4 3/8" LOCK NUT (2) BASE SUPPORT LEFT SHROUD BASE 3/8" FLAT WASHER (4) NOTES: 3/8 X 3-3/4" BOLT (2) SECURELY tighten bolt connections in this step.
  • Page 14 STEP 5 3/8" LOCK NUT (2) BASE SUPPORT RIGHT SHROUD BASE 3/8" FLAT WASHER (4) 3/8 X 3-3/4" BOLT (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 15 STEP 6 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) HEAD PLATE GUIDE ROD (2) 10 LB WEIGHT PLATE (10) 15 LB WEIGHT PLATE (5) CABLE WEIGHT STACK CUSHION (2) NOTE: INSERT THE GUIDE RODS THROUGH THE ROW BASE AND DOWN TO TOP OF BOLTS ABDUCTOR BASE NOTES: TOP BOOM SUPPORT has been hidden for illustration clarity.

  • Page 16: Head Plate

    STEP 7 3/8 X 3/4" BOLT (2) WEIGHT SELECTOR STORAGE PLATE CABLE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step.
  • Page 17 STEP 8 TOP BOOM SUPPORT NOTE: BEFORE ASSEMBLING THE TOP BOOM, ROUTE THE CABLE UP THROUGH THE BOTTOM SLOT AND OUT THE FRONT SLOT OF THE TOP BOOM SUPPORT AS SHOWN CABLE...
  • Page 18 STEP 9 TOP BOOM CABLE 3/8" LOCK NUT NOTE 1: WRAP CABLE OVER THE TOP OF A 4-1/2" PULLEY AND ASSEMBLE THE PULLEY TO THE ROW TOP BOOM AS SHOWN 4-1/2" PULLEY 3/8" FLAT WASHER (2) CABLE FROM TOP BOOM SUPPORT NOTE 2: 3/8 X 2"...
  • Page 19 STEP 10 TOP BOOM 1/2 X 4-1/4" BOLT (2) 1/2" FLAT WASHER (4) TOP BOOM SUPPORT 1/2" LOCK NUT (2) NOTE: IF ASSEMBLING CABLE STATIONS BACK TO BACK, PLEASE NOTE THAT THEY SHARE THE SAME TOP BOOM SUPPORT AND HARDWARE AS SHOWN. BOTH TOP BOOMS NEED TO BE ASSEMBLED SIMULTANEOUSLY CABLE CABLE...
  • Page 20 STEP 11 NOTE: SECURELY TIGHT THESE BOLTS NOTE: SECURELY TIGHT THESE BOLTS TOP BOOM GUIDE ROD RETAINER (2) SHAFT COLLAR (2) NOTE: SLIDE GUIDE ROD RETAINERS UP INSIDE TOP BOOM. SLIDE SHAFT COLLARS UP AGAINST GUIDE ROD RETAINERS AND SECURELY TIGHTEN BOTH SCREWS OF SHAFT COLLARS GUIDE ROD (2) NOTE:...
  • Page 21 STEP 12 NOTE: NOTE: MAKE SURE SHROUD IS MAKE SURE SHROUD IS SEATED BETWEEN THE SEATED BETWEEN THE SHROUD SUPPORT AND SHROUD SUPPORT AND THE FOUR TABS AS SHOWN. THE FOUR TABS AS SHOWN. TOP VIEW RIGHT TOP VIEW LEFT RIGHT SHROUD BASE FRONT SHROUD (2) LEFT SHROUD BASE...
  • Page 22 STEP 13a 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) NOTE: MAKE SURE INTERNAL GROOVES OF TOP CAP THE TOP CAP FIT DOWN OVER THE TOP EDGES OF BOTH FRONT SHROUDS. TOP BOOM SUPPORT FRONT SHROUD FRONT SHROUD (LEFT SIDE) (RIGHT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
  • Page 23 STEP 13b 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP CAP TOP BOOM NOTES: SECURELY tighten bolt connections in this step, and previous step.
  • Page 24 STEP 14 NOTE PLACARD CENTER PLACARD ON SHROUD SURFACE. FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-1/4" (5.7 CM)
  • Page 25 STEP 15 3/8" FLAT WASHER (2) ABDUCTOR LEG PAD 3/8" X 3" BOLT (2) ABDUCTOR RIGHT LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 26 STEP 16 3/8" FLAT WASHER (2) 3/8" X 3" BOLT (2) ABDUCTOR LEG PAD ABDUCTOR LEFT LEG NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
  • Page 27 STEP 17 ABDUCTOR RIGHT LEG ABDUCTOR LEFT LEG ABDUCTOR BASE...
  • Page 28 STEP 18 1/2 X 2-3/4" SHOULDER BOLT (2) CENTER SWIVEL ABDUCTOR LEFT LEG 3/8" LOCK NUT (2) ABDUCTOR RIGHT LEG NOTES: SECURELY tighten bolt connections in this step.
  • Page 29 STEP 19 STORAGE FOR WEIGHT STACK SELECTOR PIN CABLE END NOTE: THREAD THE CABLE THROUGH THE PULLEY OF THE ABDUCTOR RIGHT LEG. REMOVE THE CORE AND PLACE THE CABLE END INSIDE THE JAM NUT CORE. PLACE THE SPACER BACK INTO THE CORE AND REPLACE THE BOLT.
  • Page 30 STEP 20 ABDUCTOR HANDLE MOUNT NYLON WASHER, NUT COVER (4) 1/2" LOCK NUT (4) NYLON WASHER, BOLT COVER (4) 1/2 X 3" BOLT (4) ABDUCTOR BASE NOTES: SECURELY tighten connections in this step. Some parts have been hidden for illustration clarity.
  • Page 31 STEP 21 3/8 X 1" FLAT HEAD BOLT (4) SUPPORT PLATE ABDUCTOR BASE ABDUCTOR LEGS NOTES: SECURELY tighten connections in this step.

  • Page 32: Foot Plate

    STEP 22 FOOT PLATE 5/16" FLAT WASHER (4) 5/16" LOCK NUT (4) NOTE: ALLOW THE PEM STUDS ON THE BOTTOM OF THE FOOT PLATE TO GO THROUGH THE SUPPORT PLATE. SECURELY TIGHTEN NUT. NOTES: SECURELY tighten connections in this step. Some parts have been hidden for illustration clarity.

  • Page 33: Foot Cover

    STEP 23 1/4" X 3/8" BOLT (4) 1/4" FLAT WASHER (4) FOOT COVER NOTES: ABDUCTOR BASE SECURELY tighten connections in this step.
  • Page 34 STEP 24 (OPTIONAL REAR SHROUD) TOP BOOM SUPPORT REAR SHROUD NOTE: MAKE SURE THAT THE FRONT SHROUDS ARE SEATED BETWEEN THE REAR SHROUD AND THE FOUR TABS AS SHOWN 3/8 X 1" BOLT (4) REAR SHROUD BASE SUPPORT 3/8" FLAT WASHER (4)

  • Page 35: Maintenance

    MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.
  • Page 36 LIVE AREA TOP VIEW 54.0in 137cm LIVE AREA 54.0in 137cm...
  • Page 37 DIMENSIONS 93.7in 238cm 54.2in 73.7in 138cm 187cm TOTAL UNIT WEIGHT : 797 LBS [362 KG]...
