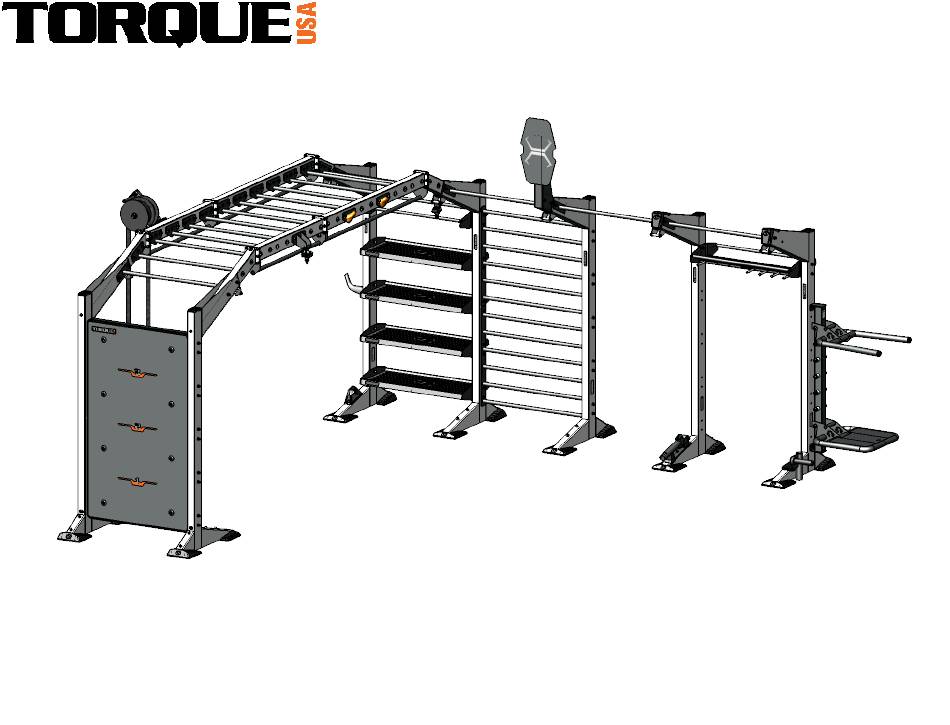

X-CREATE BRIDGE SPACE
Assembly Guide
PART # 5616501-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-CREATE BRIDGE SPACE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque X-CREATE BRIDGE SPACE

Summary of Contents for Torque X-CREATE BRIDGE SPACE

  • Page 1 X-CREATE BRIDGE SPACE Assembly Guide PART # 5616501-B...

  • Page 2: Table Of Contents

    BRIDGE ASSEMBLY: PAGES 4-9 manual provides instructions for assembling base units, module options and MODULE ASSEMBLY attachment options. If you worked with Torque X-Team Design during the • 8' UPRIGHT EXTENSION MODULE: PAGE 12 purchasing process, please request a Bill of Material Drawing to reference your •...
  • Page 3 BRIDGE ASSEMBLY XRACK-4MB (12) XCREATE-6MBX (2) XCREATE-4SX (2) XCREATE-4MBX (2) XCREATE-MBXE (4) XCREATE-8U (4) XCREATE-6FB (2) XCREATE-4FB (2)

  • Page 4: Bridge Assembly: Pages

    BRIDGE ASSEMBLY NOTE: REMOVE SPACERS (2) AND DISCARD NOTE: REMOVE END CAP AND DISCARD NOTE: TEMPORARILY REMOVE PRE-INSTALLED BOLTS, WASHERS AND NUTS XCREATE-8U NOTE: URETHANE BOOTS WILL BE ASSEMBLED IN THE LAST STEP NOTE: Repeat this step for three more uprights.
  • Page 5 BRIDGE ASSEMBLY XCREATE-MBXE NOTE: USE BOLTS, WASHERS AND NUTS FROM PREVIOUS STEP 1/2" FLAT WASHER 1/2 X 6" BOLT XCREATE-8U NOTE: LOOSELY assemble bolt connections in this step. Repeat this step for three more uprights.
  • Page 6 BRIDGE ASSEMBLY 1/2 X 1-1/2" BOLT (12) XCREATE-8U (2) 1/2" FLAT WASHER (24) 1/2" LOCK NUT (12) XCREATE-MBXE (2) XCREATE-6MBX XCREATE-4MBX NOTE: For ease of assembly, assemble this step on the floor. LOOSELY assemble bolt connections in this step. Repeat this step for the opposite side.
  • Page 7 BRIDGE ASSEMBLY XCREATE-MBXE (2) XCREATE-6MBX XCREATE-4MBX XCREATE-6FB XCREATE-4FB 1/2 X2" BOLT (6) 1/2" FLAT WASHER (12) 1/2" LOCK NUT (6) NOTE: For ease of assembly, assemble this step on the floor. LOOSELY assemble bolt connections in this step. Repeat this step for the opposite side.
  • Page 8 BRIDGE ASSEMBLY XCREATE-8U (4) 1/2" LOCK NUT (8) PRE-INSTALLED XCREATE-4SX (2) 1/2" FLAT WASHER (16) PRE-INSTALLED 1/2 X 4-3/4" BOLT (8) PRE-INSTALLED NOTE: CAREFULLY stand each side up. Space sides approximately 4' apart. LOOSELY assemble bolt connections in this step.
  • Page 9 BRIDGE ASSEMBLY XCREATE-6MBX (2) XRACK-4MB (12) XCREATE-4MBX (2) XCREATE-MBXE (4) 1/2" LOCK NUT (4) 1/2 X 4-1/2" BOLT (4) 1/2" FENDER WASHER (8) NOTE: REPEAT THIS STEP FOR AS MANY MONKEY BARS TO BE ASSEMBLED NOTE: After this step has been completed, SECURELY tighten all bolt connections made to this point.

  • Page 10: Module Assembly

    MODULE ASSEMBLY BALL & HANGING 8' UPRIGHT EXTENSION MODULE STORAGE MODULE STALL BAR MODULE STORAGE MODULE BALL TARGET WALL 8' OLYMPIC LIFTING BALL TARGET WALL MODULE FOR REVERSE SIDE STATION MODULE...
  • Page 11 8' UPRIGHT EXTENSION MODULE XCREATE-4SX XCREATE-8U...

  • Page 12: 8' Upright Extension Module

    8' UPRIGHT EXTENSION MODULE NOTE: NOTE: MAKE SURE TO USE PRE- REMOVE END CAP PRIOR TO ASSEMBLY. INSTALLED SPACER (2) RE-ATTACH END CAP AFTER ASSEMBLY. 1/2" LOCK NUT (4) PRE-INSTALLED 1/2 X 4-3/4" BOLT (4) PRE-INSTALLED XCREATE-4SX 1/2" FLAT WASHER (8) PRE-INSTALLED XCREATE-8U NOTE:...
  • Page 13 STORAGE MODULE XCREATE-4BS XCREATE-4AT (4)

  • Page 14: Storage Module: Pages

    STORAGE MODULE XCREATE-8U (2) 1/2 X 4-1/4" 1/2 FLAT WASHERS (32) BOLT (16) 1/2 LOCK NUT (16) XCREATE-4AT (4) NOTE: LOOSELY assemble all bolt connections in this step.
  • Page 15 STORAGE MODULE END BRACKET (2) 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 4-1/4" BOLT (4) XCREATE-8U (2) NOTE: LOOSELY assemble bolt connections in this step.
  • Page 16 STORAGE MODULE RAIL (2) END BRACKET (2) 3/8" FLAT WASHER (4) 3/8 X 1-1/4" BOLT (4) NOTE: RAILS ARE ASSEMBLED FOR STABILITY BALL WIDTH. RAILS CAN BE BOLTED TO NARROWER HOLES FOR SMALLER ACCESSORIES. NOTE: If more modules will be assembled, do not tighten bolts at this time.
  • Page 17 STORAGE MODULE ATTACH DESIRED LABEL TO EACH ACCESSORY TRAY 3/8" 1-3/4" XCREATE-4AT (4) ACCESSORY LABEL NOTE: If you are a professional contractor installing this system for a facility, leave these labels and instructions with a manager or inquire what label to attach to each accessory tray.
  • Page 18 STALL BAR MODULE...

  • Page 19: Stall Bar Module

    STALL BAR MODULE XCREATE-8U (2) 1/2" LOCK NUT (20) 1/2 X 4-1/4" BOLT (20) 1/2" FLAT WASHER (40) XCREATE-4SB (2) NOTE: If more modules will be assembled, do not tighten bolts at this time.
  • Page 20 BALL & HANGING STORAGE MODULE...

  • Page 21: Ball & Hanging Storage Module: Pages

    BALL & HANGING STORAGE MODULE 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 4-1/4" BOLT (4) END BRACKET (2) XCREATE-8U (2) NOTE: LOOSELY assemble bolt connections in this step.
  • Page 22 BALL & HANGING STORAGE MODULE RAIL (2) 3/8" FLAT WASHER (4) 3/8 X 1-1/4" BOLT (4) NOTE: RAILS ARE ASSEMBLED FOR STABILITY BALL WIDTH. RAILS CAN BE BOLTED TO END BRACKET (2) NARROWER HOLES FOR SMALLER ACCESSORIES. NOTE: LOOSELY assemble all bolt connections in this step.
  • Page 23 BALL & HANGING STORAGE MODULE 4' HANGING STORAGE 3/8" FLAT WASHER (4) 3/8 X 1-1/4" BOLT (4) END BRACKET (2) NOTE SLOT DIRECTION NOTE: After this step has been completed, SECURELY tighten all bolt connections made to this point. If more modules will be assembled, do not tighten bolts at this time. Some parts have been hidden for assembly clarity.
  • Page 24 BALL & HANGING STORAGE MODULE 4' HANGING STORAGE 3/8" FLAT WASHER (10) 3/8" LOCK NUT (5) MAT STORAGE PIN (2) ACCESSORY HOLDER PIN (3) BEFORE TIGHTENING NUT, ADJUST MAT STORAGE PIN TO DESIRED POSITION NOTE: SECURELY tighten connections in this step.
  • Page 25 BALL TARGET WALL MODULE & BALL TARGET WALL REVERSE SIDE BALL TARGET WALL REVERSE SIDE BALL TARGET WALL MODULE...

  • Page 26: Ball Target Wall Module

    BALL TARGET WALL MODULE XCREATE-8U (2) 1/2" LOCK NUT (20) 1/2" FLAT WASHER (40) 1/2 X 4-1/4" BOLT (20) XCREATE-4BTW NOTE: If more modules will be assembled, do not tighten bolts at this time.

  • Page 27: Ball Target Wall Reverse Side: Pages

    BALL TARGET WALL REVERSE SIDE XCREATE-4BTW (BACK SIDE) 0.5 (2) 0.5 (6) 5/8 X 31-3/4" STRIP (2) 5/8 X 5-1/4" STRIP (8) 0.6 (4) 5/8 X 18-3/4" 0.5 (4) STRIP (4) 5/8 X 40-3/4" STRIP (2) NOTE: CUT FOAM STRIPS TO LENGTH AS SHOWN. PEEL PROTECTIVE FILM OFF THE BACK OF THE FOAM STRIPS AND ATTACH TO FRAME OF BALL TARGET WALL AS SHOWN ABOVE.
  • Page 28 BALL TARGET WALL REVERSE SIDE XCREATE-4BTWRS BOLT CAP (8) 3/8 X 1-1/2" FLAT HEAD BOLT (8) XCREATE-4BTW NOTE: SECURELY tighten connections in this step.
  • Page 29 8' OLYMPIC LIFTING STATION MODULE...

  • Page 30: 8' Olympic Lifting Station Module: Pages

    8' OLYMPIC LIFTING STATION MODULE NOTE: MAKE SURE TO USE PRE- XCREATE-4SX INSTALLED SPACER (2) 1/2" LOCK NUT (2) PRE-INSTALLED 1/2" FLAT WASHER (4) PRE-INSTALLED 1/2 X 4-3/4" BOLT (2) PRE-INSTALLED XCREATE-8U (2) RIGHT UPRIGHT LEFT UPRIGHT 1/2 X 1" BOLT (2) PRE-INSTALLED 1/2"...
  • Page 31 8' OLYMPIC LIFTING STATION MODULE NOTE: INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE LEFT BAR SUPPORT RIGHT BAR SUPPORT RIGHT UPRIGHT NOTE: TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK.
  • Page 32 8' OLYMPIC LIFTING STATION MODULE NOTE: INSERT BAR BAR CATCHES INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE RIGHT UPRIGHT RIGHT BAR CATCH LEFT UPRIGHT NOTE: LEFT BAR TO REMOVE BAR CATCHES FROM CATCH UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK.
  • Page 33 8' OLYMPIC LIFTING STATION MODULE XCREATE-8U (2) 1/2" FLAT WASHER (16) 1/2" LOCK 1/2 X 5-3/4" BOLT (8) NUT (8) XCREATE-8UVWS (2) NOTE: MAKE SURE WEIGHT HORNS ANGLE UP NOTE: MAKE SURE WEIGHT HORNS ANGLE UP NOTE: SECURELY tighten bolt connections in this step.
  • Page 34 ATTACHMENTS XCREATE-BHSE BALL & HANGING XRACK-BRA XCREATE-HSH XCREATE-DP STORAGE EXTENSION BATTLE ROPE ANCHOR HANGING STORAGE HOOK DOUBLE PLAY XHMGRT HORIZONTAL MOUNT XCREATE-3DS XCREATE-BT XCREATE-RBA GROUND ROTATIONAL TRAINER 3 DIMENSIONAL SWIVEL BALL TARGET RESISTANCE BAND ANCHOR...
  • Page 35 ATTACHMENTS XCREATE-VDS4 XCREATE-3DSM VERTICAL DUMBBELL XERD 3 DIMENSIONAL XRACK-RCK STORAGE - 4 PAIR ENDLESS ROPE DRUM SWIVEL W/ MOUNT ROCK CLIMBING KIT XLAB-AA XLAB-DA XLAB-PS ATTACHMENT ANCHOR DIP ATTACHMENT PLYO STEP...

  • Page 36: Ball & Hanging Storage Extension

    XCREATE-BHSE BALL & HANGING STORAGE EXTENSION 1/2" FLAT WASHER (4) 1/2 X 4-1/4" BOLT (2) 1/2" LOCK NUT (2) XCREATE-BHSE XCREATE-8U NOTE: SECURELY tighten bolt connections in this step.

  • Page 37: Battle Rope Anchor

    XRACK-BRA BATTLE ROPE ANCHOR XCREATE-8U 1/2 X 1" BOLT (2) PRE-INSTALLED 1/2" FLAT WASHER (2) PRE-INSTALLED XRACK-BRA NOTE: SECURELY tighten bolt connections in this step.

  • Page 38: Hanging Storage Hook

    XCREATE-HSH HANGING STORAGE HOOK XCREATE-8U 1/2" LOCK 1/2" FLAT WASHER (4) NUT (2) 1/2 X 4-1/4" BOLT (2) XCREATE-HSH NOTE: SECURELY tighten bolt connections in this step.

  • Page 39: Double Play

    XCREATE-DP DOUBLE PLAY (BAR & PLATE STORAGE) XCREATE-8U 1/2 X 1" BOLT (2) PRE-INSTALLED 1/2" FLAT WASHER (2) PRE-INSTALLED NOTE: MAX WEIGHT PLATE: 25 LBS. XCREATE-DP NOTE: SECURELY tighten bolt connections in this step.

  • Page 40: Horizontal Mount Ground Rotational Trainer

    HMGRT HORIZONTAL MOUNT GROUND ROTATIONAL TRAINER XCREATE-8U 1/2 X 1" BOLT (2) PRE-INSTALLED 1/2" FLAT WASHER (2) PRE-INSTALLED HMGRT NOTE: SECURELY tighten bolt connections in this step.

  • Page 41: 3-Dimensional Swivel On Upright: Pages

    XCREATE-3DS 3 DIMESIONAL SWIVEL (UPRIGHT) NOTE: TEMPORARILY REMOVE BOLT, SPACER, WASHERS AND NUT XCREATE-8U...
  • Page 42 XCREATE-3DS 3-DIMENSION SWIVEL (UPRIGHT) XCREATE-3DS XCREATE-8U NOTE: INSERT SPACER INTO THE 3-DIMENSIONAL SWIVEL AND RE-ASSEMBLE TO UPRIGHT USING HARDWARE FROM PREVIOUS STEP NOTE: SECURELY tighten bolt connections in this step.

  • Page 43: Ball Target: Pages

    XCREATE-BT BALL TARGET NOTE: REMOVE END CAP NOTE: AND DISCARD REMOVE SPACERS (2) AND DISCARD NOTE: TEMPORARILY REMOVE BOLTS, WASHERS AND NUTS XCREATE-4SX XCREATE-8U...
  • Page 44 XCREATE-BT BALL TARGET NOTE: ASSEMBLE BALL TARGET EXTENSION TO UPRIGHT BALL TARGET EXTENSION USING BOLTS WASHERS AND NUTS FROM PREVIOUS STEP XCREATE-4SX XCREATE-8U NOTE: LOOSELY assemble bolt connections in this step.
  • Page 45 XCREATE-BT BALL TARGET XCREATE-BT 1/2" LOCK NUT (2) 1/2" FLAT WASHER (4) BALL TARGET 1/2 X 4" BOLT (2) EXTENSION NOTE: After this step has been completed, SECURELY tighten all bolt connections from the last two steps.

  • Page 46: Resistance Band Anchor

    XCREATE-RBA RESISTANCE BAND ANCHOR NOTE: MAKE SURE TO USE PRE-INSTALLED SPACER 1/2" FLAT WASHER (2) 1/2" LOCK NUT PRE-INSTALLED PRE-INSTALLED 1/2 X 4-3/4" BOLT XCREATE-4SX PRE-INSTALLED XCREATE-RBA XCREATE-8U 1/2 X 1" BOLT (2) PRE-INSTALLED 1/2" FLAT WASHER (2) PRE-INSTALLED NOTE: SECURELY tighten bolt connections in this step.

  • Page 47: Vertical Dumbbell Storage - 4 Pair

    XCREATE-VDS4 VERTICAL DUMBBELL STORAGE - 4 PAIR XCREATE-8U 1/2" LOCK NUT (8) 1/2" FLAT WASHER (16) 1/2 X 4-1/4" BOLT (8) XCREATE-VDS4 NOTE: SECURELY tighten bolt connections in this step.

  • Page 48: Endless Rope Drum (Vertical Mount): Pages

    XERD ENDLESS ROPE DRUM (VERTICAL MOUNT) 1/2" FLAT WASHER (4) 1/2" LOCK NUT (2) 1/2 X 4-1/4" BOLT (2) CONNECTOR BRACKET (VERTICAL) XCREATE-8U NOTE: SECURELY tighten bolt connections in this step.
  • Page 49 XERD ENDLESS ROPE DRUM (VERTICAL MOUNT) 1/2" FLAT WASHER (4) 1/2 X 1-1/4" CONNECTOR HEX BOLT (4) BRACKET (VERTICAL) NOTE: THIS BOLT MUST BE ASSEMBLED FROM THIS DIRECTION 1/2" FLANGE NUT (4) ENDLESS ROPE DRUM NOTE: SECURELY tighten bolt connections in this step.

  • Page 50: Endless Rope Drum (Horizontal Mount): Pages

    XERD ENDLESS ROPE DRUM (HORIZONTAL MOUNT) XCREATE-4MBX 1/2" LOCK NUT (2) CONNECTOR BRACKET (HORIZONTAL) 1/2 X 4-1/2" BOLT (2) 1/2" FENDER WASHER (4) NOTE: SECURELY tighten bolt connections in this step.
  • Page 51 XERD ENDLESS ROPE DRUM (HORIZONTAL MOUNT) CONNECTOR 1/2" FLAT WASHER (4) BRACKET 1/2 X 1-1/4" BOLT (4) (HORIZONTAL) NOTE: THIS BOLT MUST BE ASSEMBLED FROM THIS DIRECTION 1/2" FLANGE NUT (4) ENDLESS ROPE DRUM NOTE: SECURELY tighten bolt connections in this step.

  • Page 52: Dimesional Swivel W/ Mount

    XCREATE-3DSM 3 DIMENSIONAL SWIVEL W/ MOUNT 1/2" LOCK XCREATE-4MBX NUT (2) XCREATE-3DSM 1/2 X 4-1/2" BOLT (2) 1/2" FENDER WASHER (4) NOTE: SECURELY tighten bolt connections in this step.

  • Page 53: Rock Climbing Kit

    XRACK-RCK ROCK CLIMBING KIT XCREATE-6MBX LEFT ROCK CLIMBING HOLD LEFT RIGHT 1/2" LOCK NUT (8) RIGHT ROCK XCREATE-6MBX CLIMBING HOLD NOTE: 1/2 X 4-1/2" BOLT (4) MAKE SURE THE LEFT AND RIGHT ROCK CLIMBING HOLDS ANGLE IN TOWARDS EACH OTHER. 1/2"...

  • Page 54: Attachment Anchor

    XLAB-AA ATTACHMENT ANCHOR XCREATE-8U XLAB-AA 1/2 X 4-1/4" BOLT (2) 1/2" LOCK NUT (2) 1/2" FLAT WASHER (4) NOTE: SECURELY tighten bolt connections in this step.

  • Page 55: Dip Attachemnt

    XLAB-DA DIP ATTACHMENT XLAB-DA XLAB-AA...

  • Page 56: Plyo Step

    XLAB-PS PLYO STEP XLAB-AA XLAB-PS...

  • Page 57: Anchoring

    ANCHOR XCREATE-8U ANCHOR HOLES ALL UPRIGHTS ARE TO BE ANCHORED TO THE ANCHOR HOLES FLOOR. (MINIMUM TWO ALL UPRIGHTS ARE TO ANCHORS PER PLATE). BE ANCHORED TO THE FLOOR. (MINIMUM TWO ANCHORS PER PLATE). NOTE: Make sure all bolts are SECURELY tighten. Position system to desired location in the room.

  • Page 58: Urethane Boot

    URETHANE BOOTS 2-3/4" REAR BOOT XCREATE-8U 1-3/4" FRONT BOOT 1/4 X 3/8" BOLT 1/4" FLAT WASHER FRONT BOOT REAR BOOT NOTE: The URETHANE BOOTS and hardware are packaged in the upright boxes SECURELY tighten bolt connections in this step. Repeat this step for every upright.
