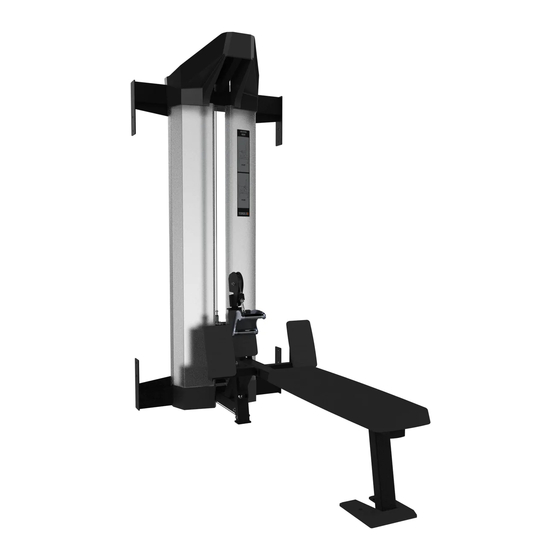

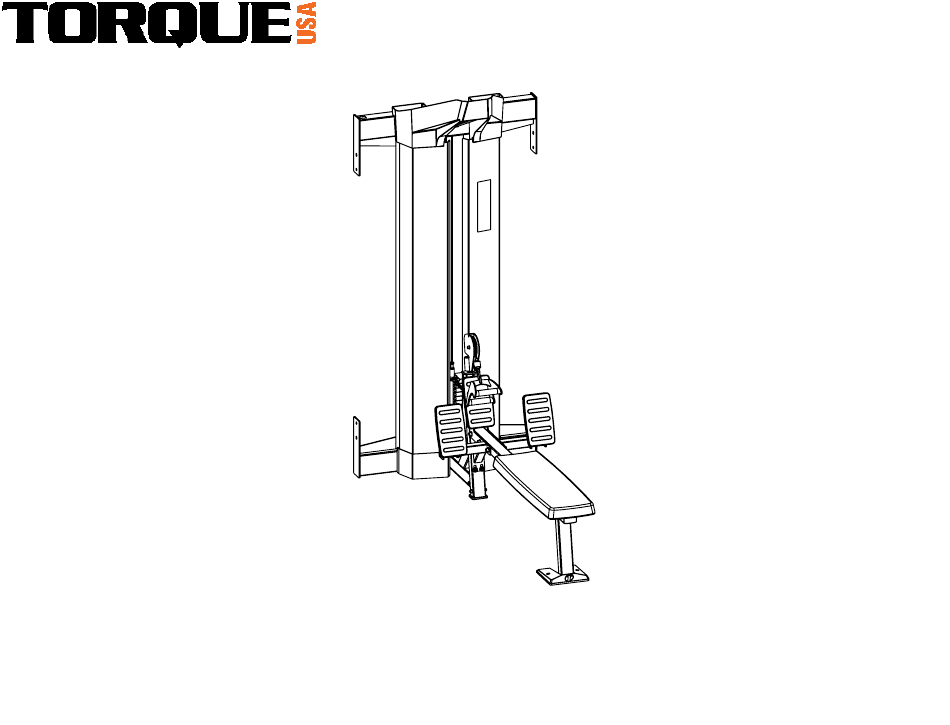

- Page 1 ASSEMBLY INSTRUCTIONS 4 FT (1.2 M) SEATED ROW MODULE VERSION: XCREATE-4SRM PART # 5676001-A...
- Page 2 56351PA PTD ASSY, 20 LB WEIGHT PLATE If you worked with Torque X-Team Design during the purchasing process, 56350PA PTD ASSY, 15 LB WEIGHT PLATE please request a Bill of Material Drawing to reference your exact set-up.
- Page 3 STEP 1 TOP BOOM SUPPORT 1/2 X 4-1/4" BOLT (8) 1/2" FLAT WASHER (16) 1/2" LOCK NUT (8) XCREATE UPRIGHT (2) (SEE NOTE) BASE SUPPORT NOTES: LOOSELY tighten bolt connections in this step. The XCREATE-SR is shown assembled to the XCREATE-7U. However, the XCREATE-SR can also be assembled to the XCREATE-8U and XCREATE-2S8U the same way.
- Page 4 STEP 2 NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME NOTE 2: BEFORE ASSEMBLING ROW BASE, ROUTE THE CABLE THROUGH THE FRONT SLOT AND OUT THE TOP SLOT OF THE BASE SUPPORT AS SHOWN CABLE 1/2"...
- Page 5 STEP 3 3/8" FLAT WASHER (2) 3/8 X 4-3/4" BOLT (2) ROW BASE NOTES: SECURELY tighten bolt connections in this step.
- Page 6 STEP 4 3/8 X 3-3/4" BOLT (2) BASE SUPPORT 3/8" FLAT WASHER (4) 3/8" LOCK NUT (2) LEFT SHROUD BASE NOTES: SECURELY tighten bolt connections in this step.
- Page 7 STEP 5 3/8 X 3-3/4" BOLT (2) BASE SUPPORT 3/8" FLAT WASHER (4) 3/8" LOCK NUT (2) RIGHT SHROUD BASE NOTES: SECURELY tighten bolt connections in this step.
- Page 8 STEP 6 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) GUIDE ROD (2) HEAD PLATE 15 LB WEIGHT PLATE (10) CABLE 20 LB WEIGHT PLATE (5) NOTE: WEIGHT STACK CUSHION (2) INSERT THE GUIDE RODS THROUGH THE ROW BASE AND DOWN TO TOP OF BOLTS ROW BASE NOTES: TOP BOOM SUPPORT has been hidden for illustration clarity.
-
Page 9: Head Plate
STEP 7 3/8 X 3/4" BOLT (2) WEIGHT SELECTOR STORAGE PLATE CABLE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step. - Page 10 STEP 8 TOP BOOM SUPPORT NOTE: BEFORE ASSEMBLING THE TOP BOOM, ROUTE THE CABLE UP THROUGH THE BOTTOM SLOT AND OUT THE FRONT SLOT OF THE TOP BOOM SUPPORT AS SHOWN CABLE...
- Page 11 STEP 9 ROW TOP BOOM 3/8" LOCK NUT (2) CABLE FLANGE SPACER (2) NOTE 1: WRAP CABLE OVER THE TOP OF A 4-1/2" PULLEY AND ASSEMBLE THE PULLEY TO THE ROW TOP BOOM AS SHOWN 4-1/2" PULLEY 3/8" FLAT WASHER (2) CABLE FROM TOP BOOM SUPPORT 3/8 X 2-1/2"...
- Page 12 STEP 10 ROW TOP BOOM 1/2 X 4-1/4" BOLT (2) TOP BOOM SUPPORT 1/2" FLAT WASHER (4) 1/2" LOCK NUT (2) CABLE NOTE: IF ASSEMBLING CABLE STATIONS BACK TO BACK, PLEASE NOTE THAT THEY SHARE THE SAME TOP BOOM SUPPORT AND HARDWARE AS SHOWN.
- Page 13 STEP 11 NOTE: SECURELY TIGHT THESE BOLTS ROW TOP BOOM GUIDE ROD RETAINER (2) SHAFT COLLAR (2) NOTE: SECURELY TIGHTEN THESE BOLTS NOTE: GUIDE ROD (2) SLIDE THE GUIDE ROD RETAINERS UP INSIDE THE ROW TOP BOOM. SLIDE THE SHAFT COLLARS UP INSIDE OF THE GUIDE ROD RETAINERS AND SECURELY TIGHTEN THE SET SCREWS OF THE SHAFT COLLARS NOTES:...
- Page 14 STEP 12 NOTE: THE HOUSING ON THE CABLE SHOULD BE AT LEAST 1/2" AWAY FROM THE SWIVEL PULLEY. IF THE HOUSING IS TOUCHING THE SWIVEL PULLEY, THEN THE CABLE NEEDS TO BE STORAGE FOR WEIGHT ADJUSTED. LOOSEN JAM NUT AND TURN THE STACK SELECTOR PIN THREADED END OF THE CABLE COUNTER CLOCKWISE UNTIL THE HOUSING IS 1/2"...
- Page 15 STEP 13 NOTE: NOTE: MAKE SURE SHROUD IS MAKE SURE SHROUD IS SEATED BETWEEN THE SEATED BETWEEN THE SHROUD SUPPORT AND SHROUD SUPPORT AND THE FOUR TABS AS SHOWN. THE FOUR TABS AS SHOWN. TOP VIEW RIGHT TOP VIEW LEFT RIGHT SHROUD BASE FRONT SHROUD (2) LEFT SHROUD BASE...
- Page 16 STEP 14a 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) TOP CAP NOTE: MAKE SURE INTERNAL GROOVES OF THE TOP CAP FIT DOWN OVER THE TOP EDGES OF BOTH FRONT SHROUDS. TOP BOOM SUPPORT FRONT SHROUD (LEFT SIDE) FRONT SHROUD (RIGHT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
- Page 17 STEP 14b 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP CAP ROW TOP BOOM NOTES: SECURELY tighten bolt connections in this step, and previous step.
-
Page 18: Front Shroud
STEP 15 NOTE CENTER PLACARD ON PLACARD SHROUD SURFACE. FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-1/4" (5.7 CM) - Page 19 STEP 16 ROW BENCH FRAME NOTE: MAKE SURE THE BASE PLATE 1/2" X 3" BOLT (4) SITS FLAT ON THE FLOOR BEFORE TIGHTENING 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) ROW BASE NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
- Page 20 STEP 17 ROW FOOT SUPPORT 1/2" LOCK NUT (3) 1/2" FLAT WASHER (6) 1/2 X 4-1/4" BOLT (3) ROW BENCH FRAME NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.
- Page 21 STEP 18 BACK PAD ROW BENCH FRAME 3/8" FLAT WASHER (3) 3/8 X 3" BOLT (3) NOTES: SECURELY tighten bolt connections in this step.
-
Page 22: Front Base Cover
STEP 19 1/4 X 3/8" BOLT (2) 1/4" FLAT WASHER (2) ROW BENCH FRAME FRONT BASE COVER NOTES: SECURELY tighten bolt connections in this step. - Page 23 STEP 20 SNAP HOOK ROW HANDLE...
- Page 24 STEP 21 (OPTIONAL REAR SHROUD) TOP BOOM SUPPORT REAR SHROUD NOTE: MAKE SURE THAT THE FRONT SHROUDS ARE SEATED BETWEEN THE REAR SHROUD AND THE FOUR TABS AS SHOWN BASE SUPPORT REAR SHROUD 3/8 X 1" BOLT (4) 3/8" FLAT WASHER (4)
-
Page 25: Maintenance
MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.
