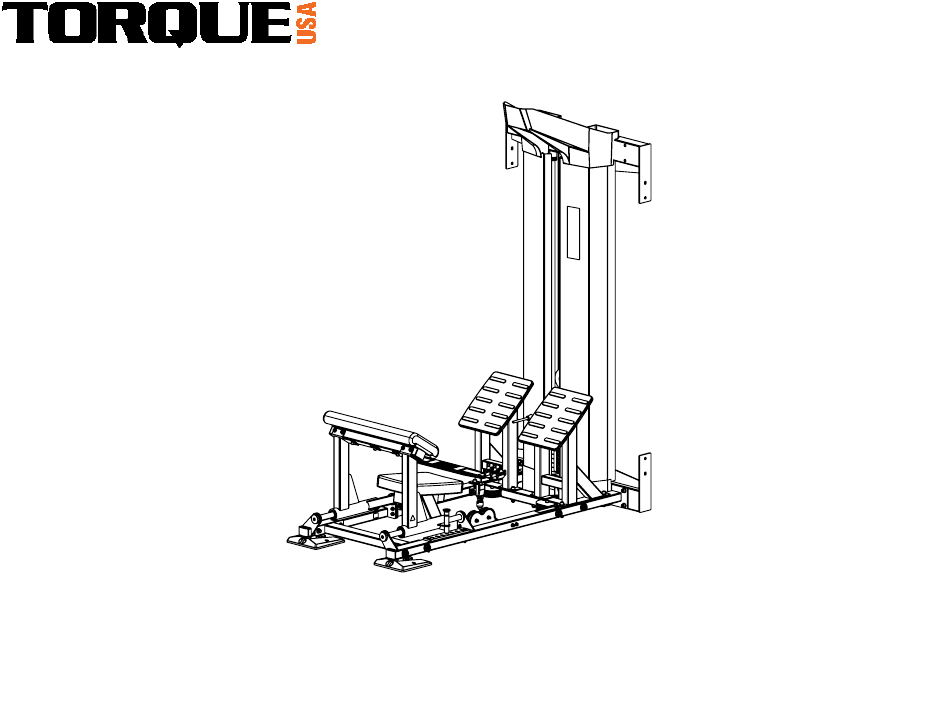

ASSEMBLY INSTRUCTIONS
4 FT (1.2 M) HIP THRUST MODULE
VERSION: XCREATE-4HTM
PART # 5997801-F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCREATE-4HTM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque XCREATE-4HTM

Summary of Contents for Torque XCREATE-4HTM

  • Page 1 ASSEMBLY INSTRUCTIONS 4 FT (1.2 M) HIP THRUST MODULE VERSION: XCREATE-4HTM PART # 5997801-F...
  • Page 2 Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 3: General Notes

    If any items are missing, contact Torque Fitness Customer service at: 763-754-7533 or • Insert all bolts in the direction indicated in service@torquefitness.com...
  • Page 4 DECALS AND WARNINGS...

  • Page 5: Exercise Instructions

    EXERCISE INSTRUCTIONS...
  • Page 6 2009411 BOLT, 3/8-16 X 3" (76mm) ST HT SOCKET HEAD W/NP If you worked with Torque X-Team Design during the purchasing process, 2002101 WASHER, FLAT 1/4 SAE ST ZN please request a Bill of Material Drawing to reference your exact set-up.
  • Page 7 STEP 1 TOP BOOM SUPPORT 1/2 X 4-1/4" BOLT (8) NYLON WASHER BOLT COVER (8) 1/2" LOCK NUT (8) NYLON WASHER NUT COVER (8) XCREATE UPRIGHT (2) (SEE NOTE) BASE SUPPORT NOTES: LOOSELY tighten bolt connections in this step. The XCREATE-HT is shown assembled to the XCREATE-U-7SS. However, the XCREATE-HT can also be assembled to the XCREATE-U-8SS and XCREATE-U-8DS the same way.
  • Page 8 STEP 2 NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME HIP THRUST BASE LEGS NOTE: DO NOT TIGHTEN THESE BOLTS AT THIS TIME 1/2 X 4-1/4" BOLT (4) 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) NOTE: IF ASSEMBLING CABLE STATIONS BACK TO BACK, PLEASE NOTE THAT THEY SHARE THE SAME BASE SUPPORT AND HARDWARE AS SHOWN.
  • Page 9 STEP 3 CENTER CROSSMEMBER 1/2" LOCK NUT (8) NYLON WASHER BOLT COVER (8) 1/2 X 4" BOLT (8) CROSS SUPPORT NOTES: 1/2" FLAT WASHER (8) SECURELY tighten bolt connections in this step, and the previous two steps, except as noted...
  • Page 10 STEP 4 1/2" LOCK NUT (4) TOP BOOM 1/2" FLAT WASHER (8) 1/2 X 4 1/4" BOLT (4) BACKING PLATE BASE CONNECTOR NOTE: IF ASSEMBLING CABLE STATIONS BACK TO BACK, PLEASE NOTE THAT THEY SHARE THE SAME TOP BOOM, BASE CONNECTOR AND HARDWARE.
  • Page 11 STEP 5a NOTE: REMOVE THESE 2 PULLEYS AND SET THEM TO THE SIDE. THESE PULLEYS WILL BE REPLACED ONCE THE CABLE IS FULLY ROUTED...

  • Page 12: Left Side

    STEP 5b NOTE: START BY GOING DOWN BETWEEN THESE 2 PULLEYS AND OUT THE LEFT SIDE THROUGH THE BEARING HOLE LEFT SIDE...
  • Page 13 STEP 6 ROUTE CABLE UNDER THE CABLE RETAINING BRACKET AND PULL THE CABLE DOWN THROUGH THE TOP BOOM NOTE: UPRIGHTS ARE HIDDEN TO SHOW THE CABLE ROUTING PATH CLEARLY ROUTE CABLE THROUGH THE PULLEY BRACKET LEFT SIDE AND PULL THE CABLE UP THROUGH THE CABLE STATION CROSS...
  • Page 14 STEP 7 TOP BOOM NOTE 1: PULL THE CABLE DOWN ABOUT 2/3 OF THE WAY TO THE FLOOR TO HAVE A LOOP AS SHOWN. CABLE LOOP NOTES: CABLE LOOP will be left hanging until the weight stack and head plate are installed.

  • Page 15: Right Side

    STEP 8 ROUTE CABLE UNDER THE CABLE RETAINING BRACKET AND PULL THE CABLE DOWN THROUGH THE TOP BOOM NOTE: UPRIGHTS ARE HIDDEN TO SHOW THE CABLE ROUTING PATH CLEARLY RIGHT SIDE ROUTE THE CABLE BACK THROUGH THE CABLE STATION CROSS AND OUT THROUGH THE PULLEY BRACKET NOTES: CABLE LOOP will be left hanging until the weight stack and head plate are installed.
  • Page 16 STEP 9a NOTE: FINISH BY ROUTING THE CABLE THROUGH THE BEARING HOLE AND UP BETWEEN THESE SWIVEL PULLEYS RIGHT SIDE NOTES: CABLE LOOP will be left hanging until the weight stack and head plate are installed.
  • Page 17 STEP 9b NOTE: REPLACE THESE 2 PULLEYS AFTER THE CABLE IS ROUTED.
  • Page 18 STEP 10 SEAT BELT BUCKLE 3/8" FLAT WASHER (2) 3/8 X 1" BOLT 3/8" LOCK NUT M5 X 6MM SOCKET HEAD SCREW (2) CORE HOUSING NOTES: SECURELY tighten bolt connections in this step.
  • Page 19 STEP 11 3/8" LOCK NUT (4) BASE SUPPORT NOTE: PREVIOUS STEPS ARE HIDDEN TO SHOW THE ASSEMBLY CLEARLY 3/8" FLAT WASHER (8) 3/8 X 3-3/4" BOLT (4) RIGHT SHROUD BASE NOTES: LEFT SHROUD BASE SECURELY tighten bolt connections in this step.
  • Page 20 STEP 12 GUIDE ROD RETAINER (2) SHAFT COLLAR (2) HEAD PLATE 15 LB WEIGHT STACK (5) 20 LB WEIGHT STACK (5) GUIDE ROD (2) NOTE: WEIGHT STACK CUSHION (2) INSERT GUIDE RODS THROUGH THE BASE CONNECTOR AND TOUCH THE FLOOR. THE GUIDE RODS WILL LEAN FORWARD AND REST.
  • Page 21 3/8" FLAT WASHER (2) STEP 13a 3/8 X 4-3/4" BOLT (2) NOTE 2: SLIDE THE GUIDE ROD RETAINERS UP TOP BOOM INSIDE THE TOP BOOM. SLIDE THE SHAFT COLLARS UP TO THE GUIDE ROD RETAINERS AND SECURELY TIGHTEN THE SET SCREWS OF THE SHAFT COLLARS NOTE 1: RAISE THE GUIDE RODS UP AND INSERT THE BOLTS...
  • Page 22 STEP 13b RIGHT SHROUD BASE LEFT SHROUD BASE HOLE CAP (2)

  • Page 23: Head Plate

    STEP 14 3/8 X 3/4" BOLT (2) CABLE WEIGHT SELECTOR STORAGE PLATE HEAD PLATE NOTES: SECURELY tighten bolt connections in this step.

  • Page 24: Assembled View

    STEP 15 1-1/2" NOTE: LEAVE THE CABLE HANGING FOR THIS STEP NOTE: SECURELY TIGHTEN JAM NUT ASSEMBLED VIEW HEAD PLATE PULLEY JAM NUT NOTES: SECURELY tighten bolt connections in this step.
  • Page 25 STEP 16 NOTE REMOVE PULLEY AND LOOP THE CABLE UNDERNEATH THE PULLEY AND CONTAIN IT INSIDE THE HOUSING. NOTE If further cable adjustment is needed, NOTE remove the pulley again as shown above. If there is a gap between the head plate and the first plate, loosen jam nut and turn Loosen the jam nut and rotate the head threaded end counter clockwise until the...
  • Page 26 STEP 17 RIGHT PAD SUPPORT LINEAR ADJUSTMENT GUIDE ROD ADJUSTMENT BUMPER (2) END CAP (2) RIGHT BASE LEG 3/8 X 3/4" BOLT (2) NOTES: SECURELY tighten bolt connections in this step.
  • Page 27 STEP 18 LEFT PAD SUPPORT ADJUSTMENT BUMPER (2) LINEAR ADJUSTMENT GUIDE ROD END CAP (2) 3/8 X 3/4" BOLT (2) LEFT BASE LEG NOTES: SECURELY tighten bolt connections in this step.
  • Page 28 STEP 19 3/8 X 3-3/4" BOLT (4) SHOULDER PAD SUPPORT LINEAR PAD SUPPORTS 3/8" LOCK NUT (4) 3/8" FLAT WASHER (8) NOTES: SECURELY tighten bolt connections in this step.

  • Page 29: Shoulder Pad

    STEP 20 SHOULDER PAD SHOULDER PAD SUPPORT 3/8" FLAT WASHER (3) 3/8" X 3" BOLT (3) NOTES: SECURELY tighten bolt connections in this step.
  • Page 30 STEP 21 SEAT PAD SEAT PAD SUPPORT TUBE 3/8" X 4" BOLT (2) 3/8" FLAT WASHER (2) NOTES: SECURELY tighten bolt connections in this step. Some parts have been hidden for illustration clarity.

  • Page 31: Seat Pad Assembly

    STEP 22 SEAT PAD ASSEMBLY LINEAR PAD SUPPORTS NOTES: 1/2 X 1" BOLT (2) SECURELY tighten bolt connections in this step. 1/2" FLAT WASHER (2) Some parts have been hidden for illustration clarity.

  • Page 32: Top View Left

    STEP 23 FRONT SHROUD (2) NOTE: NOTE: MAKE SURE SHROUD IS MAKE SURE SHROUD IS SEATED BETWEEN THE SEATED BETWEEN THE SHROUD SUPPORT AND THE SHROUD SUPPORT AND THE FOUR TABS AS SHOWN FOUR TABS AS SHOWN TOP VIEW LEFT TOP VIEW RIGHT LEFT SHROUD BASE RIGHT SHROUD BASE...
  • Page 33 STEP 24 1/4 X 1/2" BOLT (4) 1/4" FLAT WASHER (4) NOTE: MAKE SURE INTERNAL GROOVES OF THE TOP CAP FIT TOP CAP DOWN OVER THE TOP EDGES OF THE FRONT SHROUDS TOP BOOM SUPPORT FRONT SHROUD (RIGHT SIDE) FRONT SHROUD (LEFT SIDE) NOTES: LOOSELY tighten bolt connections in this step.
  • Page 34 STEP 24b 1/4 X 1/2" BOLT (2) 1/4" FLAT WASHER (2) TOP CAP HIP THRUST TOP BOOM NOTES: SECURELY tighten bolt connections in this step, and previous step.
  • Page 35 STEP 25 PLACARD NOTE: CENTER PLACARD ON SHROUD SURFACE FRONT SHROUD (RIGHT SIDE) 57-1/2" (146 CM) 2-3/16" (5.5 CM) NOTES: Some parts have been hidden for illustration clarity.
  • Page 36 STEP 26 LEFT FOOT PLATE 1/2 X 3" BOLT (3) LEFT BASE LEG 1/2" LOCK NUT (3) 1/2" FLAT WASHER (6) NOTES: SECURELY tighten bolt connections in this step.
  • Page 37 STEP 27 RIGHT FOOT PLATE 1/2 X 3" BOLT (3) RIGHT BASE LEG 1/2" LOCK NUT (3) 1/2" FLAT WASHER (6) NOTES: SECURELY tighten bolt connections in this step.

  • Page 38: Base Frame

    STEP 28 1/4 X 3/8" BOLT (4) 1/4" FLAT WASHER (4) BASE FRAME FRONT BASE COVER NOTES: SECURELY tighten bolt connections in this step.
  • Page 39 STEP 29 BELT BELT BUCKLE...
  • Page 40 STEP 30 OPTIONAL REAR SHROUD TOP BOOM SUPPORT REAR SHROUD NOTE: MAKE SURE THAT THE FRONT SHROUDS ARE SEATED BETWEEN THE REAR SHROUD AND THE FOUR TABS AS SHOWN BASE SUPPORT 3/8 X 1" BOLT (4) REAR SHROUD 3/8" FLAT WASHER (4) NOTES: SECURELY tighten bolt connections in this step.

  • Page 41: Top View

    LIVE AREA TOP VIEW 60.0in 152cm LIVE AREA 45.0in 114cm...
  • Page 42 DIMENSIONS 93.7in 238cm 85.5in 54.2in 217cm 138cm TOTAL UNIT WEIGHT : 855 LBS [388 KG]...

  • Page 43: Maintenance

    MAINTENANCE GUIDE RODS: Clean and lubricate with a silicone or teflon based lubricant INSPECTION: Once a month, check for loose bolts. Tighten if necessary. CABLES: Check tension, end fitting and cable coating. Replace if damage or worn. (NOTE: NEW CABLES ALWAYS STRETCH DURING USE.
