Light Sky STROBE BAR AQUA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
STROBE BAR AQUA
Please read the instruction carefully bef!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STROBE BAR AQUA and is the answer not in the manual?

Questions and answers

Related Manuals for Light Sky STROBE BAR AQUA

Summary of Contents for Light Sky STROBE BAR AQUA

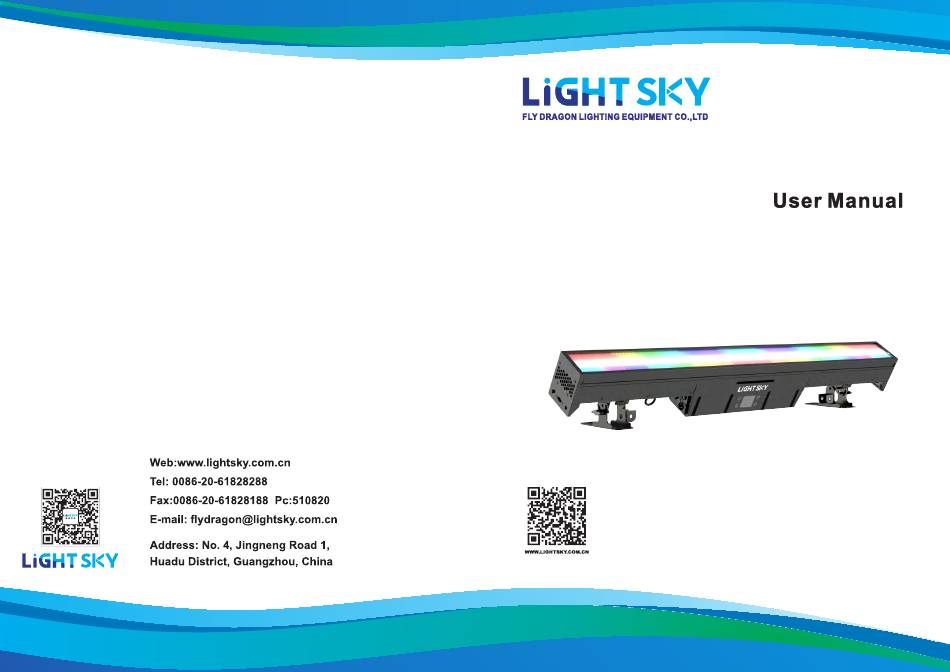

  • Page 1 STROBE BAR AQUA Please read the instruction carefully bef!

  • Page 2: Table Of Contents

    CONTENTS 1、Safety Instructions ........................2 2、Technical Specifications......................5 2.1、Attachment And Size ......................7 2.2、Lamp Splicing .........................8 3、Connection and Control ......................9 3.1、Power Supply Connection ....................9 3.2、DMX 512 Connection ....................10 3.3、Control Panel ........................11 4、How To Set The Unit ......................12 4.1、Main Function .......................12 5、Channel Setting ........................15 5.1、Address Setting ......................15 5.2、Block Distribution......................16 5.3、DMX 512 Configuration ....................17...

  • Page 3: 1、Safety Instructions

    1.Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:...
  • Page 4 The unit must be installed in a location with adequate ventilation, at least 50cm — from adjacent surfaces. Be sure that no ventilation slots is blocked, otherwise the unit will be — overheated. Before operation, ensure that you are connecting this product to the proper —...
  • Page 5 Do not open the housing as there are no user serviceable parts inside. — Do not attempt to operate this unit if it becomes damaged. do not attempt any — repairs yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

  • Page 6: 2、Technical Specifications

    2.Technical Specifications OPTICS -Light source: Color light: 672 × 0.5W RGB LED+White light: 112 × 3W CW LED -Beam angle: 71.5 ° -Spot angle: 114 ° -Clearly indicate: Ra≥80 -Average lifespan of light source: 20000H EFFECT -Mixing System: Uniform RGB Mixing System and Rainbow Effect -Control: The light source supports color/white light partition control, with outstanding transformation effects -Effect macros: static effect macros and dynamic effect macros functions...
  • Page 7 OTHER -Protection level: IP66 -Work environment:- 20℃ ~ 45℃ -Maximum surface temperature of lamp body: 65 ℃ APPROVALS - The product implementation standard: GB/T 7000.1-2023 、 GB/T 7000.217-2023 - Approved certifications: CE RoHs 、 - The product complies with the following EU directives: - Low Voltage Directive 2014/35/EU .

  • Page 8: Attachment And Size

    2.1.Attachment And Size Attachment contents-Fig.1 power cord Certificate of conformity Size-Fig.2(Unit：mm)

  • Page 9: Lamp Splicing

    2.2. Lamp Splicing 1、The positioning pin of the lamp is aligned with the positioning hole, and the lamp is attached. 1、Push the lock pin to the square of the arrow and rotate it 90 degrees clockwise; Then turn the hexagon nut clockwise and lock it。...

  • Page 10: 3、Connection And Control

    3.Connection and Control 3.1.Power Supply Connection The ground wire is connected to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring - The bus connecting the power supply must be installed by a qualified professional technician. - After completing all the above operations and ensuring that it is installed, you can power on the lamp to operate.

  • Page 11: Dmx 512 Connection

    3.2.DMX 512 Connection DMX-input DMX - output - Shield 1 - Shield - Signal (-) 2 - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected 1、At last unit, the DMX cable has to be terminated with a terminator. Solder a 1200hm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 12: Control Panel

    3.3.Control Panel The lamp adopts four capacitive touch buttons. In order to prevent misoperation caused by rain, please press the display prompt when setting the lamp and touch the corresponding button to unlock it. Quick operation 1：Press the UP key in the standby interface to view the UID and software version information of lamps and lanterns.

  • Page 13: 4、How To Set The Unit

    4.How To Set The Unit 4.1.Main Function DMX Addr:001 DMX512 Signal Src ArtNet DHCP 002.000.000.000 Mask 255.000.000.000 Art-Net IP Synchronizable setting Settings 255.000.000.000 000 （0-127） Sub Net 00 （0-15） Universe 00 （0-15） 15CH 70CH 117CH 68CH 65CH Synchronizable setting Channel Mode 33CH 17CH 112CH...
  • Page 14 Slow Pixelv Inversion Keep Lost Signal Shutter Off Never 300Sec 180Sec 120Sec 90Sec Synchronizable setting Auto Exit 60Sec 40Sec 30Sec 20Sec 10Sec DMX Manual Synchronizable setting Keep 000-255 Green 000-255 Blue 000-255 White 000-255 000-255 StrobeKeepTime 000-255 StrobeSpeed 000-255 Frost 000-255 Never Display...
  • Page 15 120Sec 90Sec 60Sec 40Sec 30Sec 20Sec 10Sec Synchronizable setting Invert Synchronizable setting Display Lock 中文 Synchronizable setting Language Restore No/Yes Settings Factory Settings DmxValue001-032 DmxValue033-064 DmxValue065-096 DMX Monitor DmxValue097-117 Total Chns Info Current LED UsageTime Total Clear Test Error. Product Code -14-...

  • Page 16: 5、Channel Setting

    5 . Channel Setting Enter the MENU menu, select DMX settings, choose channel mode, press the ENTER button to confirm, you can use the up and down keys to select: 15 channels (default), 7 channels, 70 channels, 117 channels, 68 channels, 65 channels, 33 channels, 17 channels, 112 channels, 39 channels, 21 channels, press ENTER to confirm the selection, press MENU to return to the previous menu.

  • Page 17: Block Distribution

    5 . 2 .Block Distribution -16-...

  • Page 18: Dmx 512 Configuration

    5.3.DMX 512 Configuration Please control the fixture by referring to the configurations below 7 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 000-255 Green 000-255 Blue 000-255 White Dimmer 000-005 No Function 006-255 Dimmer 0--100% 000-255 Dimmer Fine 000-255 Frost 15 CHANNELS CHANNEL DMX VALUE FUNCTION...
  • Page 19 152-158 Color20 159-165 Color21 166-173 Color22 174-180 Color23 181-188 Color24 189-195 Color25 196-203 Color26 204-210 Color27 211-217 Color28 218-225 Color29 226-232 Color30 233-240 Color31 241-247 Color32 248-255 Color33 Dimmer 000-005 No Function 006-255 Dimmer 0--100% 000-255 Dimmer Fine 000-255 Strobe Duration Strobe Rate 000-006 No Function...
  • Page 20 120-127 Macro13 128-135 Macro14 136-143 Macro15 144-151 Macro16 152-159 Macro17 160-167 Macro18 168-175 Macro19 176-183 Macro20 184-191 Macro21 192-199 Macro22 200-207 Macro23 208-215 Macro24 216-223 Macro25 224-231 Macro26 232-239 Macro27 240-247 Macro28 248-255 Macro29 Macro White 000-090 No Macro 091-105 Macro1 106-120 Macro2...
  • Page 21 21 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 000-255 Green 000-255 Blue Color Macro 000-009 No Function 010-017 Color1 018-024 Color2 025-032 Color3 033-039 Color4 040-047 Color5 048-054 Color6 055-061 Color7 062-069 Color8 070-076 Color9 077-084 Color10 085-091 Color11 092-099 Color12 100-106 Color13 107-113...
  • Page 22 006-255 Dimmer 0--100% 000-255 Dimmer Fine RGB 000-255 Strobe Duration RGB Strobe Rate RGB 000-006 No Function 007-255 Slow--Fast StrobeRGB 000-005 No Function 006-050 Ramp up 051-100 Ramp down 101-150 Ramp up-down 151-200 Lightning 201-255 Random Macro RGB 000-023 No Macro 024-031 Macro1 032-039...
  • Page 23 248-255 Macro29 Macro Speed RGB 000-127 Normal，Slow--Fast 128-255 Inversion，Slow--Fast 000-255 Fade RGB Dimmer White 000-005 No Function 006-255 Dimmer 0--100% 000-255 Dimmer Fine White 000-255 Strobe Duration White Strobe Rate White 000-006 No Function 007-255 Slow--Fast StrobeW 000-005 No Function 006-050 Ramp up 051-100...
  • Page 24 17 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 Red1 000-255 Green1 000-255 Blue1 000-255 Red2 000-255 Green2 000-255 Blue2 000-255 Red3 000-255 Green3 000-255 Blue3 000-255 Red4 000-255 Green4 000-255 Blue4 000-255 White1 000-255 White2 000-255 White3 000-255 White4 000-255 Frost 33 CHANNELS CHANNEL DMX VALUE...
  • Page 25 39 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 Red1 000-255 Green1 000-255 Blue1 000-255 Red2 000-255 Green2 000-255 Blue2 000-255 Red3 ..000-255 ..000-255 Red7 000-255 Green7 000-255 Blue7 000-255 Red8 000-255 Green8 000-255 Blue8 Dimmer RGB 000-005 No Function 006-255 Dimmer 0--100% 000-255...
  • Page 26 000-006 No Function 007-255 Slow--Fast StrobeW 000-005 No Function 006-050 Ramp up 051-100 Ramp down 101-150 Ramp up-down 151-200 Lightning 201-255 Random 000-255 Frost 65 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 Red1 000-255 Green1 000-255 Blue1 000-255 Red2 000-255 Green2 000-255 Blue2 ..
  • Page 27 68 CHANNELS CHANNEL DMX VALUE FUNCTION Dimmer 000-005 No Function 006-255 Dimmer 0--100% Strobe RGB 000-007 No Function 008-127 Strobe Slow--Fast 128-130 No Function 131-250 Random 251-255 No Function Strobe White 000-007 No Function 008-127 StrobeSlow--Fast 128-130 No Function 131-250 Random 251-255 No Function...
  • Page 28 70 CHANNELS CHANNEL DMX VALUE FUNCTION Dimmer 000-005 No Function 006-255 Dimmer 0--100% Strobe RGB 000-007 No Function 008-127 Strobe Slow--Fast 128-130 No Function 131-250 Random 251-255 No Function Strobe White 000-007 No Function 008-127 Strobe Slow--Fast 128-130 No Function 131-250 Random 251-255...
  • Page 29 112 CHANNELS CHANNEL DMX VALUE FUNCTION 000-255 Red1 000-255 Green1 000-255 Blue1 000-255 Red2 000-255 Green2 000-255 Blue2 ..000-255 ..000-255 Red31 000-255 Green31 000-255 Blue31 000-255 Red32 000-255 Green32 000-255 Blue32 000-255 White1 000-255 White2 ..000-255 ..000-255 White15 000-255...
  • Page 30 117 CHANNELS CHANNEL DMX VALUE FUNCTION Dimmer 000-005 No Function 006-255 Dimmer 0--100% 000-255 Strobe Duration Strobe Rate 000-006 No Function 007-255 Slow--Fast Strobe 000-005 No Function 006-050 Ramp up 051-100 Ramp down 101-150 Ramp up-down 151-200 Lightning 201-255 Random 000-255 Frost 000-255...

  • Page 31: 6、Electrical Connection Diagram

    6.Electrical Connection Diagram -30-...

  • Page 32: 7、 Troubleshooting

    7.Troubleshooting The following are common faults of lighting fixtures and corresponding solutions. Malfunctions that cannot be repaired by oneself should be handled by personnel with professional qualifications. Before maintaining the lamp, please disconnect the power supply first. ■ LED off: - Please check if install the suitable voltage - Please check whether the led will reach the end of their life can explode;...

  • Page 33: 8、Fixture Cleaning

    8.Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light- output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture.
