Summary of Contents for Light Sky SHARK LASER

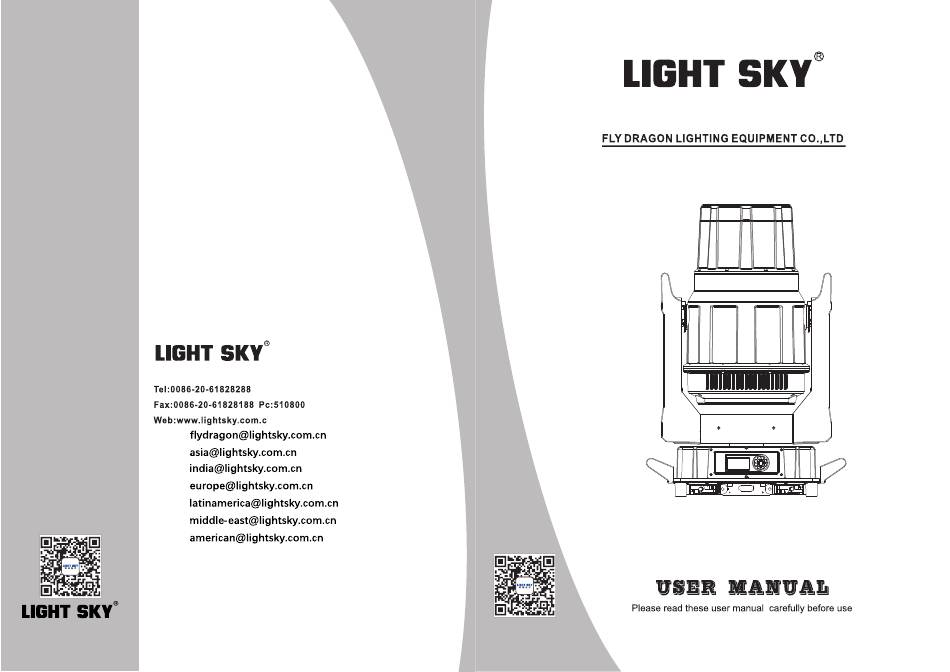

- Page 1 E-mail: SHARK LASER Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
-
Page 2: Table Of Contents
◆My company reserves the right to modify the characteristics stated in this user manual at any time and without prior notice. www.lightsky.com.cn LIGHT SKY... -
Page 3: Safety Information
Don’t use the power cable when the insulation is damaged. It must be the manufacturer or distributor or the professional person to change the damaged power cable in order to avoid any dangerous. LIGHT SKY... - Page 4 ■ Temperature of the external surface The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state is 60℃. ■ Maintenance Before starting any maintenance work or cleaning the luminaire, the power supply to the luminaire must be disconnected.
-
Page 5: Technical Information
Prism: 8 prisms, 3rd order 24 prisms, various prism macro combination effects Soft Light Effect: Adjustable independent soft light effect Focus: Electric focus Strobe: 1-25 times/sec adjustable pulse strobe and random strobe Dimming: 0-100% linear adjustment. LIGHT SKY... - Page 6 ●SCAN SYSTEM - Horizontal scan: 540° Vertical scan: 240° Pan/vertical fine adjustment: 2.11°/0.94° Scanning Speed : Standard and Speed Adjustable Pan/Tilt for automatic error correction and correction ●CONTROL AND PROGRAMMING - Address code setting: RDM two-way data transmission, the console can remotely reset the DMX address code Display: The display panel adopts a 2.0-inch LCD12864 LCD screen Intelligent management and control: The menu can record the use time and light...
- Page 7 1 1 1 1 1 1 Color wheel Static gobo wheel CMY color mixing system Prism wheel 1 Prism wheel 2 LIGHT SKY...
-
Page 8: Attachment And Body Size
distance,spot diameter and illumination diagram Standard 0 88°) 1750000(162639) 439000(40799) 192000(17844) 110000(10223) 70000(6506) 49000(4554) 0.88° Distance m(ft in) 20（ 65′7″） 30（ 98′5″） 40（ 131′2″） 50（ 164′0″） 60（ 196′10″） 10（ 32′10″） 0.88° diameter m(ft in) 0.34（ 1′1″） 0.5（ 1′8″） 0.78（ 2′7″） 0.8（... -
Page 9: Installation And Connecting
Make sure the point of anchorage is stable before positioning the projector. When suspending the fixture, ensure that the supporting structure and all hardware used can hold at least 10 times the weight of all the devices they support. LIGHT SKY... - Page 10 power in power end Connect the ground wire to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting delivers a three-core waterproof plug. ●...
- Page 11 - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected all the projectors are together The projector dn’t touch each other or plinth). Recommend to use the DMX nnection. -10- LIGHT SKY...
- Page 12 www.lightsky.com.cn -11-...
-
Page 13: Control Panel
● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （Please refer to the actual material) TEST DMX: Information Manual control DMX Address Personal TEST Language Reversal Service Test -12- LIGHT SKY... -
Page 14: Menu Setting
（ ） MENU SETTING V1.0 Main menu I menu II menu III menu Address:001-4xx DMX Address/DMX → Passwork ON/OFF return Power:****(h) Totel Time → Laser ON:****(h) Total:****(h) Laser hours → Laser open:****(h) Out TEM：000.0 Temperature → In TEM：000.0 Laser TEM：000.0 RDM UID →RDM UID 3888:00000000 1.Out Fan:00.0V... - Page 15 Prism2 000-255 PrismRota. 000-255 Frost 000-255 Cyan 000-255 Magenta 000-255 Yellow 000-255 Return(ESC) Open 000-255 Open+Co1 000-255 Co1 000-255 Co1+Co2 000-255 Co2 000-255 Co2+Co3 000-255 Co3 000-255 Co3+Co4 000-255 Co4 000-255 Co4+Co5 000-255 Co5 000-255 Co5+Co6 000-255 -14- LIGHT SKY...
- Page 16 Main menu I menu II menu III menu Co6 000-255 Co6+Co7 000-255 Co7 000-255 Calibration2 → Co7+Co8 000-255 Co8 000-255 Co8+Co9 000-255 Co9 000-255 Co9+Co10 000-255 Co10 000-255 Service → Co10+Co11 000-255 Co11 000-255 Co11+Co12 000-255 Co12 000-255 Co12+Co13 000-255 Co13 000-255 Co13+Co14 000-255 Co14 000-255...
-
Page 17: Channel Function
Slow-Fast Strobe 0-255 Dimmer Gobo White Gobo1 8-11 Gobo2 12-15 Gobo3 16-19 Gobo4 20-23 Gobo5 24-27 Gobo6 28-31 Gobo7 32-35 Gobo8 36-39 Gobo9 40-43 Gobo10 44-47 Gobo11 48-51 Gobo12 52-55 Gobo13 56-59 Gobo14 60-69 Gobo1 Shake Slow-Fast Speed -16- LIGHT SKY... - Page 18 Channel Percentage Function Note 70-79 Gobo2 Shake Slow-Fast Speed 80-89 Gobo3 Shake Slow-Fast Speed 90-99 Gobo4 Shake Slow-Fast Speed 100-109 Gobo5 Shake Slow-Fast Speed 110-119 Gobo6 Shake Slow-Fast Speed 120-129 Gobo7 Shake Slow-Fast Speed 130-139 Gobo8 Shake Slow-Fast Speed 140-149 Gobo9 Shake Slow-Fast Speed 150-159 Gobo10 Shake Slow-Fast Speed...
-
Page 19: Circuit Connecting Diagram
CIRCUIT CONNECTING DIAGRAM 48V+ 48V- BUS1 BUS LAMP -18- LIGHT SKY... -
Page 20: Cleaning And Maintenances
CLEANING AND MAINTENANCES ■ In order to ensure the fixture could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the fixture. ■... -
Page 21: Troubeshooting
■ T shadow is fogging。 ◎ Please check the data on the DMX 512 controller is suitable for the electric focus. ◎ Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. -20- LIGHT SKY... -
Page 22: Duty Exonerative And Copyright Protection
■ Part of the fixture couldn’t responsled to the controlling order: ◎Please check the order is correct to the moving . ◎Please check the mechanicalpart is deformation or loose. ◎Please check the function to the motor soshet is loose or drive chip is burn down; ◎Please check the wire of the motor is cut at zig piont;...
