Summary of Contents for Light Sky SHARK450

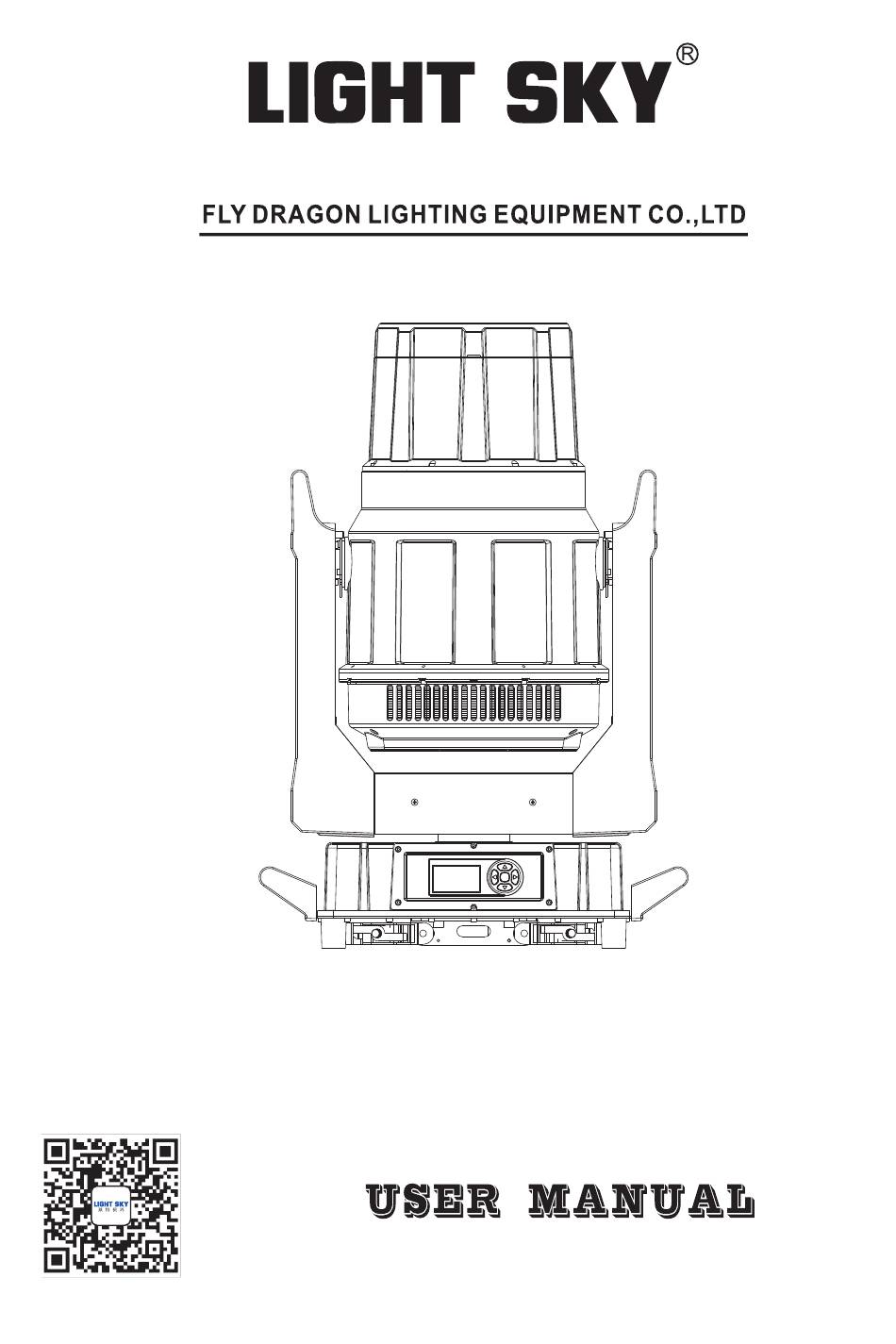

- Page 1 SHARK450 Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information........................2 2. Technical information......................4 3. Attachment and body size.......................6 4. Installation and connecting.....................7 5. Control panel.........................11 6. Menu setting..........................12 7. Channel function........................16 8. Circuit connecting diagram....................19 9. Cleaning and maintenances....................20 10. Troubeshooting........................20 11. Duty exonerative and copyright protection..............22 Congratulations on choosing our company product! We thank you for your custom. -
Page 3: Safety Information
SAFETY INFORMATION ■This lighting fixture is for professional use only - it is not for household use. ■ Installtion Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 ■ Temperature of the external surface The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is 100℃. ■ Maintenance Before starting any maintenance work or cleaning the projector, cut off power from the mains supply. After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
-
Page 5: Technical Information
TECHNICAL INFORMATION IP set Power supplies available ● ● - Automatic chang battery,IP could be set without - 100V~240V~ 50/60Hz 5A electricity. Power ● Software upgrade ● 650W PF0.985 - Insert USB upgrade software. Lamp ● ● ： Display Menu - Brand：USHIO NSL450 - The display panel adopts a 2.0-inch LCD12864 LCD - Lamp power：450W... - Page 6 1 1 1 1 1 1 Color wheel Static gobo wheel CMY color mixing system Prism wheel 2 Prism wheel 1...
-
Page 7: Attachment And Body Size
distance,spot diameter and illumination diagram Standard(1. 8°) Lamp Total Output:24000 lumens ( ) 0 131000(12175) 61500(5716) 33200(3086) 22400(2082) 15200(1413) 7500(697) Lux fc 525000(48792) 1.8° Distance m(ft in) 10(32'10") 20(65'7") 30(98'5") 40(131'3") 50(164') 60(196'10") 80(262'6") 0.34(1'1") 0.68(2'3") 1.03(3'5") 1.7(5'6") 2.04(6'8") Diameter m(ft in) 1.36(4'6") 2.73(8'11") ATTACHMENT AND BODY SIZE... -
Page 8: Installation And Connecting
INSTALLATION AND CONNECTING 安全绳 Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 9 power in power end Ground The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting delivers a three-core waterproof plug. ● The stage lighting power supply can not be more than 2pcs pre line. ●...
- Page 10 signal end DMX512 in DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected all the projectors are together The projector dn’t touch each other or plinth).
-
Page 12: Control Panel
CONTROL PANEL Display ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （please refer to the actual material) DMX:... -
Page 13: Menu Setting
Ⅰ menu Ⅱ menu Ⅲ menu Main menu Address:001-512 → DMX Address Power::****(h) Totel Time → Lamp ON::****(h) T o t a l : * * * * ( h ) Lamp hours → L a m p o p e n : * * * * ( h ) PVG_TEM:***.* →... - Page 14 Ⅰ menu Ⅱ menu Ⅲ menu Main menu Auto lamp on → → → Pan invert P/T invert → Tilt invert → English → Language Chinese Personal → Open → Back Light Auto close(15s) Normal Display → Reversal Rota.180 → →...
- Page 15 Ⅰ menu Ⅱ menu Ⅲ menu Main menu → STEP *** Test P/T → Test effect STEP *** → → Test → Test all STEP *** Return(ESC) Return(ESC) Error list Keep Clean error → Clean 000-255 Tilt 000-255 Dimmer1 000-255 Dimmer2 000-255 Focus...
- Page 16 Ⅰ menu Ⅱ menu Ⅲ menu Main menu → → Fan Speed To Lamp Factory Return(ESC) Service Standard mode → → Fan mode 3000-4000M 4000-5500M Return(ESC) Lamp → English Language → Chinese Normal Reversal → Rota.180...
-
Page 17: Channel Function
CHANNEL FUNCTION(V1.0) Channel Percentage Function 0-255 0-100 Cyan 0-255 0-100 Magenta 0-255 0-100 Yellow Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46... - Page 18 Percentage Channel Function Strobe 0-1.2 Closed 4-103 1.6-40.4 Slow-Fast Strobe 104-107 40.8-42.0 Open Opening pulses in sequences from slow fast 108-157 42.4-61.6 158-207 62.0-81.2 Closing pulses in sequences from fast slow 208-212 81.6-83.1 Open 213-251 83.5-98.4 Random Slow-Fast Strobe 252-255 99.8-100 Open 0-255...
- Page 19 Percentage Channel Function Prism 0-63 0-24.7 Unused Range 64-127 25-49.8 Prism1 128-191 50.2-74.9 Prism2 192-255 75.3-100 Prism1+Prism2 Prism Rotation Unused Range 1-63 0.4-24.7 Angular linear regulation Selection of three prism effects: setting prism (prism 1, prism 2 or prism 1+2) in channel 5; 64-127 25.1-49.8 CCW，Fast →...
-
Page 21: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. - Page 22 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
-
Page 23: Duty Exonerative And Copyright Protection
DUTY EXONERATIVE AND COPYRIGHT PROTECTION ◇The lamp belongs to consumption products that is not guarantee to keep it in good repair. ◇Any products broken that didn't according to the instruction is not guarantee to keep it in good repair. ◇The commentary for all the instruction belongs to the supplier in final. ◇No authorize can't copy. - Page 24 E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
