Evaluates: MAX77348A, MAX77348B
in WLP Package
General Description
The MAX77348 evaluation kit (EV kit) provides a proven
design to evaluate the MAX77348, a 3.5 W buck-boost
converter. The IC is capable of 2.3 V to 5.5 V input, and its
output voltage is adjustable between 2.5 V to 4.8 V. The
factory default output voltage of this EV kit is set at 4.5 V.
Output voltage can be adjusted through the software GUI.
The EN pin supports hardware or software enabling of the
device. The EV kit is compatible with any version of the
MAX77348 WLP IC (MAX77348AEWE+ is the default).
Equipment Included
● The MAX77348 evaluation board
2
● USB to I
C interface (MAXUSB_INTERFACE#)
● USB Type A to Micro USB cable Windows®-based
GUI software is available for use with the EV kit

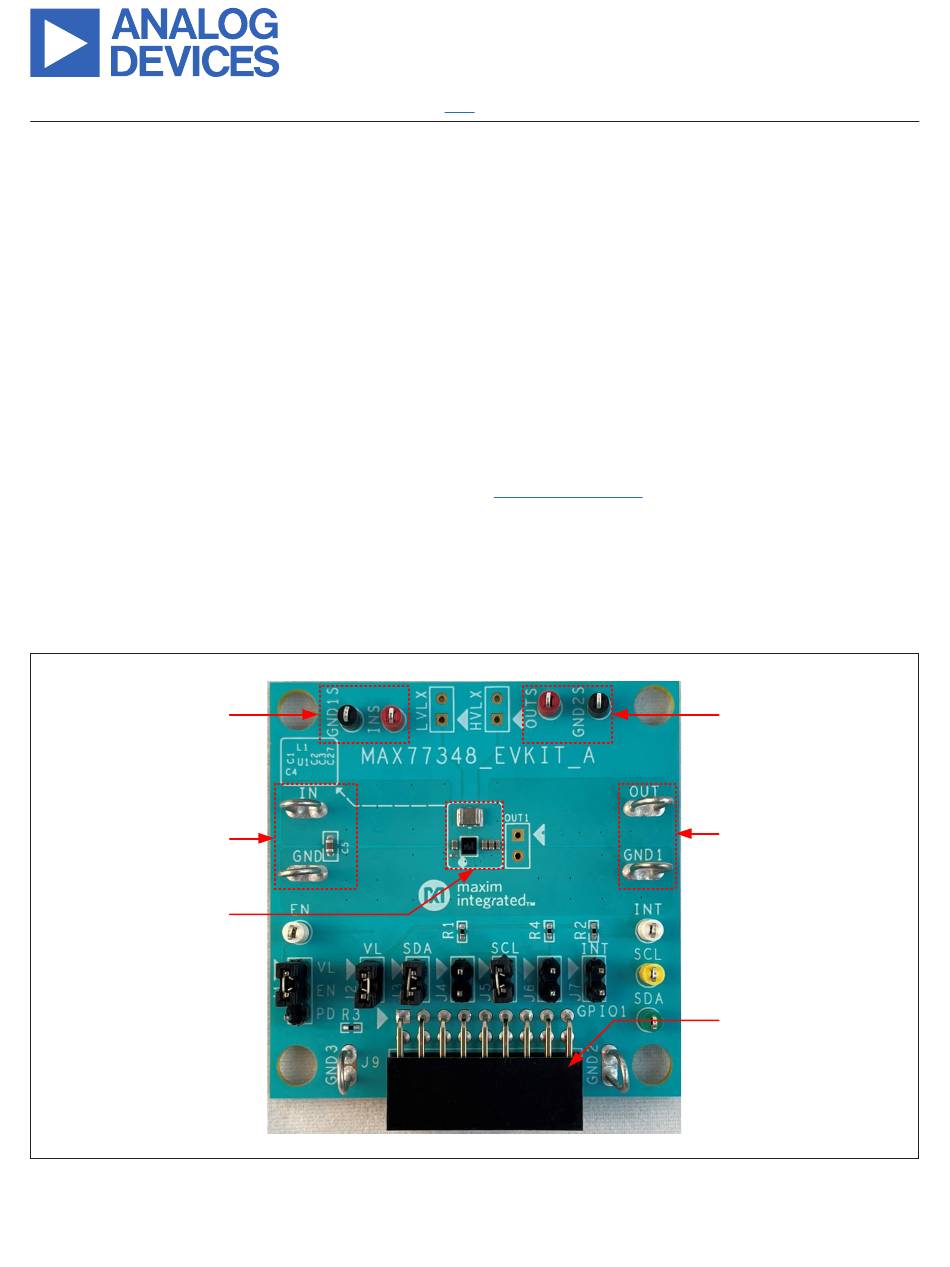

EV Kit Photo
INPUT
SENSE PINS
INPUT SUPPLY
CONNECTION
TERMINALS
MAX 20348
SOLUTION
One Analog Way, Wilmington, MA 01887 U.S.A.
Click
here
to ask an associate for production status of specific part numbers.
Features
● Sense points for high-accuracy measurements
● Accessible test points for EN, SDA, SCL, INS, and
OUTS
● Output voltage adjustable through software GUI
● FPWM and default skip mode configurability
● Active discharge functionality
Ordering Information
|
Tel: 781.329.4700
|
MAX77348 Evaluation Kit
appears at end of data sheet.
OUTPUT
SENSE PINS
OUTPUT LOAD
CONNECTION
MAX USB
CONNECTION
© 2022 Analog Devices, Inc. All rights reserved.
319-100955; Rev 0; 9/22
Advertisement
Related Manuals for Analog Devices MAX77348
Summary of Contents for Analog Devices MAX77348
- Page 1 WLP Package General Description Features The MAX77348 evaluation kit (EV kit) provides a proven ● Sense points for high-accuracy measurements design to evaluate the MAX77348, a 3.5 W buck-boost ● Accessible test points for EN, SDA, SCL, INS, and converter.
- Page 2 Table 2. Default Shunt Positions and Jumper Descriptions SHUNT JUMPER NODE OR FUNCTION FUNCTION POSITION 1-2* Connects EN to VL (MAX77348 is enabled by default) 1-2* Connects VL to MAXUSB power rail 1-2* Enables I C (SDA) 1-2* Enables I C (SCL) *Default position.
- Page 3 EV kit (4.5 V). Setup Overview The next steps of the procedure use the EV kit GUI and A typical bench setup for the MAX77348 WLP EV kit is MAXUSB_INTERFACE# to evaluate the MAX77348’s I shown in Figure 1.
- Page 4 Make sure the external I C serial bus’s logic voltage level is compatible to the MAX77348’s IO logic voltage level. Refer to MAX77348 IC data sheet for appropriate IO logic voltage level. Detailed Description of Hardware The MAX77348 EV kit demonstrates the MAX77348 buck-boost.
- Page 5 WLP Package Ordering Information PART U1 IC DEFAULT OUTPUT VOLTAGE (V) UVLO FALLING (V) UVLO RISING (V) MAX77348EVKIT# MAX77348AEWE+ 2.10 2.19 MAX77348 EV Kit Bill of Materials ITEM REF_DES DNI/DNP MFG PART # MANUFACTURER VALUE DESCRIPTION COMMENTS 04026D226MAT2A; C1-C3 AVX;SAMSUNG...
- Page 6 MAX77348 Evaluation Kit Evaluates: MAX77348A, MAX77348B in WLP Package MAX77348 EV Kit Schematic Analog Devices │ 6 www.analog.com...
- Page 7 MAX77348 Evaluation Kit Evaluates: MAX77348A, MAX77348B in WLP Package MAX77348 EV Kit PCB Layout MAX77348 EV Kit Component Placement Guide—Top Side MAX77348 EV Kit Component Placement Guide—Top Side MAX77348 EV Kit PCB Layout—Layer 2 Analog Devices │ 7 www.analog.com...
- Page 8 MAX77348 Evaluation Kit Evaluates: MAX77348A, MAX77348B in WLP Package MAX77348 EV Kit PCB Layout (continued) MAX77348 EV Kit PCB Layout—Layer 3 MAX77348 EV Kit PCB Layout—Bottom Layer Analog Devices │ 8 www.analog.com...
- Page 9 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use.Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
