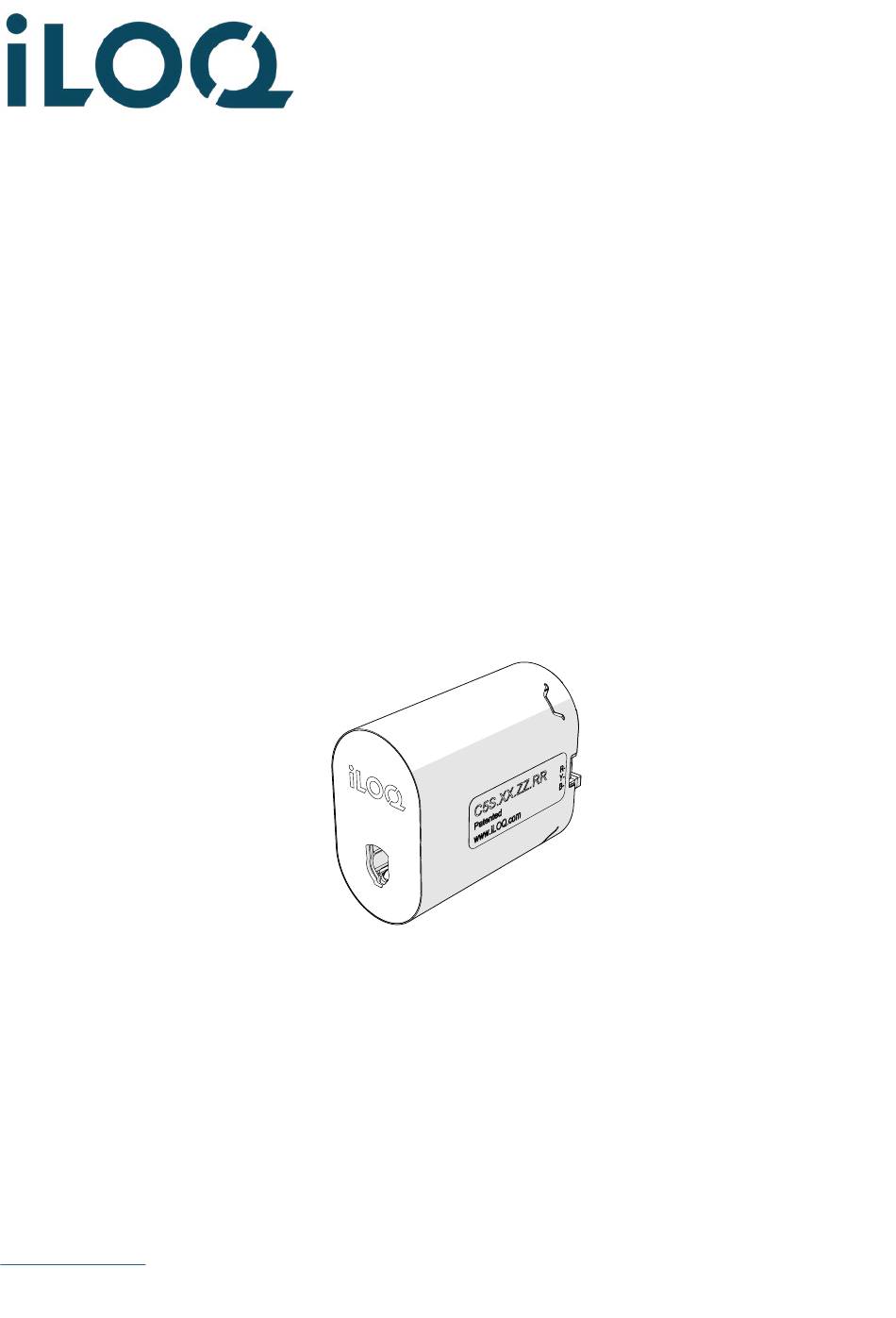

- Page 1 C5S C5S.XX.SB(.SE) Oval cylinder User Guide 02/2025 Rev. 2.0 Document ID 299361 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Care and maintenance .................. 7 Installation ......................7 Installation of iLOQ C5S.1x ................7 Changing the tail piece ................. 9 Adjusting the cylinder with iLOQ A10.33 extension piece ......10 Operating instructions ................... 13 Disposal of decommissioned products ..............14 Compliance ......................15 Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder) -
Page 3: Safety Information
Read these instructions carefully before using products. This information is to ensure your safety and long lifetime of the products. General warning sign. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder) -
Page 4: Warnings
Warning! A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder) -
Page 5: Overview
2. Overview The iLOQ C5S is a battery-free digital lock cylinder for the iLOQ S5 locking system. No batteries or cables are required for the lock. The programmable lock opens with a compatible K5S key. Product versions C5S.1.SB Scandinavian oval lock cylinder with a Finnish tail piece, outdoor use. -
Page 6: Before Installation
• The cylinder has a connector for additional features, RTC (Real Time Clock), Conditional Access Right and Online. • Only use iLOQ Clock battery A00.19 or A00.23. The battery must be installed inside of the door or hatch, out of reach from children. -
Page 7: Care And Maintenance
NOTE! Make sure you have the correct accessories and parts needed for your installation. Contact your local iLOQ partner for more information. NOTE! If the length of the cylinder needs to be adjusted in the .SB version, use the iLOQ A10.33 extension piece. Check out chapter "4.3 Adjusting the cylinder with iLOQ A10.33 extension piece". - Page 8 3. Tighten the fixing screws to a torque of 2 ... 3 Nm. 4. Install the needed accessories and the escutcheon. If necessary, use an extension piece. See section 4.3 "Adjusting the cylinder with iLOQ A10.33 extension piece". Document ID - 299361...
-
Page 9: Changing The Tail Piece
4.2 Changing the tail piece 1. Remove the old tail piece from the tail plug. 2. Place one corner of the new tail piece inside the circular spring. Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder) -
Page 10: Adjusting The Cylinder With Iloq A10.33 Extension Piece
NOTE! You can use up to seven extension pieces with the extension tail piece. The first extension piece that is installed to the cylinder must always be the iLOQ A10.33 extension piece. For the remaining extension pieces, use the iLOQ A10.128 or similar stackable extension pieces. - Page 11 1 line. If you install three extension pieces (2 example), cut the extension tail piece at the 3 line. 3. Slide the extension piece or extension pieces onto the the cylinder. Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder)
- Page 12 4. Place one corner of the extension tail piece inside the circular spring. 5. Press down the opposite corner of the extension tail piece to secure it in place. Document ID - 299361 iLOQ C5S (C5S.XX.SB(.SE) Oval cylinder)
-
Page 13: Operating Instructions
Do not use excessive force. NOTE! iLOQ locks open with a light turn of the key. There should be no need to use force when opening an iLOQ lock. If you feel resistance from the key, or notice that the door is not well fitted, contact the building service. -
Page 14: Disposal Of Decommissioned Products
Never discard an electrical appliance in household waste. Follow the local laws and regulations for safe and environmentally friendly product disposal. Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system. -
Page 15: Compliance
The products mentioned inside this user guide are in conformity with the requirements of the directives declared on this page Hereby, iLOQ Oy declares that C5S Lock Cylinders are in compliance with Directives 2014/30/EU, 2011/65/ EU and 2015/863/EU. The full text of the EU declaration of conformity is available at the following internet address: www.iloq.com/en/declaration-of-compliance... - Page 16 C5S C5S.XX.SB(.SE) Oval cylinder User Guide iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
