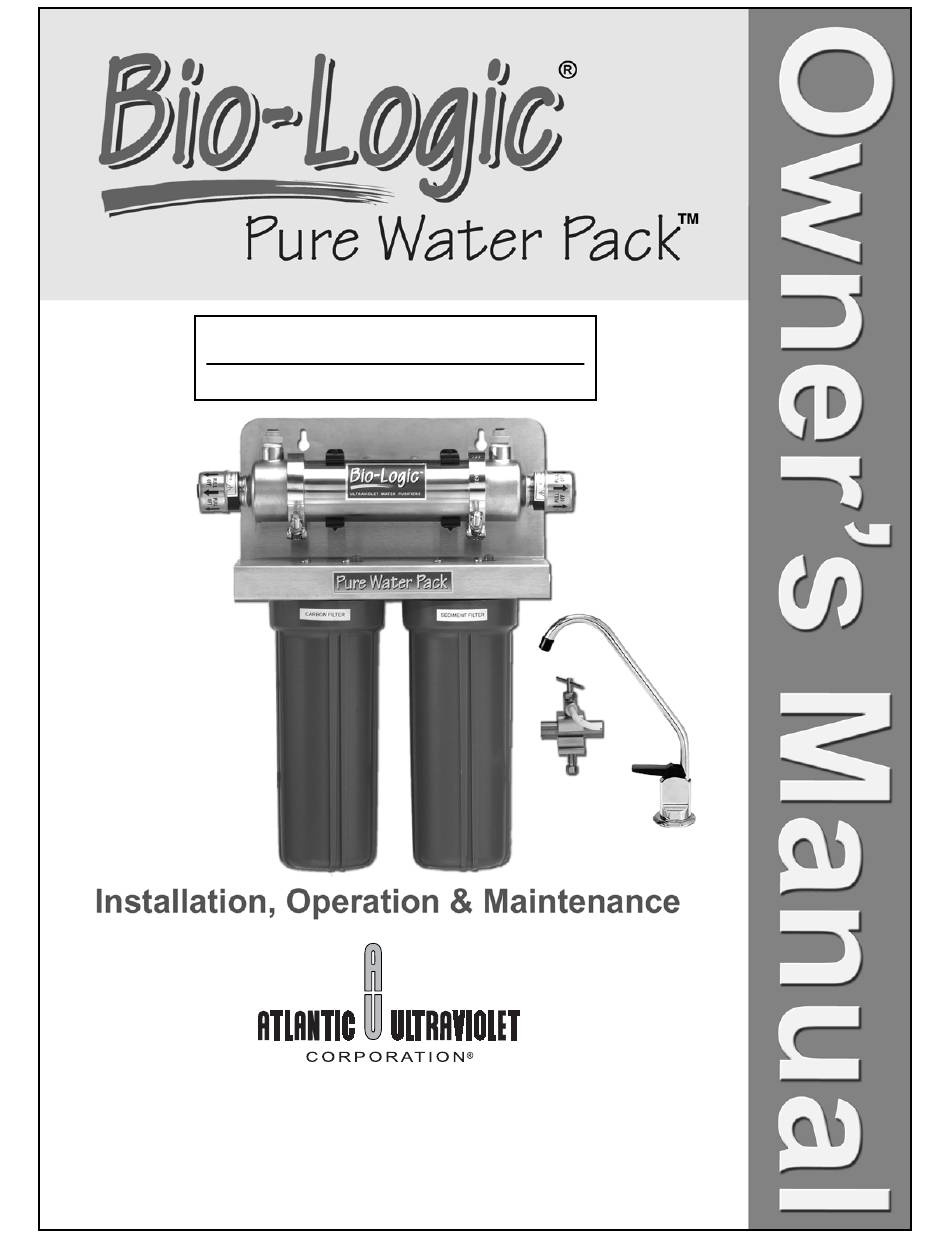

- Page 1 120v 50/60 Hz 230v 50/60Hz BIO 1.5 PWP 10-0010B 10-0504A 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: www.ultraviolet.com Document No. 98-1524A • June 2012 • ©2002-2012 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
The information and recommendations contained in this publication are based upon data collected by the Atlantic Ultraviolet Corporation® and are believed to be correct. However, no guarantee or warranty of any kind, expressed or implied, is made with respect to the information contained herein. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION ® • All filtration and disinfection components, of the Bio-Logic Pure Water Pack , are conveniently mounted on a single, stainless steel, mounting bracket. • The system is designed to mount on a vertical surface, a secure (stud or concrete) wall or a cabinet wall, by the system-mounting bracket. -
Page 5: Installation
Pure Water Pack INSTALLATION OCATION The Pure Water Pack is designed for “under the sink” installation. The system should be mounted vertically, to a secure wall or cabinet wall, which provides enough room to perform routine maintenance. This includes a minimum of 14-15/16 inches from the chamber end, to allow for removal of the lamp and/or quartz sleeve, a minimum of 6-inches on the backside of the water purifier, and a minimum of 2-inches free space under the filter housings, to allow for housing removal, when changing filter cartridges. -
Page 6: Saddle Valve Installation
ADDLE ALVE NSTALLATION Check with the local public works department for plumbing codes. Follow all local plumbing codes when installing components of this system. The system comes supplied with a saddle valve and mounting hardware and is intended to be used on 3/8 inch to 1/2 inch copper tubing, and should be connected to the cold water line only. -
Page 7: System Installation
AUCET NSTALLATION Select faucet location. • Make sure the faucet is far enough away so not to interfere with the regular faucet or any other attachments. • If mounting faucet on the countertop, make certain the spout of the faucet will reach over the sink. •... -
Page 8: Tools Required
® BIO-1.5 P ROUNDING NSTALLATION OGIC ATER 50/60H .10-0504A Z USING BALLAST NO ® Ground Kits are shipped with each Bio-Logic BIO-1.5 Pure Water Pack 230v 50/60Hz water purifier using ballast 10-0504A and is used to permanently connect a ground wire from the water purifier chamber to a known good ground. -
Page 9: Grounding Kit Installation
BIO-1.5 PWP ROUNDING NSTALLATION OGIC ® 50/60H .10-0504A ( Z USING BALLAST NO CONTINUED 2. Wrap the copper strap tight around the pipe or metal grounding rod with the sharp edges of the strap facing towards the item. 3. While keeping the strap tightly around the pipe or metal ground, align one of the holes in the strap with the long threaded bolt, and tighten using a 7/16"... -
Page 10: Tubing Installation
ECHNICAL SSISTANCE Atlantic Ultraviolet Corporation maintains a qualified team of application specialists that can provide any technical assistance, which maybe required during the use of this system. For any questions, concerns, or technical assistance, regarding this system or any of our other products, contact our application specialists. Contact options can be found in... -
Page 11: Maintenance
MAINTENANCE The Pure Water Pack • is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels. • Filter cartridge replacement is recommended every 12 months. Over time water pressure to the system faucet will drop, this is an indication that the filter cartridges are nearing the end of their service life. -
Page 12: Bio-1.5 Pure Water Pack
® BIO-1.5 P NSTALLATION OR EPLACEMENT OGIC ATER 50/60H . 10-0010B Z USING BALLAST NO Figure 7 - Lamp Replacement Step 1 - Disconnect Power and Remove Ground Connector Disconnect power to Pure Water Pack , and remove ground ® connector from the Bio-Logic chamber. -
Page 13: Lamp Installation O R Replacement : Bio-Logic
® BIO-1.5 P NSTALLATION OR EPLACEMENT OGIC ATER 50/60H .10-0504A Z USING BALLAST NO ® Figure 8 - Lamp Replacement for Bio-Logic BIO-1.5 Pure Water Pack 230v 50/60Hz (ballast no. 10-0504A) Disconnect Power Step 1 - Disconnect Power Step 2 - Remove End-Cap Step 3 - Remove Socket Step 4 - Remove Lamp Disconnect power to water purifier. -
Page 14: Quartz Sleeve Cleaning Or Replacement
UARTZ LEEVE LEANING OR EPLACEMENT Figure 10 - Quartz Sleeve Cleaning or Replacement Figure 11 - Quartz Sleeve Cleaning or Replacement ® ® Bio-Logic BIO-1.5 Pure Water Pack Bio-Logic BIO-1.5 Pure Water Pack 120v 50/60Hz (ballast no. 10-0010B) 230v 50/60Hz (ballast no. 10-0504A) Step 4 - Remove Gland Nuts Step 5 - Remove Washer &... -
Page 15: Replacement Of Broken Quartz Sleeve
EPLACEMENT OF ROKEN UARTZ LEEVE Figure 11 - Chamber Head Removal CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. 1. Follow the steps in “Quartz Sleeve Cleaning or Replacement” to remove lamp and quartz sleeve. CAUTION: Considerable force may be required to pull purifier from the mounting clips. -
Page 16: Troubleshooting
TROUBLESHOOTING WARNING: Always disconnect power to the water purifier before performing any service or maintenance. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 2 - Troubleshooting Problem Possible Cause Corrective Action Purifier not operating. No electrical power…... -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Table 3 MODEL: Pure Water Pack Technical Specifications Flow Rate (GPM): Inlet\Outlet Size: " Tubing to 3/8" MNPT John Guest Connector 220v 50/60Hz and 12v Number of Lamps: DC units are also available. Consult Factory for specific Lamp Model No.: 05-1366-R voltage requirements. -
Page 18: Replacement Parts
REPLACEMENT PARTS ® Figure 12 - Exploded View Bio-Logic BIO-1.5 ® Table 4 - Replacement Parts Bio-Logic ITEM MODEL DESCRIPTION QUANTITY BIO-1.5 Rubber O-ring, Static Gland 00-1108B Lamp Socket & Ballast, 120v 60Hz (shown) 10-0010B Lamp Socket & Ballast, 230v 50/60Hz 10-0504A* Lamp Socket &... -
Page 19: Pure Water Pack Tm
REPLACEMENT PARTS ® Figure 13 - Exploded View Bio-Logic BIO-1.5 Pure Water Pack ® Table 5 - Replacement Parts Bio-Logic Pure Water Pack ITEM DESCRIPTION QUANTITY Pure Water Pack Filter Bracket 25-9132A ® Bio-Logic 1.5 120v 50/60Hz 25-9125A1 ® Bio-Logic 1.5 230v 50/60Hz 25-9126A1 Screw, 8-32 x ½"... -
Page 20: User Assistance
Under no circumstances shall the Atlantic Ultraviolet Corporation be liable for any incidental, consequential or special damages, losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use, our product for any purpose whatsoever.
