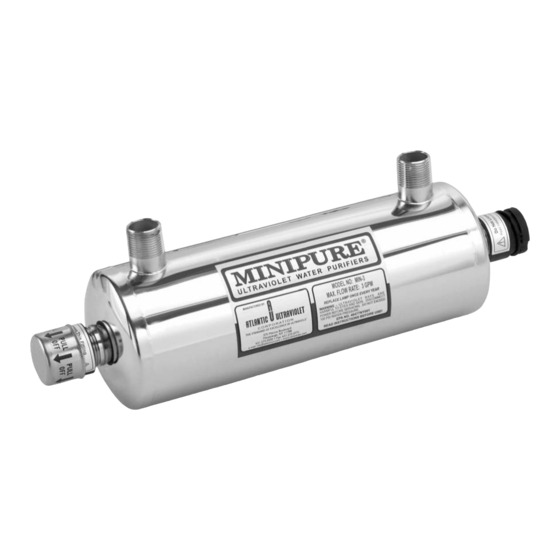

U L T R A V I O L E T W A T E R P U R I F I E R S
Models
MIN-1
MIN-1.5
MIN-3
Read and Follow All Safety Instructions. Save These Instructions.
SINCE 1963
Manufacturers / Engineers / Sales / Service
Germicidal Ultraviolet - Equipment & Lamps
Extensive Product Information Available at:
ultraviolet.com
Document No. 98-1522D • February 2015 • ©2015 Atlantic Ultraviolet Corporation
Ballast
120v 50/60 Hz
230v 50/60Hz
10-0508B
10-0508B
10-0508B
Installation
Installation,
Operation
& Maintenance
®
Ballast
10-0504B
10-0504B
10-0504B
®
1
Advertisement
Table of Contents
Related Manuals for Atlantic Ultraviolet MINIPURE MIN-1.5
Summary of Contents for Atlantic Ultraviolet MINIPURE MIN-1.5

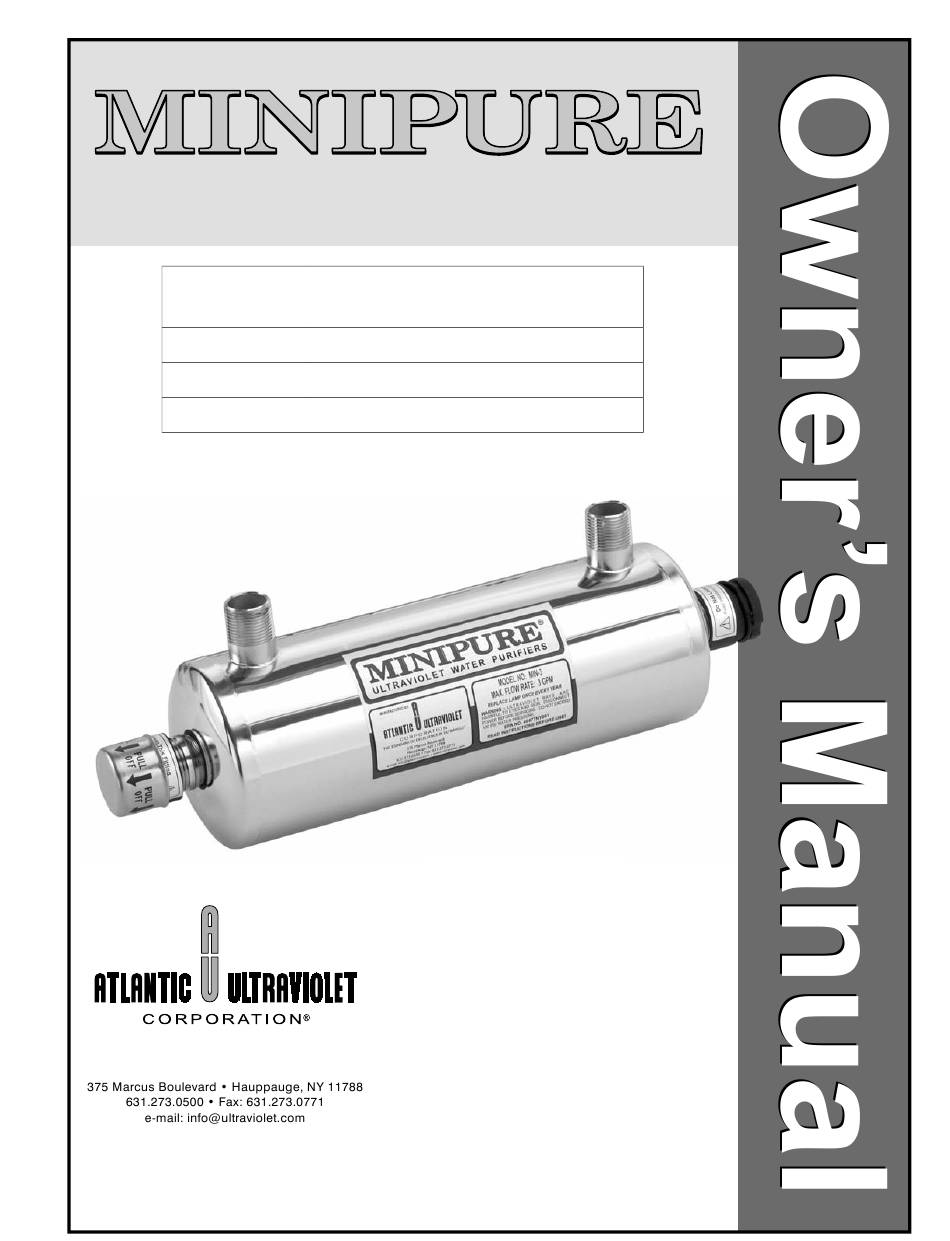

- Page 1 Read and Follow All Safety Instructions. Save These Instructions. Installation, Installation Operation & Maintenance SINCE 1963 Manufacturers / Engineers / Sales / Service Germicidal Ultraviolet - Equipment & Lamps Extensive Product Information Available at: ultraviolet.com Document No. 98-1522D • February 2015 • ©2015 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
MIN-3 Models. Questions that are not specifically answered by these instructions should be directed to the Factory. Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. Carefully inspect and report all damage upon receipt of product. Do not install damaged equipment. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • The water purifier’s chamber is passivated and electropolished type 304 Stainless Steel. • EASY-OFF end caps allow for quick and easy lamp change, without disconnecting from the water supply or draining the purifier. -
Page 5: Installation
INSTALLATION OCATION 1. The water purifier is intended for indoor use only. The water purifier is designed to mount horizontally. The water purifier should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be between 35 F and 100 2. -
Page 6: Dimensional Data
IMENSIONAL Figure 2 - MIN-1 and MIN-1.5 Dimensional Drawing MIN-3 Dimensional Drawing Table 2 - MINIPURE Dimensional Data ® Model Inlet/Outlet MIN-1 7-1/8” 10-7/8” 3-1/8” 2-1/2” 10-3/8” 3-5/8” 1/4”FNPT MIN-1.5 10-1/8” 15-13/32” 3-1/8” 2-1/2” 14-15/16” 3-5/8” 1/4”FNPT MIN-3 8-3/4” 16-17/32” 5-3/4”... -
Page 7: Installation : 120 V 50/60H Z ( Ballast No .10-0508B)
: MIN-1, MIN-1.5, MIN-3 120 50/60H .10-0508B / NSTALLATION Z USING BALLAST NO 50/60H .10-0504B Z USING BALLAST NO SAFETY EQUIPMENT REQUIRED TO PERFORM TASK 1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there is any damage to the purifier, power cord or plug. -
Page 8: Recommended Options
Gloves: Gloves should be worn to offer hand protection from sharp threats like glass, wire, and metal. NOTE: The recommended options above are available from Atlantic Ultraviolet Corporation or a distributor of Atlantic Ultraviolet Corporation’s products. For the other devices that may be required for your application, please contact your... -
Page 9: Maintenance
MAINTENANCE The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary maintenance consists of; • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •... -
Page 10: Amp Nstallation Or
MIN-1, MIN-1.5, MIN-3 NSTALLATION OR EPLACEMENT 50/60H .10-0508B / 230 50/60H .10-0504B Z USING BALLAST NO Z USING BALLAST NO Figure 4 - Lamp Replacement Step 1 - Disconnect Power to Water Purifier and Remove Ground Connector Step 2 - Remove End-Cap Step 3 - Remove Socket Step 4 - Remove Lamp SAFETY EQUIPMENT REQUIRED TO PERFORM TASK... -
Page 11: Quartz Sleeve Installation Cleaning Or Replacement
UARTZ LEEVE NSTALLATION LEANING OR EPLACEMENT Figure 5 - Quartz Sleeve Installation, Cleaning or Replacement 120v 50/60Hz (ballast no. 10-0508B) or 230v 50/60Hz (ballast no. 10-0504B) 120v (shown) 120v (shown) 120v (shown) Step 4 - Remove Gland Nuts Step 5 - Remove Washer & O-Rings Step 6 - Remove Quartz Sleeve SAFETY EQUIPMENT REQUIRED TO PERFORM TASK WARNING: Disconnect power to water purifier. -
Page 12: Replacement Of Broken Quartz Sleeve
EPLACEMENT OF ROKEN UARTZ LEEVE SAFETY EQUIPMENT REQUIRED TO PERFORM TASK CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. WARNING: Disconnect power to water purifier. • For 120v 50/60Hz version using ballast no. 10-0508B or 230v 50/60Hz version using ballast no. 10-0504B remove the ground connector from the chamber, and go to the next step. -
Page 13: Troubleshooting
TROUBLESHOOTING WARNING: Always disconnect power to the water purifier before performing any service or maintenance. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 3 - Troubleshooting Problem Possible Cause Corrective Action Verify that the purifier is connected to a live power Purifier not operating No electrical power.. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Table 4 - Technical Specifications Model: MIN-1 MIN-1.5 MIN-3 Flow Rate (GPM): Inlet\Outlet Size: 1/4”FNPT 1/4”FNPT 3 /4”MNPT Number of Lamps: Lamp Model No.: 05-1119-R 05-1366-R 05-1366-R Length: 10-7/8” 15-13/32” 16-17/32” Width: 2-1 /2” 2-1/2” 4-1/4” Height: 3-5/8” 3-5/8”... -
Page 15: Replacement Parts
REPLACEMENT PARTS Figure 6 - Exploded View MIN-1, MIN-1.5, MIN-3 120v 50/60Hz using ballast no. 10-0508B, 230v 50/60Hz using ballast no. 10-0504B Table 5 - Replacement Parts MIN-1, MIN-1.5, MIN-3 120v 50/60Hz (ballast no.10-0508B), 230v 50/60Hz (ballast no.10-0504B) MIN-1 MIN-1.5 MIN-3 Item No. -
Page 16: User Assistance
Under no circumstances shall the Atlantic Ultraviolet Corporation ® be liable for any incidental, consequential or special damages, losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use, our product for any purpose whatsoever.
