Summary of Contents for Atlantic Ultraviolet MIN-1

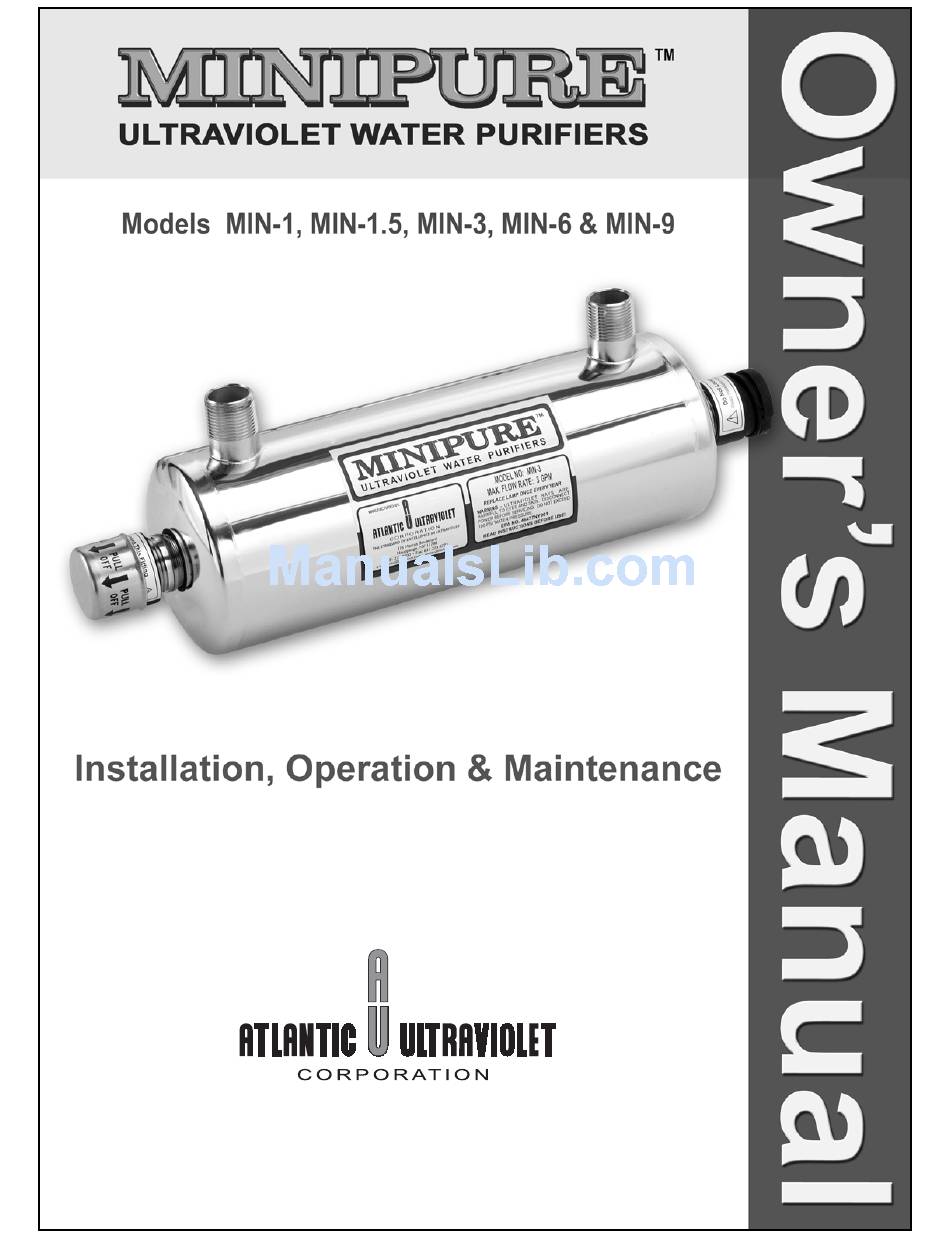

- Page 1 375 Marcus Boulevard • Hauppauge, NY 11788 • USA 631.273.0500 • Fax: 631.273.0771 e-mail: info@ultraviolet.com Extensive Product Information Available at: www.ultraviolet.com Document No. 98-1140A4 • Revised February 2007 • © 1994-2007 Atlantic Ultraviolet Corporation...
-
Page 2: Table Of Contents
ATENT NOTICE These instructions generally describe the installation, operation and maintenance of the MINIPURE ™ line of water purifiers, Models MIN-1, MIN-1.5, MIN-3, MIN-6 and MIN-9. Questions that are not specifically answered by these instructions should be directed to the Factory. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • The water purifier chamber is passivated and electropolished Stainless Steel Type 304. • Easy-off end caps allow for quick and easy lamp change, without disconnecting from the water supply or draining the purifier. -
Page 5: Installation
Filters, Pre-Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This reduces the chance of the purified water being re-contaminated by bacteria in any of these units. IMENSIONAL Figure 1 - MIN-1 & MIN-1.5 Dimensional Drawing Figure 2 - MIN-3, MIN-6 & MIN-9 Dimensional Drawing Table 2 - MINIPURE ™ Dimensional Data... -
Page 6: Nstallation
NSTALLATION 1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there is any damage to the purifier, power cord or plug. All models, of the MINIPURE line of water purifiers, are shipped with the lamps packed separately. -
Page 7: Recommended Options
ECOMMENDED PTIONS Sentry™ Safety Sensor: Pilot lamps provide constant visual monitoring of normal operation. In the event of power or lamp failure the safety sensor indicates an alarm condition. The safety sensor is capable of operating an optional audio alarm and/or solenoid valve. Audio Alarm: Activated by the Safety Sensor, alerts the user to any malfunction detected. -
Page 8: Lamp Installation Or Replacement
NSTALLATION OR EPLACEMENT Figure 2 - Lamp Replacement Step 1 - Remove Ground Connector Step 2 - Remove End-Cap Step 3 - Remove Socket Step 4 - Remove Lamp Disconnect power to water purifier, and remove ground connector from the chamber. Remove easy-off end cap by pulling cap off static gland nut. -
Page 9: Quartz Sleeve Cleaning Or Replacement
UARTZ LEEVE LEANING OR EPLACEMENT Figure 3 - Quartz Sleeve Cleaning or Replacement Step 4 - Remove Gland Nuts Step 5 - Remove Washer & O-Ring Step 6 - Remove Quartz Sleeve 1. Disconnect power to water purifier, and remove ground connector from the chamber. 2. -
Page 10: Replacement Of Broken Quartz Sleeve
EPLACEMENT OF ROKEN UARTZ LEEVE CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling broken quartz sleeves. Disconnect power to water purifier, and remove ground connector from the chamber. Shut off water supply to water purifier via inlet and outlet shut off valves and drain chamber, if possible. Follow the steps in “LAMP INSTALLATION OR REPLACEMENT”... -
Page 11: Troubleshooting
TROUBLESHOOTING CAUTION: Always disconnect power to the water purifier, before performing any service. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 2 - Troubleshooting Problem Possible Cause Corrective Action No electrical power… Verify that the purifier is connected to a live power source. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Table 3 - Technical Specifications MODEL: MIN-1 MIN-1.5 MIN-3 MIN-6 MIN-9 Flow Rate (GPM): Inlet\Outlet Size: "f NPT "f NPT "m NPT "m NPT "m NPT Number of Lamps: Lamp Model No.: GPH212T5L/4 GPH287T5L/4 GPH287T5L/4 GPH436T5L/4 GPH620T5L/4 Length: "... -
Page 13: Optional Accessories
Please specify. Consult Factory for 12v DC or other special input power requirements. Table 6 - Optional Accessories Optional Accessories Available for: Sentry™ Safety Sensor Min-1 through Min-9 Audio Alarm Min-1 through Min-9 Universal Bracket Kit Min-1 through Min-9 Time Delay Mechanism... -
Page 14: Replacement Parts
REPLACEMENT PARTS MINIPURE ™ MODELS MIN-1 & MIN-1.5 Figure 5 - Exploded View MIN-1 & MIN-1.5 Table 4 - Replacement Parts MIN-1 & MIN-1.5 ITEM MODEL DESCRIPTION QUANTITY MIN-1 MIN-1.5 Rubber O-ring, Static Gland 00-1108B 00-1108B Lamp Socket & Ballast, 120v 60Hz... -
Page 15: Minipure ™ Models Min-3, Min-6 & Min-9
MINIPURE ™ MODELS MIN-3, MIN-6 & MIN-9 Figure 6 - Exploded View MIN-3, MIN-6 & MIN-9 Table 5 - Replacement Parts MIN-3, MIN-6 & MIN-9 ITEM MODEL DESCRIPTION QUANTITY MIN-3 MIN-6 MIN-9 Lamp Socket & Ballast, 10-0010B 10-0015B 10-0092B 120v 60Hz Lamp Socket &... -
Page 16: User Assistance
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions on any labels or tags.
