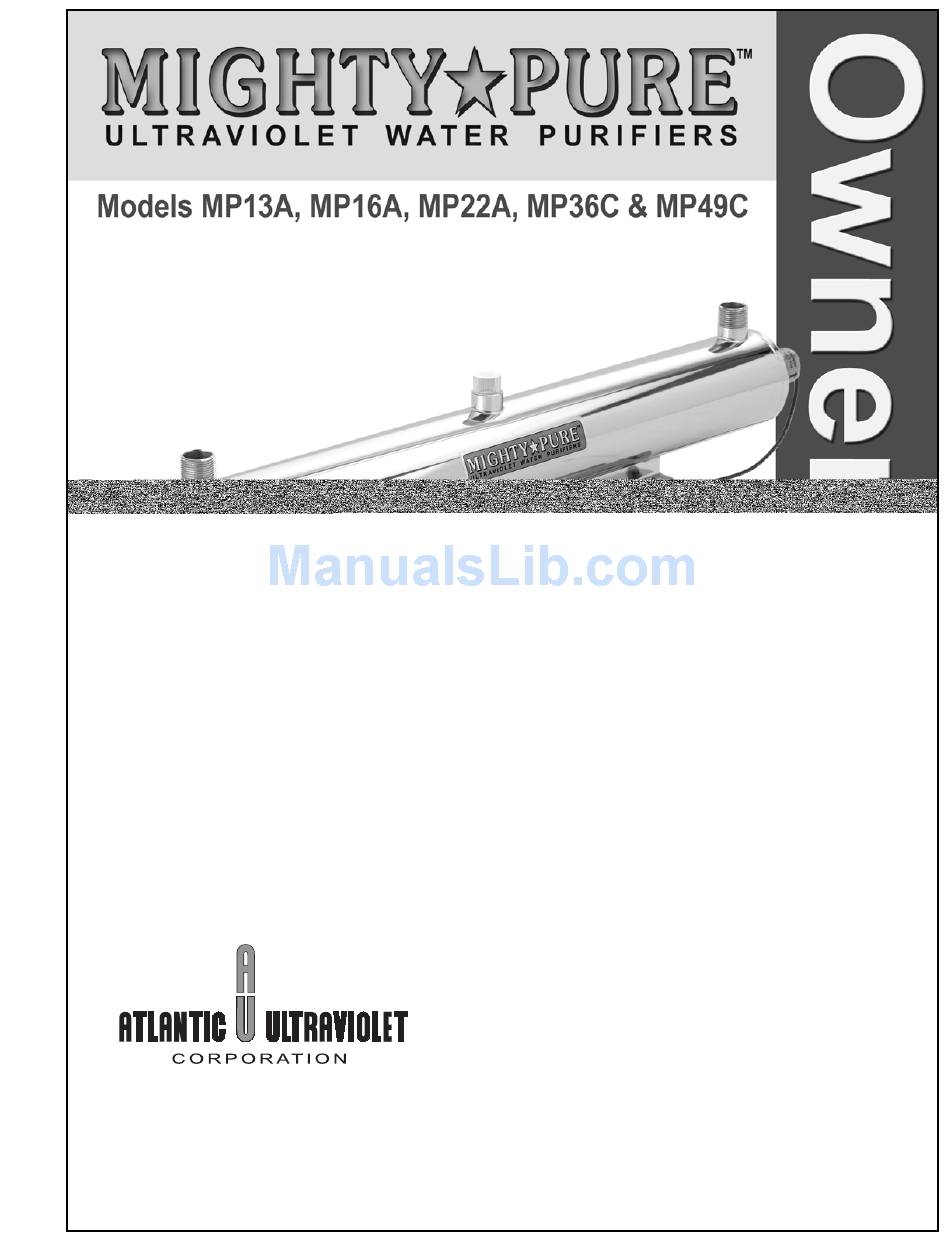

- Page 1 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: www.ultraviolet.com Document No. 98 -1123E1 • Revised February 2007 • © 1994-2007 Atlantic Ultraviolet Corporation...
-
Page 2: Table Of Contents
ATENT NOTICE These instructions generally describe the installation, operation and maintenance of the Mighty Pure™ line of water purifiers, Models MP13A, MP16A, MP22A, MP36C and MP49C. Questions that are not specifically answered by these instructions should be directed to the Factory. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • A drain port on the chamber aids in draining of the purifier. • The water purifier chamber is passivated and electropolished type 316 Stainless Steel. • The ballast housing is a combination of Stainless Steel Type 304 and Aluminum Alloy. •... -
Page 5: Installation
10" " " " " "m NPT MP22A " 22" " " " " " " "m NPT MP36C " 36" 16" 18" " " " " 1"m NPT MP49C " 49" 26" 30" " " " " "m NPT... -
Page 6: Nstallation
Models MP13A through MP22A are shipped with the lamps already installed, while the MP36C and MP49C lamps are packed separately. Keep the lamp aside for installation once the purifier has been properly installed. -
Page 7: Recommended Options
ECOMMENDED PTIONS 1 . Guardian™ Ultraviolet Monitor: Visually indicates the level of germicidal ultraviolet energy that penetrates the quartz sleeve and the water within the water purifier. The ultraviolet monitor is capable of operating an optional audio alarm and/or solenoid valve. The ultraviolet monitor will detect reduction of ultraviolet levels due to: •... -
Page 8: Maintenance
MAINTENANCE The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary mainte- nance consists of; • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •... -
Page 9: Lamp Installation Or Replacement
NSTALLATION OR EPLACEMENT Figure 3 - Lamp Replacement Step 2 - Remove End-Cap Step 3 - Withdraw Lamp Step 4 & 5 - Remove Sockets Step 6 - Remove Lamp Disconnect power to water purifier. Remove both easy-off end caps by pulling each cap off static gland nut. Slide each end cap along the wire away from the socket. -
Page 10: Quartz Sleeve Cleaning Or Replacement
UARTZ LEEVE LEANING OR EPLACEMENT Figure 4 - Quartz Sleeve Cleaning or Replacement Step 4 - Remove Gland Nuts Step 5 - Remove Washer & O-Ring Step 6 - Remove Quartz Sleeve Disconnect power to water purifier. Shut off water supply to water purifier via inlet and outlet shut off valves. Drain chamber by removing drain plug. -
Page 11: Replacement Of Broken Quartz Sleeve
• On Mighty Pure™ Models MP36C, and MP49C , the ballast housing is mounted to the purifier chamber using four (4) 1/4"-20 x 3/8" long hex head bolts. Using a 7/16" wrench or an adjustable wrench, carefully remove the four (4) bolts with the lock and flat washers, from along the top of the ballast housing, and set aside. -
Page 12: Optional Guardian ™ Ultraviolet Monitor Sensor Probe Cleaning
™ ™ U PTIONAL UARDIAN LTRAVIOLET ONITOR ENSOR ROBE LEANING Figure 5 - Ultraviolet Monitor and Sensor Probe If after cleaning the quartz sleeve, there is no significant improvement in the ultraviolet intensity, as shown on the intensity meter, it may be necessary to clean the Ultraviolet Monitor's sensor probe. The sensor probe body mounts in a fitting, located in the center of the disinfection chamber, and protrudes into the chamber. -
Page 13: Troubleshooting
TROUBLESHOOTING CAUTION: Always disconnect power to the water purifier, before performing any service. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 3 - Troubleshooting Problem Possible Cause Corrective Action No electrical power… Verify that the purifier is connected to a live power source. Ballast Disconnect the purifier from utility power. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Table 4 - Technical Specifications Model: MP13A MP16A MP22A MP36C MP49C Flow Rate (GPM): " m NPT " m NPT " m NPT " m NPT " m NPT Inlet\Outlet Size: Number of Lamps: Lamp Model No.: GPH212T5L... -
Page 15: Optional Accessories
Please specify. Consult Factory for 12v DC or other special input power requirements. Table 5 - Optional Accessories Optional Accessories Available for: Guardian™ Ultraviolet Monitor - Analog/Digital MP13A through MP49C Sentry™ Safety Sensor MP13A through MP49C Steralert™ MP13A through MP49C... -
Page 16: Replacement Parts
REPLACEMENT PARTS Mighty Pure ™ ™ Models MP13A, MP16A & MP22A Figure 6 - Exploded View MP13A, MP16A & MP22A... - Page 17 Table 6 - Replacement Parts MP13A, MP16A & MP22A ITEM MP13A MP16A MP22A DESCRIPTION PART NO. PART NO. PART NO. Easy-Off End Cap 25-1499A1 25-1499A1 25-1499A1 Rubber O-ring, Static Gland 00-1108B 00-1108B 00-1108B Lamp Spacer 25-0208A 25-0208A 25-0208A Lead Wire & Socket 05-1219B2 05-1219B2 05-1219B3...
-
Page 18: Mighty Pure™ Models Mp36C, & Mp49C
REPLACEMENT PARTS Mighty Pure ™ ™ Models MP36C & MP49C Figure 7 - Exploded View MP36C & MP49C... - Page 19 ITEM MP36C MP49C DESCRIPTION PART NO. PART NO. Easy-Off End Cap 25-1499A1 25-1499A1 Rubber O-ring, Static Gland 00-1108B 00-1108B Lamp Spacer 25-0209A Lead Wire & Socket 05-1218A2 05-1218A2 Lamp 05-1343 05-1334 Static Gland Nut 25-1492D 25-1492D ® Teflon 00-100-13710285.242751536(00-1)3(00-1)34A7492D Rubber O-rQuartz Sleevem[ ( 8 )-8167.5(2)-414436238A7.5(0)-3550.1(2)-434436238A7492D 20 9230crew,-1334 TJ 9.5 0 81...
-
Page 20: User Assistance
USER ASSISTANCE Atlantic Ultraviolet Corporation Please read and become familiar Atlantic Ultraviolet Corporation 375 Marcus Boulevard makes every effort to ensure that with the contents of this manual Hauppauge, New York, 11788 before installing or using this unit. the Mighty Pure™ Ultraviolet If after reading the manual you still Water Purifiers are products of Tel: 631.273.0500...
