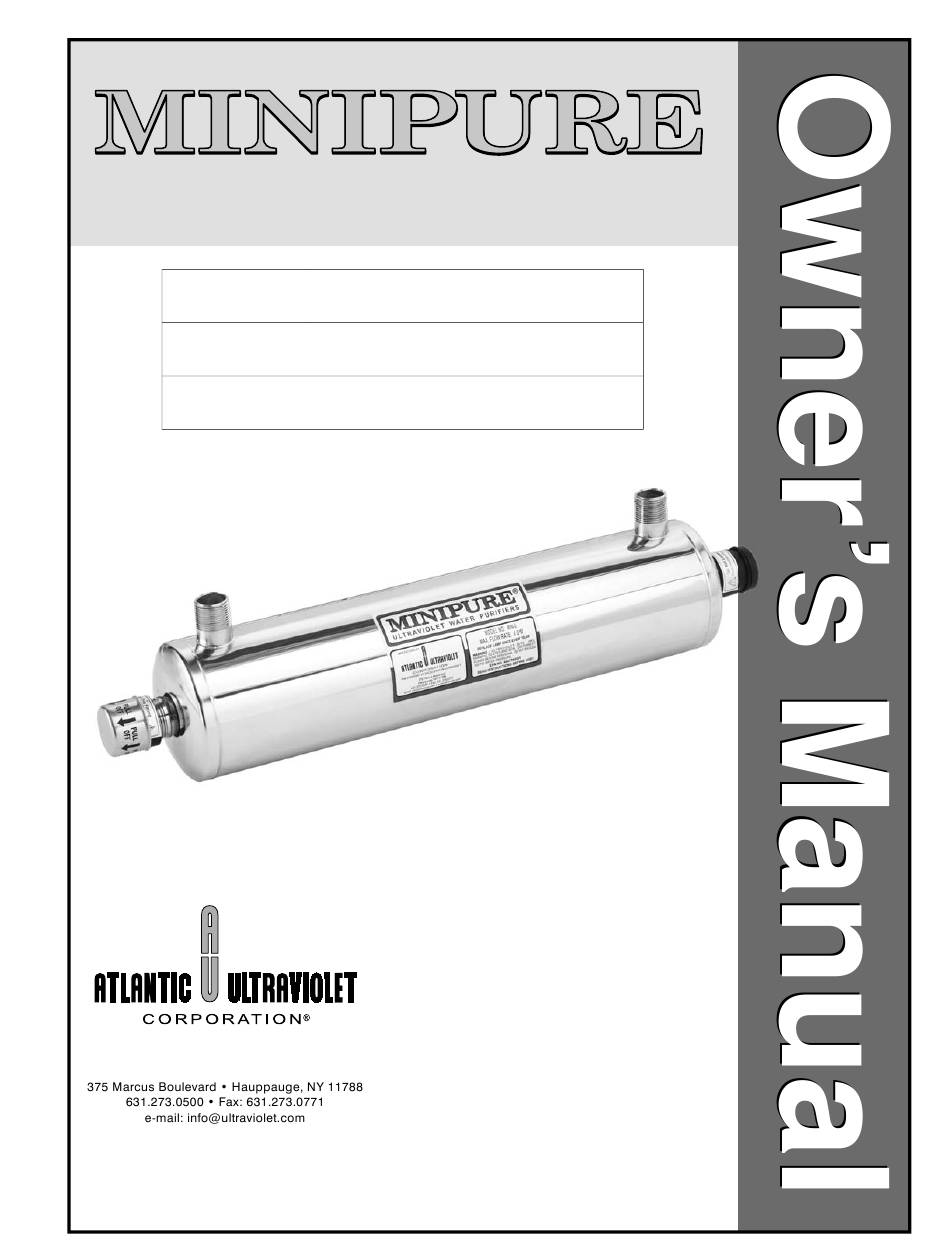

Atlantic Ultraviolet MINIPURE MIN-6 Owner's Manual

Hide thumbs Also See for MINIPURE MIN-6:
Table of Contents

Advertisement

Quick Links

Download this manual
U L T R A V I O L E T W A T E R P U R I F I E R S
Models
MIN-6
MIN-9
Read and Follow All Safety Instructions. Save These Instructions.
SINCE 1963
Manufacturers / Engineers / Sales / Service
Germicidal Ultraviolet - Equipment & Lamps
Extensive Product Information Available at:
ultraviolet.com
Document No. 98-1505B2 • December 2014 • ©2014 Atlantic Ultraviolet Corporation
Ballast
120v 50/60 Hz
230v 50/60Hz
10-0508B
10-0508B
Installation
Installation,
Operation
& Maintenance
®
Ballast
10-0504A
10-0504A
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINIPURE MIN-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantic Ultraviolet MINIPURE MIN-6

Summary of Contents for Atlantic Ultraviolet MINIPURE MIN-6

  • Page 1 Read and Follow All Safety Instructions. Save These Instructions. Installation, Installation Operation & Maintenance SINCE 1963 Manufacturers / Engineers / Sales / Service Germicidal Ultraviolet - Equipment & Lamps Extensive Product Information Available at: ultraviolet.com ® Document No. 98-1505B2 • December 2014 • ©2014 Atlantic Ultraviolet Corporation...

  • Page 2: Table Of Contents

    SINCE 1963 The information and recommendations contained in this publication are based upon data collected by the Atlantic Ultraviolet Corporation ® and are believed to be correct. However, no guarantee or warranty of any kind, expressed or implied, is made with respect to the information...

  • Page 3: Safety Warnings

    SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property.

  • Page 4: Product Application

    PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • The water purifier’s chamber is passivated and electropolished type 304 Stainless Steel. • EASY-OFF end caps allow for quick and easy lamp change, without disconnecting from the water supply or draining the purifier.

  • Page 5: Installation

    INSTALLATION OCATION The water purifier is intended for indoor use only. The water purifier is designed to mount horizontally. The water purifier should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be between 35 F and 100 2.

  • Page 6: Dimensional Data

    IMENSIONAL Figure 2 - MIN-6 and MIN-9 Dimensional Drawing Table 2 -MIN-6 and MIN-9 Dimensional Data Model Inlet/Outlet MIN- 6 14-3/4” 22-17/32” 5-3/4” 4-1/4” 22” 5-3/8” 3/4”m NPT MIN-9 21-7/8” 29-17/32” 5-3/4” 4-1/4” 29” 5-3/8” 3/4”m NPT All specifications, dimensional data, etc. are approximate and subject to change without notice.

  • Page 7: Recommended Installation

    ECOMMENDED NSTALLATION Figure 3 - Recommended Installation Elbow COMMON Cold Water Line OPTIONAL EQUIPMENT PRE-TREATMENT or Flow Control Valve PUMPING DEVICES POINT OF USE (POU) Incoming  Ultraviolet Water Purifiers  1. Deionizer Water Elbow should be installed closest 2. Water Softener Supply to the point of use.
  • Page 8 : MIN-6 MIN-9 120 50/60H .10-0508B NSTALLATION Z USING BALLAST NO SAFETY EQUIPMENT REQUIRED TO PERFORM TASK Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there ® is any damage to the purifier, power cord or plug. All models, of the MINIPURE line of water purifiers, are shipped with the lamps packed separately.

  • Page 9: Installation: 230V 50/60Hz (Ballast No.10-0504A)

    11. Once the plumbing hook ups are made, it is a good practice to disinfect the “downstream” plumbing between the purifier and point of use. This is done by introducing chlorine or other disinfectant solution directly into the purifier chamber, a 100- ppm of chlorine is suggested.

  • Page 10: Grounding Kit Installation : 230 V 50/60H Z ( Ballast No .10-0504A)

    : MIN-6 MIN-9 230 50/60H ROUNDING NSTALLATION .10-0504A USING BALLAST NO ® 10. Ground Kits are shipped with each MINIPURE Model MIN-6 and MIN-9 230v 50/60Hz water purifier using ballast 10-0504A and is used to permanently connect a ground wire from the water purifier chamber to a known good ground. We recommend checking with local codes or a licensed electrician in your area to determine the best grounding point to attach the ground kit for your installation.
  • Page 11 11. Wrap the copper strap tight around the pipe or metal grounding rod with the sharp edges of the strap facing towards the item. 12. While keeping the strap tightly around the pipe or metal ground, align one of the holes in the strap with the long threaded bolt, and tighten using a 7/16”...

  • Page 12: Recommended Options

    Gloves: Gloves should be worn to offer hand protection from sharp threats like glass, wire, and metal. NOTE: The recommended options above are available from Atlantic Ultraviolet Corporation or a distributor of Atlantic Ultraviolet Corporation’s products. For the other devices that may be required for your application, please contact your local water treatment dealer, plumber or plumbing supplier.

  • Page 13: Lamp Nstallation Or

    4. As with any water purifier installation, routine maintenance is necessary to insure your equipment is operating correctly. Regular inspection must also include the inspection of the ground to insure grounding wires are secure to both the water purifier and grounding point as originally installed. Regular inspection must also include confirmation that approved ground fault circuit interrupt (GFCI) receptacle is still operational and that water purifier is plugged into this GFCI.

  • Page 14: Lamp Installation Or Replacement : 230 V 50/60H Z ( Ballast No .10-0504A)

    MIN-6 MIN-9 230 50/60H NSTALLATION OR EPLACEMENT .10-0504A USING BALLAST NO Figure 8 - Lamp Replacement Disconnect Power Step 1 - Disconnect Power to Water Purifier Step 2 - Remove End-Cap Step 3 - Remove Socket Step 4 - Remove Lamp SAFETY EQUIPMENT REQUIRED TO PERFORM TASK WARNING: Disconnect power to water purifier.

  • Page 15: Uartz Leeve Nstallation Leaning Or Eplacement

    MIN-6 MIN-9 UARTZ LEEVE NSTALLATION LEANING OR EPLACEMENT FOR Figure 9 - Quartz Sleeve Installation, Cleaning or Figure 10 - Quartz Sleeve Installation, Cleaning or Replacement 120v 50/60Hz (ballast no. 10-0508B) Replacement 230v 50/60Hz (ballast no. 10-0504A) 120v (shown) 120v (shown) 120v (shown) Step 4 - Remove Gland Nuts Step 5 - Remove Washer &...

  • Page 16: Replacement Of Broken Quartz Sleeve

    EPLACEMENT OF ROKEN UARTZ LEEVE SAFETY EQUIPMENT REQUIRED TO PERFORM TASK CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. WARNING: Disconnect power to water purifier. • For 120v 50/60Hz version using ballast no. 10-0508B, remove the ground connector from the chamber, and go to the next step •...

  • Page 17: Troubleshooting

    TROUBLESHOOTING WARNING: Always disconnect power to the water purifier before performing any service or maintenance. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 3 - Troubleshooting Problem Possible Cause Corrective Action Verify that the purifier is connected to a live power Purifier not operating No electrical power..

  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS Table 4 - Technical Specifications Model: MIN-6 MIN-9 Flow Rate (GPM): Inlet\Outlet Size: 3/4”m NPT 3/4”m NPT Number of Lamps: Lamp Model No.: 05-1370-R 05-0097A Length: 22-17/32” 29-17/32” Width: 4-1/4” 4-1/4” Height: 5-3/8” 5-3/8” Chamber Diameter: 4-1/4” 4-1/4” Shipping Weight: 14 Lbs.

  • Page 19: Replacement Parts

    REPLACEMENT PARTS Figure 11 - Exploded View MIN-6 an MIN-9 120v 50/60Hz using ballast no. 10-0508B (shown) 230v 50/60Hz (ballast no.10-0504A) Grounding Kit Table 5 - Replacement Parts MIN-6 and MIN-9 120v 50/60Hz (ballast no.10-0508B) & MIN-6 230v 50/60Hz (ballast no.10-0504A) Quantity MIN-6 Part No.

  • Page 20: User Assistance

    ® Under no circumstances shall the Atlantic Ultraviolet Corporation be liable for any incidental, consequential or special damages, losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use, our product for any purpose whatsoever.
