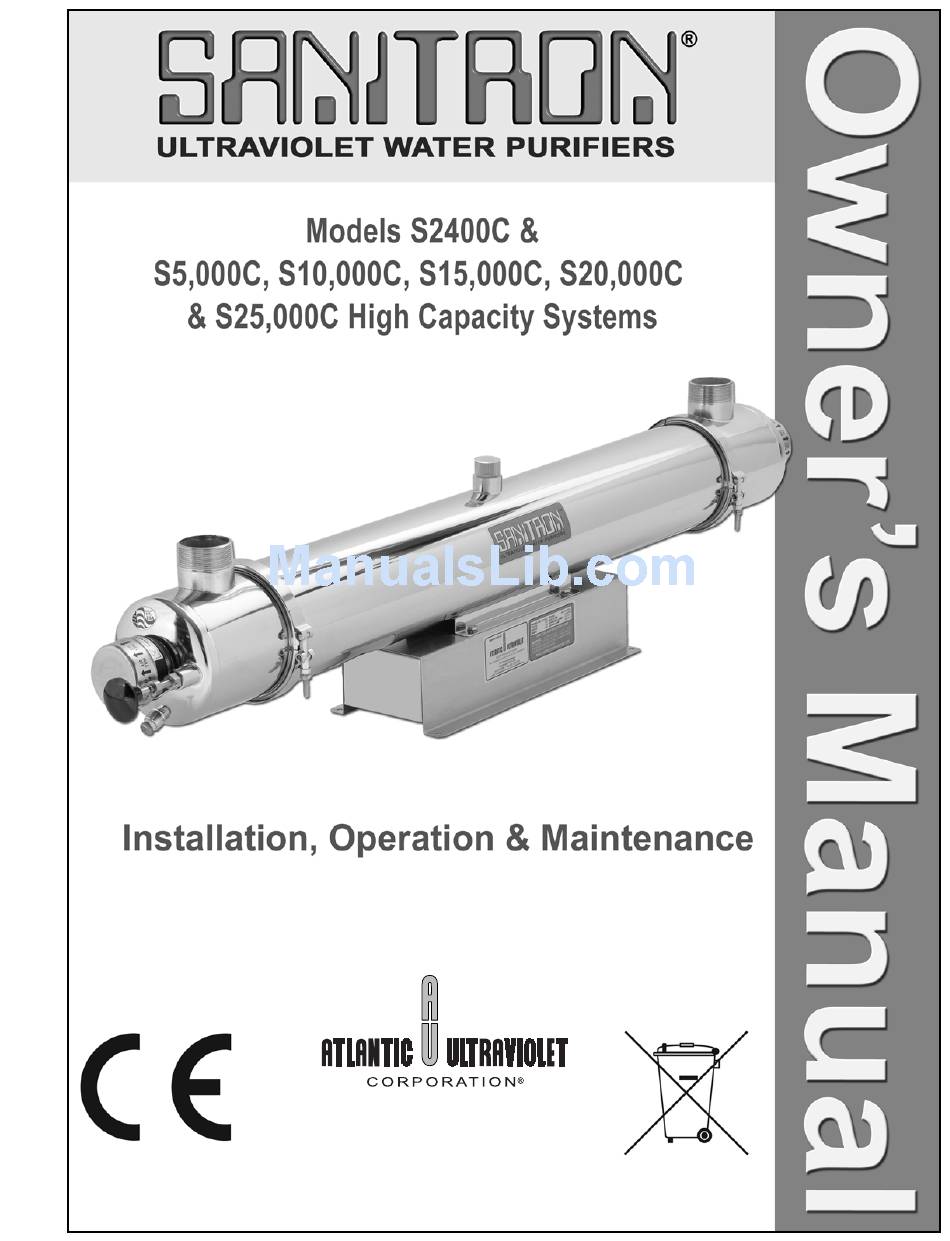

  • Page 1 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: www.ultraviolet.com Document No. 98 -1132D • Revised November 2008 • © 2003-2008 Atlantic Ultraviolet Corporation ®...
  • Page 2: Table Of Contents

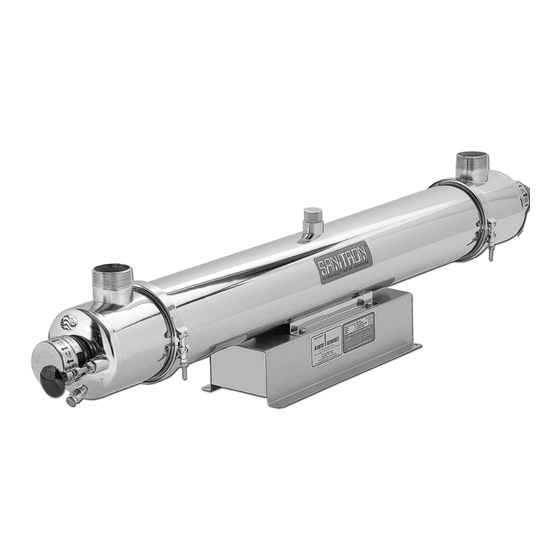

    Model S2400C line of water purifiers. Models S5,000C and S10,000C through S25,000C High-Capacity Systems utilize the Model S2400C single lamp water purifier in various configurations. Questions that are not specifically answered by these instructions should be directed to the Factory.
  • Page 3: Safety Warnings

    SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol.
  • Page 4: Product Application

    PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • The water purifier's dual chamber heads are removable and may be rotated independently, which aids in the installation, maintenance or the retrofitting of an existing system. A drain port on the chamber head aids in the draining of the purifier.
  • Page 5: Installation

    INSTALLATION OCATION 1. The water purifier is intended for indoor use only. The water purifier should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be between 33 F and 100 F. 2.
  • Page 6: Installation

    1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if SANITRON ® Model S2400C is shipped with the lamp packed there is any damage to the purifier, power cord or plug.
  • Page 7: Recommended Options

    Solenoid Valve. 9. Wall Mount Kit: (S2400C) Stainless steel wall brackets provide quick and easy installation and professional finish. Pre-drilled and ready to install. Optimizes free air circulation to cool ballast housing.
  • Page 8: Maintenance

    MAINTENANCE The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary maintenance consists of; • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •...
  • Page 9: Lamp Installation Or Replacement

    NSTALLATION OR EPLACEMENT Figure 3 - Lamp Replacement Step 2 - Remove End-Cap Step 3 - Withdraw Lamp Step 4 & 5 - Remove Sockets Step 6 - Remove Lamp Disconnect power to water purifier. Remove both EASY-OFF™ end caps by pulling each cap off static gland nut. Slide each end cap along the wire away from the socket.
  • Page 10: Quartz

    UARTZ LEEVE EMOVAL LEANING OR EPLACEMENT Figure 5 - Quartz Sleeve Cleaning or Replacement Step 4 - Remove Gland Nuts Step 6 - Remove Quartz Sleeve Step 5 - Remove Washer & O-Ring Disconnect power to water purifier. Shut off water supply to water purifier via inlet and outlet shut off valves. Drain chamber by removing drain plug.
  • Page 11: Replacement Of Broken Quartz Sleeve

    EPLACEMENT OF ROKEN UARTZ LEEVE Figure 6 - Chamber Head Removal 1. Follow the steps in “Quartz Sleeve Removal” to remove lamp and quartz sleeve. 2. To prevent damage to the electrical components, it is necessary to separate the ballast housing from the purifier chamber. SANITRON ®...
  • Page 12: Leaning Of Optional Guardian ™ Ultraviolet Monitor Sensor Probe

    ™ ™ U PTIONAL UARDIAN LTRAVIOLET ONITOR ENSOR ROBE LEANING Figure 7 - Ultraviolet Monitor and Sensor Probe If after cleaning the quartz sleeve, there is no significant improvement in the ultraviolet intensity, as shown on the intensity meter, it may be necessary to clean the Ultraviolet Monitor's sensor probe. The sensor probe body mounts in a fitting, located in the center of the disinfection chamber, and protrudes into the chamber.
  • Page 13: Troubleshooting

    TROUBLESHOOTING CAUTION: Always disconnect power to the water purifier, before performing any service. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Table 3 - Troubleshooting Problem Possible Cause Corrective Action Purifier not operating. No electrical power… Verify that the purifier is connected to a live power source.
  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS Table 4 - Technical Specifications Model: S2400C S5,000C S10,000C S15,000C S20,000C S25,000C Flow Rate (GPM): Flow Rate (GPH): 2400 5,000 10,000 15,000 20,000 25,000 Inlet\Outlet Size: 2"m NPT 2"m NPT 2"m NPT 2"m NPT 2"m NPT 2"m NPT Number of Lamps: Lamp Model No.:...
  • Page 15: Replacement Parts

    REPLACEMENT PARTS S S A A N N I I T T R R O O N N ® Model S2400C Figure 8 - Exploded View S2400C...
  • Page 16: Replacement Parts

    Table 5 - Replacement Parts S2400C CE/RoHS 120v/60Hz 220-240v/50Hz 220-240v Item No. Description Part No. Part No. Part No. EASY-OFF™ End Cap 25-0389A 25-0389A 25-0389A Rubber O-ring, Static Gland 00-0085A 00-0085A 00-0085A Lead Wire & Socket 05-1220A 05-1220A 05-2400A Static Gland Nut...
  • Page 17: High Capacity Systems

    SANITRON ® HIGH CAPACITY SYSTEMS DIMENSIONAL DATA Figure 9 - S2400C& S5,000C Dimensional Data...
  • Page 18: Dimensional Data S10,000C, S15,000C, S20,000C & S25,000C

    DIMENSIONAL DATA Figure 10 - S10,000C, S15,000C, S20,000C, S25,000C Dimensional Data...
  • Page 20: Warranty

    Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions on any labels or tags.

This manual is also suitable for:

S5,000cS10,000cS15,000cS25,000cS20,000c
