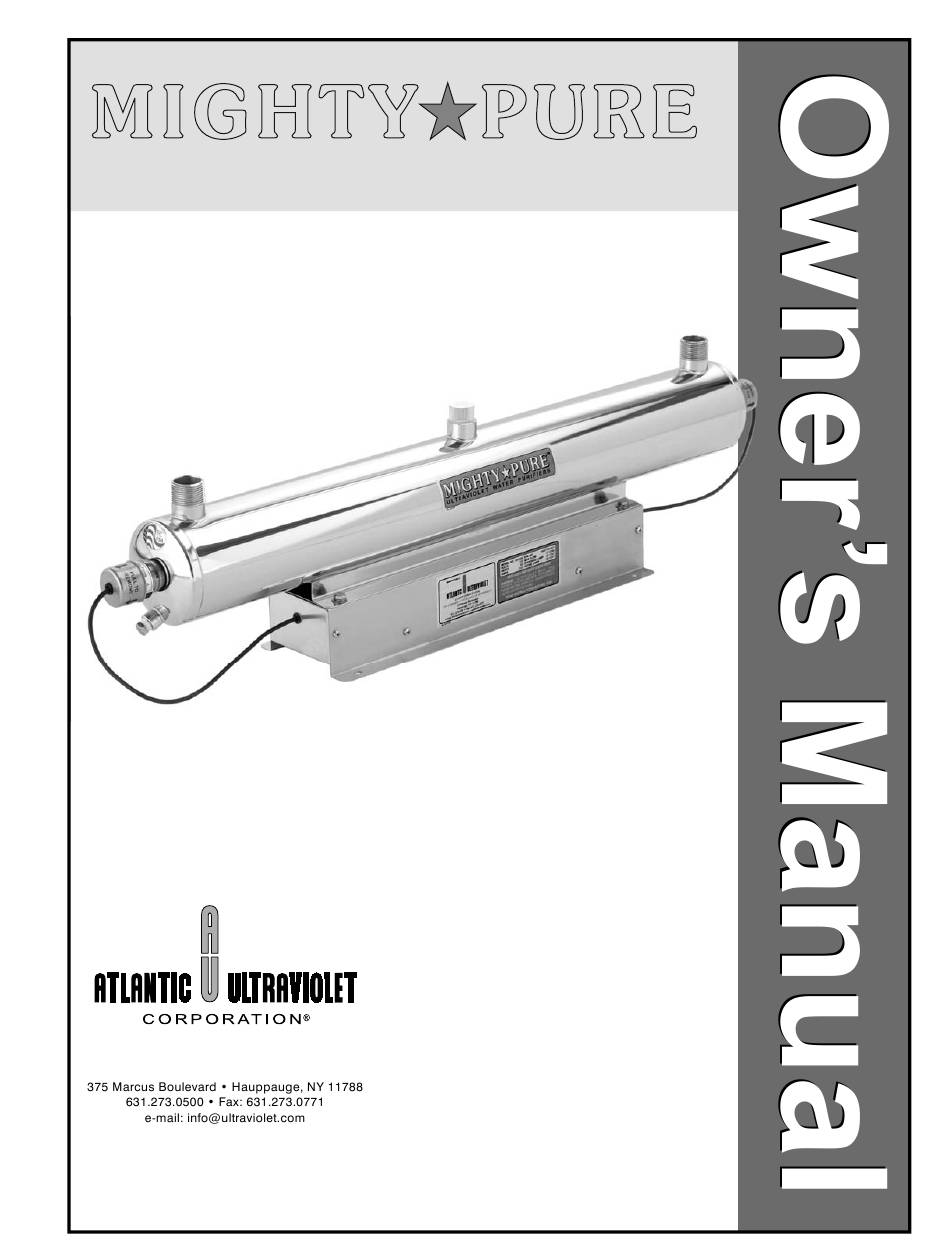

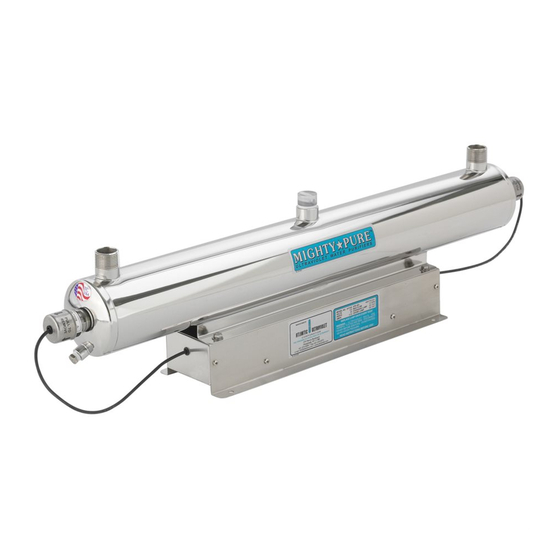

Atlantic Ultraviolet MIGHTY PURE MP16A Owner's Manual
Hide thumbs
Also See for MIGHTY PURE MP16A:
- Owner's manual (20 pages) ,
- Owner's manual (20 pages) ,
- Owner's manual (24 pages)
Table of Contents
Advertisement
Quick Links
MIGHTY PURE
U L T R A V I O L E T W A T E R P U R I F I E R S
Models MP16A, MP22A, MP36C & MP49C
Read and Follow All Safety Instructions. Save These Instructions.
SINCE 1963
Manufacturers / Engineers / Sales / Service
Germicidal Ultraviolet - Equipment & Lamps
Extensive Product Information Available at:
ultraviolet.com
Document No. 98-1376C • October 2015 • ©2015 Atlantic Ultraviolet Corporation
Installation,
Operation
& Maintenance
®
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlantic Ultraviolet MIGHTY PURE MP16A
Summary of Contents for Atlantic Ultraviolet MIGHTY PURE MP16A
- Page 1 Read and Follow All Safety Instructions. Save These Instructions. Installation, Operation & Maintenance SINCE 1963 Manufacturers / Engineers / Sales / Service Germicidal Ultraviolet - Equipment & Lamps Extensive Product Information Available at: ultraviolet.com Document No. 98-1376C • October 2015 • ©2015 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
® Models MP16A, MP22A, MP36C and MP49C. Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. Carefully inspect and report all damages. Do not install damaged equipment. Follow all instructions on any labels or tags. Carefully inspect all packing materials before discarding to prevent the loss of accessories, mounting hardware, spare parts or instructions. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION • The water purifi er is designed to mount horizontally. • A drain port on the chamber aids in draining of the purifi er. • The water purifi er’s chamber and chamber head are passivated and electropolished type 316 Stainless Steel. •... -
Page 5: Installation
INSTALLATION OCATION 1. The water purifi er is intended for indoor use only. The water purifi er is designed to mount horizontally. The water purifi er should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area surrounding the water purifi... -
Page 6: Nstallation
NSTALLATION SAFETY EQUIPMENT REQUIRED TO PERFORM TASK Remove water purifi er from shipping carton. Inspect water purifi er, power cord and plug for damage. Do not operate if there is any damage to the purifi er, power cord or plug. Models MP16A through MP22A are shipped with the lamp already installed, while the lamp in the MP36C and MP49C is packed separately. -
Page 7: Initial Installation Of Quartz Sleeve Model Mp49C
CAUTION: Plug water purifi er into approved ground fault circuit interrupt (GFCI) receptacle. Confi rm lamp operation indication at sight port. 11. Once the plumbing hook ups are made, it is a good practice to disinfect the “downstream” plumbing between the purifi er and point of use. - Page 8 Figure 3 - Initial Installation of Quartz Sleeve...
-
Page 9: Recommended Options
12. Gloves: Gloves should be worn to offer hand protection from sharp threats like glass, wire, and metal. NOTE: The recommended options above are available from Atlantic Ultraviolet Corporation or a distributor of Atlantic Ultraviolet Corporation’s products. For the other devices that may be required for your application, please contact your... -
Page 10: Maintenance
MAINTENANCE The water purifi er is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary maintenance consists of; • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •... -
Page 11: Lamp Installation Or Replacement
NSTALLATION OR EPLACEMENT Figure 4 - Lamp Replacement Step 2 - Remove End -Cap Step 3 - Withdraw Lamp Step 4 & 5 - Remove Sockets Step 6 - Remove Lamp SAFETY EQUIPMENT REQUIRED TO PERFORM TASK WARNING: Disconnect power to water purifi er. 2. -
Page 12: Quartz Sleeve Installation Cleaning Or Replacement
UARTZ LEEVE NSTALLATION LEANING OR EPLACEMENT Figure 5 - Quartz Sleeve Installation, Cleaning or Replacement Step 4 - Remove Gland Nuts Step 5 - Remove Washer & O-Ring Step 6 - Remove Quartz Sleeve SAFETY EQUIPMENT REQUIRED TO PERFORM TASK WARNING: Disconnect power to water purifi... -
Page 13: Replacement Of Broken Quartz Sleeve
EPLACEMENT OF ROKEN UARTZ LEEVE SAFETY EQUIPMENT REQUIRED TO PERFORM TASK CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. WARNING: Disconnect power to water purifi er. Shut off water supply to water purifi er via inlet and outlet shut off valves. -
Page 14: Optional Guardian
PTIONAL UARDIAN LTRAVIOLET ONITOR ENSOR ROBE LEANING Figure 6 - Ultraviolet Monitor and Sensor Probe Figure 7 - Sensor Probe If after cleaning the quartz sleeve, there is no signifi cant improvement in the ultraviolet intensity, as shown on the intensity meter, it may be necessary to clean the Ultraviolet Monitor’s sensor probe. -
Page 15: Troubleshooting
TROUBLESHOOTING WARNING: Always disconnect power to the water purifi er before performing any service or maintenance. IMPORTANT: This unit is to be serviced ONLY by qualifi ed, and appropriately licensed, personnel. Table 3 - Troubleshooting Problem Possible Cause Corrective Action Verify that the purifi... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Table 4 - Technical Specifi cations Model: MP16A MP22A MP36C MP49C Flow Rate (GPM): Inlet\Outlet Size: 3/4”m NPT 3/4”m NPT 1”m NPT 1-1/2”m NPT Number of Lamps: Lamp Model No.: 05-1098-R 05-1097-R 05-1343-R 05-1334-R Length: 16-1/2” 22-1/2” 36-1/2” 49-1/2”... -
Page 17: Optional Accessories
OPTIONAL ACCESSORIES Table 5 - Optional Accessories Most optional accessories are Optional Accessories Available For: available for operation at 120v 60Hz Guardian™ Ultraviolet Monitor - Analog/Digital MP16A through MP49C or 220v 50Hz. Please specify. Consult Factory for 12v DC or other Sentry™... -
Page 18: Replacement Parts
REPLACEMENT PARTS MightyPure MP16A & MP22A ® ODELS Figure 8 - Exploded View MP16A & MP22A... - Page 19 Table 6 - Replacement Parts MP16A & MP22A MP16A MP22A Item No. Description Quantity Part Number Quantity Part Number Easy-Off End Cap 25-1499A1 25-1499A1 O-Ring, Static Gland 00-1108B 00-1108B Lamp Spacer 25-0210A 25-0210A Lead Wire & Socket 05-1219B2 05-2223A Lamp 05-1098-R 05-1097-R Static Gland Nut...
-
Page 20: MightyPure ® Models Mp36C & Mp49C
MightyPure MP36C & MP49C ® ODELS Figure 9 - Exploded View MP36C &MP49C... - Page 21 Table 7 - Replacement Parts MP36C &MP49C MP36C MP49C Item No. Description Quantity Part Number Quantity Part Number Easy-Off End Cap 25-1499A1 25-1499A1 O-Ring, Static Gland 00-1108B 00-1108B Lamp Spacer 25-0209A Lead Wire & Socket 05-1218A2 05-1218A2 Lamp 05-1343-R 05-1334-R Static Gland Nut 25-1492D 25-1492D...
-
Page 22: Maintenance Notes
MAINTENANCE NOTES... - Page 23 MAINTENANCE NOTES...
-
Page 24: User Assistance
Under no circumstances shall the Atlantic Ultraviolet Corporation ®...
